Onkyo TX-8220 Stereo Receiver
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Onkyo TX-8220 Stereo Receiver
Universal connectivity meets pure analog amplification in a simple hub that sounds a whole lot better than its modest price suggests. All the essentials are covered with digital audio inputs for TV and BD/DVD player connection, along with four analog line-level inputs for CD player and everything else.
Technical Specifications
| Specification | Details |
|---|---|
| Power Output | 100 W/Ch Stereo (6 Ω, 1 kHz, 10%, 1 Channel Driven, IEC) |
| DAC | 192 kHz/24-bit PCM1754 Digital-to-Analog Converter |
| Bluetooth | Version 4.1 (A2DP/AVRCP) with Standby and Auto Connect |
| Radio Tuners | DAB+ and FM/RDS with 40-Station Memory Presets |
| Digital Inputs | 2 (1 Optical, 1 Coaxial) |
| Analog Inputs | 4 RCA Inputs + 1 Line Output |
| Phono Input | MM (Moving Magnet) Equalizer for Turntables |
| Subwoofer Output | Pre-Out (RCA) |
| Speaker Outputs | Two Pairs with Screw Knobs (A/B Drive) |
| Headphone Jack | 6.35 mm (1/4 inch) |
| Amplifier Technology | WRAT (Wide Range Amplifier Technology) with Hi-Current EI Transformer |
| Weight | 9 kg |
| Model Number | TX-8220 |
| Manufacturer | Onkyo |
With Hi-fi Power On Tap, the TX-8220 Offers You More
Universal connectivity meets pure analog amplification in a simple hub that sounds a whole lot better than its modest price suggests. All the essentials are covered with digital audio inputs for TV and BD/DVD player connection, along with four analog line-level inputs for CD player and everything else. But the TX-8220 also takes value up a notch with MM phono input for turntable, DAB+ and FM/RDS radio tuners with 40 presets, and built-in Bluetooth® technology. A few taps on a touchscreen, trackpad, or mouse has music from apps flowing out of your loudspeakers thanks to Auto Connect. See how bass, treble, and balance controls, speaker A/B Drive, and subwoofer pre-out let you calibrate tone to suit unique speakers, customize a multi-zone setup, and enhance LFEs in film soundtracks. Boasting clean, minimal design with maximum versatility, the TX-8220 is great value.
Key Features
- Bluetooth® Transforms Mobile Audio Into Room-filling Sound
- FM/DAB+ Tuner with 40 Memory Presets
- Connects Your Turntable, CD Player, TV, and Media Streamer
- Rich and Powerful Sound
- High Current and Low Impedance Architecture
Advanced Features
- 100 W/Ch Stereo Power (6 Ω, 1 kHz, 10%, 1 Channel Driven, IEC)
- Stream from Mobiles, Smartphones, Tablets, Laptops, and PC via Bluetooth Version 4.1 (A2DP/AVRCP) with Bluetooth Standby and Auto Connect Functions
- DAB+ and FM/RDS Radio Tuners with 40-Station Memory Presets
- Radio Station Preset Naming (Up to 8 Characters)
- WRAT (Wide Range Amplifier Technology) with Massive Hi-Current EI Transformer, Custom Power Capacitors, and Low Impedance Drive
- Non-Phase-Shift Amp Circuitry with Discrete Power Transistors
- Optimum Gain Volume Circuitry
- 192 kHz/24-bit (PCM1754) Digital-to-Analog Converter
- Direct Mode for Source-Authentic Audio Reproduction

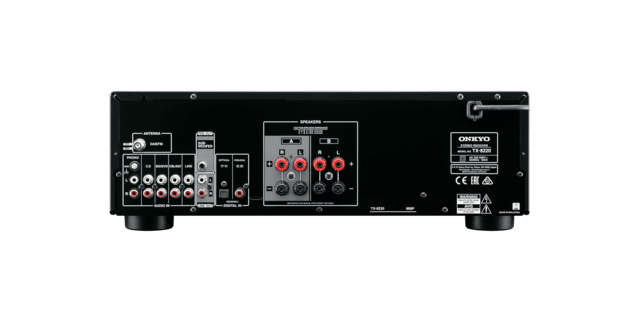

Connection Features
- 2 Digital Audio Inputs (1 Optical and 1 Coaxial)
- 4 Analog RCA Inputs and 1 Line Output
- Phono Input with MM Equalizer
- Subwoofer Pre-Out
- Two Pairs of Speaker Posts with Screw Knobs
- 6.35 mm Headphone Jack
Additional Features
- Front-panel Bass/Treble/Balance Buttons
- Front-panel Speaker A/B Drive Selector Button
- 3-Mode Display Dimmer (Normal/Dim/Dimmer)
- Sleep Timer and Battery-free Memory Back-up
- Full-function RI (Remote Interactive) Remote Controller
- Bluetooth Standby Mode and Auto Standby
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
