Optoma ZU820TST WUXGA Ultra Bright Short Throw Laser Projector
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Optoma ZU820TST – WUXGA Ultra Bright Short Throw DuraCore Laser Projector
The Optoma ZU820TST is a professional-grade WUXGA short throw installation laser projector delivering 8,200 lumens of brightness with a 3,000,000:1 dynamic contrast ratio. The short throw "ST" lens makes it ideal for space-constrained environments where a standard throw projector cannot be used. Featuring a dust-resistant IP5X certified optical engine, it is engineered for 24/7 continuous operation and up to 30,000 hours of maintenance-free performance in Eco mode — with no lamps to replace.
With motorised zoom, motorised focus, and full motorised lens shift, the ZU820TST offers exceptional installation flexibility. High brightness, colour precision, and quiet operation make it the ideal solution for simulation, edge-blending, projection mapping, and large-venue immersive installations.
HDBaseT, LAN, and RS232 connectivity provide comprehensive control and signal distribution, making the ZU820TST a true install-and-forget professional solution.
Technical Specifications
| Specification | Detail |
|---|---|
| Display Technology | DLP® |
| Resolution | WUXGA (1920 × 1200) |
| Brightness | 8,200 lumens |
| Contrast Ratio (Dynamic) | 3,000,000:1 |
| Contrast Ratio (Full On/Off) | 1,100:1 |
| Native Aspect Ratio | 16:10 |
| Compatible Aspect Ratios | 4:3, 16:9, 16:10 |
| Screen Size | 1.27 m – 7.62 m (50" – 300") diagonal |
| Keystone Correction (H/V) | ±30° / ±30° |
| Uniformity | 95% |
| Light Source | DuraCore Laser |
| Laser Lifespan | 30,000 hours |
| IP Rating | IP5X (dust-resistant optical engine) |
| Throw Ratio | Short Throw (ST lens) |
| Zoom Type | Motorised |
| Focus | Motorised |
| Lens Shift | Vertical: ±55%, Horizontal: ±25% (Motorised) |

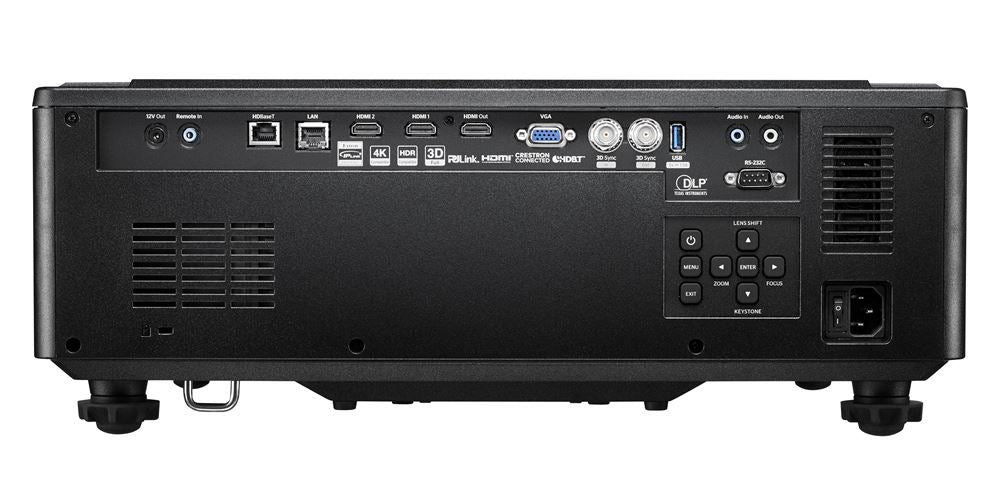

| Inputs | 1 x HDBaseT, 2 x HDMI 2.0, 1 x VGA, 1 x 3D sync, 1 x Audio 3.5 mm |
| Outputs | 1 x HDMI 2.0, 1 x 3D sync, 1 x USB-A power 1.5A, 1 x Audio 3.5 mm |
| Control Ports | 1 x 12V trigger, 1 x Wired remote, 1 x RJ45, 1 x RS232 |
| LAN (Wired) | Yes |
| Wireless Networking | No |
| Speakers | 2 x 10W built-in |
| 3D Support | Full 3D |
| Noise Level | 29 dB (min) / 36 dB (max) |
| 24/7 Operation | Yes |
| 360° Operation | Yes |

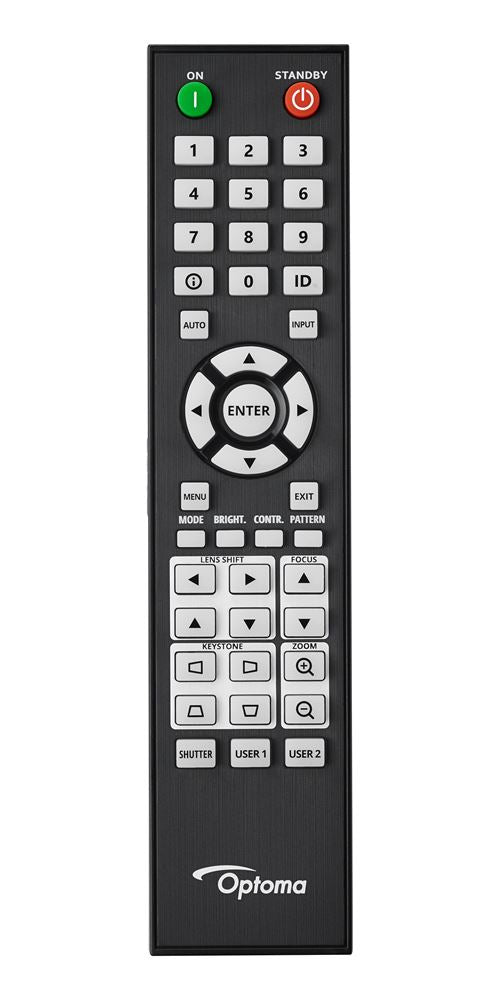

| Remote Control | Backlit ProAV remote |
| Security | Security bar, Kensington Lock |
| OSD Languages | 9 languages: English, French, German, Italian, Portuguese, Russian, Spanish, Chinese (Simplified), Chinese (Traditional) |
| Power Supply | AC 90 – 264V, 50/60 Hz with PFC input |
| Power Consumption (Standby) | 0.5W |
| Power Consumption (Min/Max) | 260W / 520W |
| Dimensions (W × D × H) | 486 × 432.5 × 176 mm |
| Net Weight | 14 kg |
| Gross Weight | 17.5 kg |
What’s in the Box
- Optoma ZU820TST projector
- AC power cord
- Backlit ProAV remote control
- Basic user manual
Why Choose the Optoma ZU820TST?
The ZU820TST brings the proven performance of the ZU820T platform into a short throw configuration — delivering 8,200 lumens of laser brightness with WUXGA resolution in environments where throw distance is limited. IP5X dust protection, 30,000-hour DuraCore laser technology, and 24/7 operation capability ensure years of maintenance-free performance. With HDBaseT, LAN, and RS232 control, plus full motorised lens shift, the ZU820TST is engineered for the most demanding professional AV installation environments.
