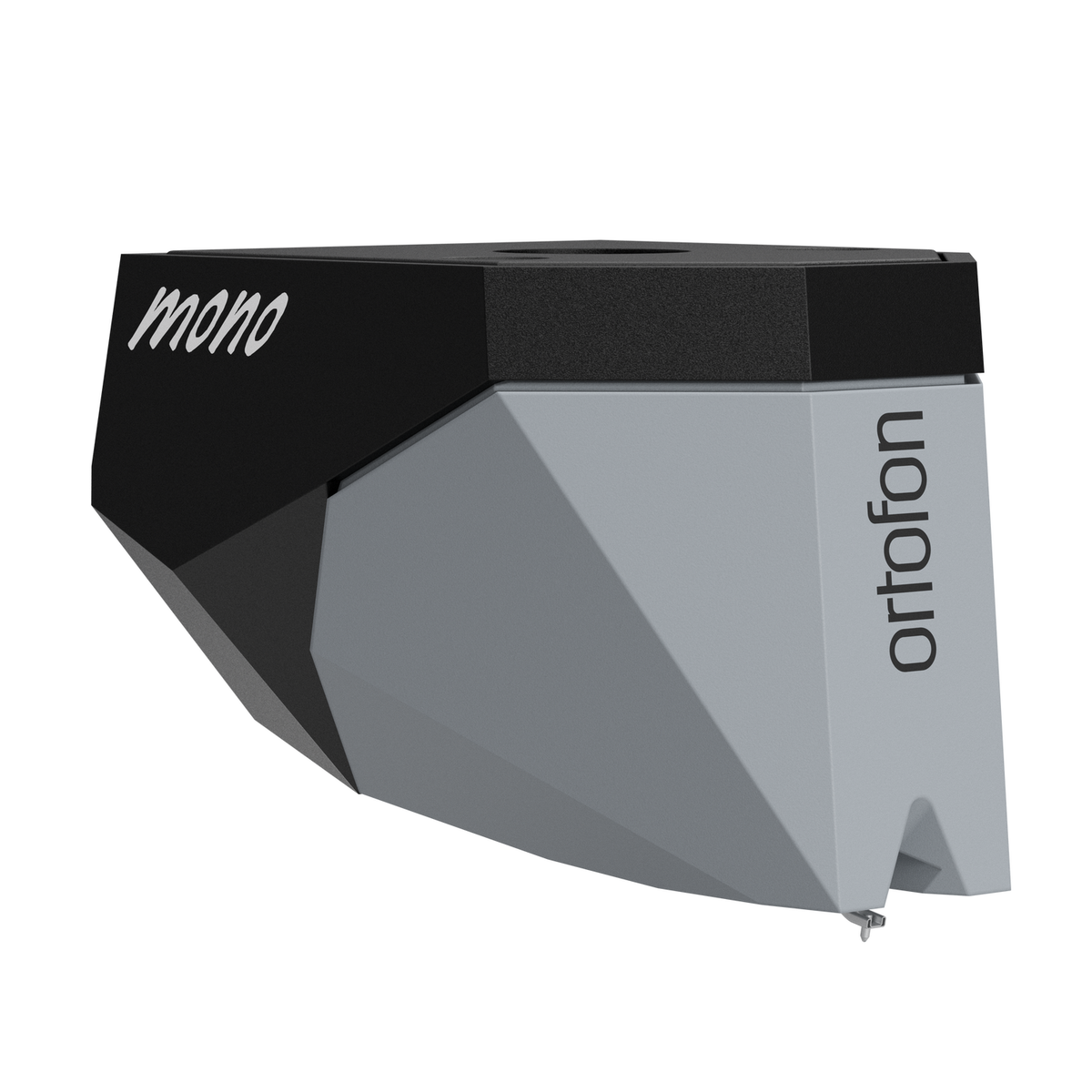

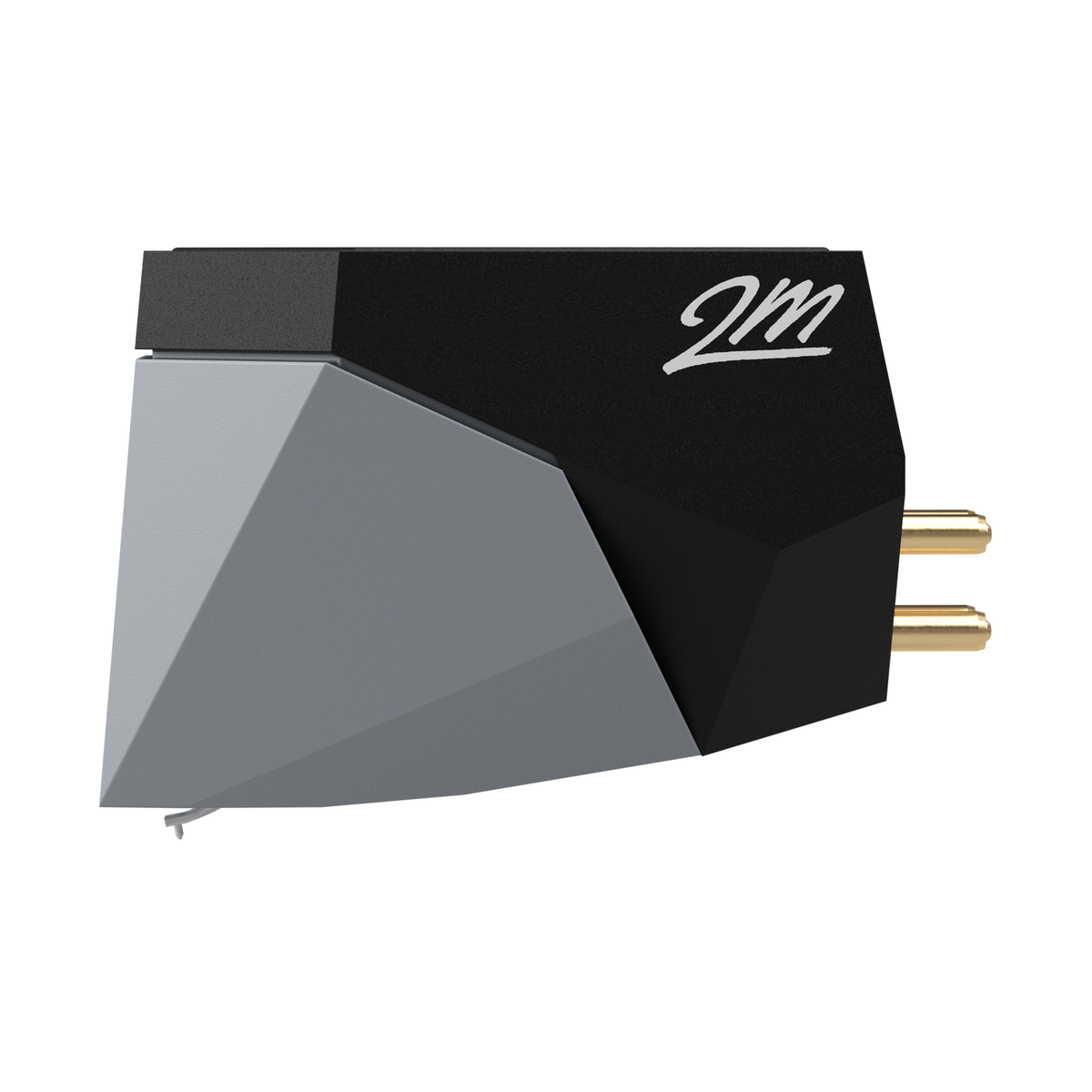

Ortofon 2M 78 Moving Magnet Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
2M 78 mono cartridge for 78 rpm records (Single)
A 2M Series mono cartridge designed for 78 rpm shellac records, with a spherical diamond sized for their wider grooves and a strapped mono output. Priced and sold individually.
Description
Made for 78 rpm shellac records
The 2M 78 is designed specifically for playing 78 rpm shellac records. These records call for a larger stylus profile, and the 2M 78 uses a spherical diamond with an R 65 µm tip radius to suit them, for good playback quality from older collections.
It uses a strapped output to deliver the same signal from both sets of pole pins, removing the need for mono-specific equipment so true mono can be enjoyed on any stereo playback system. The 2M 78 is also available as the 2MR 78, 2M 78 Verso and 2M 78 Premounted.
- Designed for 78 rpm shellac records
- Spherical diamond, R 65 µm tip radius
- Strapped output – same signal from both sets of pole pins
- True mono on any stereo playback system
- 4 mV output
Specifications
| Model | 2M 78 |
| Pack Type | Single |
| Specifications | |
| Output voltage at 1 kHz, 5cm/sec | 4 mV |
| Frequency response 20 Hz - 20 kHz | 3 / - 1 dB |
| Tracking ability at 315 Hz | 70 µm |
| Compliance, dynamic, lateral | 18 µm/mN |
| Cantilever material | Aluminium |
| Stylus type | Spherical |
| Stylus tip radius | R 65 µm |
| Tracking force range | 1.6-2.0g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 700 Ohm |
| Cartridge body material | Polymer and aluminum |
| Cartridge colour | Black/Grey |
| Cartridge weight | 7.2 g |
| Premounted cartridge weight | 16.7 g |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 350 mH |
| Recommended load capacitance | 150-300 pF |
