Ortofon 2M 78 Premounted Moving Magnet Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
2M 78 Premounted cartridge for 78 rpm records (Single)

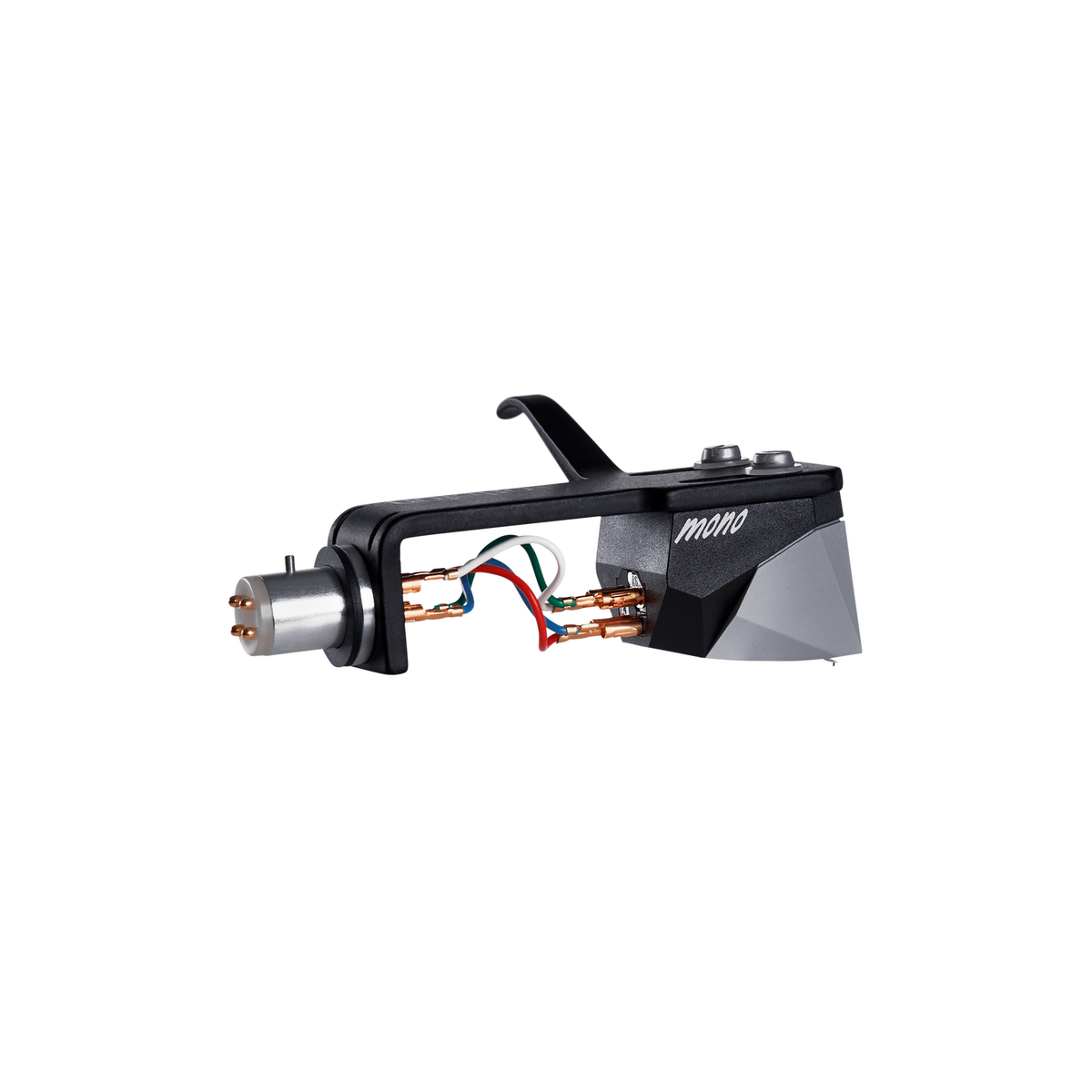

The 2M 78 supplied premounted for straightforward installation and easy replacement on S-shaped tonearms, designed for 78 rpm shellac records. Priced and sold individually.
Description
78 rpm playback, ready to fit
The 2M 78 Premounted is designed for listeners who want straightforward installation and easy replacement on an S-shaped tonearm. It is made for playing 78 rpm shellac records, with a spherical diamond sized for their wider grooves.
A strapped output delivers the same signal from both sets of pole pins, for true mono reproduction on a stereo system without mono-specific equipment. Published output is 4 mV.
- Premounted for S-shaped tonearms
- Designed for 78 rpm shellac records
- Spherical diamond, R 65 µm tip radius
- Strapped output for true mono on stereo systems
- Premounted cartridge weight 16.7 g
Specifications
| Model | 2M 78 Premounted |
| Pack Type | Single |
| Specifications | |
| Output voltage at 1 kHz, 5cm/sec | 4 mV |
| Frequency response 20 Hz - 20 kHz | 3 / - 1 dB |
| Tracking ability at 315 Hz | 70 µm |
| Compliance, dynamic, lateral | 18 µm/mN |
| Cantilever material | Aluminium |
| Stylus type | Spherical |
| Stylus tip radius | R 65 µm |
| Tracking force range | 1.6-2.0g (16-20 mN) |
| Tracking force, recommended | 1.8 g (18 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 700 Ohm |
| Cartridge body material | Polymer and aluminum |
| Cartridge colour | Black/Grey |
| Cartridge weight | 7.2 g |
| Premounted cartridge weight | 16.7 g |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 350 mH |
| Recommended load capacitance | 150-300 pF |
