2M Black Premounted moving magnet cartridge (Single)

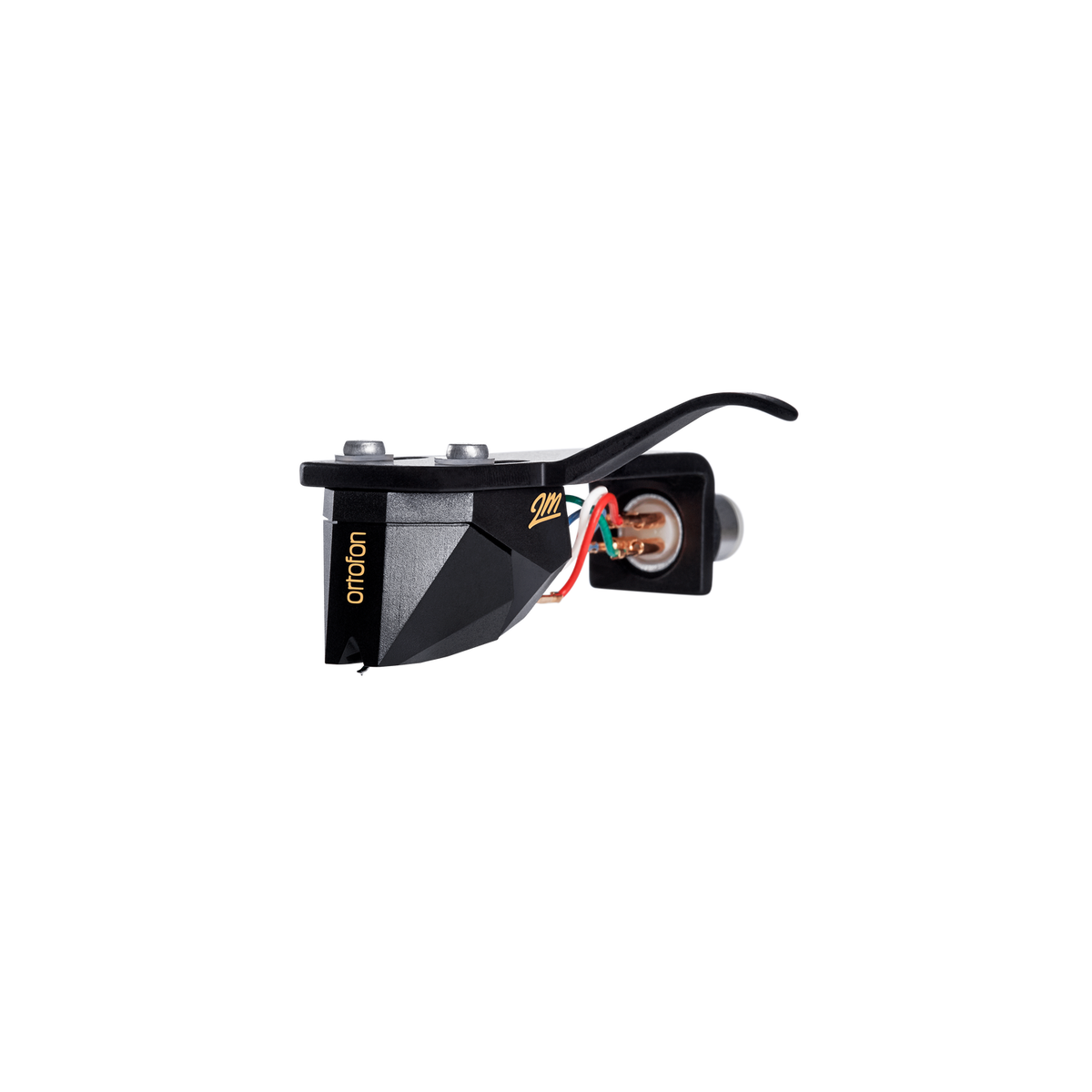

The 2M Black, flagship of the 2M Series, supplied mounted on Ortofon's classic SH-4 headshell for a simplified setup. Priced and sold individually.
Description
The 2M flagship on the SH-4 headshell
The 2M Black Premounted comes mounted on Ortofon's classic SH-4 headshell, which is sturdy and slim with an ergonomic, easy-to-lift finger grip. It is intended to simplify setup, with direct mounting and easy replacement on S-shaped tonearms.
The cartridge is the 2M Black, flagship of the series, designed to reveal every detail from every part of the spectrum. It uses a nude Shibata diamond on an aluminium cantilever and silver-plated OFC coil wire, with a published output of 5 mV.
- Supplied mounted on the Ortofon SH-4 headshell
- SH-4 with ergonomic, easy-to-lift finger grip
- Nude Shibata diamond on an aluminium cantilever
- Silver-plated OFC coil wire
- 5 mV output
- Premounted cartridge weight 16.7 g
Specifications
| Model | 2M Black Premounted |
| Pack Type | Single |
| Specifications | |
| Channel balance at 1 kHz | 1 dB |
| Output voltage at 1 kHz, 5cm/sec | 5 mV |
| Channel separation at 1 kHz | 26 dB |
| Frequency response 20 Hz - 20 kHz | 2 / - 0 dB |
| Tracking ability at 315 Hz | 80 µm |
| Compliance, dynamic, lateral | 22 µm/mN |
| Cantilever material | Aluminium |
| Stylus type | Nude Shibata |
| Stylus tip radius | r/R 6/50 µm |
| Coil system | Silver-plated OFC Coil Wire |
| Tracking force range | 1.4-1.7 g (14-17 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Internal impedance, DC resistance | 1.2 kOhm |
| Coil wire material | Silver-plated OFC Coil Wire |
| Cartridge body material | Polymer and aluminum |
| Cartridge weight | 7.2 g |
| Premounted cartridge weight | 16.7 g |
| Recommended load resistance | 47 kOhm |
| Internal inductance | 630 mH |
| Recommended load capacitance | 150-300 pF |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
