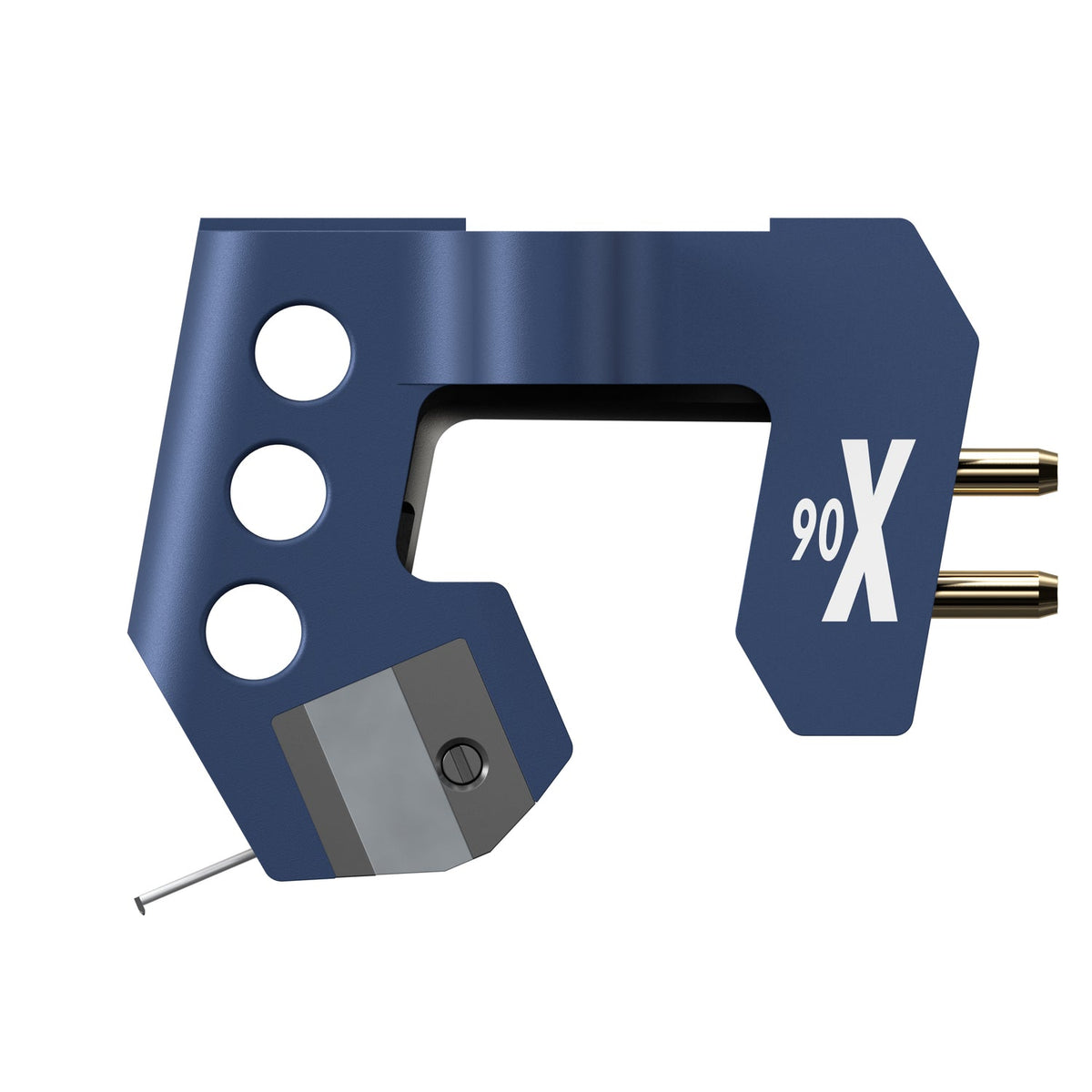

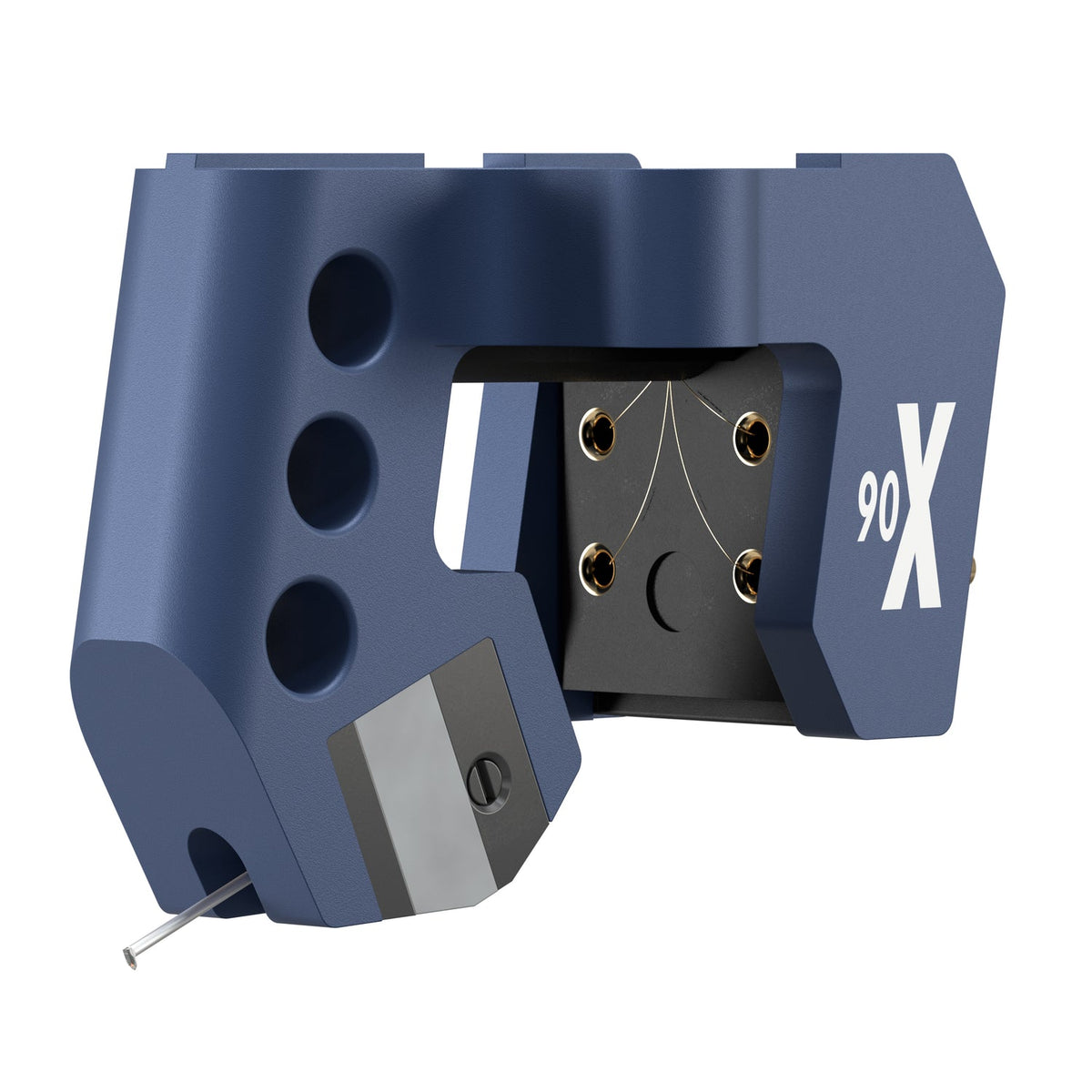

Ortofon MC 90X Moving Coil Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
MC 90X moving coil cartridge (Single)
Ortofon's reimagining of the MC A90, with an SLM stainless steel body, a Replicant 100 diamond on a boron cantilever and a neodymium magnet system with FSE. Priced and sold individually.
Description
A classic, reimagined
The MC 90X builds on the technology of the MC A90, combining precision engineering with advances in material science and magnetism. Its stainless steel structure is produced using Selective Laser Melting (SLM). The stylus is Ortofon's Replicant 100 diamond, chosen for its thin, light profile and large contact surface, and with special polishing and a boron cantilever Ortofon cites high transparency, speed and responsiveness.
The magnet system draws on earlier models such as the Kontrapunkt series, MC Jubilee and MC Windfeld. It is based on a very strong, compact neodymium magnet with a Field Stabilizing Element (FSE), keeping the generator compact and light. Coils use Aucurum wire, and published output is 0.25 mV with a recommended load resistance above 10 Ω.
- Body made from SLM (Selective Laser Melting) stainless steel
- Ortofon Replicant 100 diamond stylus
- Boron cantilever
- Compact neodymium magnet system with FSE
- Aucurum coil wire
- Successor to the MC A90 design
Specifications
| Model | MC 90X |
| Pack Type | Single |
| Specifications | |
| Channel balance at 1 kHz | < 0.2 dB |
| Output voltage at 1 kHz, 5cm/sec | 0.25 mV |
| Channel separation at 1 kHz | > 28 dB |
| Frequency response 20 Hz - 20 kHz | +/- 1 dB |
| Compliance, dynamic, lateral | 11 μm/mN |
| Cantilever material | Boron |
| Stylus type | Ortofon Replicant 100 Diamond |
| Stylus tip radius | r/R 5/100 μm |
| Coil system | Aucurum Coil Wire |
| Tracking force, recommended | 2.3 grams |
| Internal impedance, DC resistance | 4 Ω |
| Coil wire material | Aucurum Coil Wire |
| Cartridge body material | SLM Stainless Steel |
| Cartridge weight | 9.5 grams |
| Recommended load resistance | > 10 Ω |
