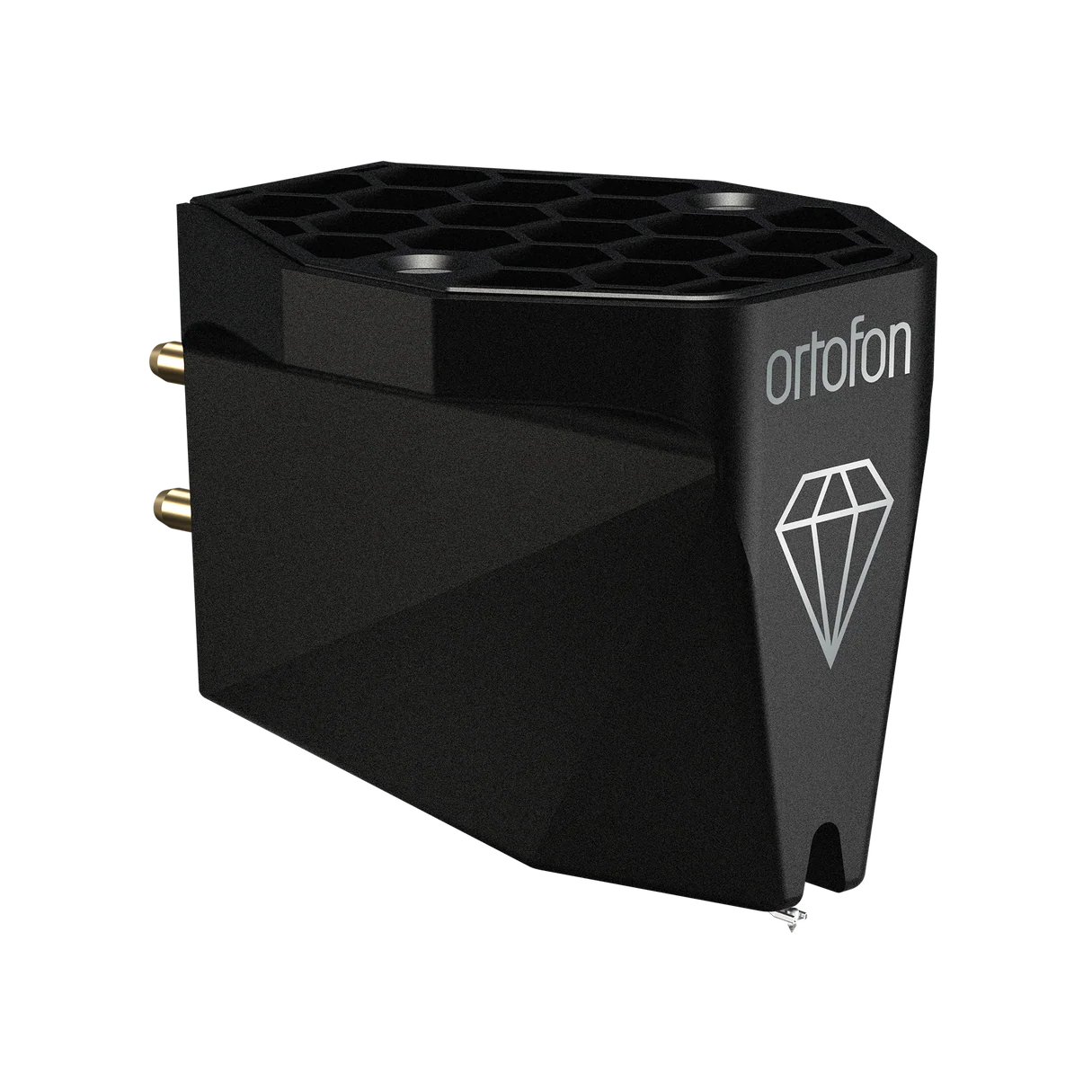

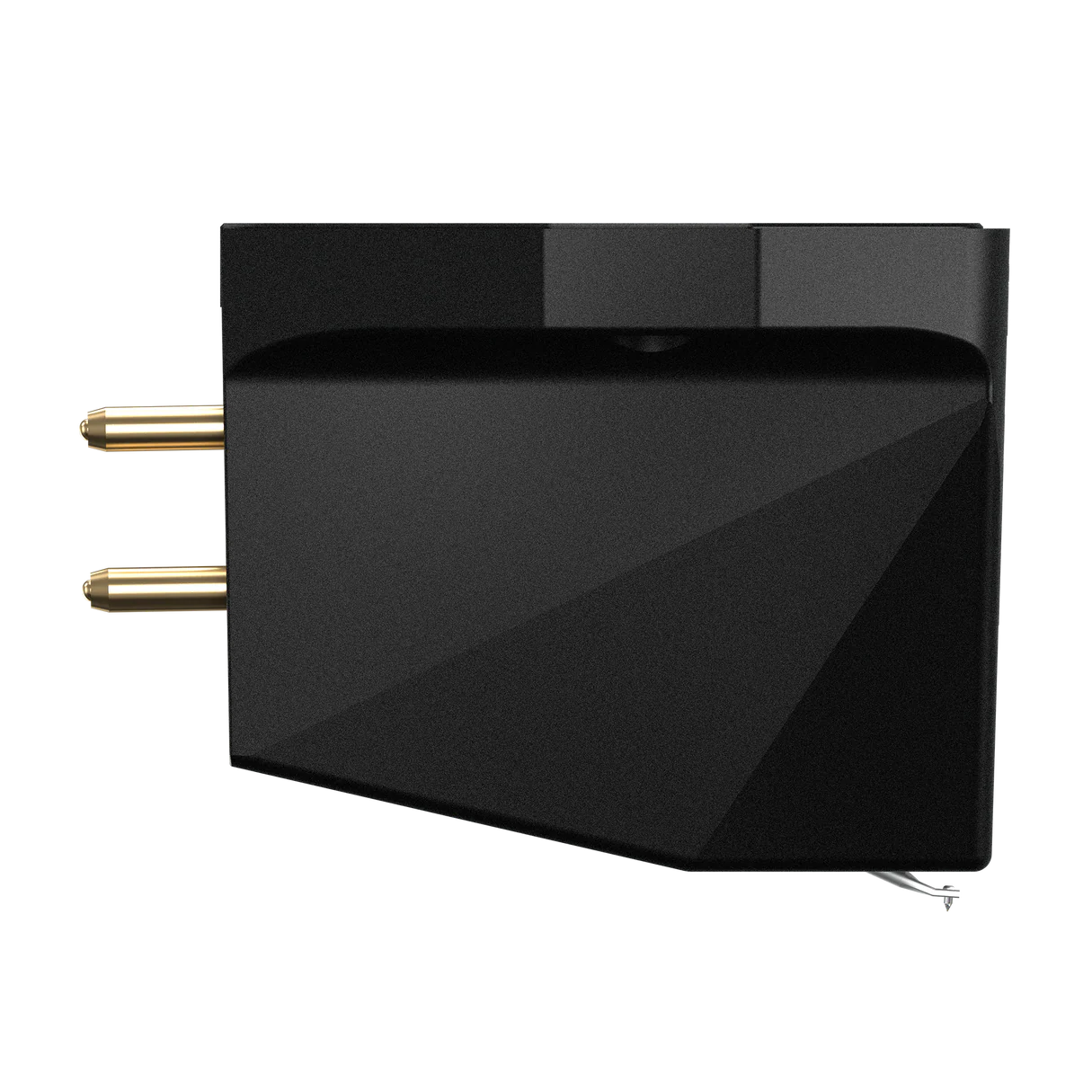

Ortofon MC X10 Low Output Moving Coil Cartridge
The Ortofon MC X10 is a low output moving coil phono cartridge engineered for audiophiles who demand exceptional resolution, precise channel separation, and extended high-frequency response. Built on decades of Ortofon moving coil expertise, the MC X10 delivers a natural, detailed, and musically engaging performance from any quality turntable setup.
Specifications
| Specification | Detail |
|---|---|
| Model | MC X10 |
| Type | Low Output Moving Coil (MC) |
| Output Voltage | 0.2 mV (at 1kHz, 5cm/sec) |
| Channel Balance | < 1.5 dB (at 1kHz) |
| Channel Separation | > 28 dB (at 1kHz) |
| Frequency Response | 20 – 60,000 Hz |
| Tracking Ability | 70 µm (at 315Hz, recommended tracking force) |
| Compliance | 15 µm/mN (dynamic, lateral) |
| Stylus Type | Nude Shibata |
| Stylus Tip Radius | r/R: 6/50 µm |
| Cantilever | Boron |
| Coil Wire | 6N Pure Copper |
| Coil Impedance | 5 Ω (at 1kHz) |
| Recommended Load Impedance | > 10 Ω |
| Recommended Tracking Force | 2.3 g (range: 2.0 – 2.5 g) |
| Vertical Tracking Angle | 20° |
| Internal Inductance | 45 µH |
| Weight | 9.5 g |
| Country of Origin | Denmark |
Key Features
Nude Shibata Stylus on Boron Cantilever
The Shibata stylus profile was originally developed for quadraphonic records and is one of the most demanding line-contact geometries available. Mounted on a rigid, low-mass boron cantilever, it traces the finest groove modulations with exceptional accuracy, retrieving high-frequency detail up to 60kHz that lesser styli simply cannot reach.
6N Pure Copper Coil
The MC X10 uses ultra-pure 6N (99.9999%) copper coil wire wound to a very low impedance of 5Ω. This minimises resistive losses and thermal noise, contributing to the cartridge's low output character and exceptional signal purity.
Low Output Moving Coil Design
As a low output MC cartridge, the MC X10 requires a dedicated MC phono stage or step-up transformer. The reward is a more direct signal path with fewer mechanical compromises — resulting in greater transient speed, lower distortion, and a more lifelike soundstage compared to moving magnet designs.
Extended Frequency Response to 60kHz
With a frequency response extending to 60,000Hz, the MC X10 is fully capable of resolving high-resolution analogue content, making it an ideal partner for high-quality vinyl playback systems where every detail matters.
