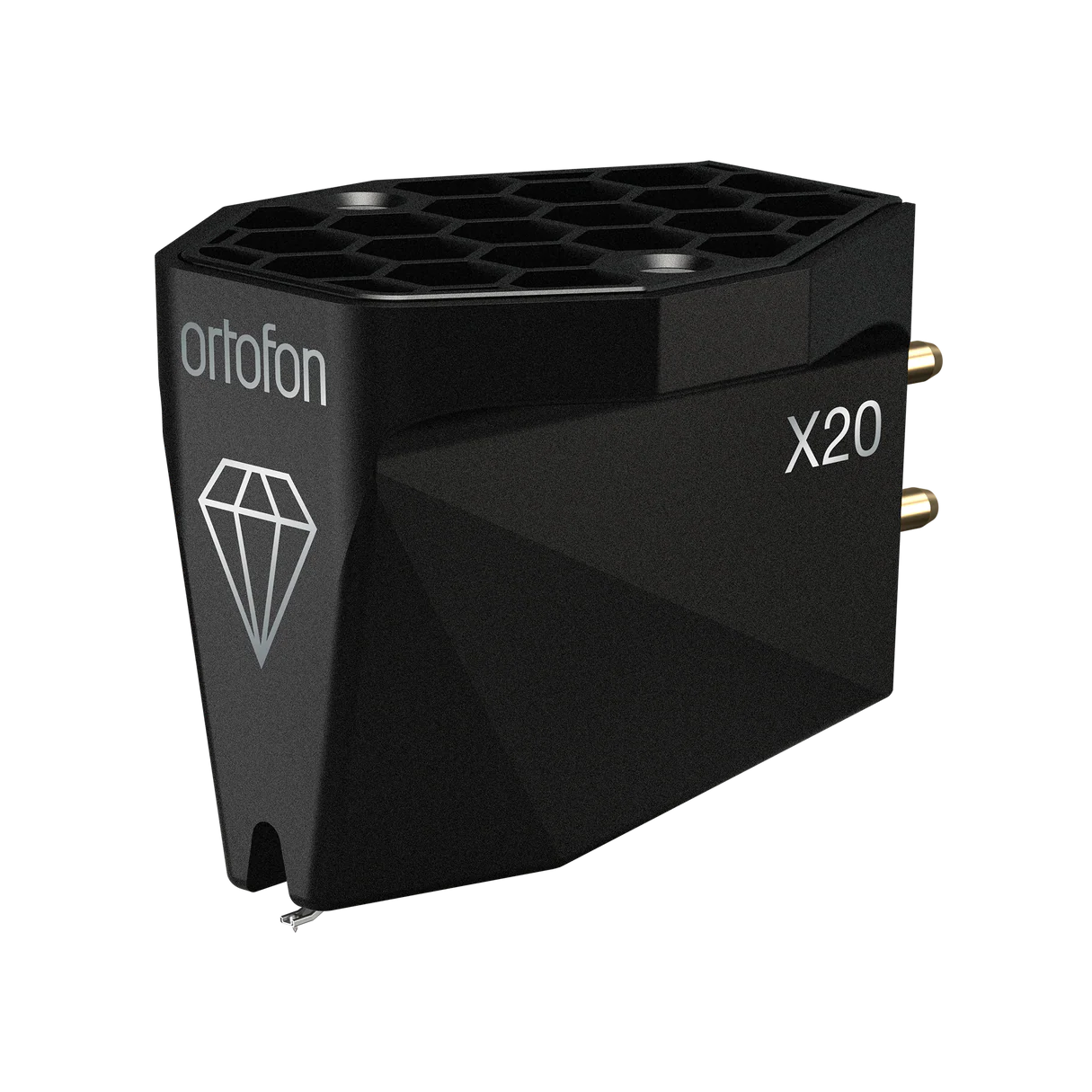

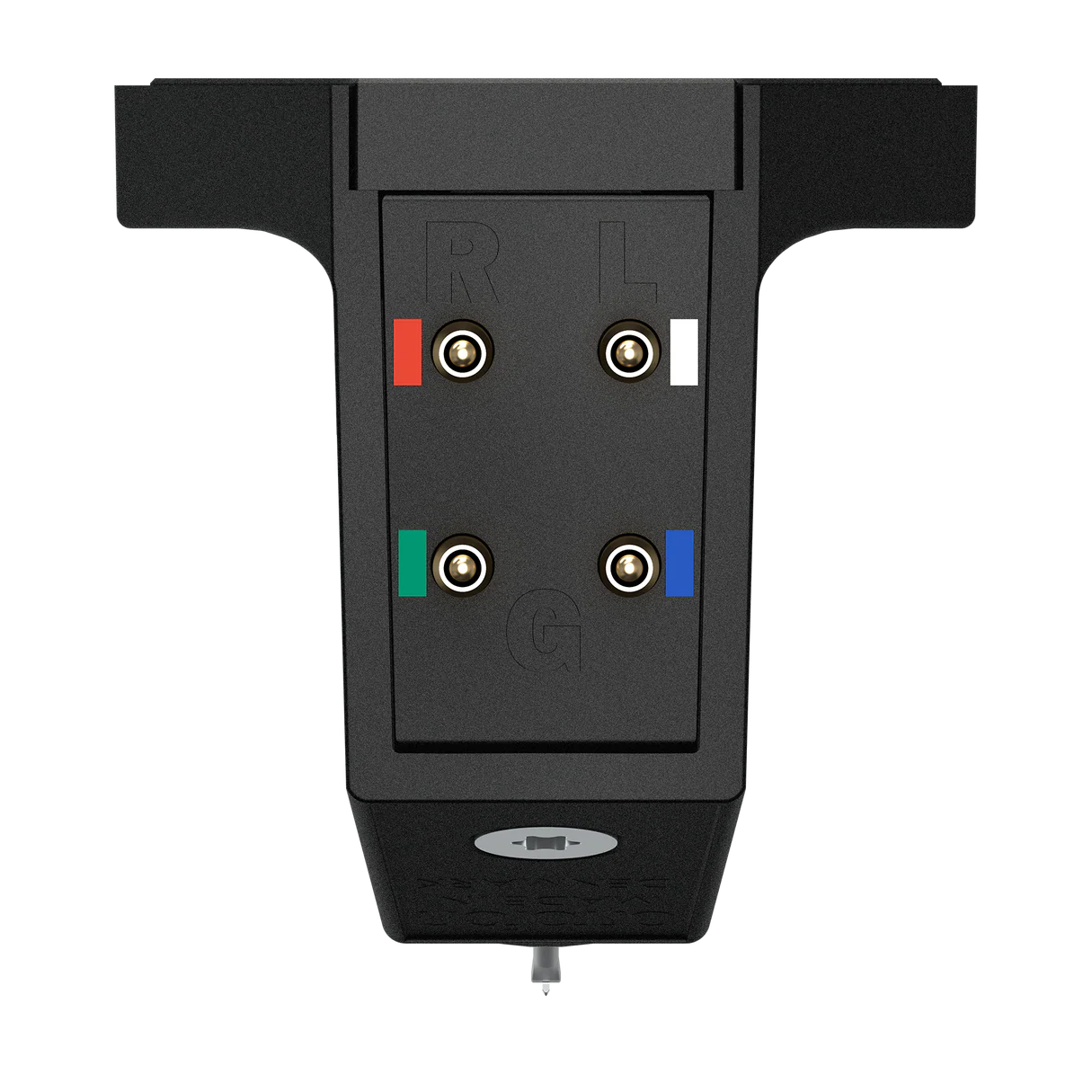

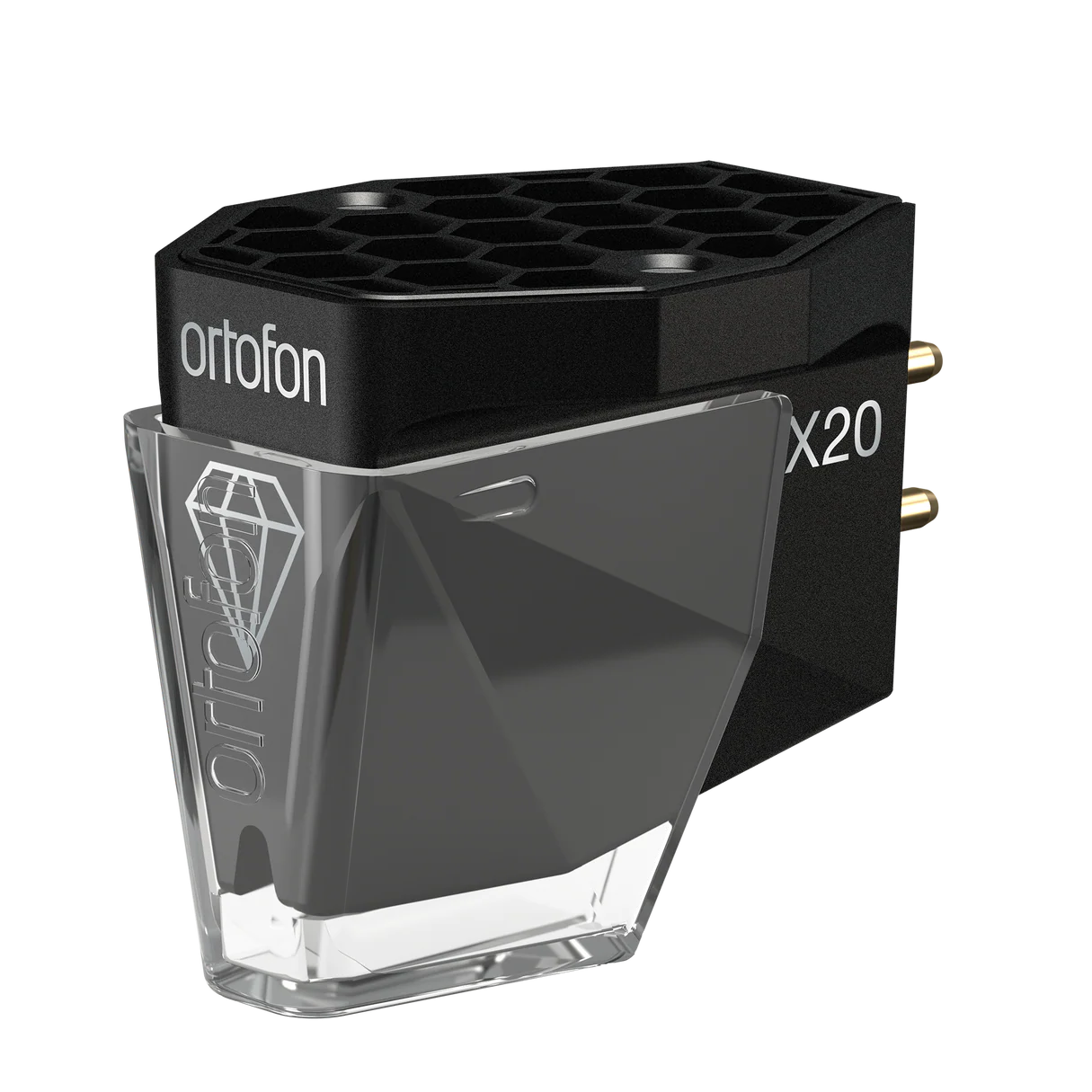

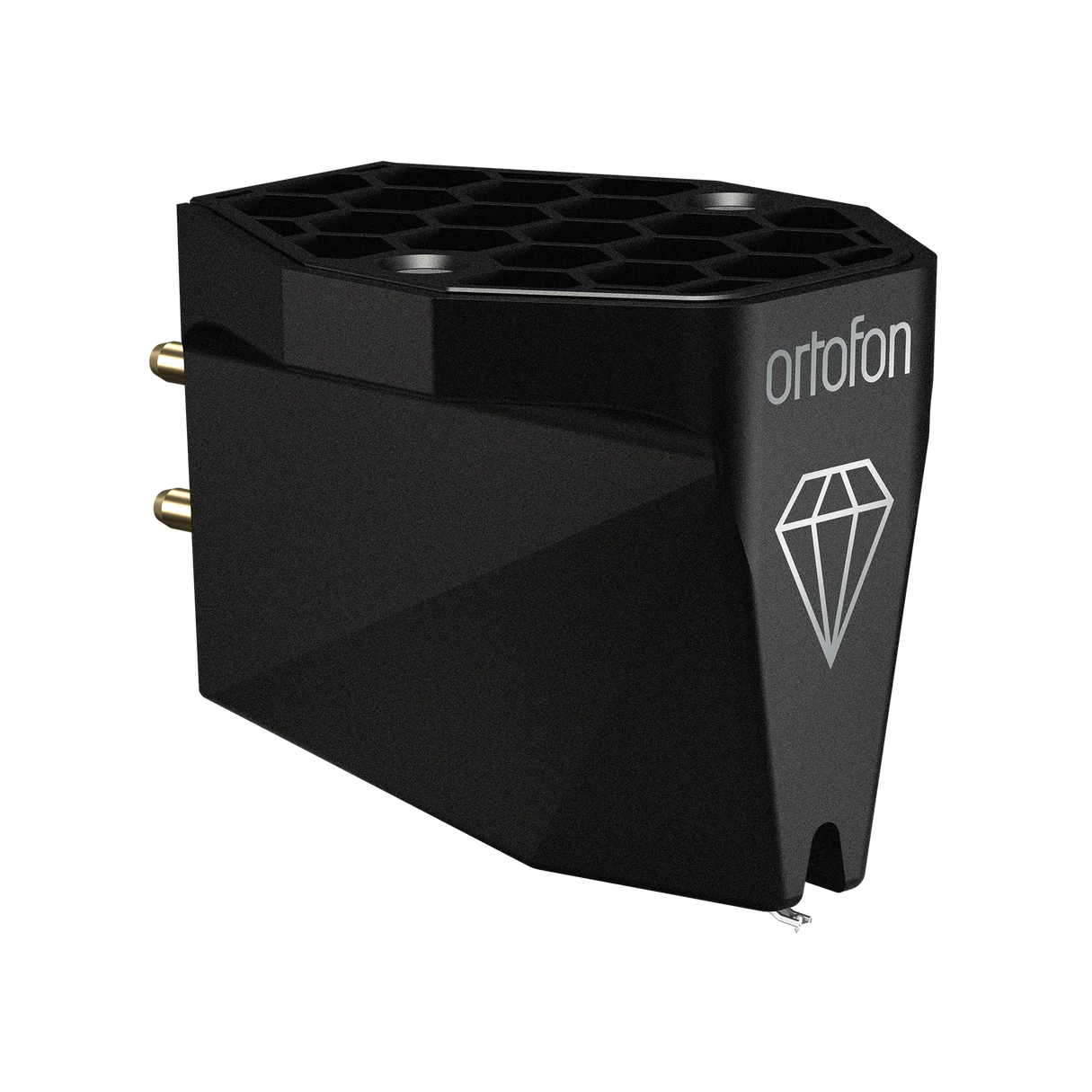

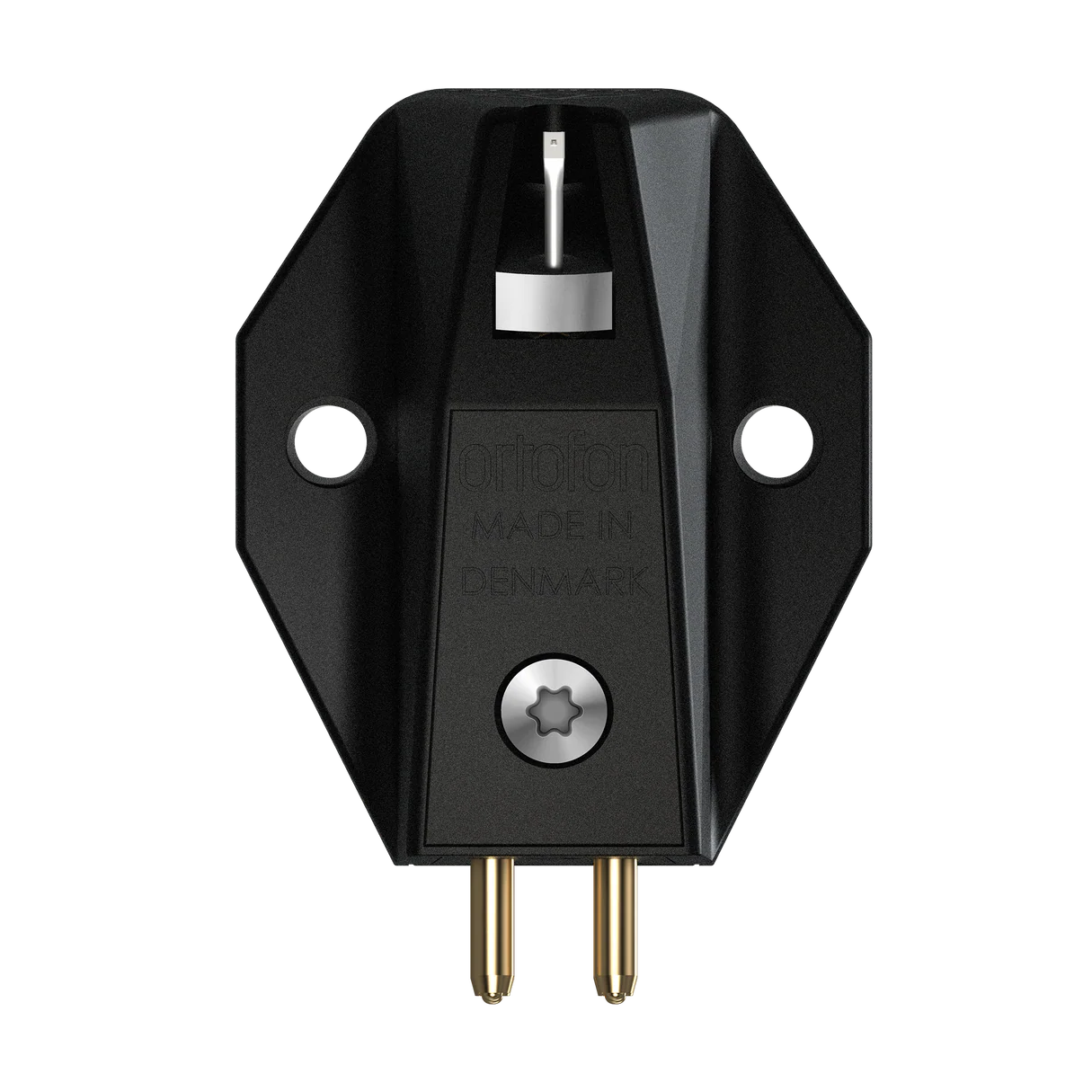

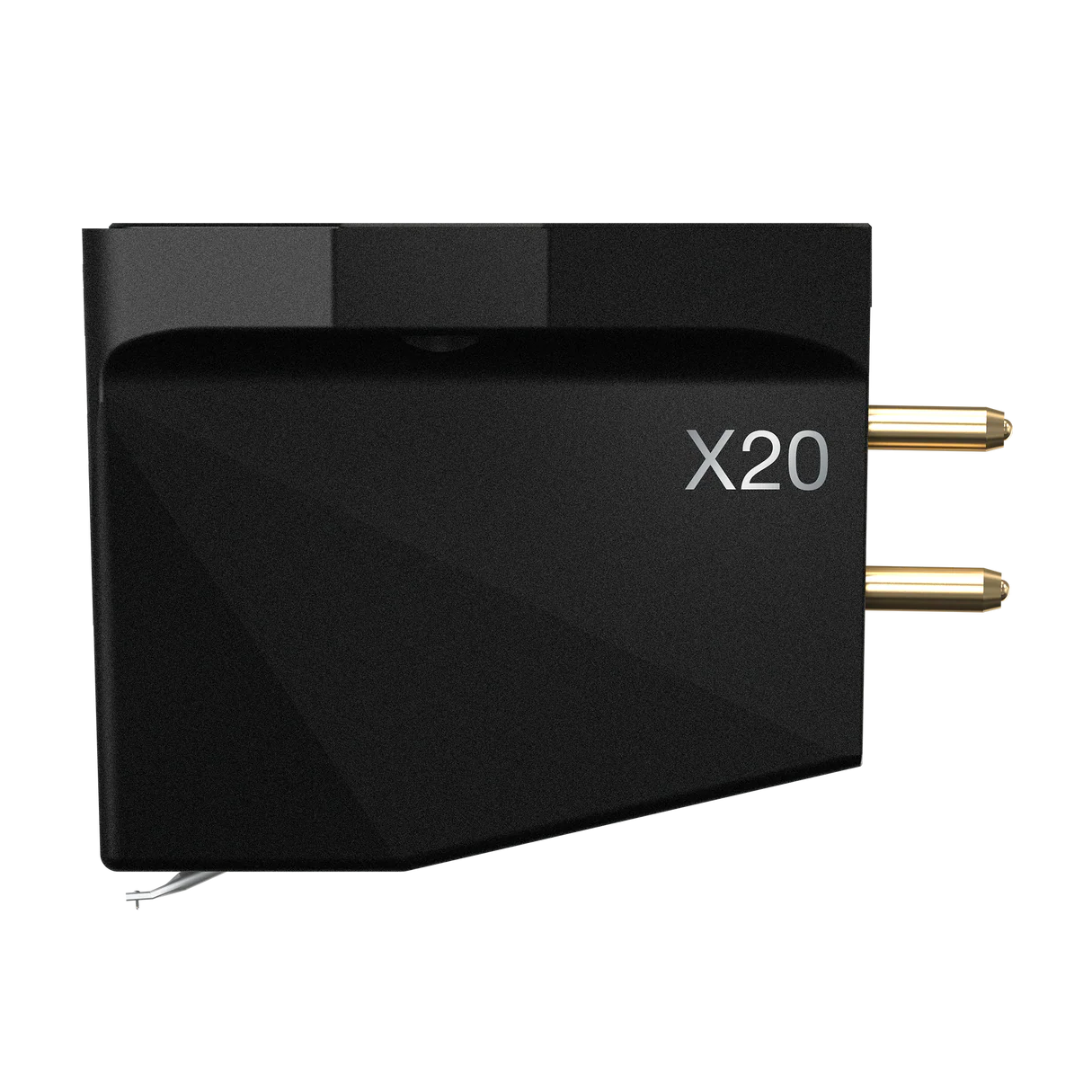

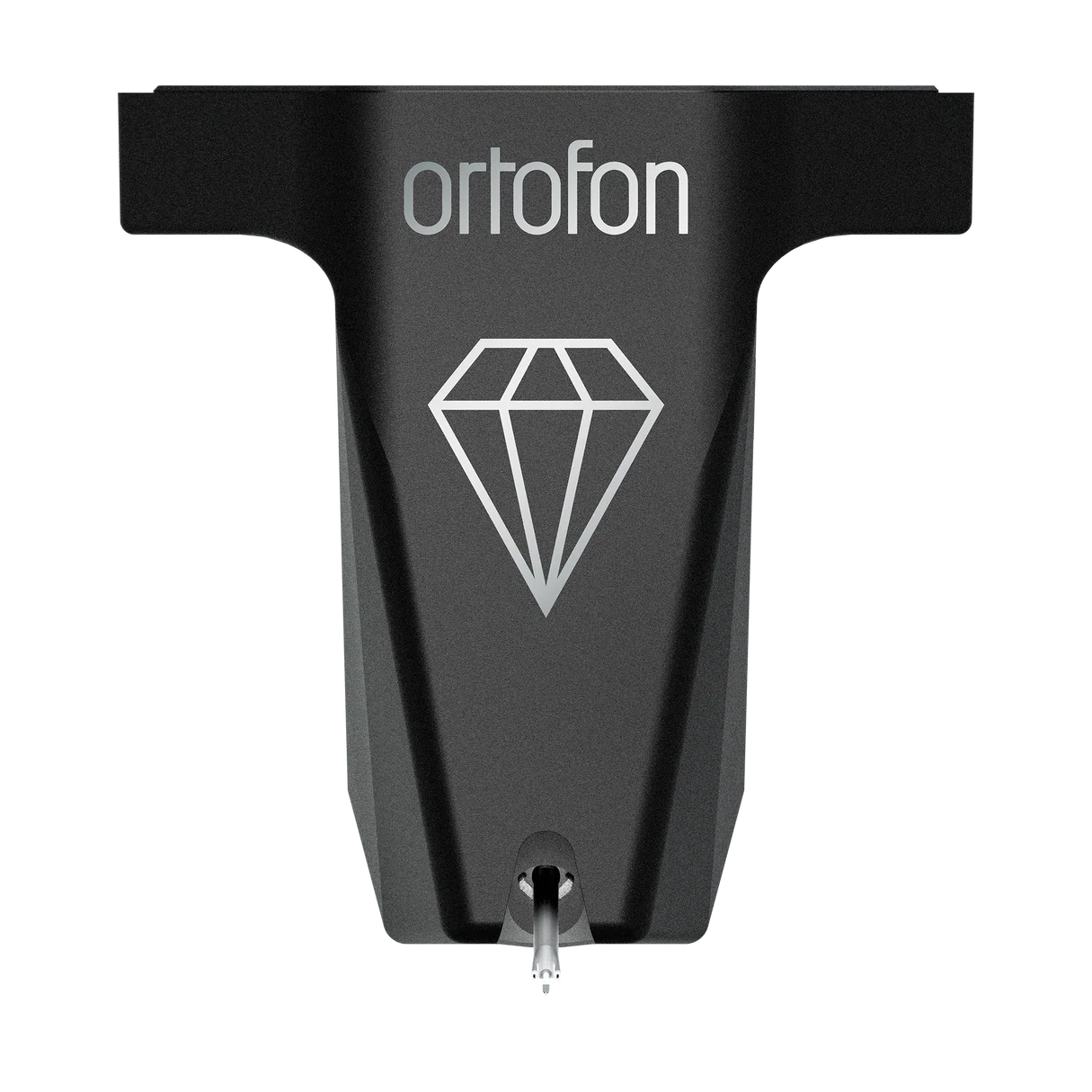

Ortofon MC X20 Low Output Moving Coil Cartridge
The Ortofon MC X20 is a high-performance low output moving coil phono cartridge that steps up from the MC X10 with a Nude Replicant 100 stylus — one of Ortofon's most advanced line-contact profiles. Designed for audiophiles seeking exceptional groove tracing accuracy, ultra-low distortion, and a wide, natural soundstage, the MC X20 is a benchmark cartridge in its class.
Specifications
| Specification | Detail |
|---|---|
| Model | MC X20 |
| Type | Low Output Moving Coil (MC) |
| Output Voltage | 0.2 mV (at 1kHz, 5cm/sec) |
| Channel Balance | < 1.5 dB (at 1kHz) |
| Channel Separation | > 28 dB (at 1kHz) |
| Frequency Response | 20 – 60,000 Hz |
| Tracking Ability | 80 µm (at 315Hz, recommended tracking force) |
| Compliance | 15 µm/mN (dynamic, lateral) |
| Stylus Type | Nude Replicant 100 |
| Stylus Tip Radius | r/R: 5/100 µm |
| Cantilever | Boron |
| Coil Wire | 6N Pure Copper |
| Coil Impedance | 5 Ω (at 1kHz) |
| Recommended Load Impedance | > 10 Ω |
| Recommended Tracking Force | 2.3 g (range: 2.0 – 2.5 g) |
| Vertical Tracking Angle | 20° |
| Internal Inductance | 45 µH |
| Weight | 9.5 g |
| Country of Origin | Denmark |
Key Features
Nude Replicant 100 Stylus on Boron Cantilever
The Replicant 100 is Ortofon's proprietary ultra-fine line stylus profile, with a tip radius of 5/100 µm. This extremely narrow contact patch traces the finest groove modulations with minimal distortion, retrieving high-frequency detail and inner-groove information that conventional elliptical or even standard line-contact styli cannot access. Mounted on a rigid, low-mass boron cantilever, transient response is immediate and precise.
6N Pure Copper Coil at 5Ω Impedance
Ultra-pure 6N (99.9999%) copper coil wire is wound to a very low impedance of 5Ω, minimising resistive losses and thermal noise. The result is a clean, low-level signal that rewards a high-quality MC phono stage or step-up transformer with exceptional signal purity and dynamic range.
Low Output Moving Coil Design
As a low output MC cartridge, the MC X20 requires a dedicated MC phono stage or step-up transformer. The reward is a more direct signal path — greater transient speed, lower distortion, and a more lifelike, three-dimensional soundstage compared to moving magnet designs.
Extended Frequency Response to 60kHz
With a frequency response extending to 60,000Hz, the MC X20 resolves the full bandwidth of high-resolution analogue content. Whether playing standard 33rpm LPs or 45rpm pressings, every harmonic overtone and spatial cue is faithfully retrieved from the groove.
Superior Tracking Ability
The MC X20 achieves a tracking ability of 80µm at 315Hz — a significant step up from the MC X10's 70µm — meaning it handles even the most demanding high-amplitude groove modulations without mistracking, preserving dynamics and protecting your records.
