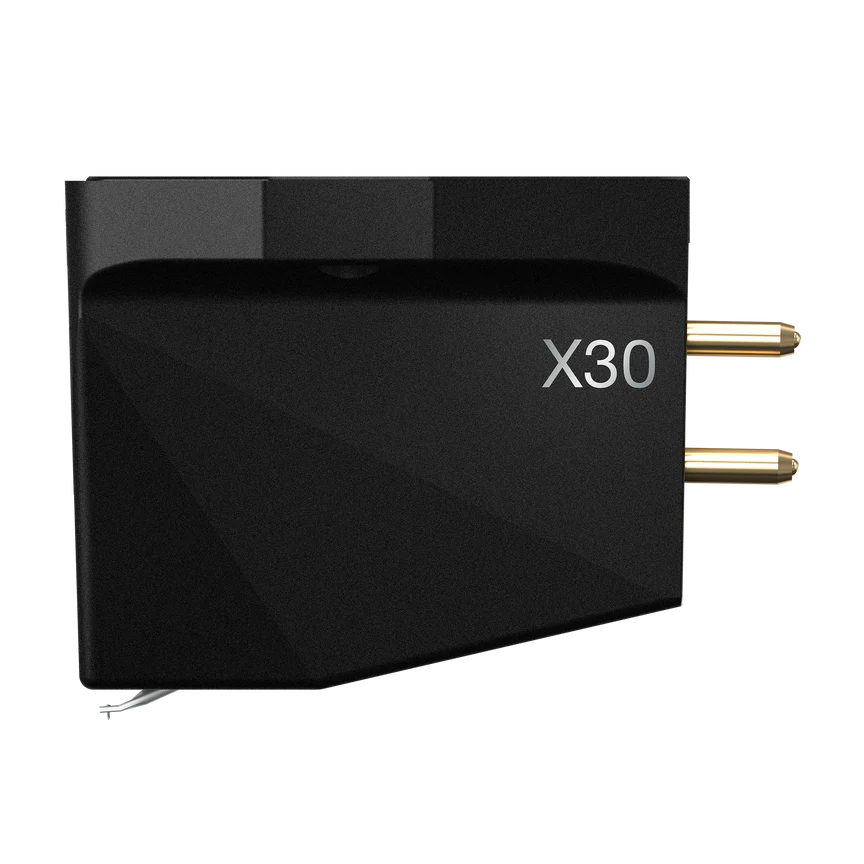

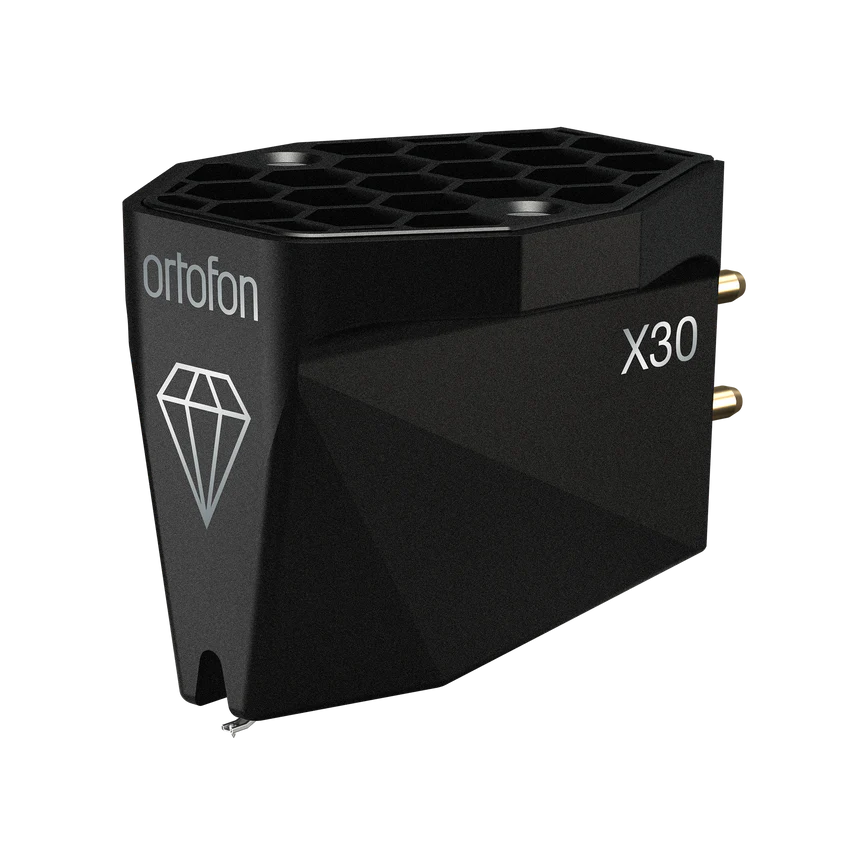

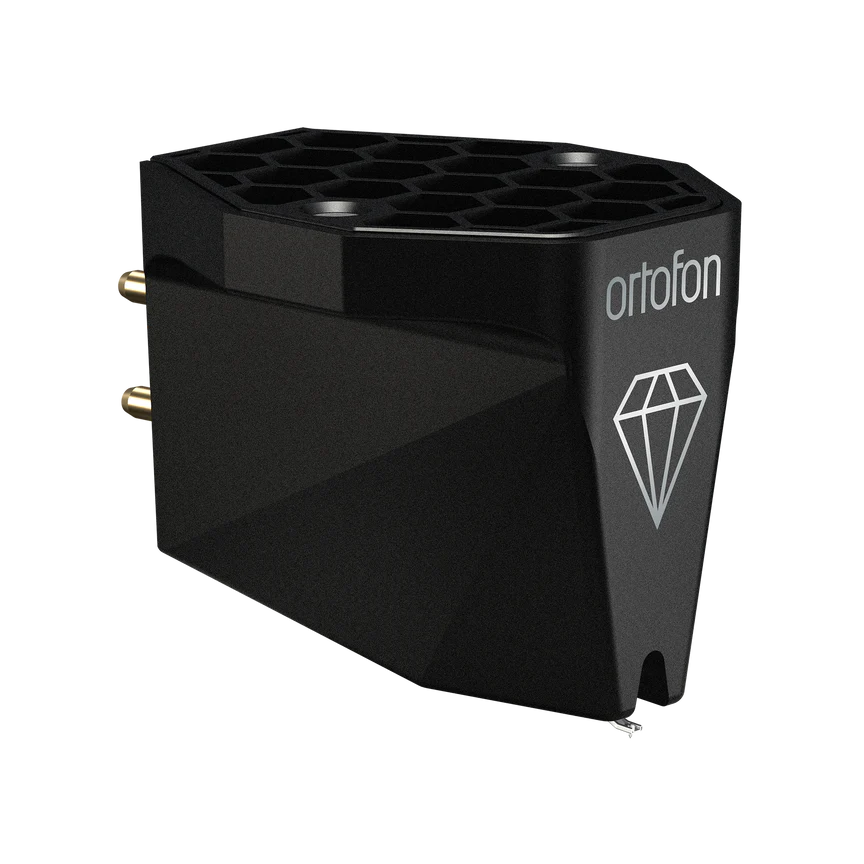

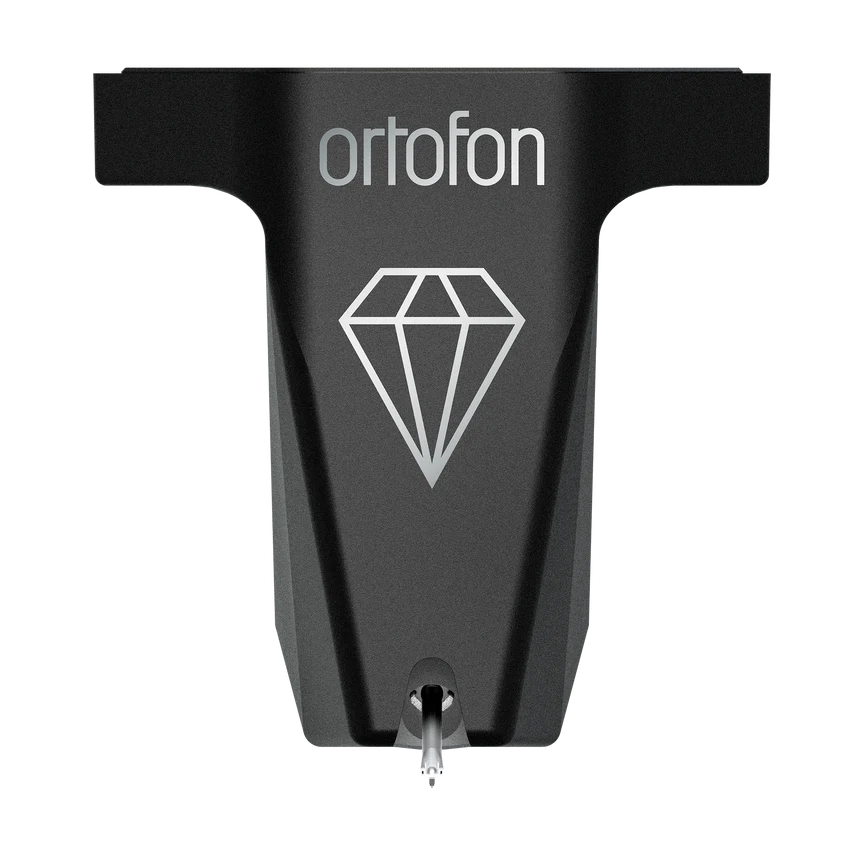

Ortofon MC X30 Low Output Moving Coil Cartridge
The Ortofon MC X30 is a reference-class low output moving coil phono cartridge, sitting at the top of the MC X series. Sharing the Nude Replicant 100 stylus and boron cantilever of the MC X20, the X30 raises output voltage to 0.3mV and refines the generator assembly for even greater resolution, dynamics, and musical authority. It is the definitive expression of Ortofon's MC X series engineering.
Specifications
| Specification | Detail |
|---|---|
| Model | MC X30 |
| Type | Low Output Moving Coil (MC) |
| Output Voltage | 0.3 mV (at 1kHz, 5cm/sec) |
| Channel Balance | < 1.5 dB (at 1kHz) |
| Channel Separation | > 28 dB (at 1kHz) |
| Frequency Response | 20 – 60,000 Hz |
| Tracking Ability | 80 µm (at 315Hz, recommended tracking force) |
| Compliance | 15 µm/mN (dynamic, lateral) |
| Stylus Type | Nude Replicant 100 |
| Stylus Tip Radius | r/R: 5/100 µm |
| Cantilever | Boron |
| Coil Wire | 6N Pure Copper |
| Coil Impedance | 7 Ω (at 1kHz) |
| Recommended Load Impedance | > 10 Ω |
| Recommended Tracking Force | 2.3 g (range: 2.0 – 2.5 g) |
| Vertical Tracking Angle | 20° |
| Internal Inductance | 65 µH |
| Weight | 9.5 g |
| Country of Origin | Denmark |
Key Features
Nude Replicant 100 Stylus on Boron Cantilever
The Replicant 100 is Ortofon's proprietary ultra-fine line stylus profile with a tip radius of 5/100 µm. This extremely narrow contact patch traces the finest groove modulations with minimal distortion, retrieving high-frequency detail and inner-groove information that conventional elliptical or line-contact styli cannot access. Mounted on a rigid, low-mass boron cantilever, transient response is immediate and precise.
Higher Output at 0.3mV
The MC X30 raises output voltage to 0.3mV compared to the 0.2mV of the X10 and X20, offering greater compatibility with a wider range of MC phono stages and step-up transformers while retaining all the speed and resolution of a true low output moving coil design.
6N Pure Copper Coil at 7Ω Impedance
Ultra-pure 6N (99.9999%) copper coil wire is wound to 7Ω impedance, with an internal inductance of 65µH. The refined generator assembly delivers exceptional signal purity, dynamic range, and channel separation from even the most demanding programme material.
Low Output Moving Coil Design
As a low output MC cartridge, the MC X30 requires a dedicated MC phono stage or step-up transformer. The reward is a more direct signal path — greater transient speed, lower distortion, and a more lifelike, three-dimensional soundstage compared to moving magnet designs.
Extended Frequency Response to 60kHz
With a frequency response extending to 60,000Hz, the MC X30 resolves the full bandwidth of high-resolution analogue content, faithfully retrieving every harmonic overtone and spatial cue from the groove.
