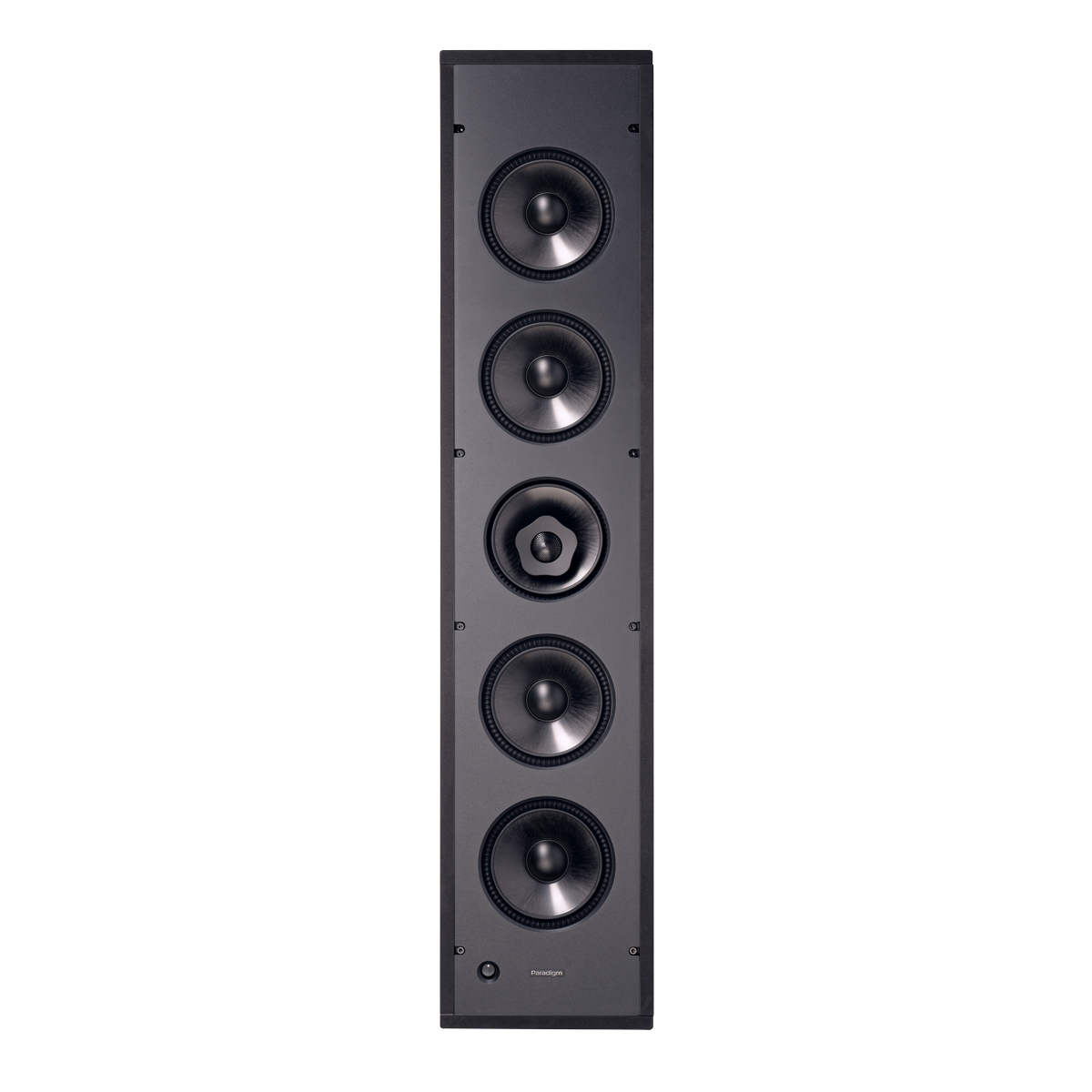

Paradigm CI Pro P5-LCR v2 In-Wall Speaker – Each
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
Paradigm CI Pro P5-LCR v2 In-Wall Speaker – Each
4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System
The CI Pro v2 Series is made in Canada and brings Paradigm's patented technology, step-up components and signature sound quality to custom installations – the installer's smart, performance-focused choice.
Sold as: Each | Colour: White
Specifications
| DESIGN | 4-driver, dual passive radiators, 3-way, shallow enclosure in-wall design, Advanced SHOCK-MOUNT™ System |
| CROSSOVER | 3rd-order electro-acoustic at 2.8 kHz, 2nd-order electro-acoustic @ 500 Hz |
| FREQUENCY RESPONSE ON-AXIS | ±3 dB from 84 Hz - 22 kHz |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±3 dB from 84 Hz - 19 kHz |
| HIGH FREQUENCY DRIVER | 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC™) Tweeter with Exclusive Perforated Phase-Aligning (PPA™) Tweeter Lens and Reduced Edge Diffraction (RED™) Technology |
| MIDRANGE FREQUENCY DRIVER | 6.5” (16.5cm) Coaxial AL-MAG™ Cone with SHOCK-MOUNT™ Isolation Mounting System, a 1” high-temp multi-layered voice coil with Apical™ former |
| BASS FREQUENCY DRIVER | Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| PASSIVE RADIATORS | Two 6.5” (16.5cm) CARBON-X™ Cone with overmolded Active Ridge Technology (ART™) surround, Advanced SHOCK-MOUNT™ System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets |
| SENSITIVITY ROOM / ANECHOIC | 94 dB / 91 dB |
| LOW FREQUENCY EXTENSION | 65 Hz |
| SUITABLE AMPLIFIER POWER RANGE | 15- 200 W |
| MAXIMUM INPUT POWER | 130 W |
| IMPEDANCE | Compatible with 8 ohms |
| CUT-OUT DIMENSIONS | 42” x 8-1/2” (106.6cm x 21.6cm) |
| MINIMUM MOUNTING DEPTH (DEPTH REQUIRED IS THE DISTANCE BETWEEN 1/2" DRYWALL, OR SIMILAR MATERIAL.) | 3-7/8” (9.8cm) |
| WEIGHT | 29.0 lbs (13.2 kg) |
| FINISHES | White, paintable grille, black speaker |
Specifications are subject to change without notice.
More official product images: Paradigm gallery on Flickr
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
