SVS SB-3000 R|Evolution Subwoofer (Black Ash)
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
SVS SB-3000 R|Evolution Subwoofer (Black Ash)

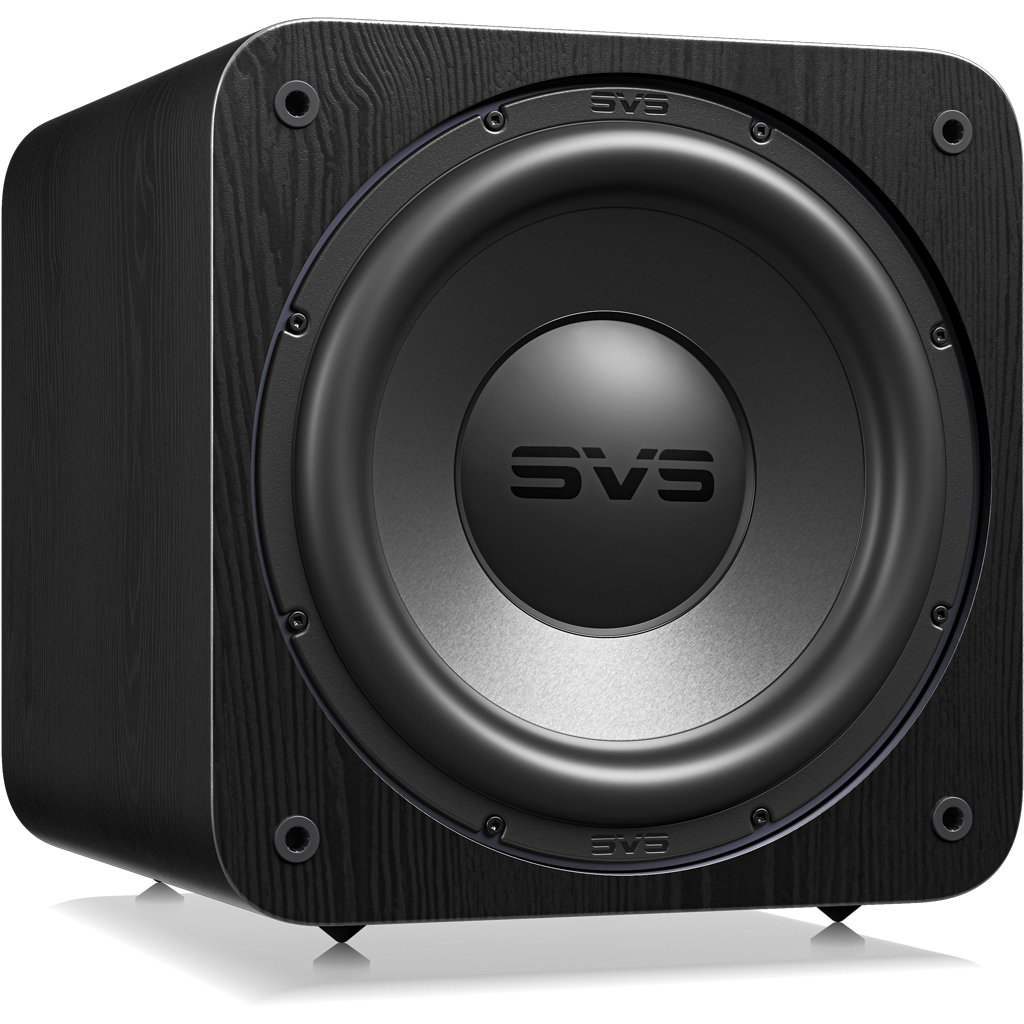

A sealed, front-firing 13-inch subwoofer that brings reference-level bass to home cinema and hi-fi systems from a compact cabinet. The SB-3000 R|Evolution combines a new high-excursion 13-inch driver with a 1,200-watt RMS MOSFET Class D amplifier and a 295MHz DSP, extending to 17Hz with smartphone app control and SVS Auto EQ room correction.
Built on technology developed for SVS's flagship 17-Ultra R|Evolution line, the new generation delivers deep, impactful bass with fast transient response and low distortion. SVS quotes 20% to 60% lower acoustic THD+N in the critical low-frequency band compared with the previous SB-3000, and 50% more continuous amplifier power.
Key Features
Breakthrough Driver Architecture
- Flat-edge split-wind voice coil for high force at long excursion with low moving mass
- Two-piece toroidal ferrite overhung motor for linear, high-excursion operation
- Rigid 1100 pure aluminium cone
- Long-throw, extreme-excursion SBR surround
STA-1200D2 MOSFET Amplifier
- High-current MOSFET output with Class D efficiency
- Switch mode power supply that monitors voltage, current and temperature
- 56-bit digital processing with DACs rated above 120dB signal-to-noise
- Balanced XLR and unbalanced RCA inputs
295MHz Analog Devices DSP
Shapes in-room frequency response, keeps AC voltage delivery to the amplifier stable, and runs multi-point thermal, voltage and current monitoring for consistent peak performance.
SVS Subwoofer App and Auto EQ
- Bluetooth control on iOS, Android and Amazon Fire: volume, low-pass filter, phase, polarity, six parametric EQs, room gain, tuning modes and power management
- Three memory presets for music, movies, night mode and more
- SVS Auto EQ measures your room with your phone's microphone or the optional SVS Auto EQ Mic and calculates correction filters for your seat
Acoustically Inert Sealed Cabinet
- Rigid MDF baffle with internal bracing and acoustic insulation to prevent colouration

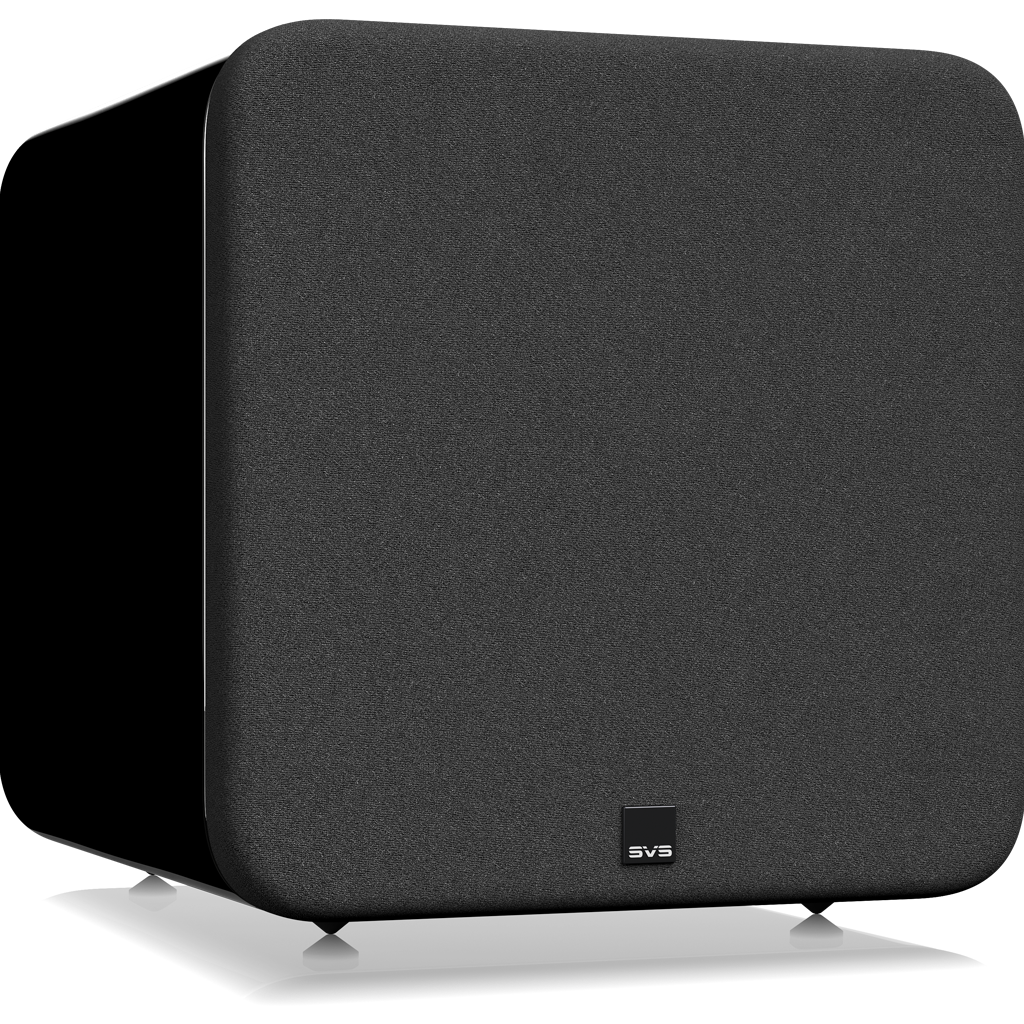

- Reinforced non-resonant ABS grille frame with fabric mesh
- Elastomer feet to reduce noise transfer

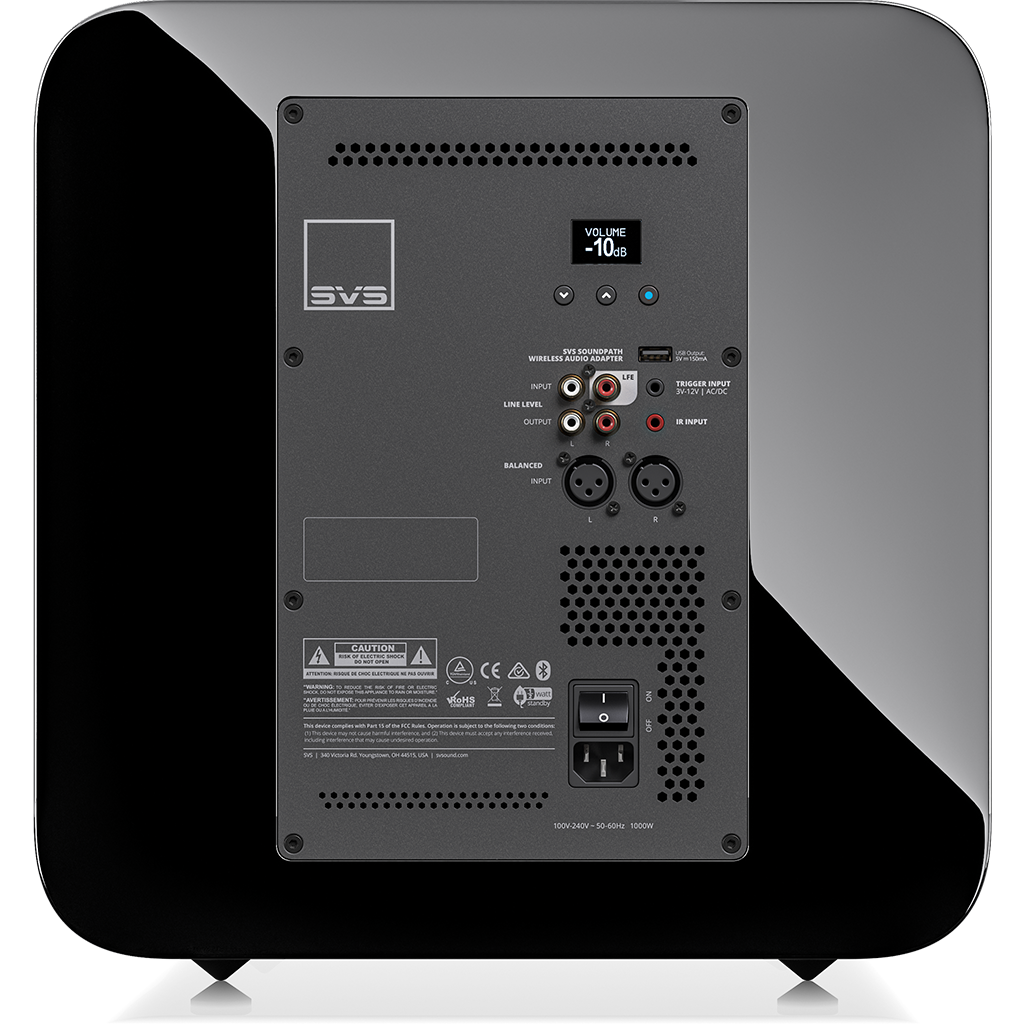

- Rear OLED display and controls with a display-flip function
Specifications
| Specification | Details |
|---|---|
| Model | SB-3000 R|Evolution |
| Cabinet Configuration | Sealed |
| Driver | 13" front-firing high-excursion driver |
| Amplifier | 1,200 watts RMS (4,000+ watts peak), Class D |
| Frequency Response | 17-230 Hz +/- 3 dB |
| Room Note | Expect 2-3 Hz deeper extension in small to mid-size rooms |
| Amplifier THD+N | Under 0.05% at rated power |
| DSP | 295 MHz Analog Devices DSP with 56-bit filtering, dual 65 MHz power management units |

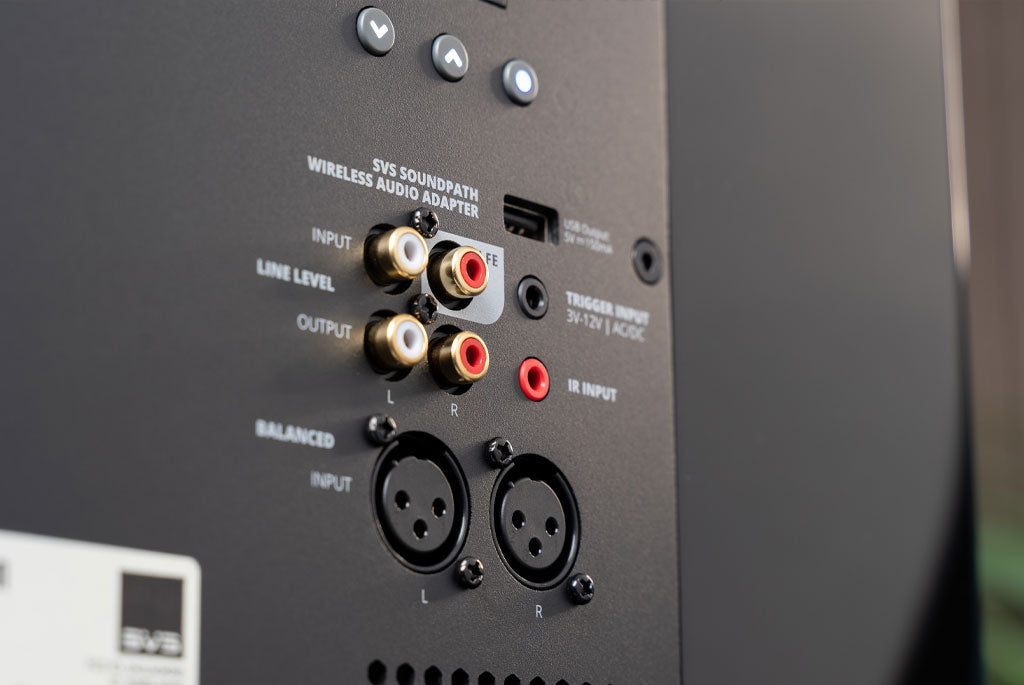

| Inputs | Unbalanced RCA (10 kohm, up to 4 Vrms), Balanced XLR (18 kohm, up to 4 Vrms / +14 dBu) |
| Control & Integration | 3.5 mm trigger (3-12 V AC/DC), 3.5 mm IR input, Auto/On, USB power for SVS SoundPath Wireless Audio Adapter |
| Standby Power | 0.5 W |
| Dimensions (with grille) | 15.6" (397 mm) H x 15.2" (385 mm) W x 16.8" (426 mm) D |
| Dimensions (without grille) | 15.6" (397 mm) H x 15.2" (385 mm) W x 15.6" (397 mm) D |
| Shipped Dimensions | 21.2" (530 mm) H x 20.3" (516 mm) W x 20.3" (516 mm) D |
| Weight (unboxed) | 54.8 lb (24.9 kg) |
| Shipped Weight | 66.1 lb (30.0 kg) |
| Colour | Black Ash |
Driver Specifications
| Specification | Details |
|---|---|
| Driver Weight | 24.1 lb (10.5 kg) woofer with 18.5 lb (8.4 kg) motor |
| Excursion | 30.1 mm Xmax, 72.9 mm Xmech |
| Voice Coil | Flat-edge split-wind voice coil on a 2" aluminium former |
| Magnet | Two toroidal Y30 ferrite magnets, 6063 aluminium shorting sleeve |
| Cone | 1100 aluminium vented cone |
| Surround | Injection-moulded SBR surround |
| Basket | Powder-coated cast aluminium |
In the Box
- SB-3000 R|Evolution subwoofer
- ABS grille frame with fabric mesh cover
- Iso-elastomer feet
- Heavy-duty 6 ft power cord
- Quick Start Guide
Downloads
- SB-3000 R|Evolution Owner's Manual (PDF, svsound.com)
- SB-3000 R|Evolution Quick Start Guide (PDF, svsound.com)
Specifications sourced from the manufacturer, SVS (svsound.com). Prices are recommended retail including 15% VAT.
