Tannoy DVS 601
![]() |
DVS 1.0 SERIES DVS 601-WH The DVS 601-WH is a coaxial surface-mount loudspeaker engineered to provide superb audio performance in both background and foreground music sound systems. Ideally suited for a wide variety of applications, from restaurants and hotels to houses of worship and businesses of all types, the DVS 601-WH offers the power handling, wide frequency response and low distortion typically found in more expensive products. EN 54-24 certification for fire detection and fire alarm systems makes the DVS 601-WH the perfect choice where safety is a top priority. The loudspeaker is also UL 1480 certified for fire-protected signalling. |
|

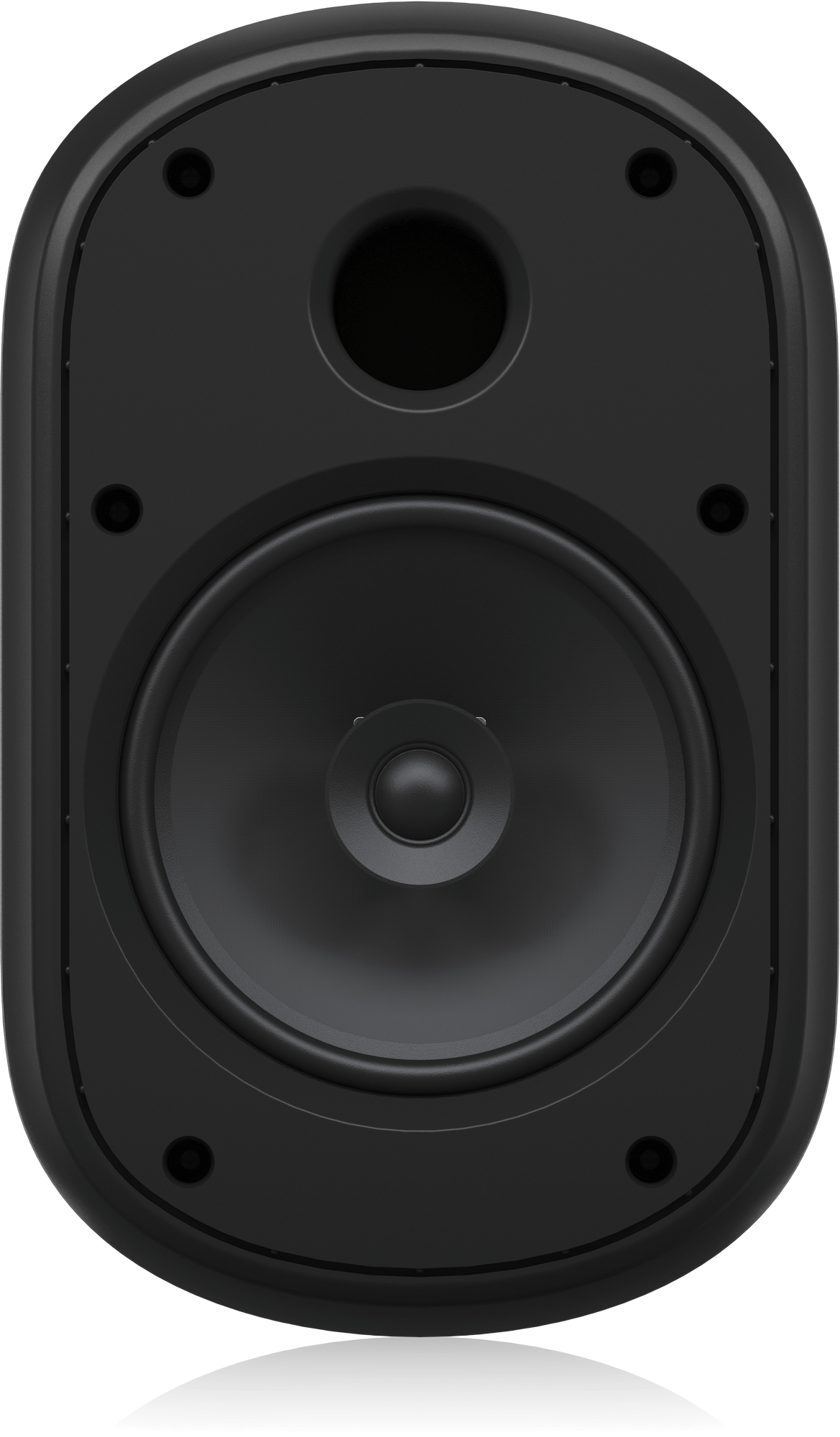

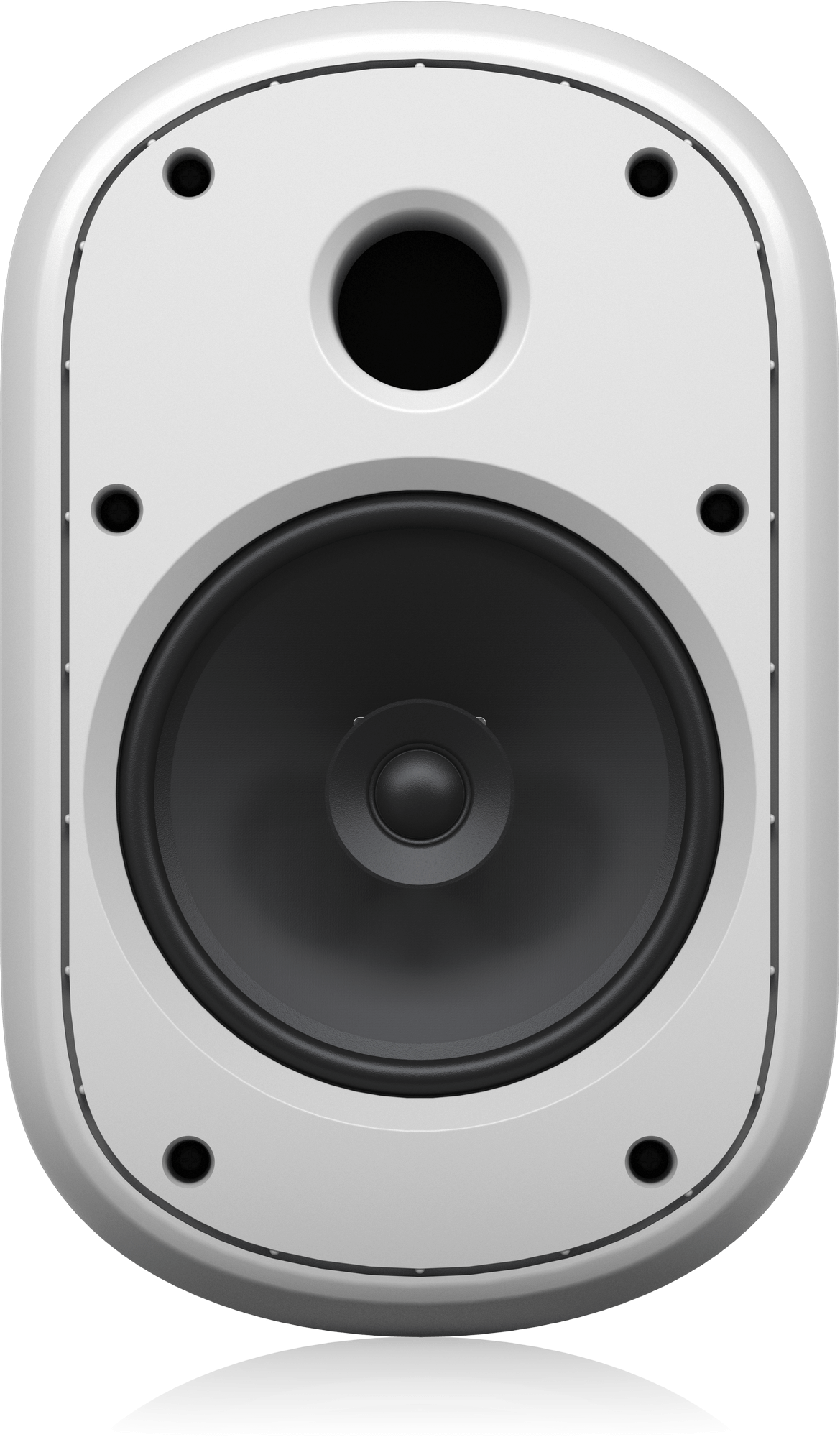

Exceptional Sound and Reliability The design comprises a 165 mm (6.50") polypropylene full-range driver and 0.79" ferrofluid cooled soft dome high frequency driver mounted in a UV and weather resistant UL 94-V0 ABS enclosure. Dust protection is provided in the form of an attractive aluminium mesh grille. The paper cone material and butyl rubber surround enhance durability and long-term reliability. DVS 601-WH is specifically designed for applications requiring the combination of excellent music and speech sound quality and exceptional reliability. |
|
|

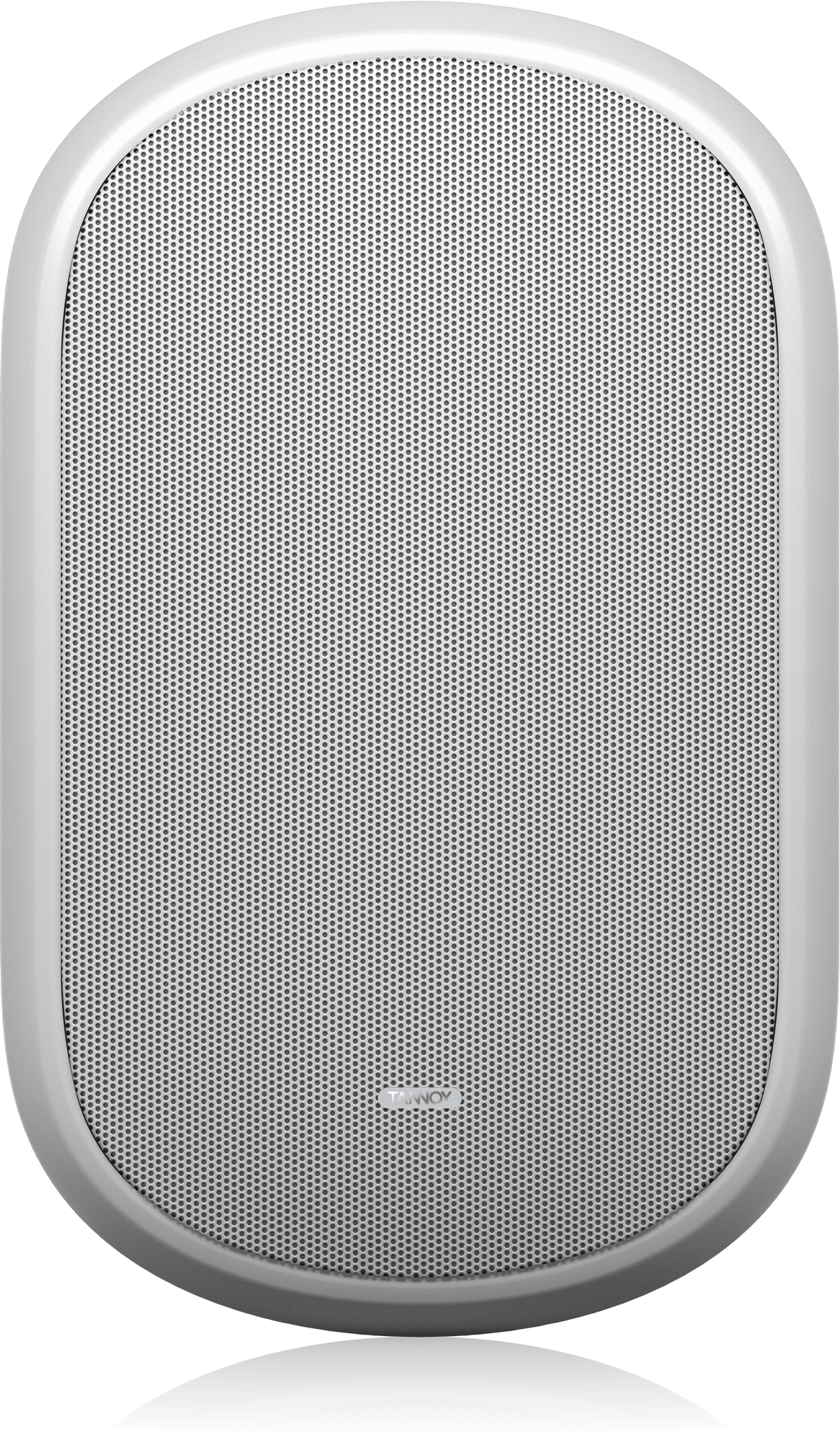

The elegantly styled semi-matt white moulded enclosure blends beautifully into any décor. Additionally, the DVS 601-WH design and performance has achieving an IP64 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, health suites, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate. |
Specifications:
| Frequency response (-3 dB) | 90 Hz - 20 kHz |
| Frequency response (-10 dB) | 80 Hz - 20 kHz |
| System sensitivity (1 W @ 1 m) | 86 ± 2 dB |
| Dispersion (-6 dB) | 90 degrees conical averaged 1 kHz - 10 kHz |
| Transducers | Coaxial |
| Low frequency | 165mm (6.5") paper cone with coating |
| High frequency | 20 mm (0.79') |
| Crossover |
3500 Hz ± 10% |
| Directivity (Q) | 4.9 averaged 1 kHz to 10 kHz |
| Directivity (DI) | 6.7 averaged 1 kHz to 10 kHz |
| Rated maximum SPL | 100 dB (average) 106 dB (peak) |
| Transformer taps |
70 V - 30 W / 15 W / 7.5 W / 3.8 W / OFF and LOZ low impedance operation 100 V - X / 30 W / 15 W / 7.5 W / OFF and LOZ low impedance operation |
| Average |
30 W |
| Programme |
60 W |
| Peak |
120 W |
| Recommended amplifier power |
60 W @ 8 Ohms |
| Nominal impedance |
8 Ohms |
