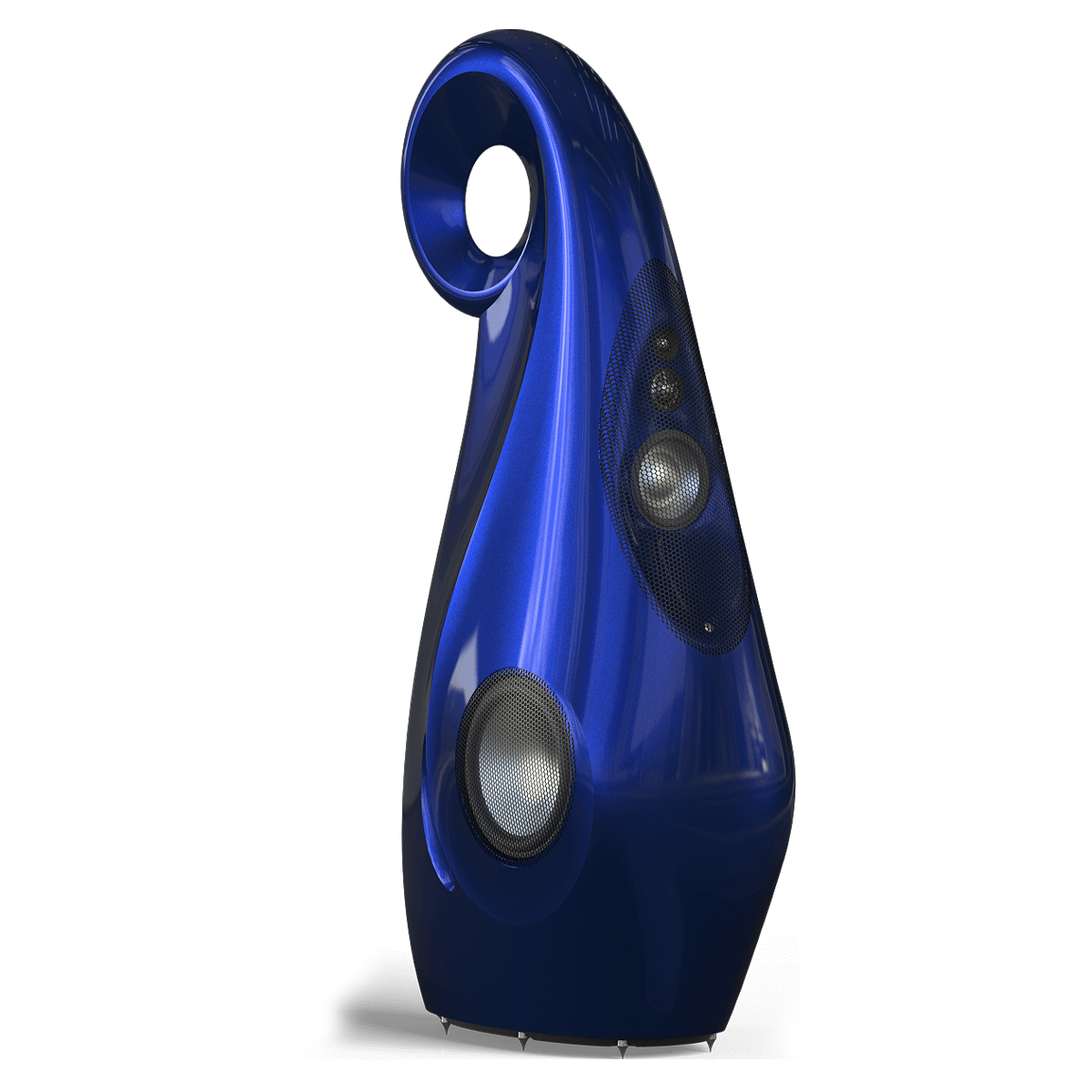

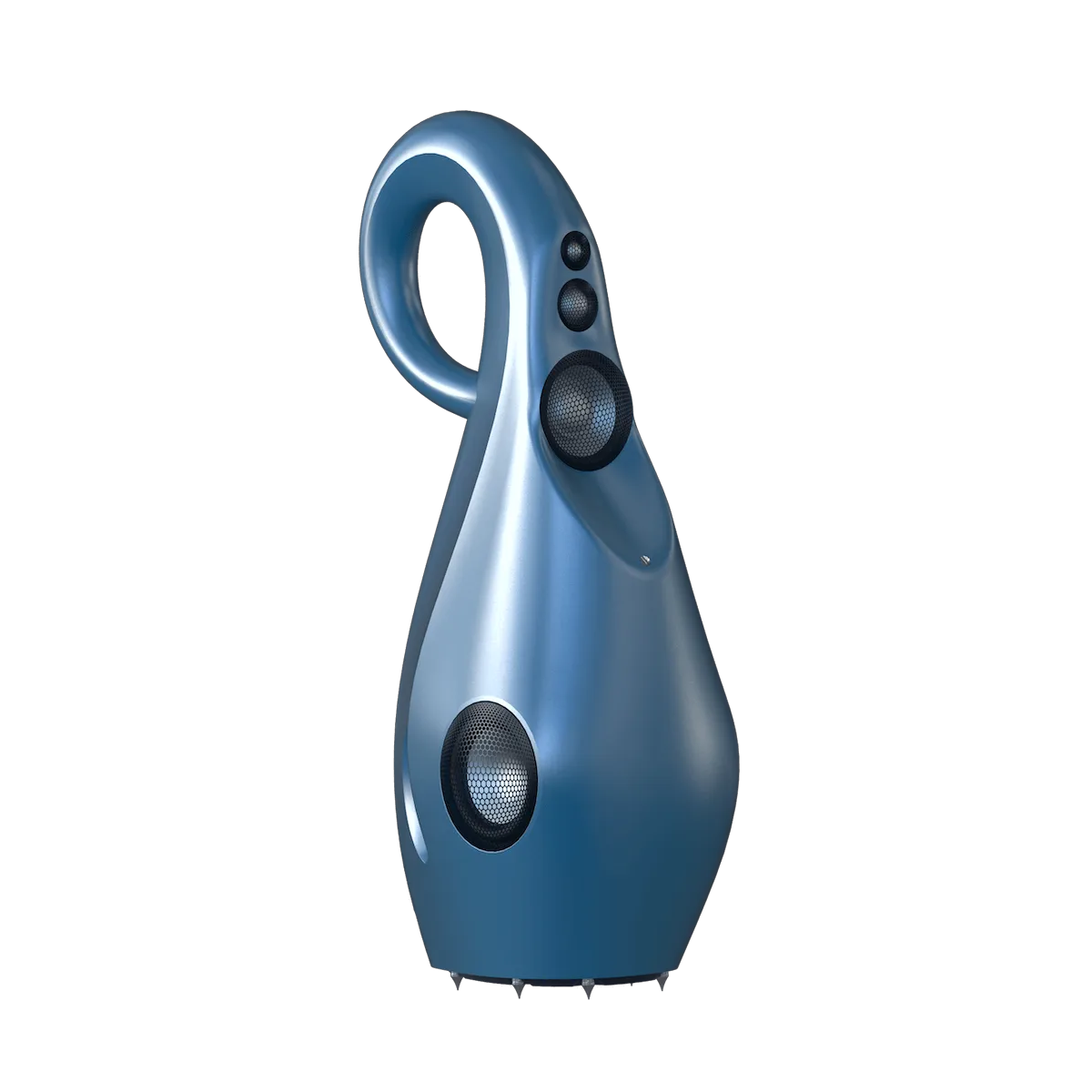

Vivid Audio Giya C1 Spirit Cu
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

|
THE BEST OF THE BESTThe largest and most imposing GIYA, the G1 Spirit Cu is worthy of its pinnacle position in the range. Like all GIYA speakers, it owes its striking design to a simple but profound idea: that curved surfaces and smooth lines produce a cleaner, more transparent and more honest sound than conventional flat planes and angles. EVERYTHING IN PERFECT BALANCEThe massive internal volume gives the G1 Spirit Cu the most powerful bass performance of all our GIYAS. But it goes far beyond mere weight of sound. Thanks to our patented reaction-cancelling bass drivers, you can hear every note clearly and individually exactly as it was played, free from distortion or muddiness. A BOLD STATEMENT PIECEThe GIYA G1 Spirit Cu isn't the kind of loudspeaker that sits quietly in a corner: it's a bold statement piece that commands attention. You can choose from three classically elegant standard finishes – Lexus Pearl White, Piano Black and Oyster Grey Matte – with myriad other colours available as bespoke options. |
|
|
THE EXTERNAL CROSS OVER OPTIONIn the interests of versatility, all Giya Cu models are available with an external crossover option. The crossover is housed in a separate case, finished in piano gloss to the same high standard as the main loudspeaker and equipped with two pairs of input terminals to permit the same bi-wire and bi-amped options as the standard loudspeaker. A professional-grade eight-way cable is provided to link the crossover with the loudspeaker with the connection being provided by a metal-cased NL8 professional loudspeaker connector. |

| Specification | Vivid Audio GIYA G1 SPIRIT Cu |
|---|---|
| Configuration | 4-way 5 driver system |
| Cabinet material | Glass reinforced balsa cored sandwich composite |
| Cabinet colour | Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke cabinet colour | Bespoke colour options available on request |
| Drive units | HF: D26 – 26mm alloy/carbon diaphragm dome unit with Tapered Tube loading |
| Upper-mid: D50Cu – 50mm alloy/carbon diaphragm dome unit with copper cap and Tapered Tube loading | |
| Lower-mid: C125-75SCu – 125mm alloy/carbon diaphragm (equivalent 6.5") with 75mm voice coil with copper cap and Tapered Tube loading | |
| Bass: 2 x C225-100, 225mm alloy diaphragm (equivalent 11.5") drivers with 100mm voice coil in 45mm gap | |
| Bass loading | Exponentially tapered tube enhanced bass reflex |
| Sensitivity | 92 dB @ 2,83 Vrms at 1m on axis |
| Nominal impedance (Ω) | 6 nominal, 3 minimum at 20 KHz no phase shift at Zmin |
| Frequency range (Hz) | -6 dB points: 25 – 36.000 |
| First D26 Break Up mode (Hz) | 44.000 |
| Frequency response (Hz) | 29 – 33.000 +/- 2 dB on reference |
| Harmonic distortion (2nd and 3rd harmonics) | <0.3% below 220Hz, <0.1% between 220Hz and 3.5kHz, <0.3% above 3.5kHz |
| Cross over frequencies (Hz) | 220 – 880 – 3.500 |
| Power handling (music program) | 1.600 watts rms |
| Loudspeaker dimensions | 1.600mm (H) x 440 mm (W) x 820 mm (D) - 63" (H) x 17.32" (W) x 32.28" (D) |
| Net weight | 67,4kg (148lbs) internal crossover | 62kg (136lbs) external crossover |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
