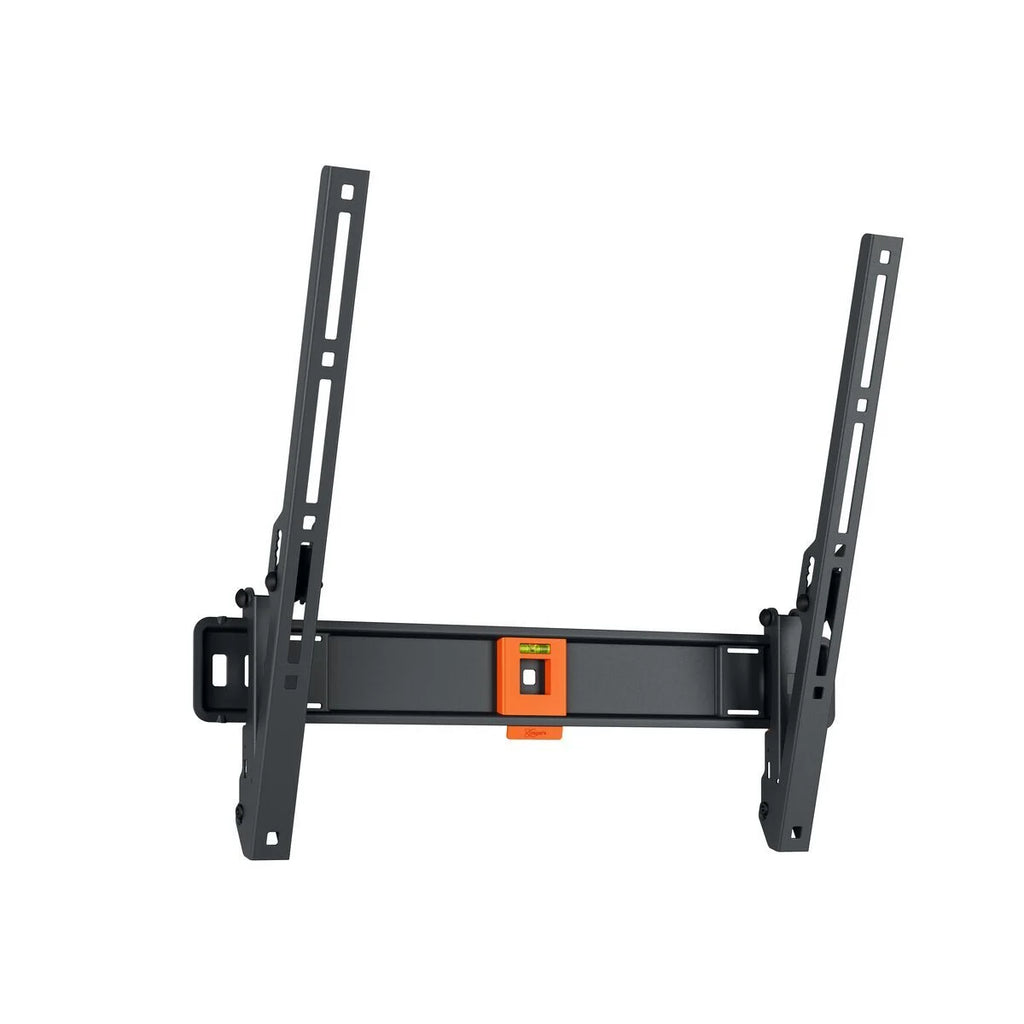

Tilting TV wall mount for TVs from 32 to 65 inches
Make things easy and comfortable for yourself with this QUICK Tilt TV wall mount. Installation is extremely easy. You can mount your TV on the wall in max. 20 minutes. By tilting the TV wall mount 5°, 10° or 15°, you can set the desired viewing angle, a feature that is especially nice if your TV is mounted a bit higher on the wall. The TV wall mount is suitable for TVs from 32 to 65 inches and weighing up to 25 kg.
Easy to install in three steps
Thanks to the unique EasyFIX™ system, QUICK Tilt TV wall mounts are quick and easy to install. The entire installation process consists of only three steps. You can mount your TV on the wall in max. 20 minutes.
Get to work straight away
All the mounting materials you need to install your QUICK Tilt TV wall mount are included in the packaging. As well as screws and Fischer® DuoPower plugs, a drilling template is also included. With our free DrillRight app, you can easily mark out the first drill hole.
The QUICK Tilt TV wall mount itself has a built-in spirit level, so you can be sure that your TV is mounted straight.
You can find step-by-step instructions in the Quick Installation Guide. In addition, you can view a detailed manual and the installation video online.
Safe TV wall mount
This QUICK Tilt TV wall mount excels not only in ease of installation but also in safety. For example, the SoftLock™ system ensures that your TV is attached well. And thanks to the TiltGrip™ system, the mount remains securely fixed in any position. In addition, each QUICK TV wall mount is TÜV certified and tested at three times its maximum weight capacity. QUICK Tilt TV wall mounts therefore meet the most stringent safety requirements. There's a good reason that you get a 5-year warranty.
Consciously designed
The environmental impact of this product is 3,8 kg CO₂ equivalent. At Vogel's, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet under Downloads.
Specifications:
| EAN single box |
8712285347566 |
| Colour |
Black |
| Min. screen size (inch) | 32 |
| Max. screen size (inch) | 65 |
| Max. weight load (kg) | 25 |
| Maximum rotation |
Tilt up to 15° |
| Hole pattern (VESA) | 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm |
| Min. distance to the wall (mm) | 31 |
| What's in the box | Wall mount, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight app, Drilling template |
| Product category | Tilting TV Wall Mount |
| Product Series |
QUICK |
| Guarantee | 5 years |
| Color: | Blue, Purple, White |
| Size: | 20, 24 |
| Material: | 100% Polyester |
