WiiM Vibelink Amp Power Amplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
Unleash the Power of Pure Sound.

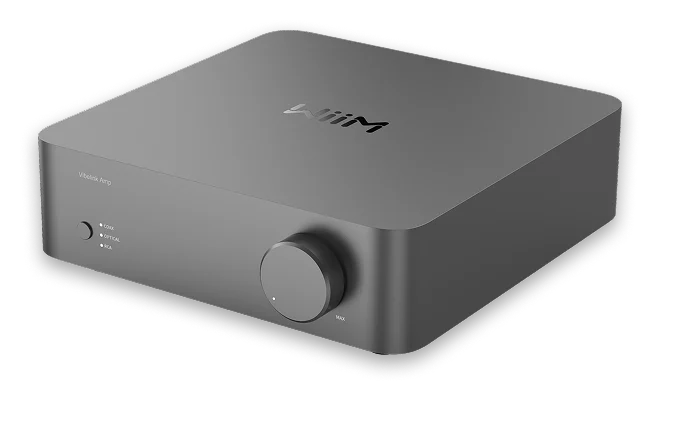

WiiM Vibelink Amp Power Amplifier
The WiiM Vibelink Amp is a pure hi-fi stereo amplifier, deliberately stripped of streaming modules so that every part of it is dedicated to amplification. It delivers 100 W per channel into 8 Ω (200 W into 4 Ω) from a sleek unibody aluminium chassis, and it is designed as the perfect partner for the WiiM Mini, Pro, Pro Plus and Ultra streamers – just plug and play.
It also works with streamers and sources from other brands via analogue RCA, optical or coaxial inputs, making it an easy way to add serious power to any system feeding passive speakers.
Colour: Supplied in Space Gray.
Highlights
- 100 W per channel at 8 Ω and 200 W per channel at 4 Ω
- Post-Filter Feedback (PFFB) Class-D technology overcomes speaker load-dependency
- ESS 9039Q2M DAC, TI TPA3255 amplifier and six TI OPA1612 op-amps
- THD+N ≤0.0005%, SNR ≥120 dB
- Pure analog input – no ADC conversion, no compromise
- Bit-perfect 192 kHz/24-bit playback via Optical and Coaxial
- Auto Standby (30 or 60 minutes) and 12V Trigger In
- Copper heat pipe, large aluminium heatsink and precision PID thermal control – passive, silent cooling
Power. Precision. Pure Performance.
Designed for music lovers and home theatre enthusiasts, the Vibelink Amp delivers 100 W per channel at 8 Ω and 200 W per channel at 4 Ω, rendering every note, beat and line of dialogue with clarity, depth and precision.
Premium Build, Modern Aesthetic
A sleek unibody aluminium chassis provides durability and a minimalist look that suits a media console or a high-end rack. Advanced thermal management – a copper heat pipe and large aluminium heatsink – ensures efficient cooling and long-term reliability.
High-Fidelity Audio With Premium Components
An ESS 9039Q2M DAC, TI TPA3255 amplifier chip and six TI OPA1612 op-amps deliver ultra-low distortion and noise, revealing details often lost in standard amplifiers, with support for high-resolution audio up to 192 kHz/24-bit.
Post-Filter Feedback Technology
PFFB minimises distortion and keeps sound quality consistent across different speaker loads. By dynamically compensating for load-dependent variations, it delivers a more accurate, balanced and natural sound with a wider soundstage and richer detail.
Pure Analog Input – No ADC Conversion
Unlike many amplifiers that digitise analog signals, the Vibelink Amp's analog input bypasses analog-to-digital conversion entirely, preserving a direct, unaltered signal path for vinyl, CD and high-end analog sources.
Smart, Energy-Efficient Performance
Auto Standby powers the amp down after 30 or 60 minutes of inactivity, while the 12V Trigger In enables instant activation together with compatible devices.
The Perfect Match for WiiM Streamers
Designed for flawless compatibility with WiiM Mini, Pro, Pro Plus and Ultra. Choose digital (Optical/Coaxial) or analog (RCA) connections, with ultra-low latency for streaming and home theatre.
Good to know
- The Vibelink Amp has no built-in streaming – pair it with a WiiM streamer or another source. You will need passive speakers (3–8 ohms) and speaker wire; turntables require a phono preamp.
What's in the Box
- Use Guide x 1
- Power Cable x 1
- RCA Cable x 1
- Optical Cable x 1
- Banana Plugs x 4
Specifications
| Dimensions & Weight | |
|---|---|
| Dimensions | 7.9 x 8.4 x 2.6 inches (200 x 212.5 x 66 mm) |
| Weight | 2.05 kg (4.5 lbs) |
| Power input | 100-240V, 50/60Hz AC, 3A Max |
| Colour | Space Gray |
| Power & Amplification | |
| Output Power | 100W per channel at 8Ω (stereo) |
| Amplifier Technology | Class-D with PFFB (Post-Filter Feedback) technology |
| Total Harmonic Distortion (THD+N) | ≤0.0005% |
| Signal-to-Noise Ratio (SNR) | ≥120dB |
| Frequency Response | 20Hz – 20kHz ± 0.5dB |
| Impedance Range | 3~8 ohms |
| Audio Processing | |
| Premium DAC | ESS 9039Q2M high-performance DAC |
| Bit-Perfect Playback | Supports up to 192kHz/24-bit audio |
| Dynamic Range | ≥120dB for high-resolution sound |
| Pure Analog Input | No ADC conversion, maintaining signal integrity |
| Input & Output Options | |

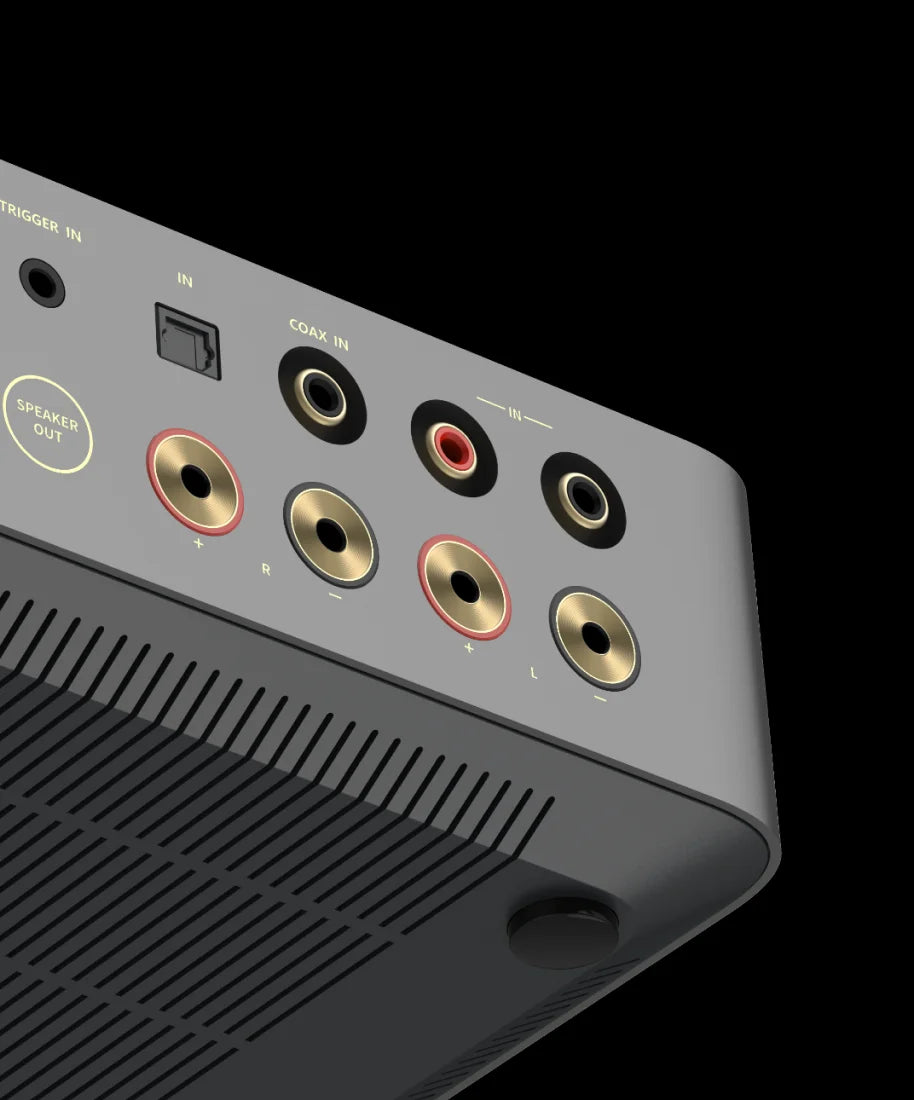

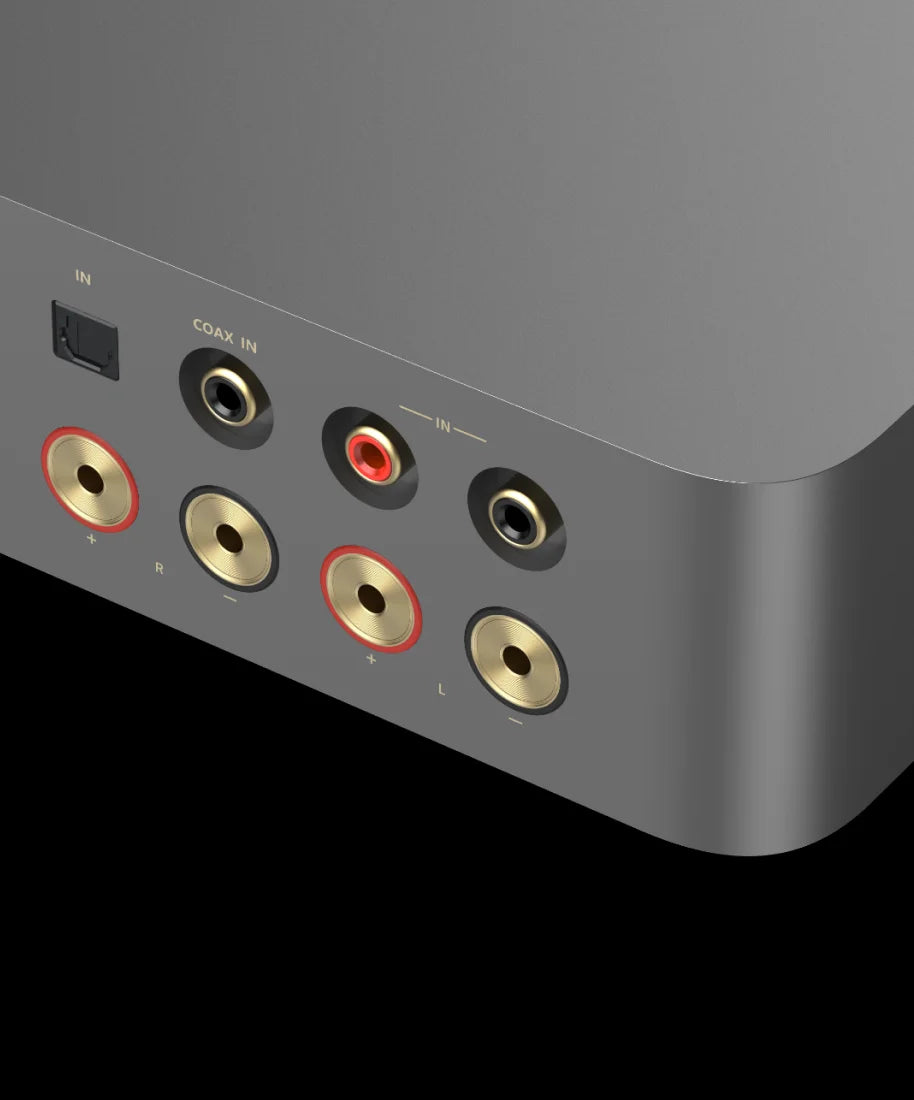

| Analog Inputs | 1x RCA Stereo (Line-In, pure analog signal path) |
| Digital Inputs | 1x Optical (TOSLINK) – Up to 192kHz/24-bit 1x Coaxial (S/PDIF) – Up to 192kHz/24-bit |
| Speaker Outputs | Gold-plated binding posts (supports banana plugs or bare wire connections) |
| 12V Trigger In | Auto power-on with compatible devices |
| Auto Standby Mode | Powers down after 30 or 60 minutes of inactivity |
| Formats & Controls | |
| Supported Audio Formats | PCM up to 192kHz/24-bit (through digital sources) |
| Volume Knob | Adjusts volume |
| LED Indicator | Three 4-color RGBW LED indicates source input and device status |
| Build & Design | |
| Chassis | Premium unibody aluminum for durability & heat dissipation |
| Thermal Management | Copper heat pipe, large aluminum heatsink, unibody aluminum case, and precision PID thermal control |
| Cooling System | Passive, silent operation |
Specifications as published by WiiM (wiimhome.com). Product images courtesy of WiiM. Specifications and features may change with firmware updates.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
Shipping & Returns
- Free shipping on orders over R500 within the country.
- Standard delivery within 2–5 business days. Delays will be communicated. This might vary slightly depending on your location.
- Return items in original condition for a full refund. (unopened state)
- Returns that are open/unboxed will be subject to a handling fee. Refunds will only be processed after testing the unit.
