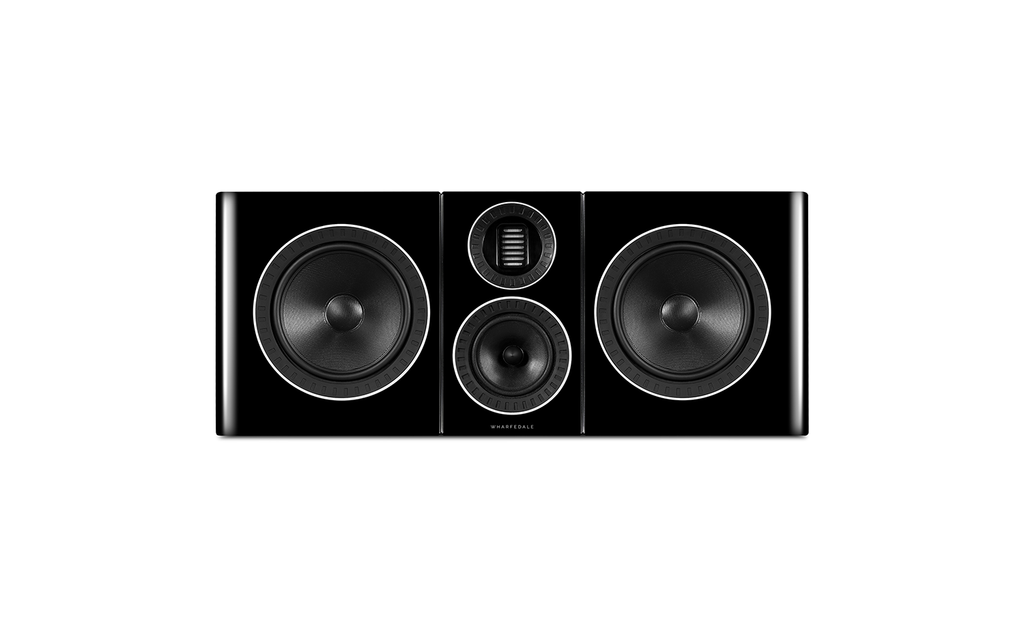

    Wharfedale Elysian C Center Speaker

    R 69,900.00

      Wharfedale Elysian C Center Speaker

      Operating in a three-way configuration, ELYSIAN Centre is also fitted with a custom, glass fibre matrix cone bass units. Terminated with a highly flexible rubber surround and driven by a specially developed low-distortion motor system, the 220mm (8.5”) bass units are capable of reaching down below 27Hz. The result is impact and bass excitement that offer a totally immersive theatre experience.



      As found in the ELYSIAN 2 and 4 models, the ELYSIAN Centre utilises a proprietary woven glass fibre matrix mid-range. This structure provides a superb combination of low mass and high strength, with the addition of a high-plasticity coating to control its acoustic behaviour. With such a low-mass cone, only a low-damping, foamed, rubber-like material would match for the surround – again, coated for durability. A linearised output across a wide bandwidth, even off-axis, enhances a natural response to the music that can be heard anywhere the listener wishes to sit..



      Further tuned for purpose, this combination of drivers brings a new level of vocal tangibility and soundstage presentation. The musical timing, spacious presentation and precision in delivery, means that ELYSIAN Centre is nothing short of jaw-dropping in terms of realism in audio / visual applications. Soundtracks come to life and cinematic scenes explode with energy!



      Specifications:
      Model Elysian Centre
      General description 3-way centre speaker
      Design philosophy and core technology
      Enclosure type bass reflex
      Transducer complement 3-way
      ABR
      Bass driver 8.5" (220mm) Coated Fibre Glass Matrix Cone x2
      Midrange driver 6" (150mm) Coated Fibre Glass Matrix Cone
      Treble driver 27*45mm AMT
      Full-range driver
      AV shield No
      Sensitivity (2.83V @ 1m) 91dB
      Recommended amplifier power 25-150W
      Peak power handling
      Peak SPL 110dB
      Nominal impedance 6Ω (Compatible 8Ω )
      Minimum impedance 3.5Ω
      Frequency response(+/-3dB) 35Hz ~ 22kHz
      Bass extension(-6dB) 27Hz
      Crossover frequency 360Hz, 2.9kHz
      Cabinet Volume(in litres) 5.7L, 64.0L
      Dimensions (mm)
      Height (on plinth) 320mm
      Width 830mm
      Depth (with terminals) (340+30)mm
      Carton size 965*495*455mm
      Net weight 30.2kg/pcs
      Gross weight 35.0kg/ctn
      Finish Black /Walnut/White Piano Finish
      Standard accessories rubber feet
