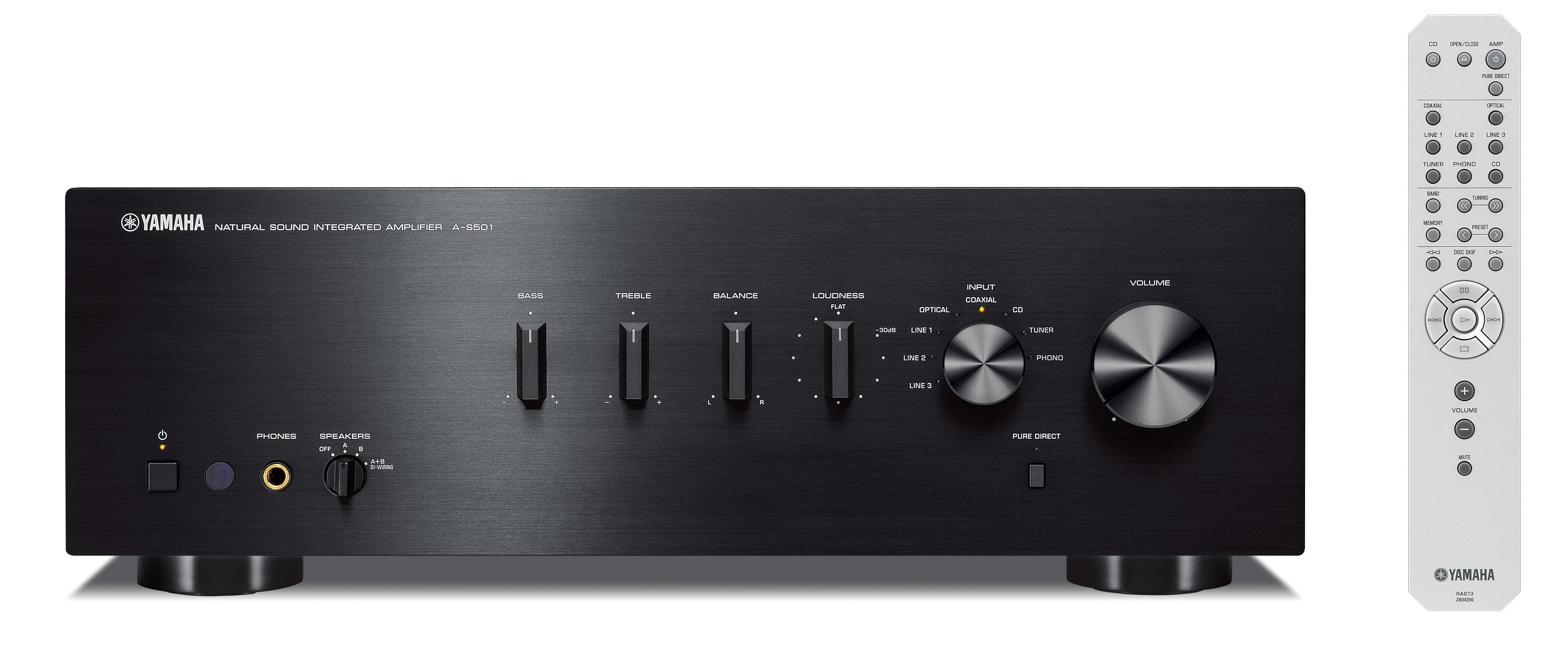

Yamaha AS-501 Integrated Amplifier
- ToP-ART (Total Purity Audio Reproduction Technology) and high quality parts
- - I/O (input to output) Direct Symmetrical Design
- - ART (Anti-Resolution and Tough) Base
- - Custom-made power transformer / 12,000uF block capacitors / Aluminum-extruded heat sinks
- 120W x 2 (max), 85W x 2 (RMS) high power output
- Pure Direct Mode for Greater Sound Purity
- Continuous Variable Loudness Control
- Gold-plated speaker terminals and RCA (CD, Phono) and coaxial terminals
- Digital audio inputs for TV or Blu-ray Player
- Connection for YBA-11 Bluetooth Wireless Adapter
- Simple yet sophisticated design (aluminium front panel)
- Auto Power Standby
High sound quality circuit design based on the ToP-ART (Total Purity Audio Reproduction Technology) concept
ToP-ART Design and ART Base Ensure Optimum Sound When processing and transmission of the audio signal is simple and direct there is less chance of it being affected by noise and distortion. Yamaha’s amplifier design technology called ToP-ART features an I/O (input to output) Direct Symmetrical Design, with left and right channels organised in a straight, symmetrical layout for highest signal purity. In addition, the ART (Anti-Resonance and Tough) Base bottom chassis and a solid centre bar provide high-rigidity support and vibration damping. These Yamaha design innovations contribute to this amplifiers’ rich audio reproduction with abundant musicality.
High Quality Parts for Outstanding Audio Performance
Custom-made power transformer, custom-made block capacitors, two direct signal path speaker relays, one-point grounding system, aluminium-extruded heat sinks and other top-quality parts effortlessly handle demanding audio signal conditions. The quality of each individual part, as well as how they work together, basically determines the sound quality of any component. Yamaha uses only very high quality parts, carefully selected and tested.
Created by Yamaha's Rich Experience and Tradition, and High Technological Expertise
Yamaha, with a long history of over 125 years as a musical instrument maker, also has a high reputation for HiFi components. The A-S501 is created by taking advantage of this rich experience and high technological expertise. Based on the concept of “Natural Sound”, for reproducing all music as it really sounds, and built with scrupulous care from circuit design to basic sound production, even though an entry model it reproduces high sound quality and musically rich sound.
CD Direct Amplification and Pure Direct Mode for Greater Sound Purity
|The Pure Direct mode causes the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation for the purest sound quality.|
Digital Audio Input for TV and/or Blu-ray Player
The A-S501 is equipped for digital audio input with both optical and coaxial terminals. The optical is for receiving audio from a TV, and the coaxial for receiving audio from a Blu-ray player. The audio stays in the digital domain, giving you pure, pristine dynamic sound for all your entertainment sources, from sports and other programmes to movies and concerts.
Phono MM Terminal
You can connect a turntable with an MM phono cartridge to play vinyl records. This lets you enjoy not only CDs, but also analogue record sound from an amp with the latest digital/analogue technology.
|Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)||85 W + 85 W (0.019% THD)|
|Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)||120 W + 120 W|
|High Dynamic Power/Channel (8/6/4/2 ohms)||130/150/185/220 W|
|Frequency Response||10 Hz-100 kHz +/-1.0 dB|
|Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)||0.019% (50 W/8 ohms)|
|Signal-to-Noise Ratio (CD)||99dB (input shorted, 200 mV)|
|Audio In / Out||8 / 2|
|Digital Input||Yes (optical / coaxial)|
|Standby Power Consumption||0.5W|
|Power Management (Auto Power Standby)||Yes|
|Dimensions (W x H x D)||435 x 151 x 387 mm; 17-1/8” x 6” x 15-1/4”|
|Weight||10.3 kg; 22.7 lbs.|
