Dual Folded Motion XT tweeters in a wide- dispersion array ideally suited for surround channel applications.
 |

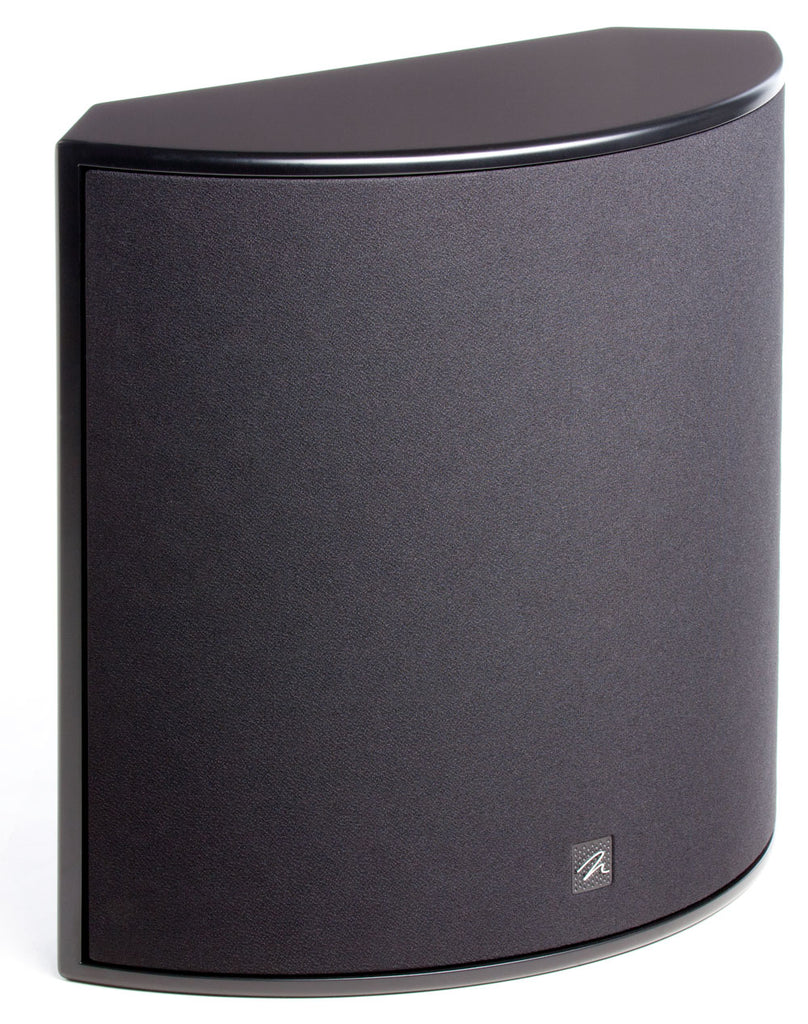

The EM-FX2 features dual Folded Motion XT tweeters in a wide-dispersion array ideally suited for surround channel applications. A single 6.5-inch doped fiber-cone woofer provides powerful low-frequency extension. Available in a black satin finish, the EM-FX2 is designed to corner mount, wall mount or angle-wall mount for versatile surround sound placement in any room. |
Folded Motion XT TweeterMartinLogan's larger, low distortion Folded Motion XT tweeter boasts a radiating surface 40% larger than those found in the award-winning Motion® Series products. This substantial leap in size increases the bandwidth and efficiency of the high-performance tweeter for effortless performance. |
 |
Slender ProfileWhen mounted on a flat wall, the EM-FX2 protrudes only 6.8", making it the perfect surround channel speaker for large rooms, without adding unnecessary bulk or visual distraction.
|
Specifications are subject to change without notice
|
Frequency Response |
55–25,000 Hz ±3dB |
|
Recommended Amplifier Power |
20—200 watts per channel |
|
Horizontal Dispersion |
160° |
|
Vertical Dispersion |
30° |
|
Sensitivity |
93 dB @ 2.83 volts/ meter |
|
Impedance |
5 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers. |
|
Crossover Frequency |
2,300Hz |
|
High Frequency Transducer |
Two 1.25" × 2.4" (3.2cm × 6.1cm) Folded Motion XT Transducers with 4.5" × 2.75" (11.4cm × 7cm) diaphragm |
|
Low Frequency Transducer |
6.5" (16.5cm) paper cone with cast aluminum basket. Ported. |
|
Components |
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Tweeter thermal/current protection. |
|
Inputs |
Push style with banana jacks |
|
Weight |
16 lbs. (7.3 kg) |
|
Dimensions |
14.9" x 14" x 6.8 " (37.9cm x 35.5cm x 17.2cm) |
