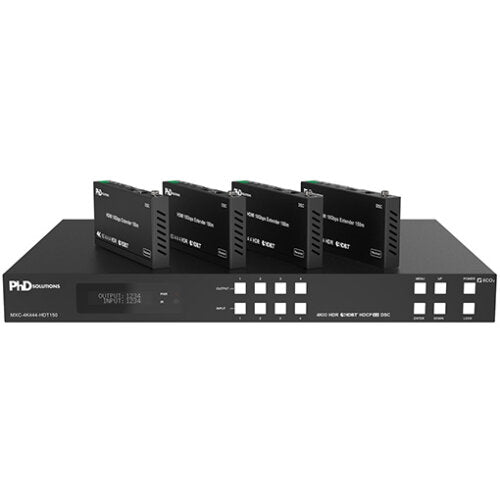

This 18Gbps 4×4 HDBaseT(150M) Matrix can connect 4 HDMI sources to 8 displays. It features 4 HDBaseT CAT cable outputs and 4 mirrored HDMI outputs. HDBaseT outputs can extend video transmission distance up to 492ft / 150m @ 1080P or 4K60 4:4:4 up to 394ft/120m via a single Cat 5e/6/6a cable using the best visually lossless low latency Display Stream Compression (DSC) technology. HDR, HDR10, HDR10+, Dolby Vision & HLG are also supported.
HDMI Audio is de-embedded to analog and coaxial audio outputs. Each HDMI output supports 4K2K to 1080P downscaling functionality. Advanced EDID & CEC are supported via the built-in web interface.
The matrix supports IR routing. The IR signal is a one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. It provides an intuitive set of front panel controls with an OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Control drivers are available for 3rd Party control systems (ELAN, Control4, RTI, Crestron, Savant).
***Display Stream Compression (DSC) is a VESA-developed low-latency compression algorithm. it is the best visually lossless compression format available supporting color depth up to 16 bits, with lightweight 2:1 to 3.1 compression ratios.
| Video Bandwidth HDMI: | 600 MHz/18 Gbps HDBaseT: 340 MHz/10.2 Gbps |
| Video Resolution: | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/ 50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4) |
| Color Depth: | 8-bit, 10-bit, 12-bit (1080p@60Hz) 8-bit (4K2K@60Hz YUV4:4:4) 8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0） |
| Color Space: | RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 |
| HDR: | HDR10, HDR10+, Dolby Vision, HLG |
| HDMI Audio Formats (Pass-Though): | LPCM2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X, DTS-ES, DTS-HD-HRA |
| Coax Audio Formats : | PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 |
| Analog Balanced Audio Formats : | PCM 2.0 |
| Vmax : | 2Vrms SNR :>90dB |
| THD+N Ratio: | ＜0.1%（V_max） 0.001%~0.01%（V_best） |
| Crosstalk: | ＞80dB |
| Frequency Response: | 20Hz~20kHz ±0.5dB |
| HDBASET: | CLASS C |
| Compression Technology : | Display Stream Compression (DSC) |
| Input Port : | 4×HDMI Type A [19-pin female] 5×IR input [3.5mm Stereo Mini-jack] |
| Output Ports : | 4×HDMI Type A [19-pin female] 4×HDBaseT CLASS C Out [RJ45] 5×IR output [3.5mm Stereo Mini-jack] 4×Coax audio [RCA] 4×balanced analog audio [5-pin Phoenix connector] |
| Control Ports: | 1xRS-232 (9-pin D-sub) 1xTCP/IP Control (RJ-45) 1x IR window on front panel |
| ESD Protection: | Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge) |
| Dimensions: | 440mm(W) x 200mm(D)x 44.5mm(H) |
| Weight: | 3.1 Kg |
| Chassis Material: | Metal |
| Silkscreen Color: | Black |
| Operating Temperature: | 0˚C – 40˚C/32˚F – 104˚F |
| Storage Temperature: | −20˚C – 60˚C/−4˚F – 140˚F |
| Relative Humidity: | 20 – 90% RH (No-condensing) |
| Power Supply (Internal): | 100~240V AC 50/60Hz- IEC |
| Power Consumption: | 60 W (Max) |
| HDBaseT Receiver | |
| Dimensions: | 140mm(W) x 65mm(D)x 18mm(H) |
| Weight: | 155g |
| Input: | 1 x HDBT IN [RJ45, 8-pin female] |
| Outputs: | 1 x HDMI Type A [19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] |
| Controls: | 1 x IR IN [3.5mm Stereo Mini-jack] |
