    550W Solar Panel - Akcome MONO 10BB Half-Cut Module 550W

    R 1,899.00 R 4,499.00

      550W Solar Panel  - Akcome MONO 10BB Half-Cut Module - 550W

      The Akcome MONO 10BB Half-Cut Module 550W is an efficient solar module that is perfect for harsh environments. Designed with half-cut technology and series-parallel wiring, it provides increased power output and reduced shading loss. It boasts a 1.6°C lower temperature compared to conventional modules.

      Features:
      • High Efficiency

      • Excellent Low-Irradiance Performance

      • Harsh Environment Adaptability

      • Robust Mechanical Durability




      Half-Cut technique leads to increased power output

      Compared with the whole cell, the current of half cell is halved, the heat loss is reduced, the hot spot temperature is reduced, and the power can be effectively increased.



      Series-parallel wiring mode results in reduced shading loss

      Series-parallel wiring will not only reduce power lows from shade but also improves
      the effective use of supports and space.



      Excellent temperature performance

      The temperature of HC module is 1.6 °C lower than that of the conventional module
      under the same working condition, which results less power loss.

      Reduced encapsulation loss due to reduced current

      HC module is of lower current and lower CTM loss at around 0.2%.

      Model No. 550
      Warranty Product Warranty 15 Years
      Electrical Data at STC
      Maximum Power (Pmax) 550 Wp
      Voltage at Maximum Power (Vmpp) 42.16 V
      Current at Maximum Power (Impp) 13.05 A
      Open Circuit Voltage (Voc) 49.8 V
      Short Circuit Current (Isc) 13.94 A
      Panel Efficiency 21.3 %
      Power Tolerance (Positive) 0 ~+ 3 %

      Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C

      Electrical Data at NOCT

      Maximum Power (Pmax) 409 Wp
      Voltage at Maximum Power (Vmpp) 38.43 V
      Current at Maximum Power (Impp) 10.66 A
      Open Circuit Voltage (Voc) 46.31 V
      Short Circuit Current (Isc) 11.26 A
      Temperature 45±2 °C
      Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
      Thermal Ratings
      Operating Temperature Range 40~85 °C
      Temperature Coefficient of Pmax 0.36 %/°C
      Temperature Coefficient of Voc 0.29 %/°C
      Temperature Coefficient of Isc 0.048 %/°C
      Maximum Ratings
      Maximum System Voltage 1500 V
      Series Fuse Rating 25 A
      Material Data

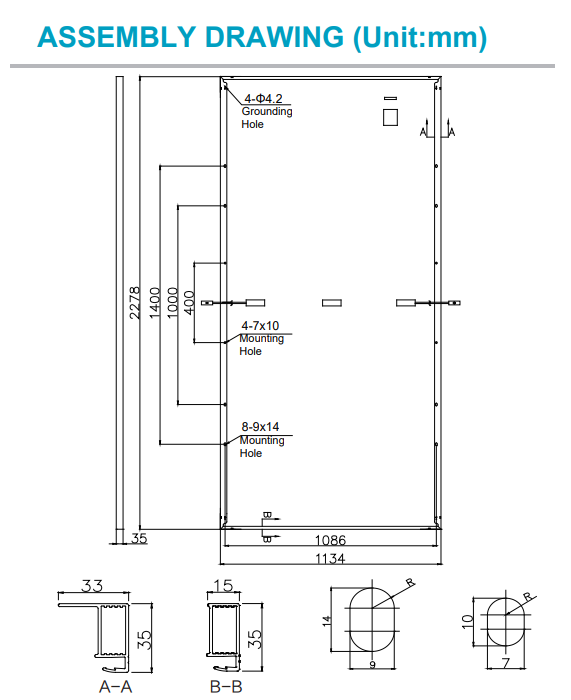

      Panel Dimension (H/W/D) 2278x1134x35 mm
      Weight 28.96 kg
      Cell Type Monocrystalline
      Cell Number 144
      Frame Type Anodized Aluminium Alloy
      Junction Box Diodes 3
      Junction Box Protection Class IP 68
      Cable Crossection 4 mm2
      Cable Length 300 mm
