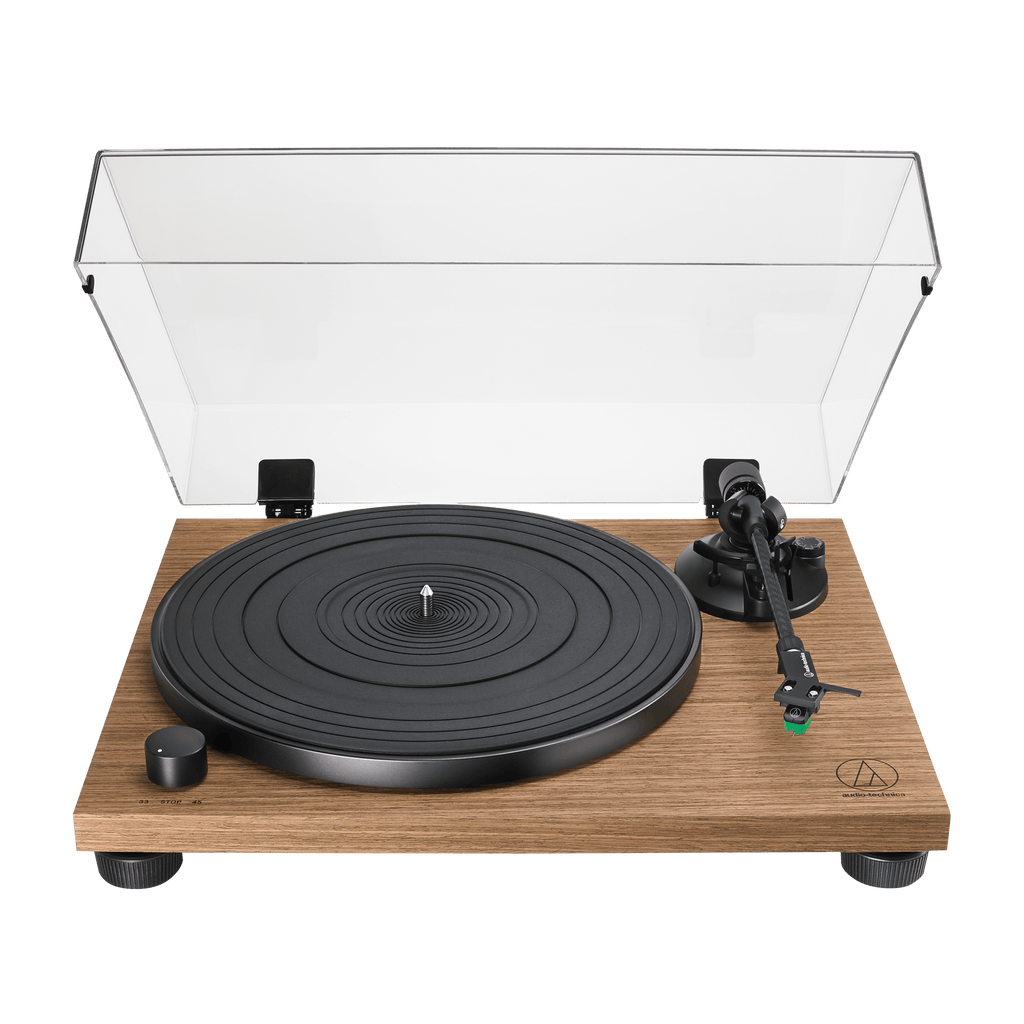

The AT-LPW40WN is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. It features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated walnut wood veneer to limit low-frequency acoustical feedback and a sensor-monitored motor to ensure accurate platter rotation speeds at 33-1/3 and 45 RPM.
Features:
- Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM
- Motor features a speed-sensor system to maintain accurate platter rotation speed
- Fully manual operation
- Adjustable dynamic anti-skate control
- Professional anti-resonance, die-cast aluminum platter with rubber mat
- AT-HS4 universal ½"-mount headshell and AT-VM95E Dual Moving Magnet phono cartridge with 0.3 x 0.7 mil elliptical stylus
- AT-VM95E cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
- Straight carbon-fiber tonearm with hydraulically damped lift control and lockable rest
- Anti-resonance MDF (medium density fiberboard) plinth with walnut simulated wood veneer
- Built-in switchable phono pre-amplifier for phono or line-level output
- AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
The turntable includes a straight carbon-fiber tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95E Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95E cartridge, which comes with a 0.3 x 0.7 mil elliptical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.
The AT-LPW40WN is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.
Specifications:
| Turntable |
| Type |
2-speed, fully manual operation |
| Motor |
DC servo motor w/speed stability control |
| Drive Method |
Belt-drive |
| Speeds |
33-1/3 RPM, 45 RPM |
| Wow and Flutter |
< 0.15 % WRMS (33 RPM) at 3 kHz |
| Signal-to-Noise Ratio |
> 60 dB |
| Output Level |
Pre-amp: ""PHONO"": 4.0 mV nominal at 1 kHz, 5 cm/sec
Pre-amp ""LINE"": 200 mV nominal at 1 kHz, 5 cm/sec |
| Phono Pre-Amp Gain |
35 dB nominal, RIAA equalized |
| Power Supply Requirements |
100 to 240 V, 50/60 Hz |
| Dimensions |
117 x 420 x 340 (H x W x D mm) |
| Weight |
5.0 kg |
| Accessories Included |
AT-HS4BK Headshell,
AT-VM95E Dual Moving Magnet Cartridge with elliptical Stylus
Detachable RCA output cable (dual RCA male to dual RCA male)
AC adapter
45 RPM adapter
Counterweight
Rubber mat |
