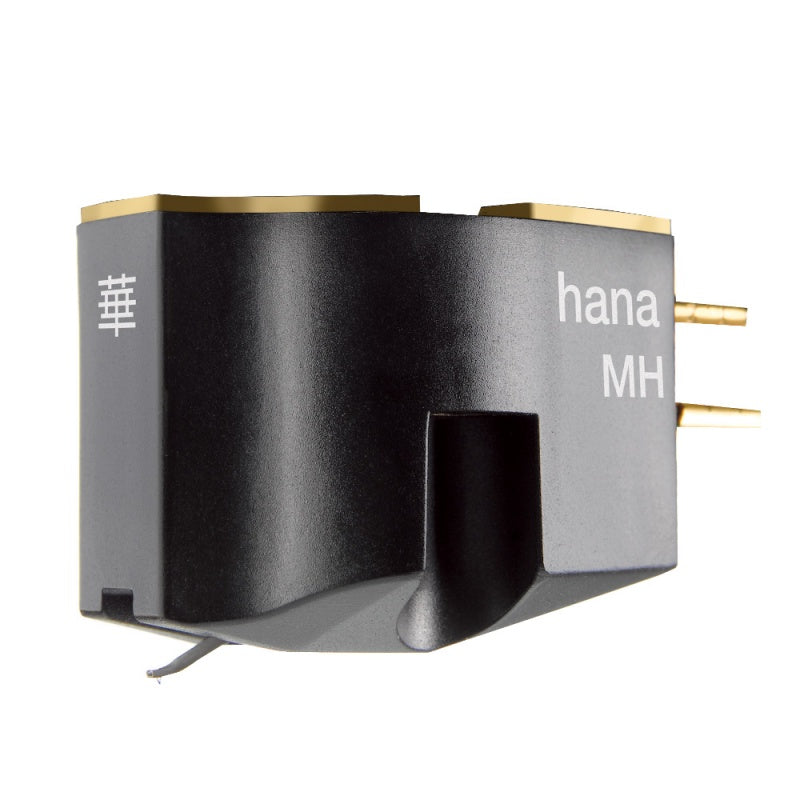

    HANA Moving Coil Cartridge MH

    R 24,900.00

      HANA Moving Coil Cartridge MH

      One of the world’s best High Output Moving Coil cartridges, the MH combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.

      M Series Nude Microline stylus – Higher Specification Part

      Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

      Delrin© cartridge body – Advanced Materials

      The M Series cartridge body is injection molded from Delrin©, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.

      Cryogenic Processing - Unique Technical Treatment

      Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

      Brass Cap with Threaded fittings - Superior Mechanical Interface

      The Delrin© cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.

      Built into the M Series Delrin© cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.



      Specifications:
      Stylus Microline
      Cantilever Aluminum
      Magnetic Circuitry Pure Iron/Cryo Treatment
      Coil Wire High Purity Copper
      Cartridge Housing POM (Delrin) / Brass
      Output Level 2mv/1kHz
      Output Balance <1dB/1 KHz
      Trackability 70 µm/2g
      Channel Separation 30dB/1kHz
      Frequency Response 12-45,000Hz
      Impedance 130Ω/1kHz
      Suggested Load Impedance 47kΩ
      Magnet Alnico
      Vertical Tracking Force 2g
      Cartridge Weight 9.5g
      Height 16.3mm
      Body Color Black w/Brass Plate
      Warranty 2 years
