MartinLogan Motion MP10 Shallow Depth Bookshelf Speaker - each
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

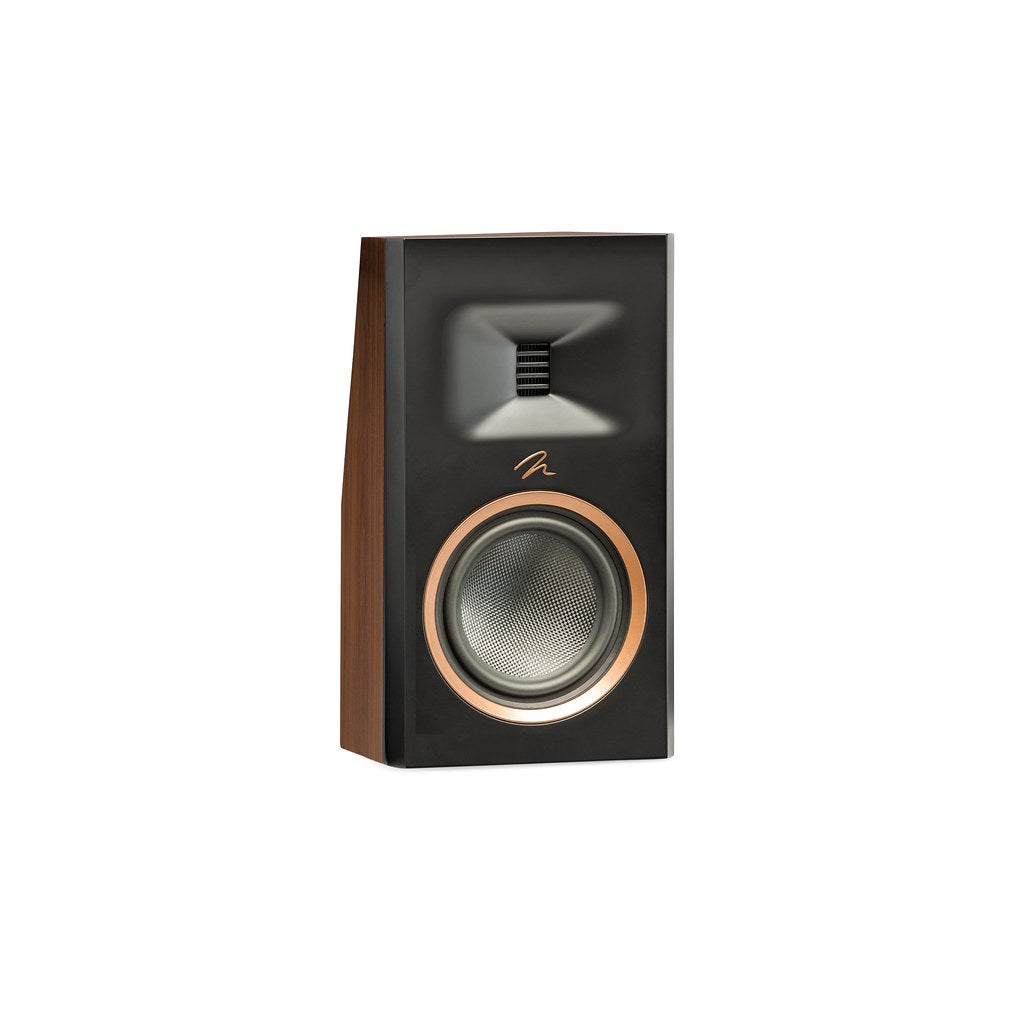

Motion MP10

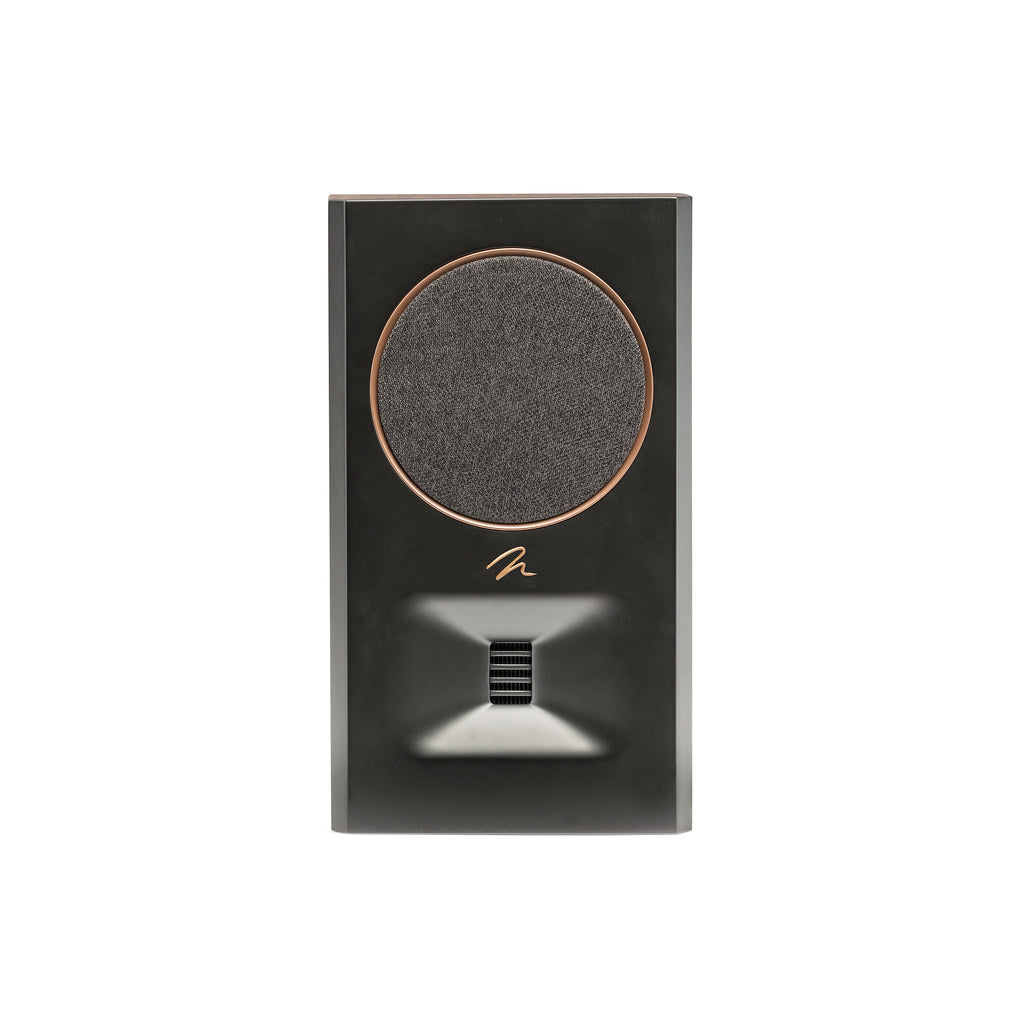

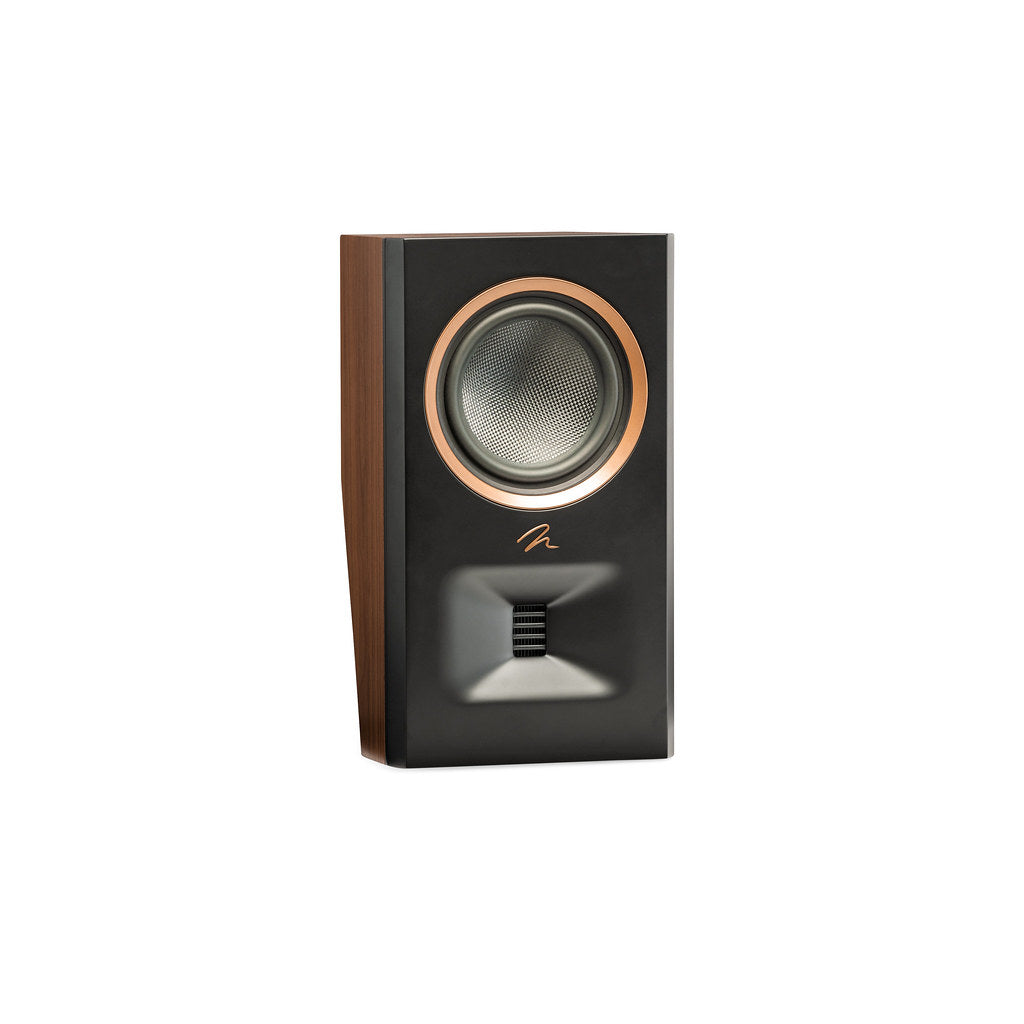

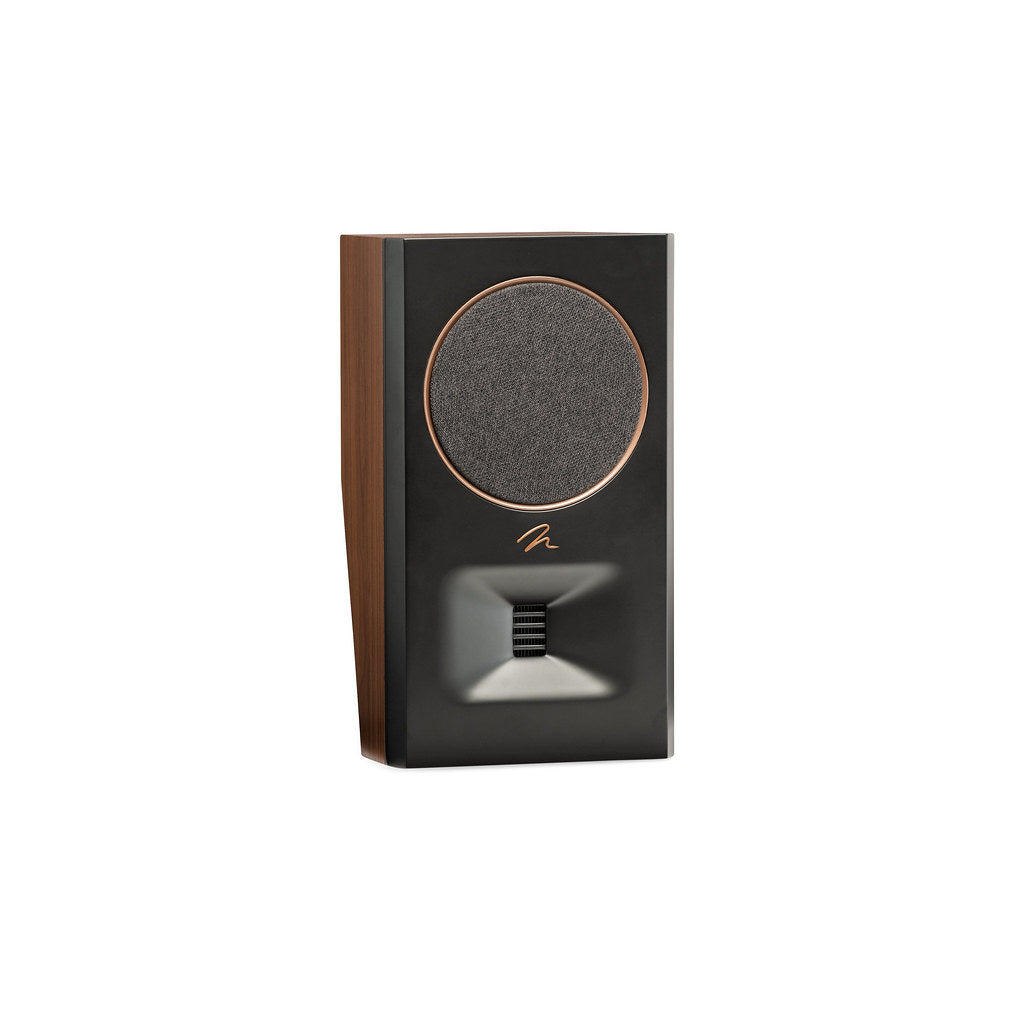

Motion® MP10’s innovative shape and mounting system allows it to be used as a shallow depth bookshelf speaker or wall mounted using the included mounting bracket, making it one of the most versatile speakers in the Motion® range. It can be mounted parallel to the wall surface or flipped upside down to angle downwards into the room, perfect for when installation above ear level is desired. MP10’s Gen2 FMT and Folded Motion® Waveguide ensure that your listening area is blanketed in clear, detailed sound wherever you decide to install it.
Motion®: Reimagined
Our most ambitious acoustic and aesthetic development in MartinLogan’s 40-year history. Motion® Series defines elegance and performance by leveraging exclusive technologies and decades of experience. The result is a loudspeaker collection that is not just an upgrade of its predecessor, but a whole new level of quality and excellence.
|
Legendary MartinLogan SoundMartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers. |

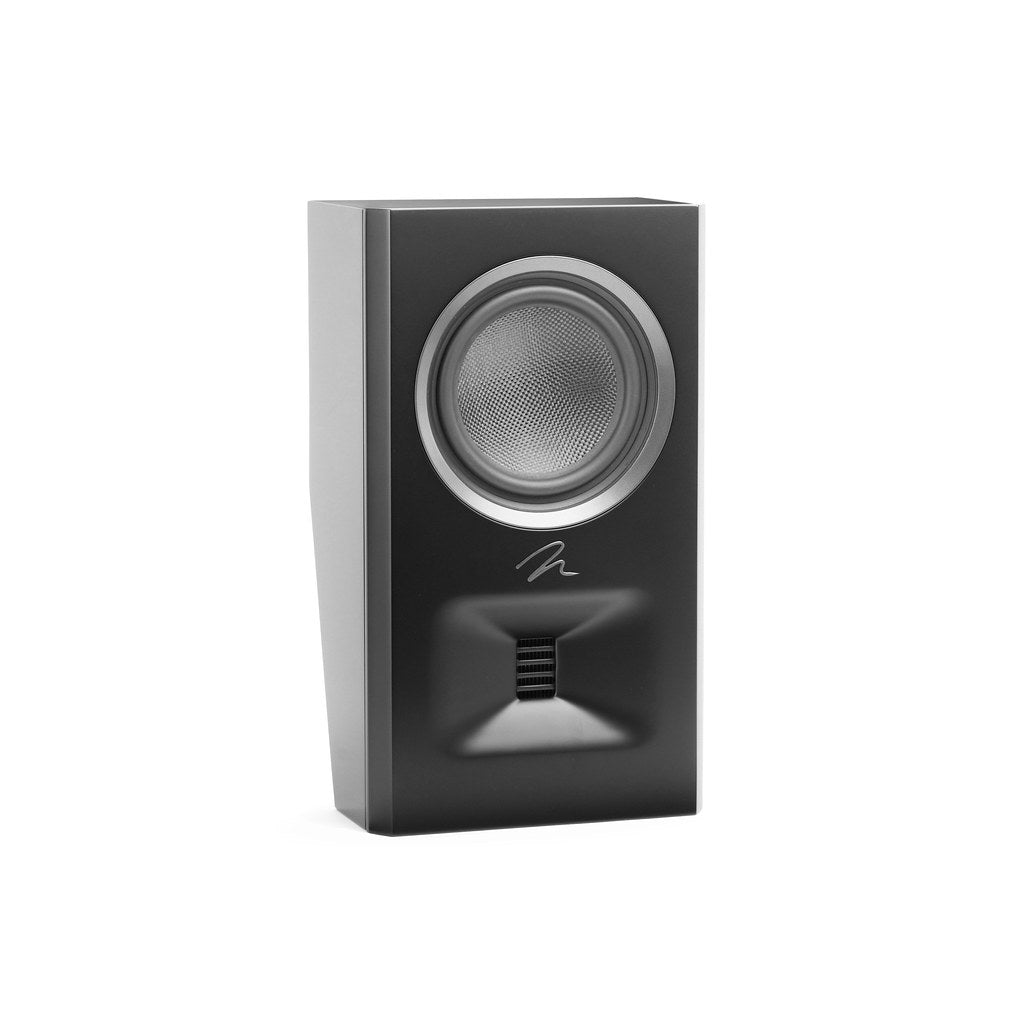

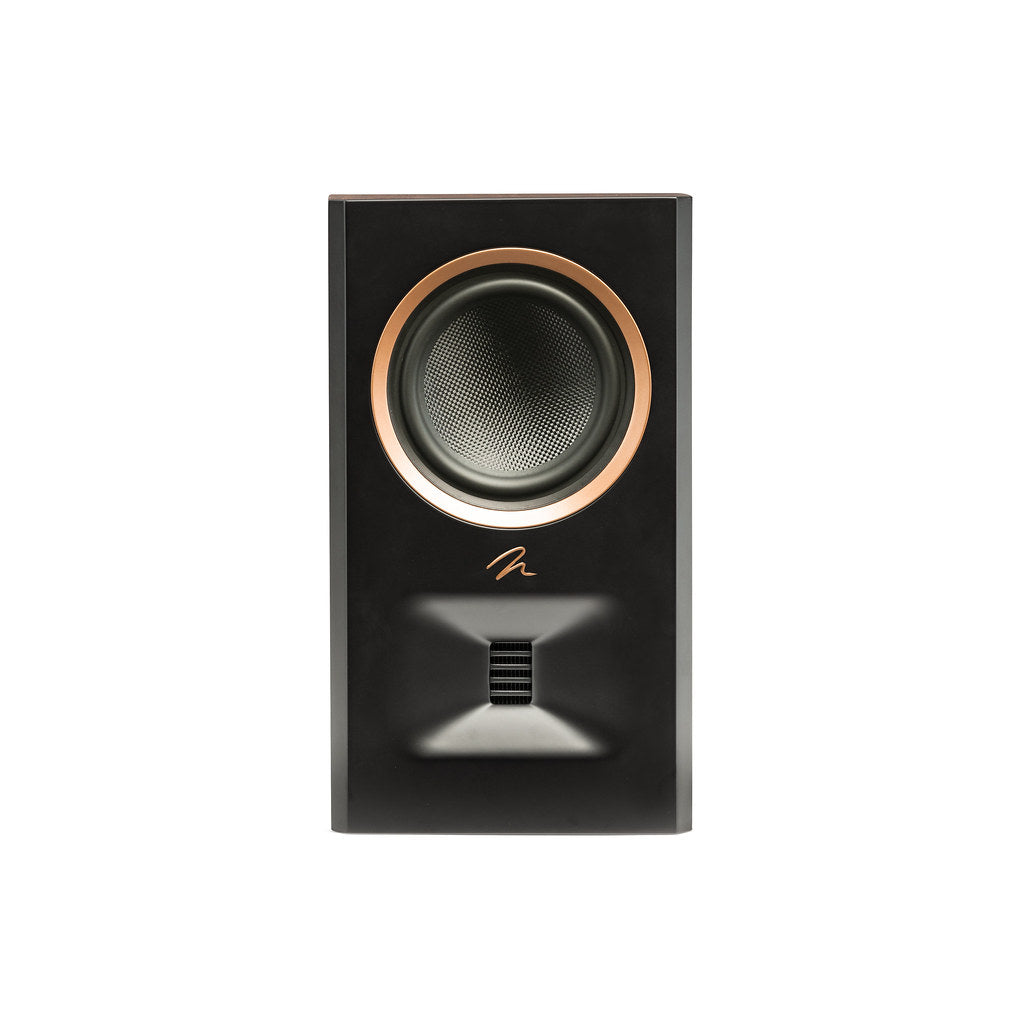

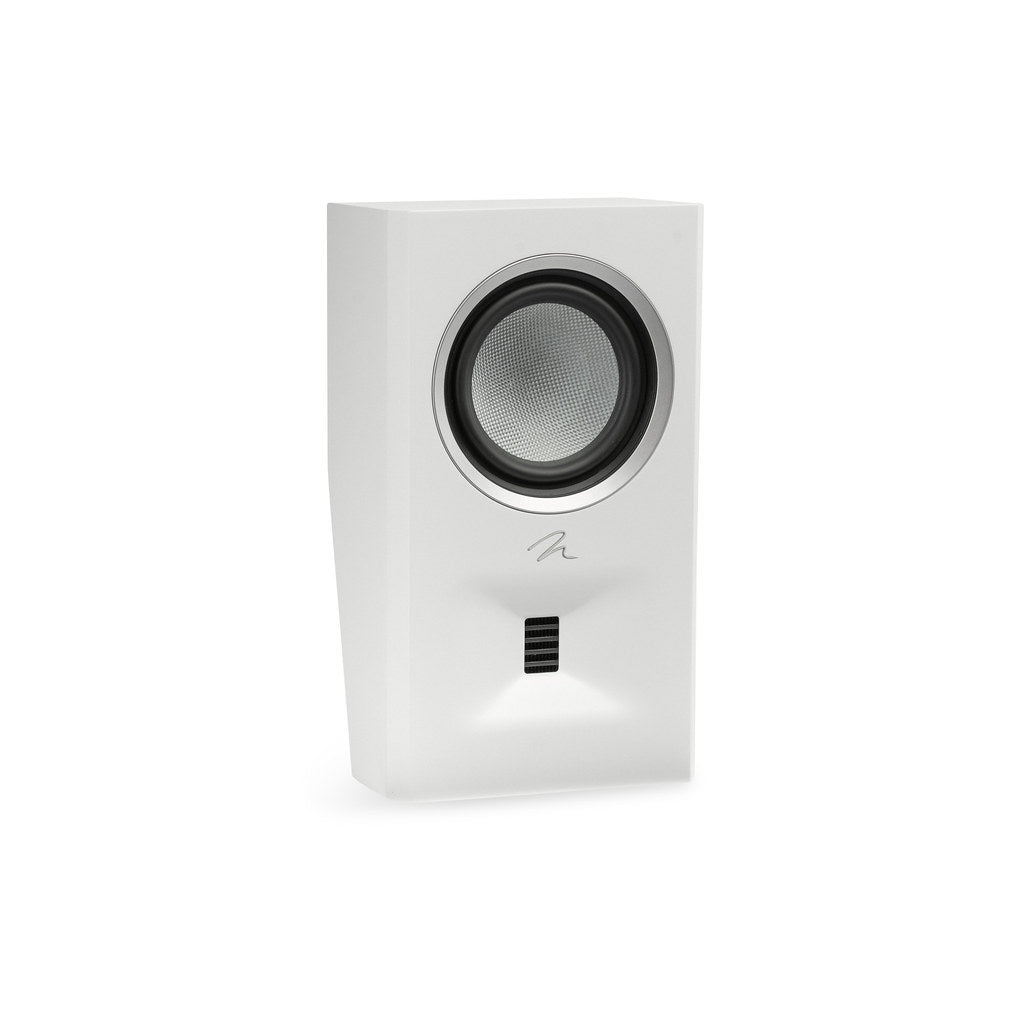

Gen2 Obsidian Folded Motion® TweeterOur signature thin-film tweeter technology just got better. With an upgraded motor structure, the latest Gen2 FMT provides higher output and lower distortion than ever before. |
|
|
Folded Motion® WaveguideAfter an extensive evaluation of nearly 50 design options, the Folded Motion® Waveguide profile was meticulously chosen to harmoniously align with the dispersion of the midrange drivers, resulting in enhanced output. The waveguide guarantees consistent sound quality regardless of the listener’s position and minimises unwanted room reflections. Proper waveguide design is crucial as it helps control the sound’s dispersion pattern, ensuring that the sound is evenly distributed across the listening area and resulting in optimal sound quality. |
Woven-Fiberglass Mid-Bass DriverThe lightweight and strong Woven Fiberglass mid-bass driver in the Motion® series is perfectly suited for keeping pace with Motion’s Gen2 FMT, providing crystal clear dialogue and vocals, as well as lifelike instrumentals. |
|
|

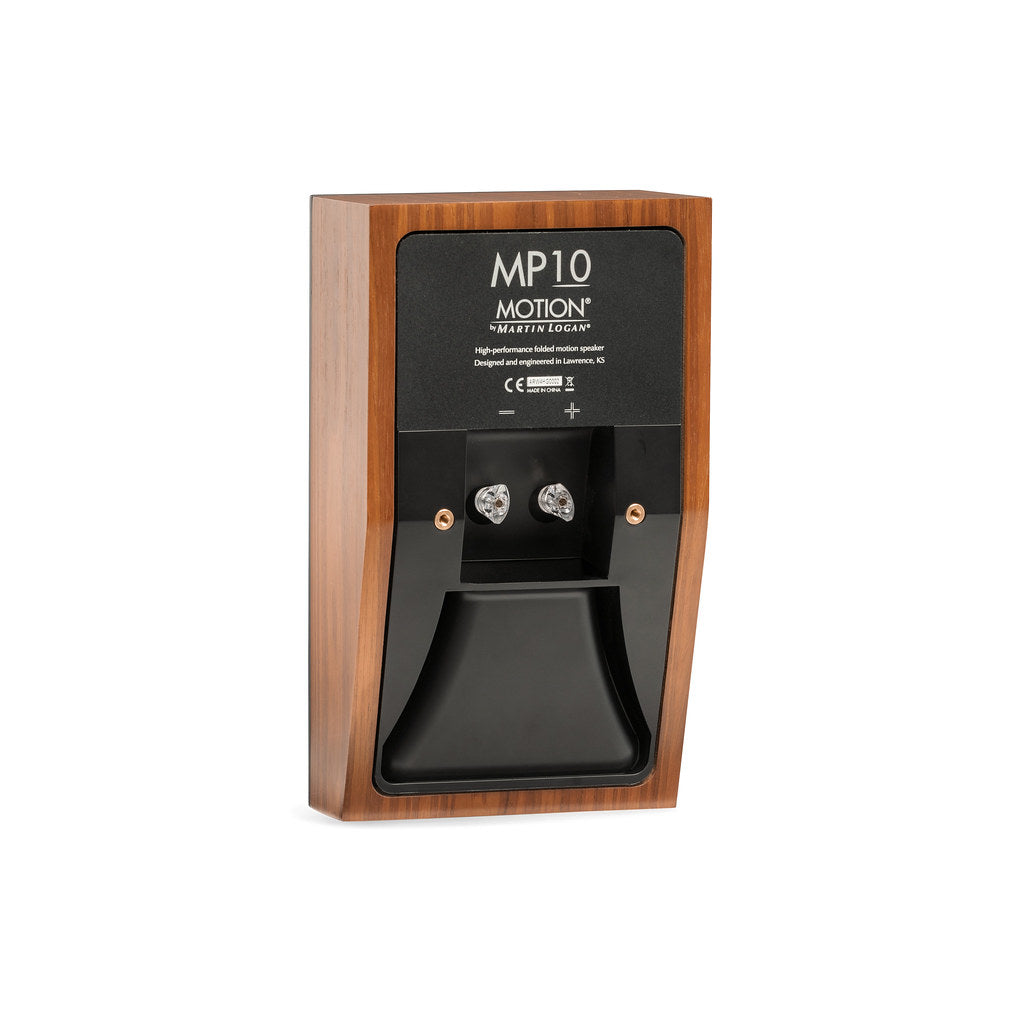

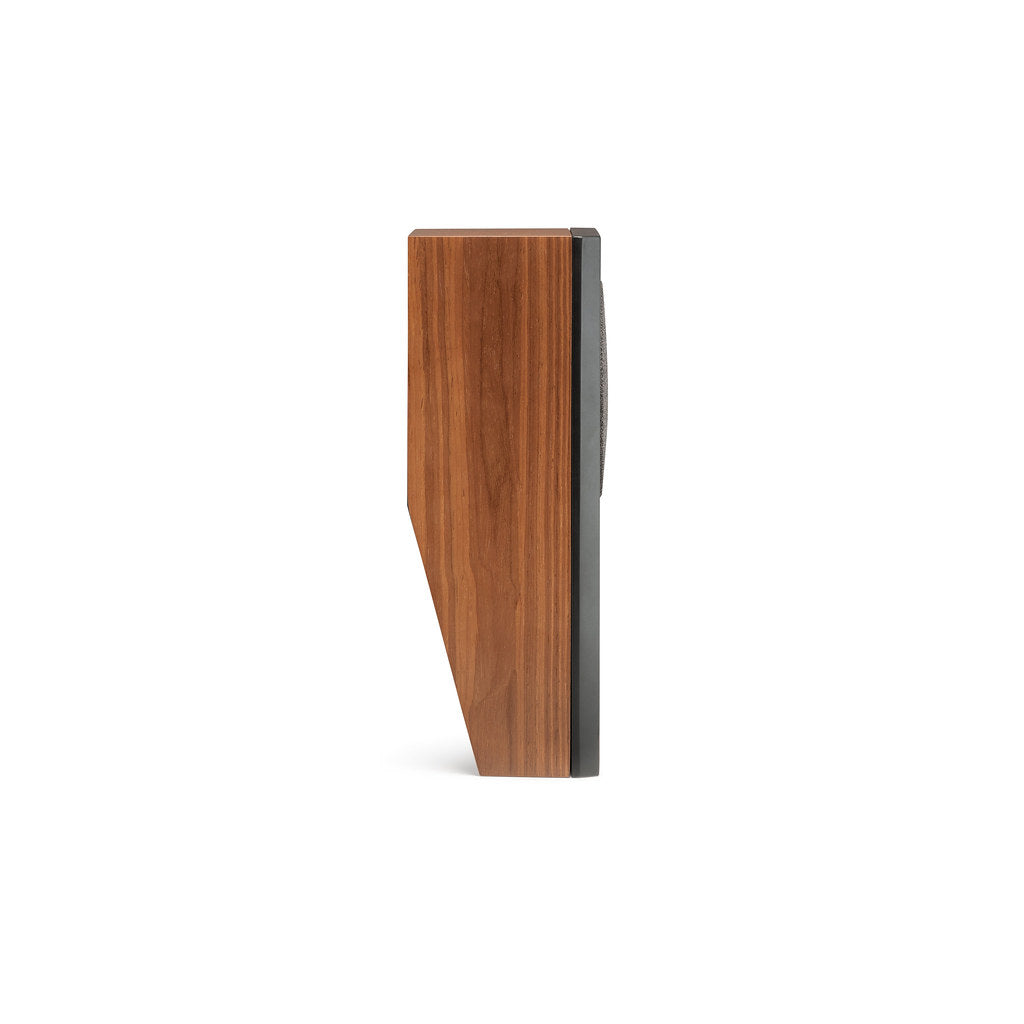

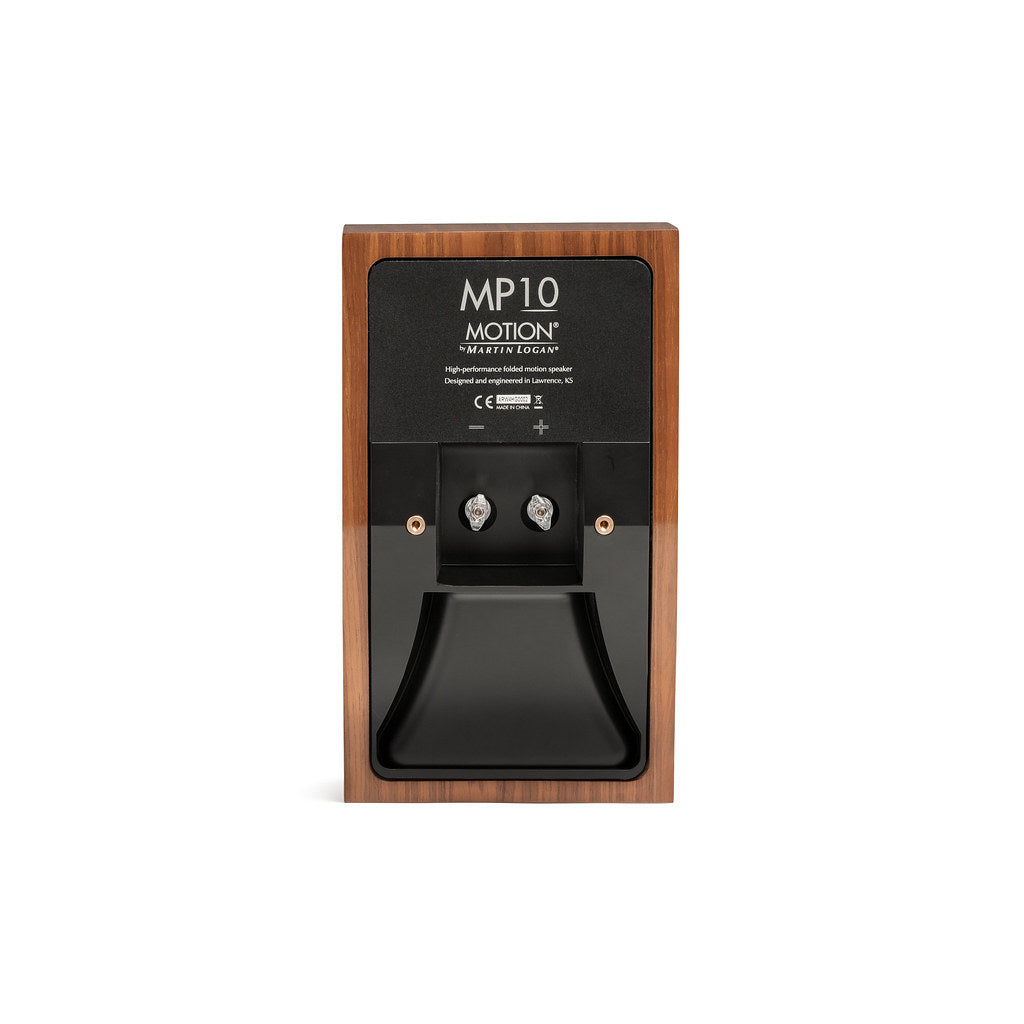

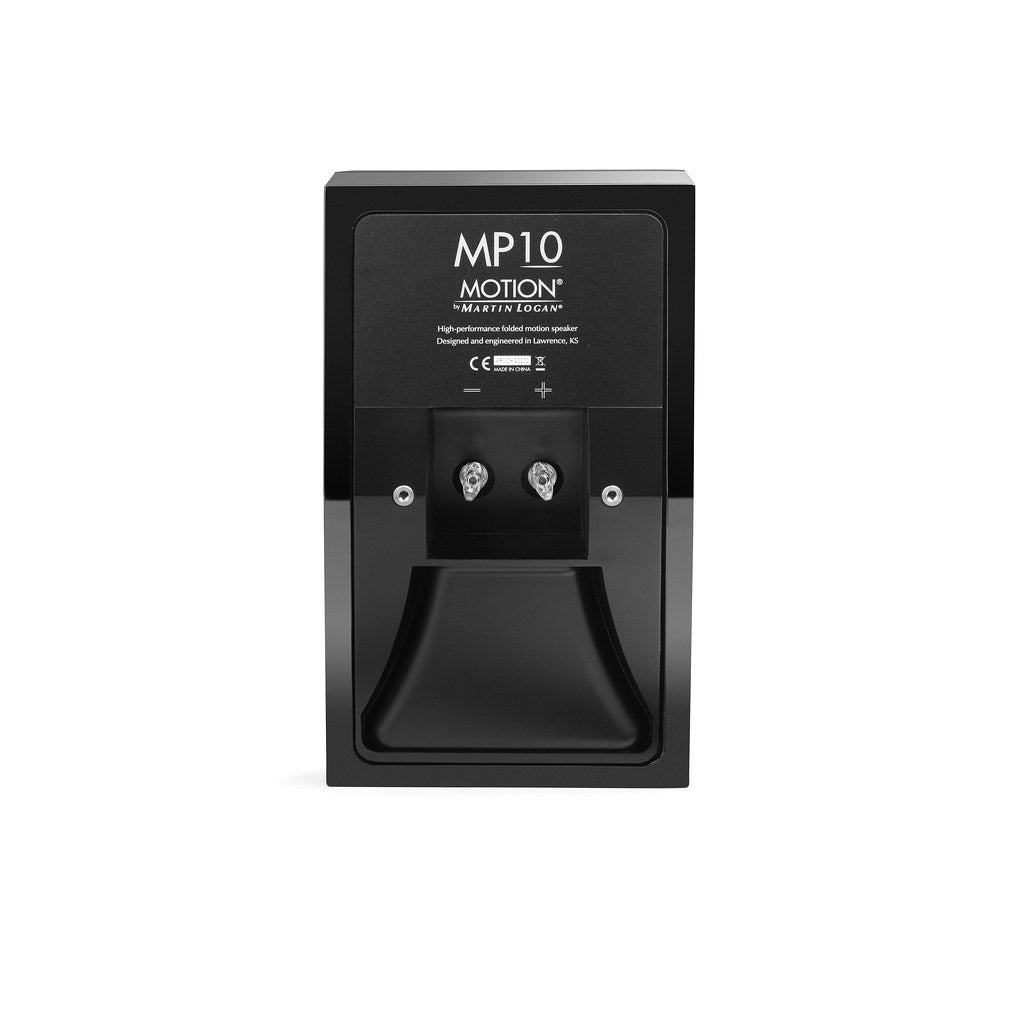

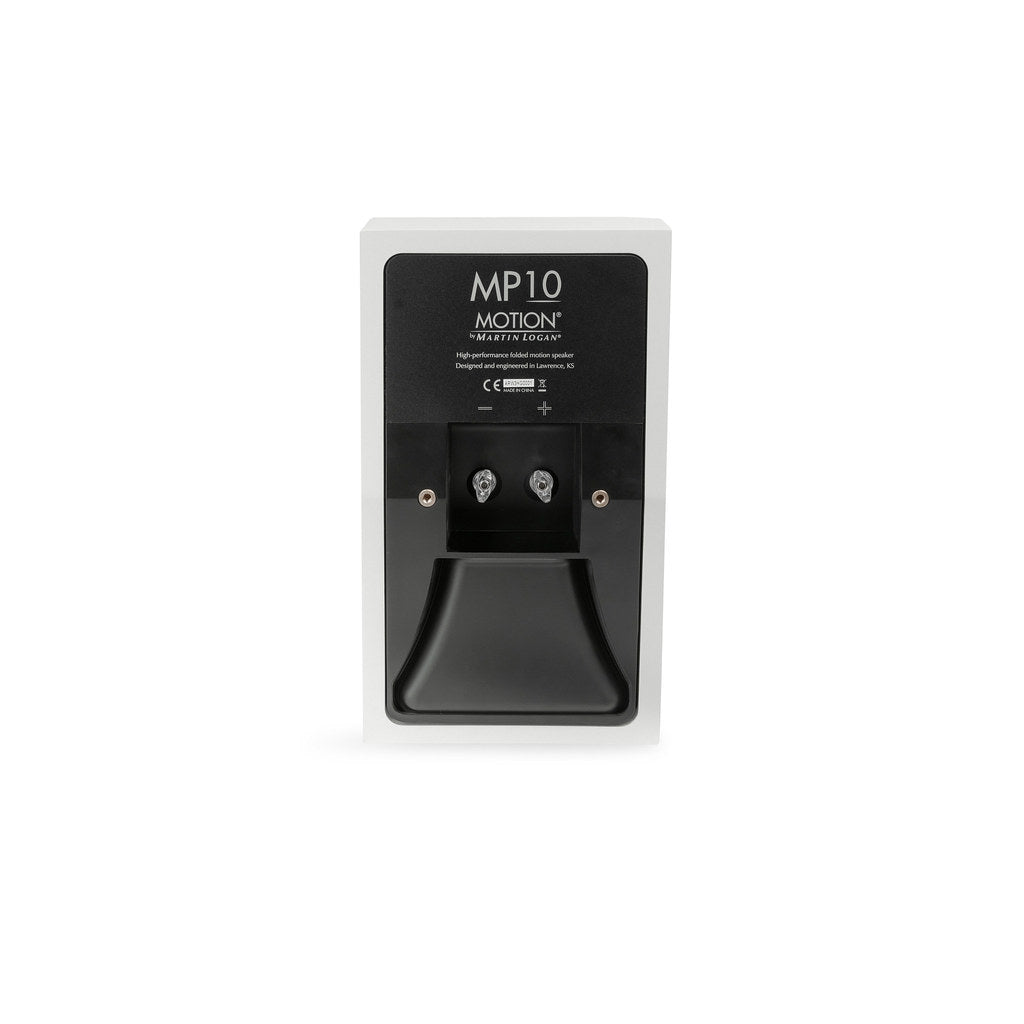

Stealth Bass PortMP10’s Stealth Bass Port allows it to achieve comparable bass output to that of traditional bookshelf speakers but at half the depth. Its innovative shape and mounting system allows the MP10 to be used as a shallow depth bookshelf speaker or wall mounted using the included bracket. When wall mounted, the Stealth Bass Port does not interfere with the bracket, allowing the MP10 to be mounted parallel to the wall surface or angled downwards into the room, perfect for when installation above ear level is desired. |
Specifications
Specifications are subject to change without notice.
| Frequency Response | 81 Hz – 25 kHz ± 3 dB |
| Sensitivity | 92 dB / 2.83V / m |
| Impedance | 5 ohms |
| Recommended Amplifier Power | 20 – 200 watts |
| Crossover Frequency | 2,100 Hz (2-way) |
| High Frequency Driver | 1" × 1.4" (2.6 × 3.6 cm) Gen2 Obsidian Folded Motion® Tweeter with 9.2 in² (59.4 cm²) diaphragm |
| Tweeter Dispersion (H × V) | 90° × 90° |
| Mid-Bass Driver | 5.5" (14 cm) Woven Fiberglass cone with cast polymer basket. Non-resonant asymmetrical chamber. Unibody cone construction. |
| Cabinet | Stealth rear ported |
| Binding Post Inputs | Custom 5-way binding posts |
| Dimensions (H × W × D) | 14" × 8" × 5" (35.6 cm × 20.3 cm × 12.7 cm) |
| Weight | 9.7 lbs / 4.4 kg (each) |
| Finish Options | Gloss Black, Walnut, Satin White |
| In the Box | 1 × Motion MP10 Bookshelf Speaker, speaker grille, wall mounting bracket, hardware |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
