    PhD 1×2 SPLITTER EXTENDER KIT 70m

    R 2,890.00

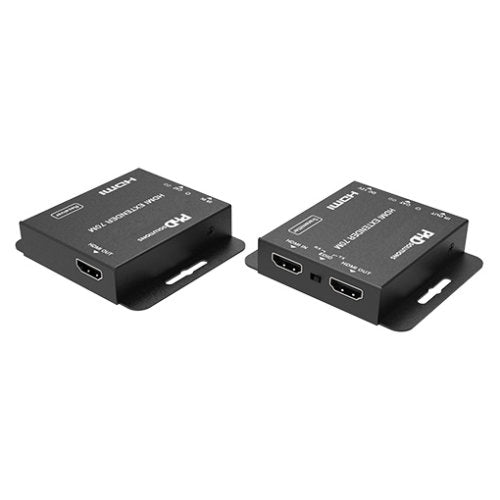

      PhD 1×2 SPLITTER EXTENDER KIT 70m

      Tip: Great for CCTV NVR splitting to a local TV & extending to a 2nd TV, or use as a budget 70m 1080P extender set.

      This HDMI Extender-Splitter can extend 4K30 high-definition video and audio signals up to 131Ft /40m and 1080P up to 230ft/ 70m over a single CAT cable. It supports resolutions of up to 4K2K@30Hz 4:4:4 and HDCP 1.4 An HDMI loop output port will split the HDMI Input to a local Display. The transmitter will power the receiver over the CAT cable via POC. It is equipped with one-way IR pass-through which allows for source control fromthe display end. This extenders’ HDMI loop output can be cascaded to the next extender. It also has an EDID copy function (you can choose local or remote EDID). Audio formats up to PCM7.1, Dolby True HD, DTS HD are supported.



      Features
      • HDMI 1.4, HDCP 1.4 and DVI 1.0 compliant
      • Simultaneous HDMI and CAT5e/6/7 outputs
      • Support video resolutions up to 4k2k@30Hz YUV 4:4:4
      • Audio Support up to 7.1 ch HD Audio
      • The maximum transmission distance via a single CAT6/5E cable is as follows:
        CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
        CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
      • Support copying EDID from receiver display or loop out display
      • Allows for cascading via additional HDMI loop out port
      • Support one-way POC functionality (from transmitter to receiver)
      • Supports control of devices via 1-way IR
      • ESD Protection : Human Body model:
        +/- 8 kV (air-gap discharge)+/- 4 kV (contact discharge)
      Specifications
      TRANSMITTER
      Inputs 1 x HDMI Type A [19-pin female
      Outputs 1 x HDMI Type A [19-pin female
      1 x IR OUT [3.5mm Stereo Mini-jack]
      1 x CAT OUT [RJ45, 8-pin female]
      RECEIVER
      Inputs 1 x IR IN [3.5mm Stereo Mini-jack]
      1 x CAT IN [RJ45, 8-pin female]
      Outputs 1 x HDMI Type A [19-pin female
      Power Supply on Transmitter end 24V/1.0A DC
      Dimensions 79.5mm[W] x 69mm[D] x 16.5mm[H]
      Net Weight Transmitter: 132g, Receiver: 130g
      Power Consumption Transmitter: 1.86W, Receiver: 0.87W
      Operation Temperature: 32 – 104°F / 0 – 40°C
      Storage Temperature -4 – 140°F / -20 – 60°C
      Relative Humidity 20 – 90% RH (no condensation)
