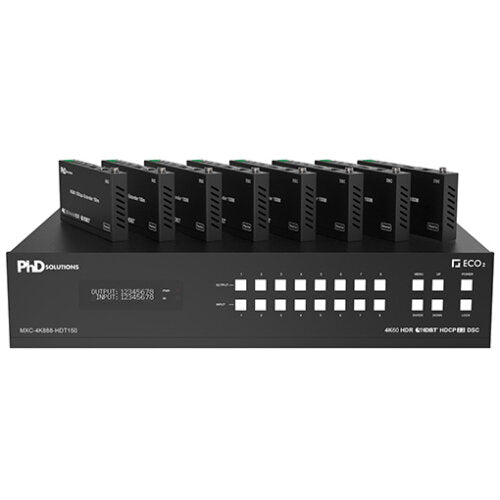

    PhD 8X8 HDBaseT 150M MATRIX Kit

    R 103,590.00

      PhD 8X8 HDBaseT 150M MATRIX Kit

      WITH 8 MIRROR HDMI OUTPUTS (PoH)(IR)(4K60 4:4:4)(HDR)(18Gb)(Audio de-embed)

      This 18Gbps 8×8 HDBaseT(150M) Matrix can connect 8 HDMI sources to 16 displays. It features 8 HDBaseT CAT cable outputs and 8 mirrored HDMI outputs. HDBaseT outputs can extend video transmission distance up to 492ft / 150m @ 1080P or 4K60 4:4:4 up to 394ft/120m via a single Cat 5e/6/6a cable using the best visually lossless low latency Display Stream Compression (DSC) technology. HDR, HDR10, HDR10+, Dolby Vision & HLG are also supported.

      HDMI Audio is de-embedded to analog and coaxial audio outputs. Each HDMI output supports 4K2K to 1080P downscaling functionality. Advanced EDID & CEC are supported via the built-in web interface.

      The matrix supports IR routing. The IR signal is a one-to-one control at the Matrix end, but the IR signal follows HDMI video channel at the HDBaseT Receiver end. It provides an intuitive set of front panel controls with an OLED screen and supports control via front panel buttons, IR remote, RS-232, LAN, and Web GUI.

      Control drivers are available for 3rd Party control systems (ELAN, Control4, RTI, Crestron, Savant).

      ***Display Stream Compression (DSC) is a VESA-developed low-latency compression algorithm. it is the best visually lossless compression format available supporting color depth up to 16 bits, with lightweight 2:1 to 3.1 compression ratios.

      Specifications
      600 MHz/18 Gbps HDBaseT: 340 MHz/10.2 Gbps 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/
      50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4) 8-bit, 10-bit, 12-bit (1080p@60Hz)
      8-bit (4K2K@60Hz YUV4:4:4)
      8-bit,10-bit,12-bit (4K2K@60Hz YCbCr 4:2:2/4:2:0) RGB 4:4:4, YCbCr 4:4:4/4:2:2/4:2:0 HDR10, HDR10+, Dolby Vision, HLG LPCM2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
      Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X, DTS-ES, DTS-HD-HRA PCM 2.0, Dolby Digital / Plus, DTS 2.0/5.1 PCM 2.0 2Vrms SNR :>90dB <0.1%(V_max) 0.001%~0.01%(V_best) >80dB 20Hz~20kHz ±0.5dB CLASS C Dispay Stream Compression (DSC) 8×HDMI Type A [19-pin female]
      9×IR input [3.5mm Stereo Mini-jack] 8×HDMI Type A [19-pin female]
      8×HDBaseT CLASS C Out [RJ45]
      9×IR output [3.5mm Stereo Mini-jack]
      8×Coax audio [RCA]
      8×balanced analog audio [5-pin Phoenix connector] 1xRS-232 (9-pin D-sub) 1xTCP/IP Control (RJ-45) 1x IR window on front panel Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge) 440mm(W) x 374mm(D)x 88.6mm(H) 6.54 Kg Metal Black 0˚C – 40˚C/32˚F – 104˚F −20˚C – 60˚C/−4˚F – 140˚F 20 – 90% RH (No-condensing) 100~240V AC 50/60Hz- IEC 125 W 1 x HDBT IN [RJ45, 8-pin female] 1 x HDMI Type A [19-pin female] 1 x AUDIO OUT [3.5mm Stereo Mini-jack] 1 x IR IN [3.5mm Stereo Mini-jack]
      Video Bandwidth HDMI:
      Video Resolution:
      Color Depth:
      Color Space:
      HDR:
      HDMI Audio Formats (Pass-Though):
      Coax Audio Formats :
      Analog Balanced Audio Formats :
      Vmax :
      THD+N Ratio:
      Crosstalk:
      Frequency Response:
      HDBASET:
      Compression Technology :
      Input Port :
      Output Ports :
      Control Ports:
      ESD Protection:
      Dimensions:
      Weight:
      Chassis Material:
      Silkscreen Color:
      Operating Temperature:
      Storage Temperature:
      Relative Humidity:
      Power Supply (Internal):
      Power Consumption:
      HDBaseT Receiver
      Input:
      Outputs:
      Controls:
