    PhD HDMI HDBaseT Extender Kit

    R 5,990.00

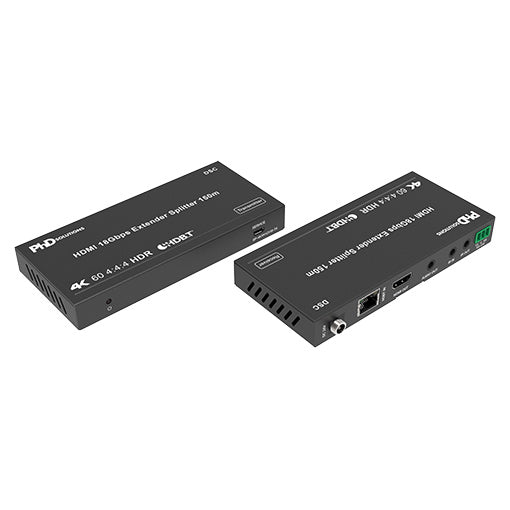

      PhD HDMI HDBaseT Extender Kit

      Using the latest low latency Display Stream Compression (DSC), the 18Gbps HDMI Extender-Splitter Kit can extend high-definition video and audio signals, RS-232 and bi-directional IR up to 492ft / 150 meters over a single CAT cable. It supports resolutions of up to 4K2K@60Hz 4:4:4,18Gbps and HDCP 2.2. An HDMI loop output port will split the HDMI Input to a local Display. It also supports de-embedded audio for L/R audio output and PoC. The extender is equipped with two-way IR pass-through which allows for source and display control.

      Utilizing DSC the extender splitter supports HDR10+, HLG and Dolby vision with the best light weight visually lossless compression.

      This extender-splitter kit offers the most convenient solution for HDMI extension via a single Cat5e/6 with long distance capability and is the perfect solution for any application.

      Features
      • HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
      • Support 18Gbps 12-bit video bandwidth with DSC
      • The maximum extended transmission distance via a single Cat5e/6 cable:
        • 394ft / 120 meters for 4K2K60 4:4:4;
        • 492ft / 150 meters for 1080P
      • One HDMI loop output on the transmitter
      • De-embedded 3.5mm audio output on receiver for sources set to PCM audio (No down mixing)
      • With bi-directional IR, RS-232 and CEC pass-through
      • HDR, HDR10+, Dolby Vision and HLG supported
      • 24VPoC (Power over Cable) on one end
      • Compact design for easy and flexible installation
      Specifications
      Video Bandwidth HDMI: 600 MHz/18 Gbps HDBaseT: 340 MHz/10.2 Gbps
      HDCP Compliance: HDCP 1.4 and HDCP 2.2
      HDMI Compliance: HDMI 2.0b
      Video Resolution: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p24/30/
      50/60, 4Kx2K@30, 4Kx2K@60 (4:4:4)
      Color Depth: 10-bit, 12-bit
      Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
      HDMI Audio Formats (Pass-Though): LPCM2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
      Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      HDBASET: ULTRA CLASS C
      Light Weight Compression Technology: Display Stream Compression (DSC)
      ESD Protection: Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge)
      TRANSMITTER
      Input Port : 1×HDMI Type A [19-pin female]
      1×IR input [3.5mm Stereo Mini-jack]
      1xRS-232 (Phoenix jack)
      1x SERVICE [Mini-USB, Update port]
      Output Ports : 1×HDBaseT CLASS C Out [RJ45]
      1×IR output [3.5mm Stereo Mini-jack]
      RECEIVER
      Input Port : 1×HDBaseT CLASS C Input [RJ45]
      1×IR input [3.5mm Stereo Mini-jack]
      1x SERVICE [Mini-USB, Update port]
      Output Ports : 1×HDMI Type A [19-pin female]
      1×HDBaseT CLASS C Out [RJ45]
      1×IR output [3.5mm Stereo Mini-jack]
      1×Analog stereo Audio output [3.5mm Stereo Mini-jack]
      1xRS-232 (Phoenix jack))
      Dimensions:
      Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H]
      Weight: Transmitter: 160g, Receiver: 155g
      Chassis Material: Metal
      Silkscreen Color: Black
      Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F
      Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F
      Relative Humidity: 20 – 90% RH (No-condensing)
      Power Supply: 24 V/1A DC 100~240V AC 50/60Hz (US/EU standards, CE/FCC/ UL certified)
      Power Consumption: 9.36W(max)
