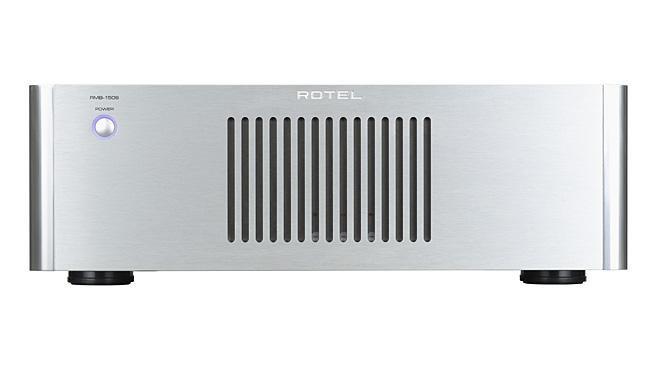

This amplifier is perfect for less elaborate multizone audio systems and can be mated with any of our surround receivers or our preamp/processor to add music throughout three additional living areas or “zones” of your home. You can also add another RMB-1506 for larger multizone applications that don’t need the power output of the RMB-1512. As with all Rotel multichannel amplifiers it includes all of the most wanted custom installation features.
| Model | RMB-1506 |
|
Power Ouput All channels driven |
50 watts x 6/ch (20-20 kHz, 0.03% THD, 8 ohms) 100 watts x 6/ch (20-20 kHz, 0.03% THD, 4 ohms) |
| THD (20-20,000Hz) 8 ohms, all channels driven | < 0.03% |
| IM Distortion | < 0.03% |
| Damping Factor (8 ohms) | >200 |
| Input Sens. / Impedance | 1.0 V / 20 k Ohms |
| Frequency Response (+/-1 dB) | 10Hz-100kHz |
| S/N Ratio (IHF A) | 115 dB |
| Power Consumption | 450 Watts |
| Dimensions (W x H x D) mm | 431 x 144 x 424 mm |
| Dimensions (W x H x D) in. | 17 x 5 5/8 x 16 5/8 in |
*Note – all Rotel 15 series components may be rack mounted and remotely controlled via RS-232, IR, or 12 volt (depending on model) for complete stealth operation.
