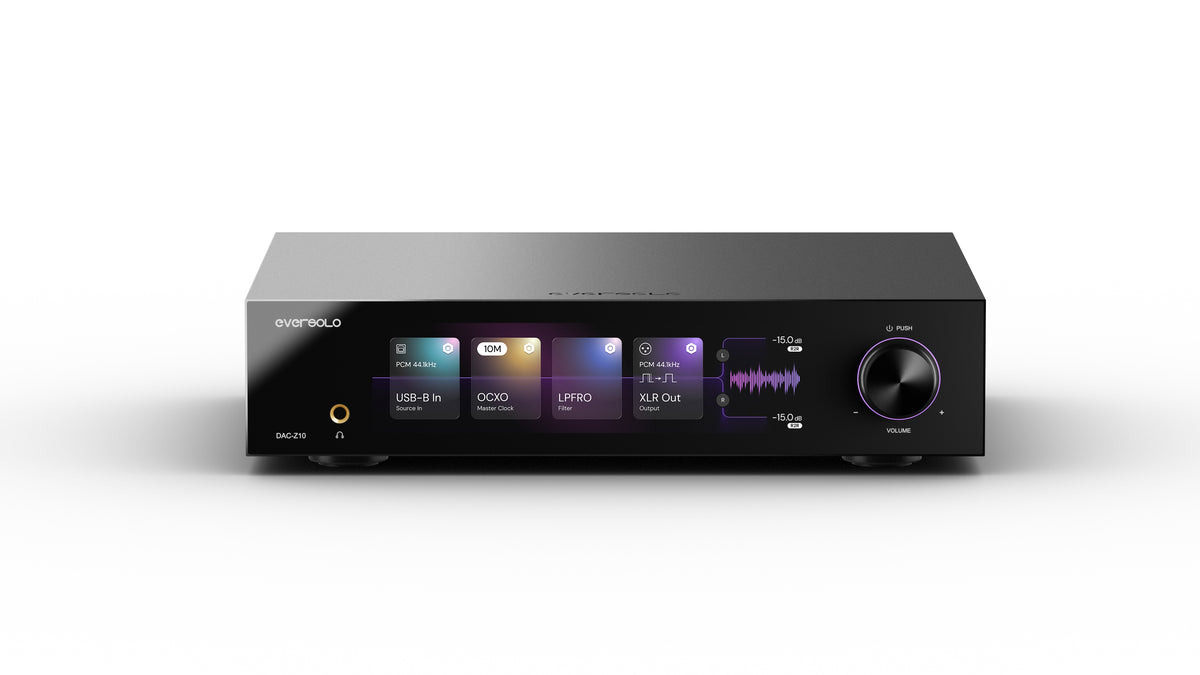

Eversolo DAC-Z10 Digital-to-Analogue Converter
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.
Precision engineering, built for authentic sound. The Eversolo DAC-Z10 is a fully balanced, dual-mono reference DAC and preamplifier with a high-performance headphone output. It brings Eversolo's Fully Isolated Architecture, dual AKM flagship DAC modules and an R2R volume network together in one CNC aluminium chassis – recognised with a Hi-Fi News Outstanding Product award.
Eversolo FIA™ – Fully Isolated Architecture
The digital and analogue domains are completely separated to minimise interference and preserve signal purity. Three independent toroidal-transformer linear power supplies individually feed the left channel, the right channel and the system, holding noise down to 42 μV and giving each channel its own clean, isolated supply.
Dual Independent DAC Modules
Two complete AK4191 + AK4499 decoding modules – one per channel – are built on a fully balanced architecture. Combined with AKM's Velvet Sound™ technology they balance precision with tonal richness, with native support for DSD512 and PCM 768 kHz/32-bit.
R2R Volume Control and Fully Balanced Preamplifier
A precise dual-channel R2R resistor array controls volume while preserving the original signal at every level. The fully balanced preamplifier accepts XLR and RCA analogue inputs with up to +10 dB gain, delivering ultra-low noise and distortion for higher dynamic range and signal integrity.
Accurate Clock System
An OCXO temperature-controlled crystal oscillator works with PLL (phase-locked loop) technology and FPGA clock reconstruction for precise timing. For the most demanding systems, external 10 MHz and 25 MHz master clocks are supported with 50 Ω or 75 Ω input impedance.

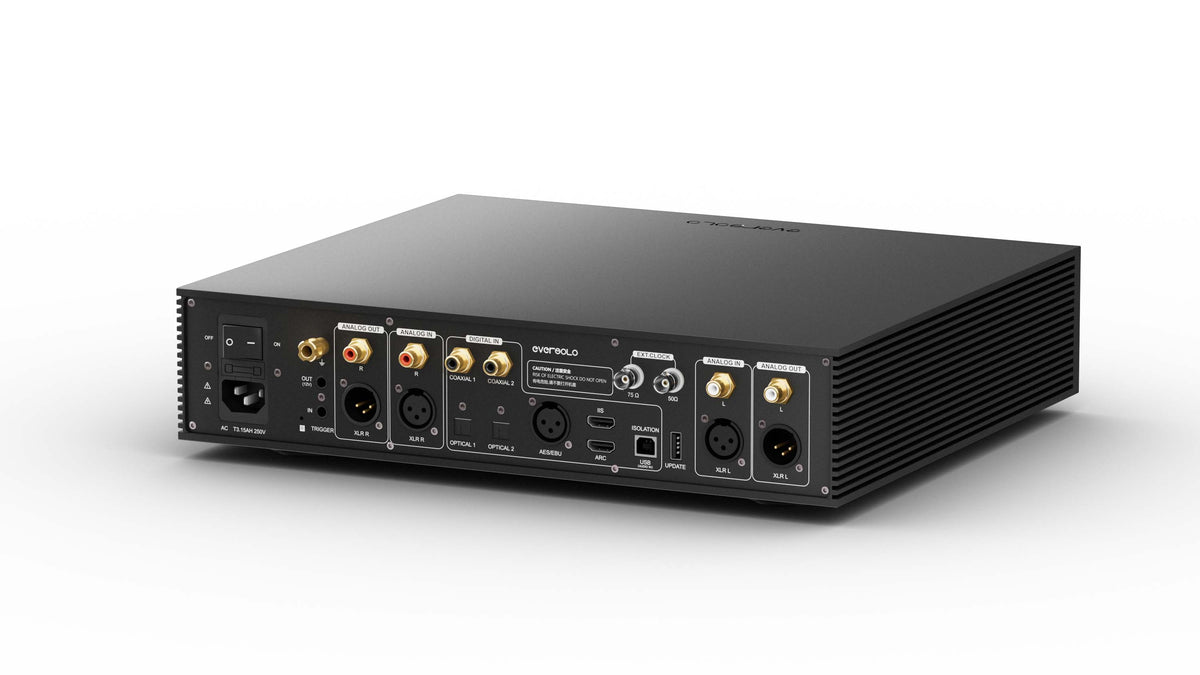

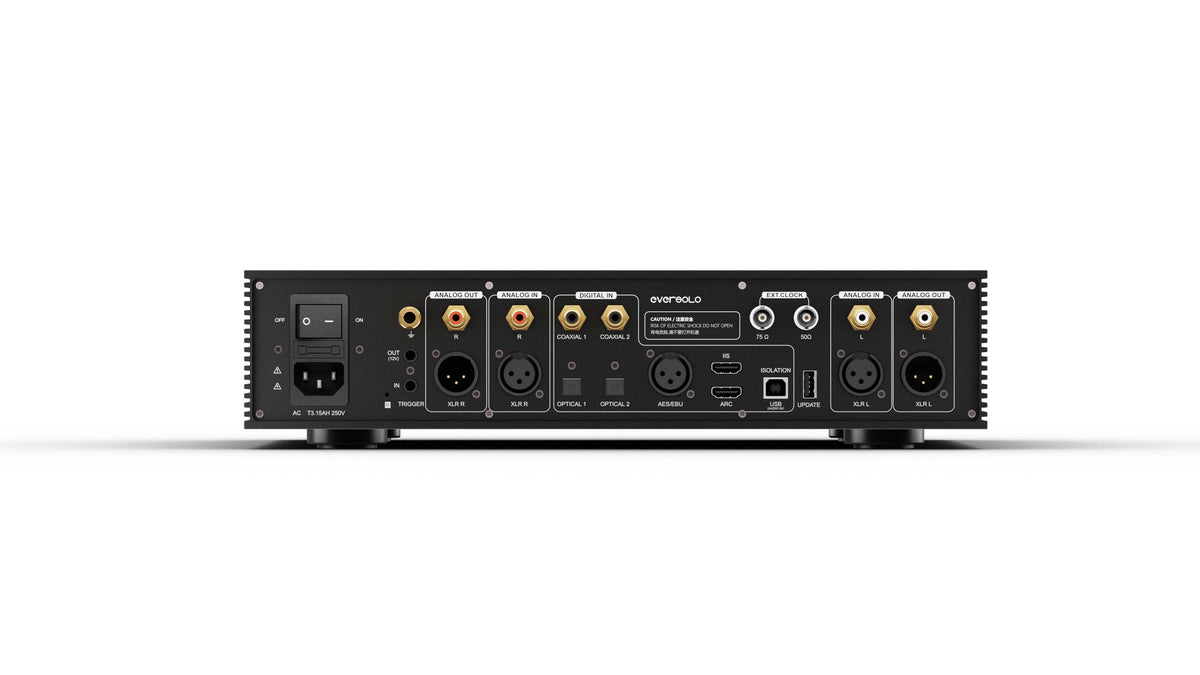

Connect Everything
- USB-B and IIS (8 modes) inputs up to DSD512 / PCM 768 kHz/32-bit
- AES/EBU, 2 × optical and 2 × coaxial inputs up to PCM 192 kHz/24-bit / DSD64 DoP
- HDMI ARC input for TV sound
- Qualcomm Bluetooth 5.0 receiver (SBC/AAC)
- Balanced XLR and RCA pre-outs, plus a 6.35 mm headphone output with three gain modes up to 7 Vrms

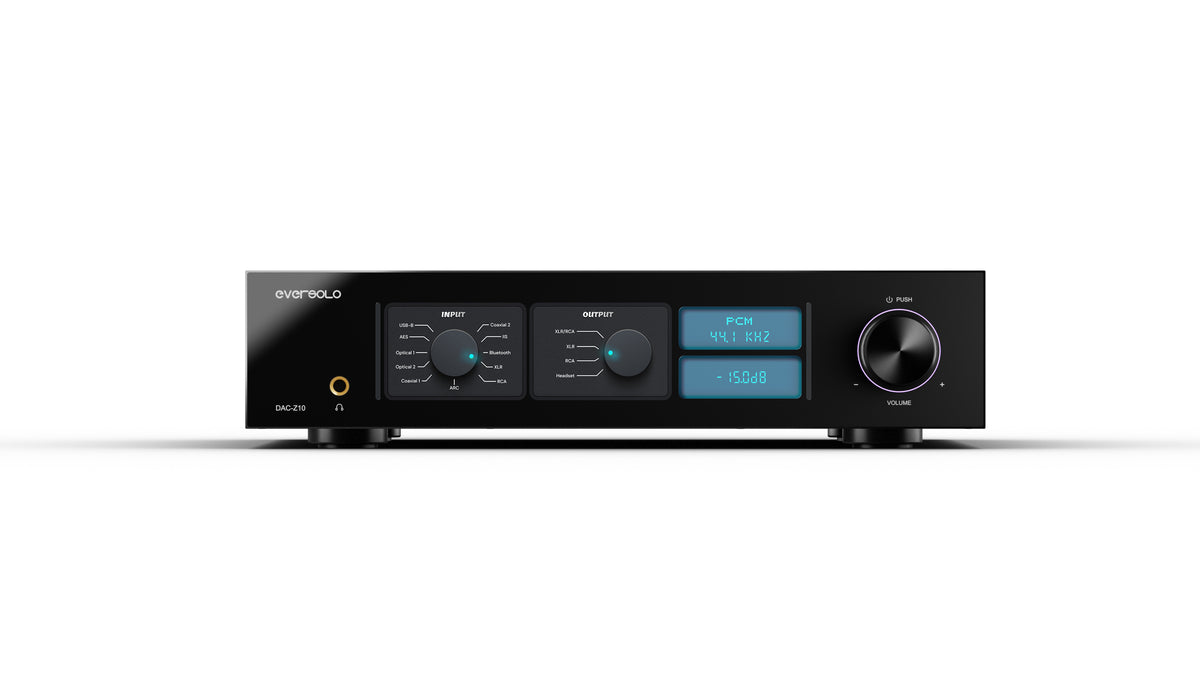

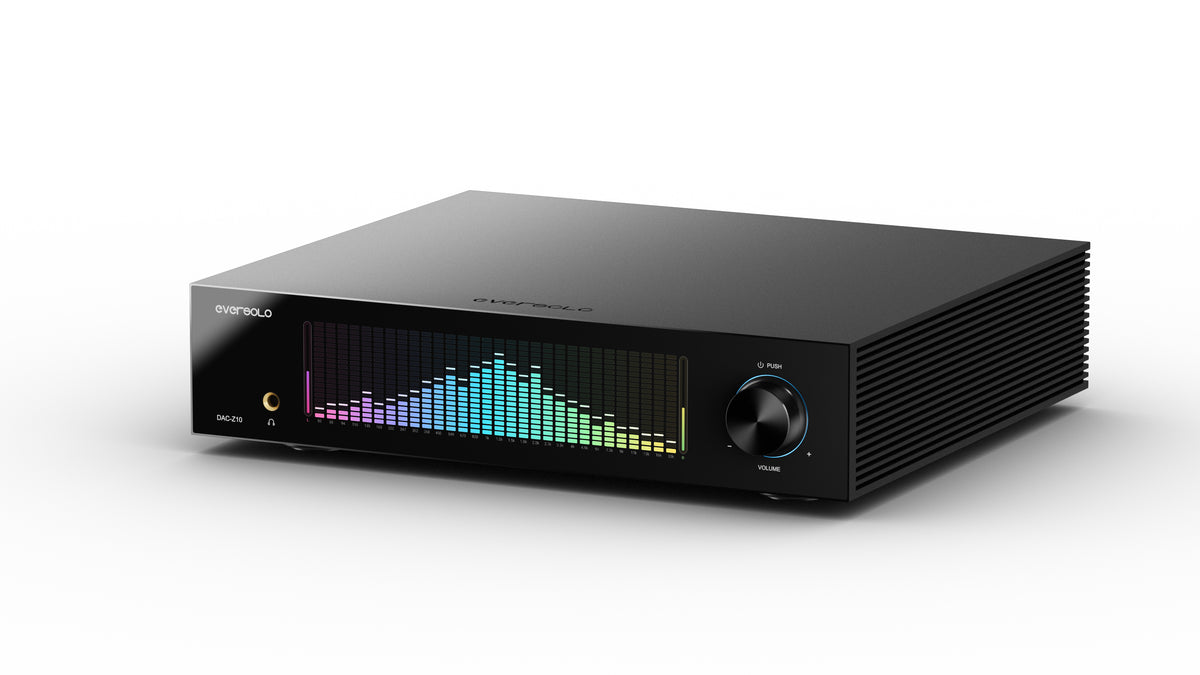

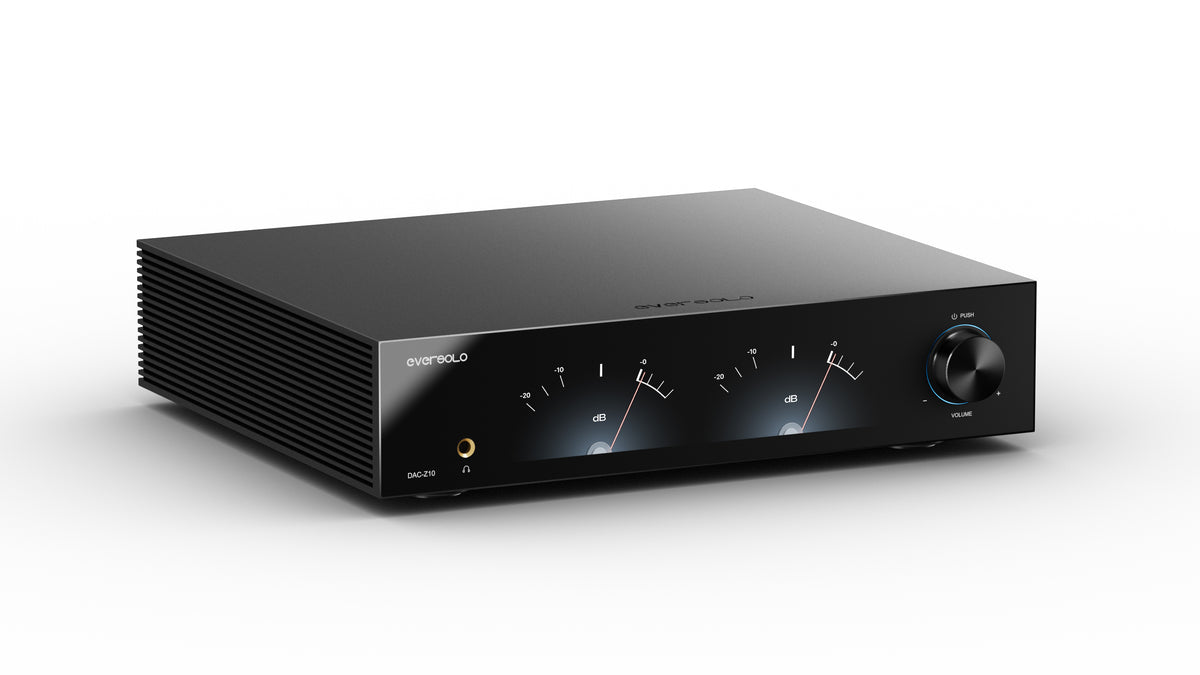

Design and Control
An 8.8-inch IPS display sits in a CNC aluminium-alloy chassis. Operate it by touchscreen, the supplied remote or the mobile app.
Specifications
Basic Parameters
| Model | Eversolo DAC-Z10 |
|---|---|
| Display | 8.8" IPS |
| Chassis Material | Aluminium alloy |
| Main Processor | DCP8568 |
| DAC | Left Channel: AK4191+AK4499 Right Channel: AK4191+AK4499 |
| Audio Processor | Multi-core USB audio processor |
| OPA Chip | OPA1612 |
| Power | Triple ultra-low noise linear power supplies |
Audio Inputs and Outputs
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols |
|---|---|
| USB-B Audio Input | Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit |
| IIS Input | Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit |
| AES/EBU Input | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Optical Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Coaxial Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| ARC Input | Up to Stereo PCM 192KHz/24Bit |
| Analog Audio Inputs | XLR (Balanced), RCA |
| Analog Audio Outputs | Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended |
| External Clock Input | Supports 10M/25M clock inputs with 50Ω or 75Ω impedance |
| Recommended Headphone Impedance | 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω) |
Audio Characteristics
| XLR Output Audio Characteristics | Output Level (Vrms): 5Vrms @ 0dBFS THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz) Noise @ No-wt: <1.2uVrms SNR @ A-wt: 130dB Frequency Response: 20Hz–20kHz (±0.1dB) Crosstalk: -130dB DNR @ A-wt: 130dB |
|---|---|
| RCA Output Audio Characteristics | Output Level (Vrms): 2.5Vrms @ 0dBFS THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz) Noise @ No-wt: <1.5uVrms SNR @ A-wt: 128dB Frequency Response: 20Hz–20kHz (±0.1dB) Crosstalk: -123dB DNR @ A-wt: 128dB |
| Headphone Audio Characteristics (Low Gain Mode) | Output Level (Vrms): 4Vrms @ 0dBFS THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz) Noise @ No-wt: <2.5uVrms SNR @ A-wt: 124dB Frequency Response: 20Hz–20kHz (±0.1dB) DNR @ A-wt: 124dB |
| Headphone Audio Characteristics (Mid Gain Mode) | Output Level (Vrms): 5.6Vrms @ 0dBFS THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz) Noise @ No-wt: <2.5uVrms SNR @ A-wt: 126dB Frequency Response: 20Hz–20kHz (±0.1dB) DNR @ A-wt: 126dB |
| Headphone Audio Characteristics (High Gain Mode) | Output Level (Vrms): 7Vrms @ 0dBFS THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz) Noise @ No-wt: <2.5uVrms SNR @ A-wt: 127dB Frequency Response: 20Hz–20kHz (±0.1dB) DNR @ A-wt: 127dB |
Other Information
| Power Supply | AC 110~240V 50/60Hz |
|---|---|
| USB Port | USB2.0*1（only for firmware upgrade） |
| Control Methods | Touchscreen control, remote control, mobile App control |
| Rated Power Consumption | 32W |
| Dimensions | 365mm (L) × 310mm (W) × 88mm (H) (including foot pads) / 78mm (excluding the foot pads) |
| Packing List | Remote control ×1, power cable ×1, USB data cable ×1, USB drive (for FW upgrade) ×1, TRIGGER cable ×1, polishing cloth ×1, user manual ×1 |
Specifications as published by Eversolo. Price is the recommended retail price incl. 15% VAT.
