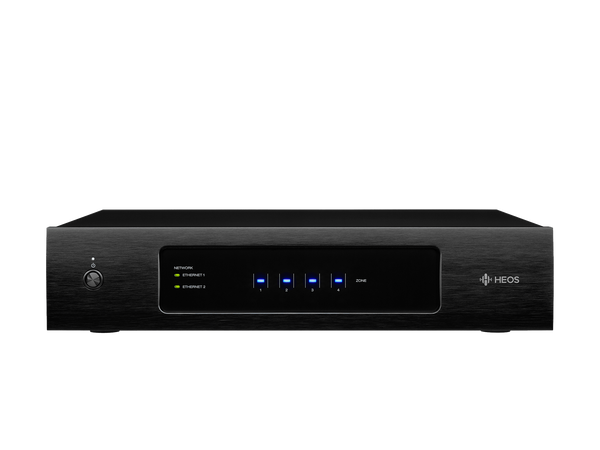

Denon HEOS Drive Amplifier

Features

Whole home amplified multi-zone audio (4 HEOS zones)
8 Channels Class D digital amplification; 60 WPC 8 Ohms; 4 Ohms compatible; Bridge mode
Pre-amp outputs for each zone
Dual RJ-45 Ethernet LAN ports
HEOS Drive comes with removable feet and attachable rack ears, allowing rack or shelf placement.
Stereo/Mono selectable output
Only 2RU high; Removable rack ears included
3rd party controllable
Dolby Digital/Dolby Digital+ Downmixing to stereo
HEOS Drive setup and configuration is fast and easy via our HEOS app

Whole home multi-zone amplifier in a single chassis.
Designed by custom integration specialists for custom integration professionals, HEOS Drive is a unique 4 zone whole home audio distribution system with a Class D, 8 channel amplifier, 8 channels of Class D amplification, all in a 2RU single tall chassis that features both Dolby Digital and Dolby Digital+ decoding with stereo downmixing.

Rated at 60 watts per channel into each of the 8 channels (20Hz~20kHz, .05% THD, 8 ohms, All Channels Driven), 1 or 2 stereo amp pairs can be bridged for single channel high power output (130 watts), and the HEOS Drive features low impedance drive capability (4 ohms).

Each zone in this multi-room amplifier features a stereo pair of pre-amp outputs, and each zone can be configured for stereo or mixed mono output. The matrix switching system features 2 optical digital inputs, 2 coaxial digital inputs and 4 analog stereo inputs, any of which can be assigned to any zone, and every zone features a dedicated USB port for connection to an external USB drive.

Equipped to handle virtually any combination of speaker configurations, HEOS Drive features built-in DSP high pass/low pass filters - set any output to full range, subwoofer or satellite speaker modes, with adjustable crossover points.

The speaker outputs feature 4-way binding posts that are compatible with banana plug terminations, and there are 4 12V trigger outputs. The chassis features quiet fan cooling for long term stability and operational reliability.

Specifications

NETWORKING
Wired Connectivity	Dual RJ-45 jack for connection to wired ethernet
MATRIX SWITCHING
Multiple Analog and Digital Inputs	4 stereo analog 2 optical digital 2 coaxial digital inputs
GENERAL
Power Supply	100~240
Volts AC	50~60 Hz autoswitching
Weight	7.2 kg
Operating Temperature	5°C~35°C
Buttons and Indicators	Power/standby Ethernet status 1/2 Zones 1~4 active status
Dimensions (H x W x D)	3.5 x 17 x 15.6 inches (without rack ears) 3.5 x 19.125 x 15.6 inches (with rack ears) 88mm x 430mm x 402 mm (without rack ears) 88mm x 483mm x 402 mm (with rack ears)
