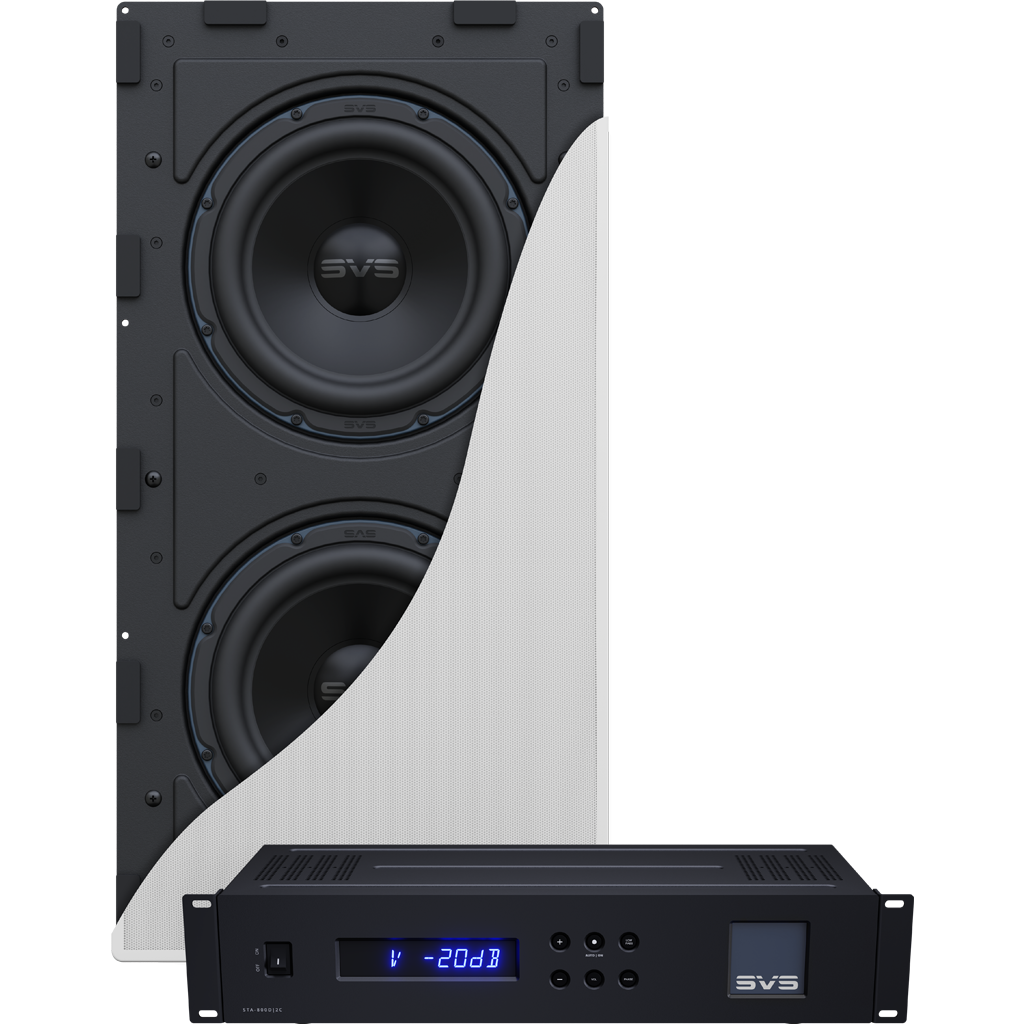

SVS 3000 In-Wall Single Subwoofer System
Massive, cinematic bass with no floor space required. The SVS 3000 In-Wall fits between standard 16-inch wall studs and houses dual active 9-inch high-excursion drivers in a sealed, aluminium-baffled enclosure, driven by the rack-mount Sledge STA-800D2C amplifier with a 50MHz DSP and Bluetooth app control. Ideal for living rooms, media rooms and dedicated cinemas, in existing homes or new construction.
The Single Subwoofer System includes one in-wall enclosure with grille and one Sledge STA-800D2C amplifier.
Key Features
Dual Active 9-inch Drivers
- Two front-firing 9-inch high-excursion drivers wired in parallel for extreme output with control and accuracy
- Rigid 1100 aluminium vented cones with aluminium dustcaps
- Vented motor structure for thermal and mechanical management

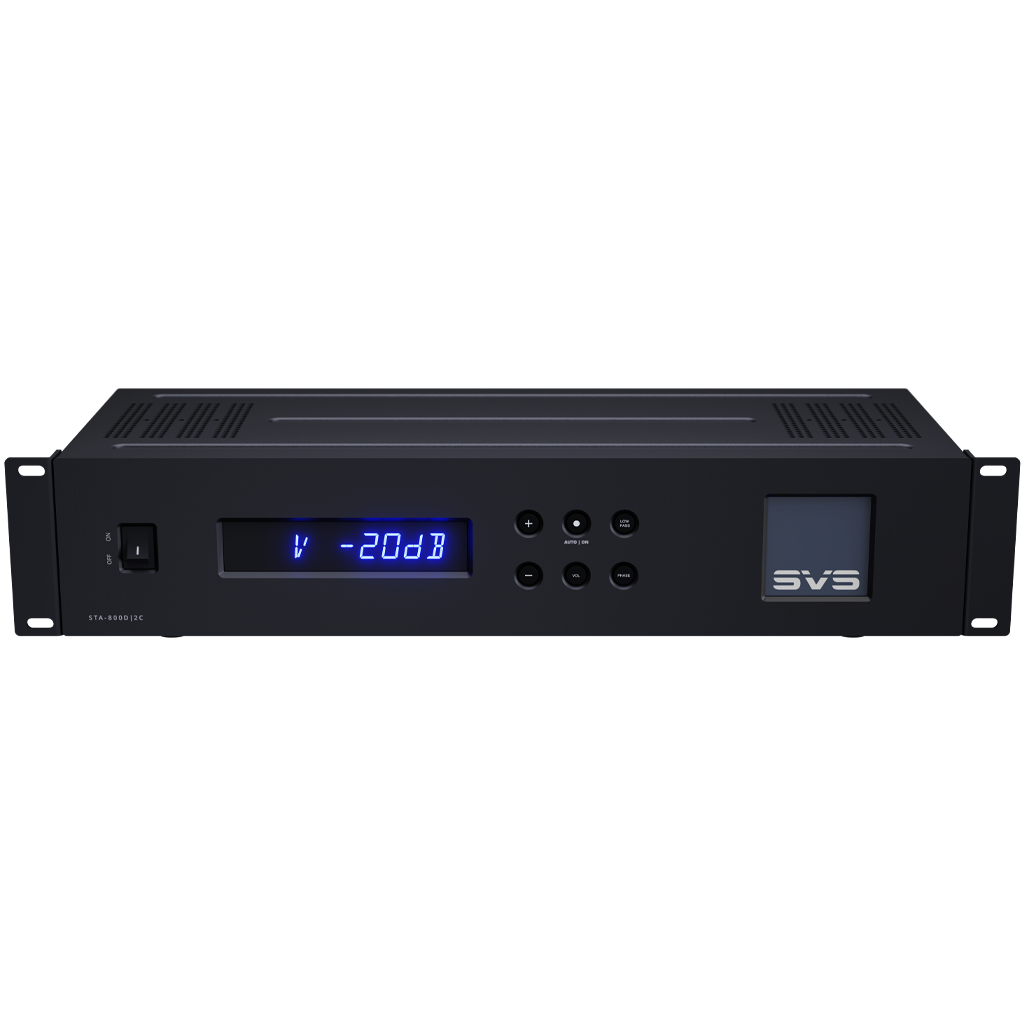

Sledge STA-800D2C Amplifier
- 800 watts RMS continuous
- Discrete MOSFET output with Class D efficiency
- 2U rack-mount design (rack kit included) with front-panel controls and 8-character LED display
- Second set of binding posts to drive a second 3000 In-Wall
50MHz Analog Devices DSP and App
- Custom response curves tuned to take advantage of room gain
- Bluetooth app for iOS, Android and Amazon devices: volume, low-pass filter, phase, polarity, room gain, three parametric EQs and custom presets
Acoustically Inert Sealed Enclosure
- 2.5 mm aircraft-grade aluminium front and rear baffles around a fully braced 18 mm MDF frame

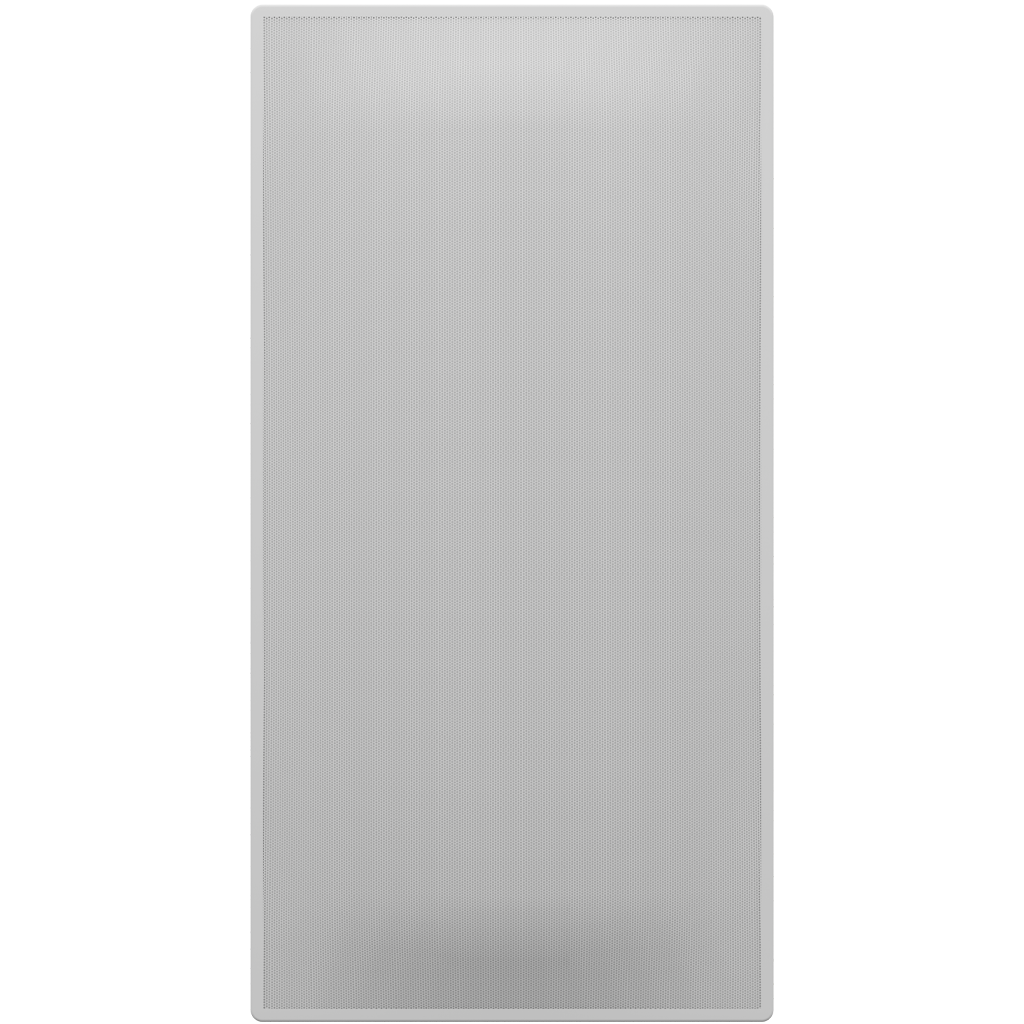

- Paintable, magnetically attached, removable steel mesh grille
Easy Installation

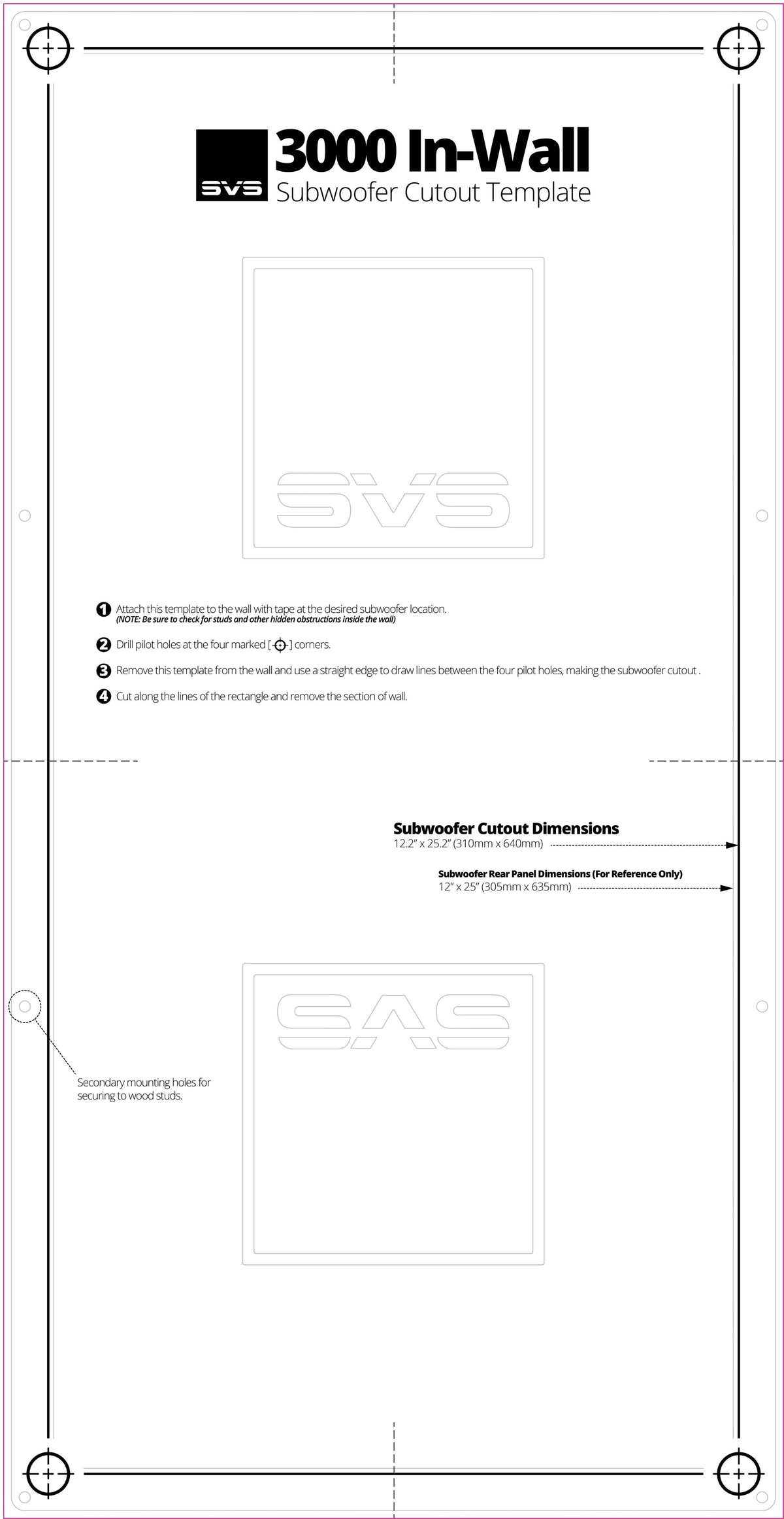

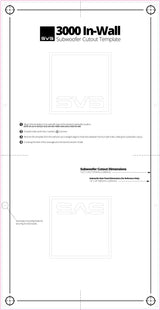

Mounts with dog-leg clamps in existing walls or direct to stud in new construction. A pre-construction bracket is available separately.
Specifications
| Specification | Details |
|---|---|
| Model | SVS 3000 In-Wall |
| Enclosure | Sealed, fits between standard 16" stud spacing |
| Drivers | Dual active 9" front-firing high-excursion drivers (per enclosure) |
| Frequency Response | 22 Hz to 250 Hz +/- 3 dB |
| In-Room Low Frequency | 19 Hz |
| Max Output at 32 Hz (1/8 space, 1 m) | 107.6 dB single / 110.6 dB dual |
| Amplifier | Sledge STA-800D2C, 800 watts RMS (2500+ watts peak), Class D with 25A, 600V MOSFETs |
| DSP | 50 MHz Analog Devices audio DSP, 56-bit filtering |

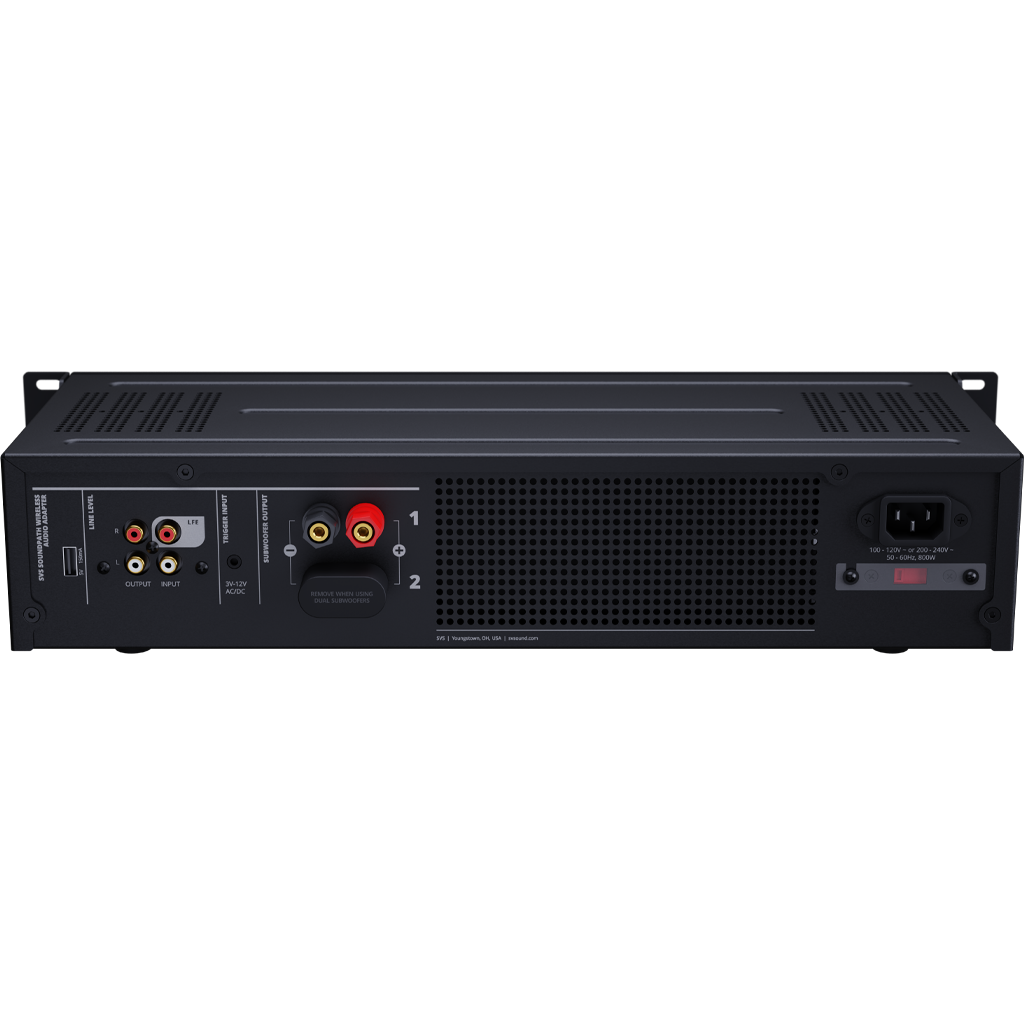

| Inputs / Outputs | Stereo RCA input (16 kohm, up to 4 V line level), stereo RCA output, banana speaker-wire connections |
| Control & Integration | 3.5 mm trigger (3-12 V AC/DC), Auto/On, USB power for SVS SoundPath Wireless Audio Adapter, Bluetooth app |
| Amplifier Size | 2U rack-mount (kit included) |
| Standby Power | 0.5 W |

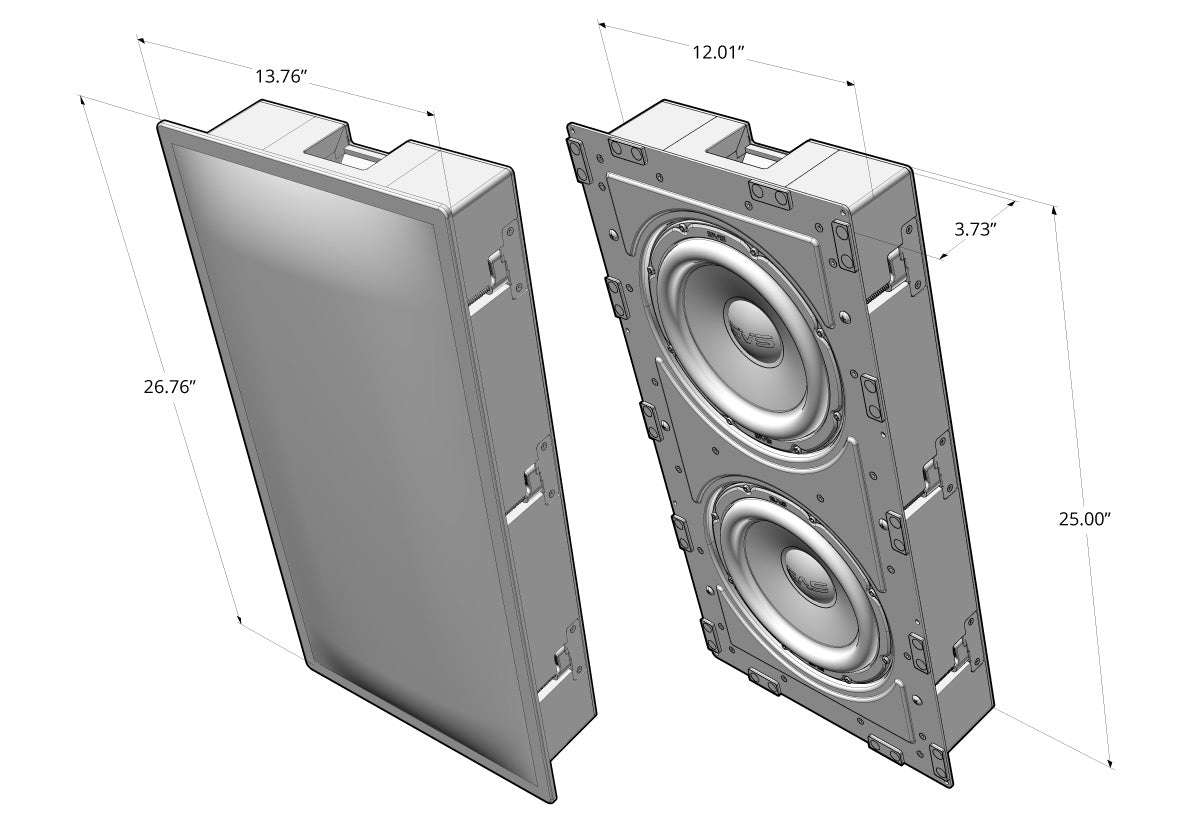

| Dimensions (with grille) | 26.76" (679.6 mm) H x 13.76" (349.6 mm) W x 1.34" (34 mm) D |
| Dimensions (without grille) | 26.57" (674.9 mm) H x 13.58" (344.9 mm) W x 0.35" (8.8 mm) D |
| In-Wall Cabinet | 25" (635 mm) H x 12" (305 mm) W x 3.74" (95 mm) D |
| Weight per Enclosure | 25.5 lb (11.6 kg) with grille, 23 lb (10.4 kg) without |
| System Contents | One in-wall enclosure with grille, one Sledge STA-800D2C amplifier |
| Shipping Package | 36.22" (920 mm) L x 20.20" (513 mm) W x 9.57" (243 mm) D, 45 lb (20.4 kg) |
Driver Specifications
| Specification | Details |
|---|---|
| Excursion | 23.4 mm Xmax, 29 mm Xmech |
| Voice Coil | High-current 4-layer copper winding on 3003-H18 aluminium former |
| Motor | Oversized Y30 ferrite, 1006 steel top plate, ML08AL steel T-yoke, 6061 aluminium shorting ring |
| Cone | 1100 aluminium vented cone with aluminium dustcap |
| Surround | Injection-moulded long-throw |
| Basket | Custom 9" powder-coated frame |
In the Box
- 3000 In-Wall enclosure with paintable magnetic steel mesh grille
- Sledge STA-800D2C amplifier with rack-mount kit
- Banana speaker wire plugs
- Heavy-duty 6 ft power cord
- Installation and setup guides
Downloads
- 3000 In-Wall Setup Guide (PDF, svsound.com)
- 3000 In-Wall Installation Guide (PDF, svsound.com)
- Pre-Construction Kit Guide (PDF, svsound.com)
Specifications sourced from the manufacturer, SVS (svsound.com). Prices are recommended retail including 15% VAT.
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
