Anthem AVM 70 15.2 AV Processor
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.

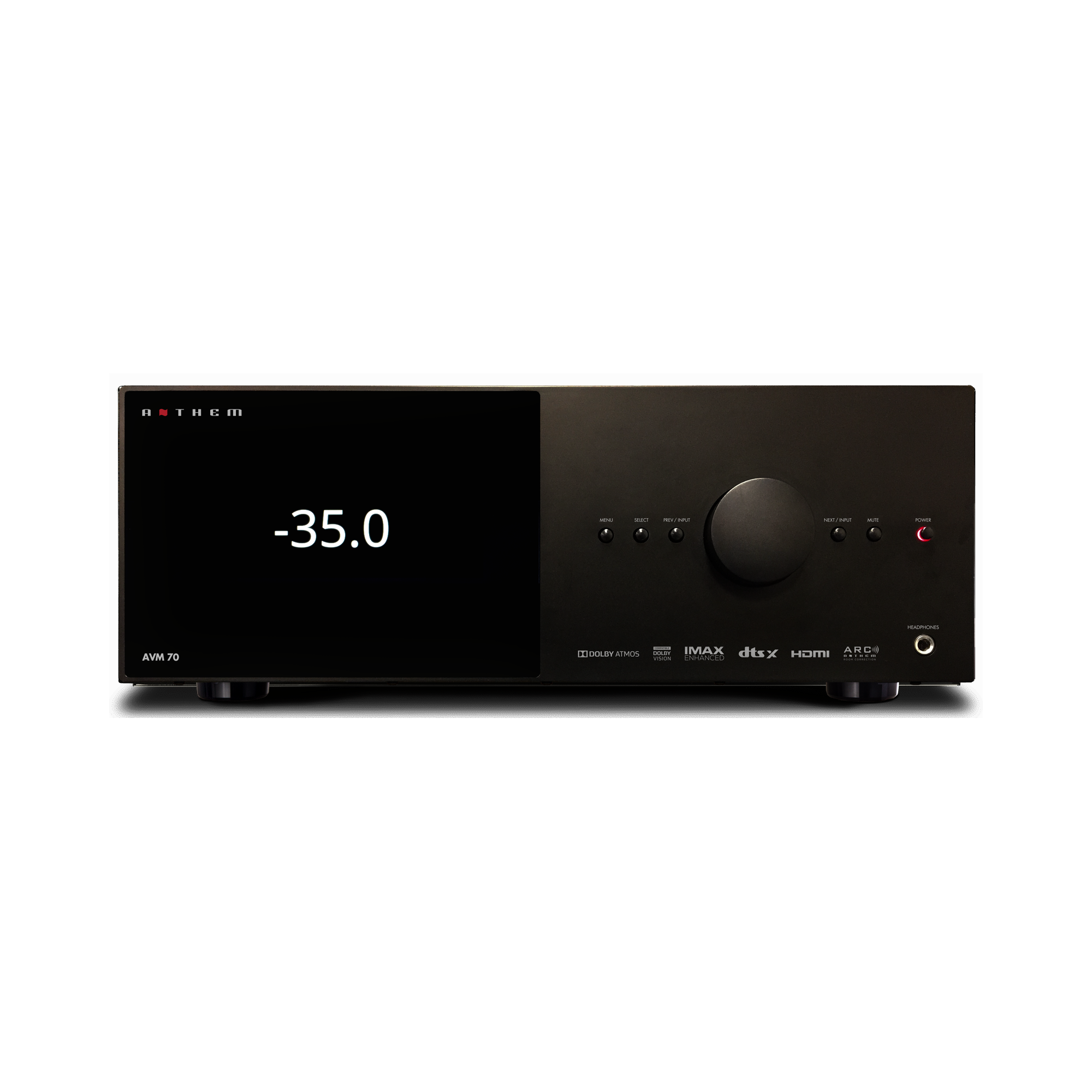

Anthem AVM 70 15.2 AV Processor
15.2 A/V Pre-Amplifier/Processor with Dolby Atmos, DTS:X and IMAX Enhanced. Includes ARC (Anthem Room Correction). HDMI 2.1, HDCP 2.3 supporting 8K/60Hz or 4K/120Hz.
Since the AVM 50 and Statement D2 A/V Processors, music lovers and home theater enthusiasts have coveted Anthem’s premium surround separates. Featuring industry-leading room correction, expert management of the latest audio formats and robust integration; Anthem is the ultimate nerve center of any premium home theater or media room.
With the latest version of ARC Genesis Room Correction, a redesigned and more accurate calibration microphone, Anthem Web User Interface, an all-new electronics platform and a new modernized design; the new AVM A/V Processors bring all of today’s technologies into a single component.
Object-oriented audio codecs have been updated with support for up to 15.2 channels; as well as built-in streaming support for Apple AirPlay2, Google Chromecast, Bluetooth, Spotify Connect and Roon (coming soon).

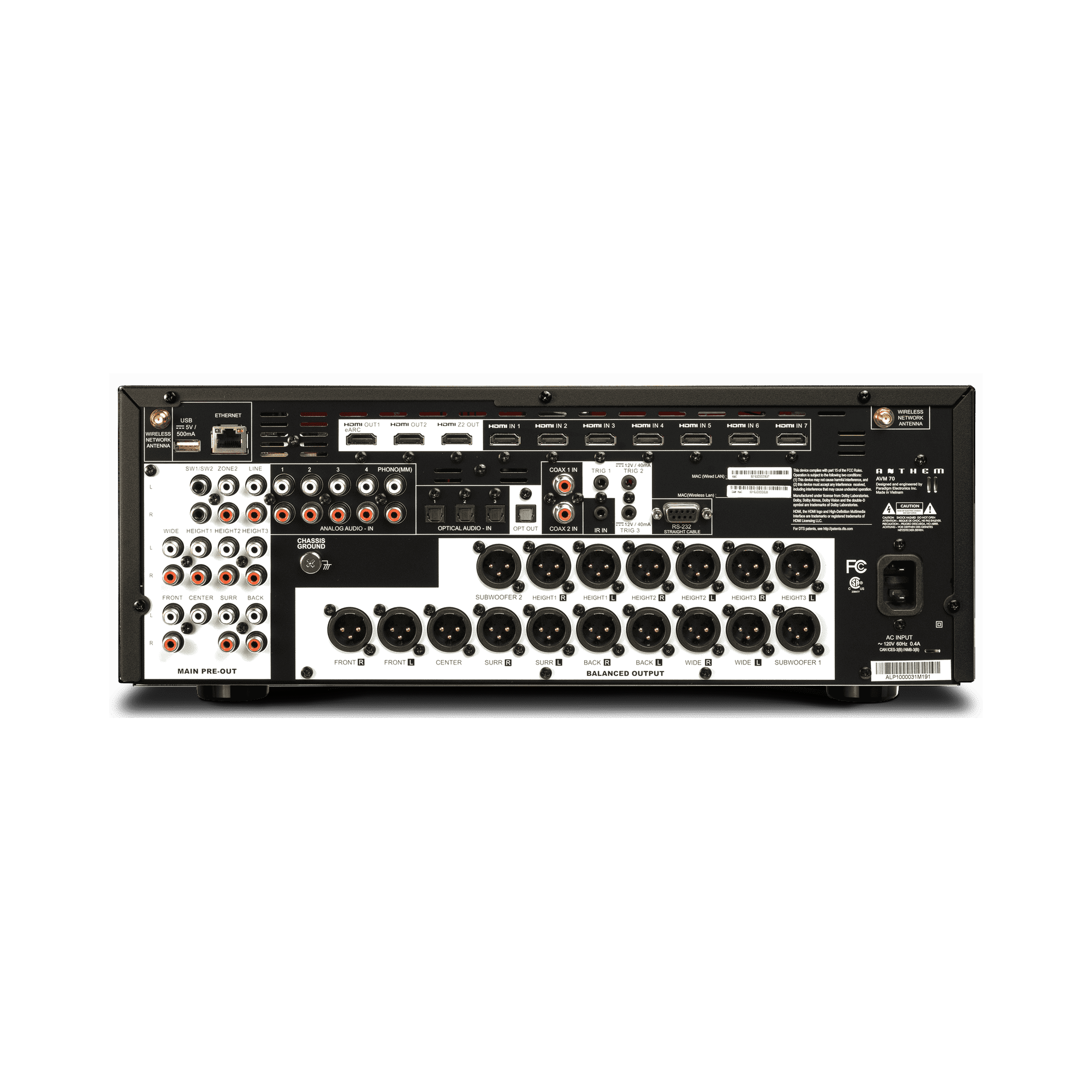

The AVM 70 a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with eARC. With AVM, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.
Specifications
| PREAMPLIFIER (measured at XLR output) | |
| Maximum Output (<0.01% THD) | 10.7 VRMS, Subwoofer 11 VRMS |
| Frequency Response | 20 Hz — 35 kHz (+/-0.2dB) |
| Frequency Response, Analog-Direct | 20 Hz — 80 kHz (+0, -2 dB) |
| THD+N (4 Vrms output) | -100 dB |
| S/N Ratio (4 Vrms output, IEC-A filter) | 110 dB |
| XLR Configuration | Pin 1: Ground, Pin 2: Positive, Pin 3: Negative |
| POWER CONSUMPTION | |
| Typical Load | 60 W |
| Standby | 0.3 W |
| Standby IP Control Enabled | 1.8 W |
| Standby HDMI Bypass Enabled | 4.9 W |
| DIMENSIONS | |
| Height (without feet) | 6" (15.24 cm) |
| Height with Rackmount Kit | 4U |
| Width | 17" (43.18 cm) |
| Depth (including wifi ant not power cord) | 14-1/2" (36.4 cm) |
| Weight | 22.1 lbs, 10.1 Kg |
| POWER REQUIREMENT | |
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
