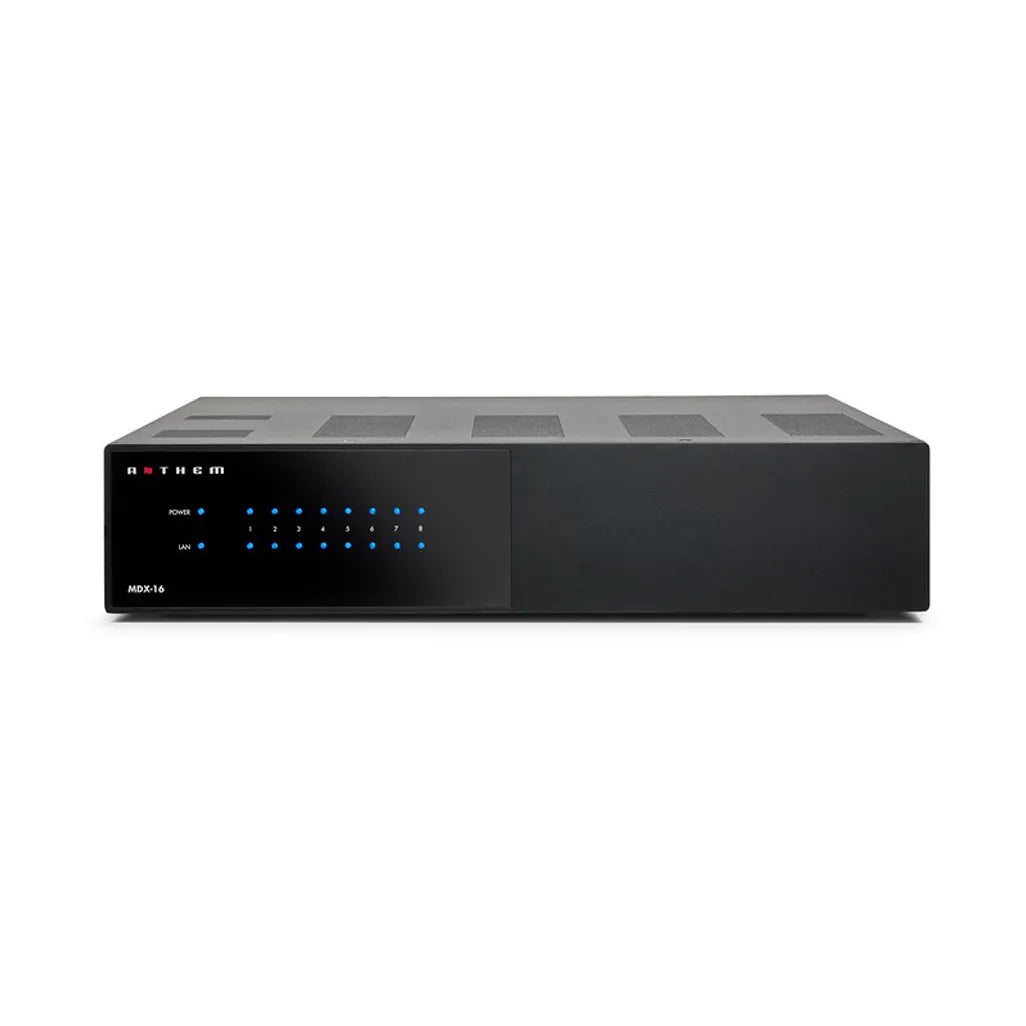

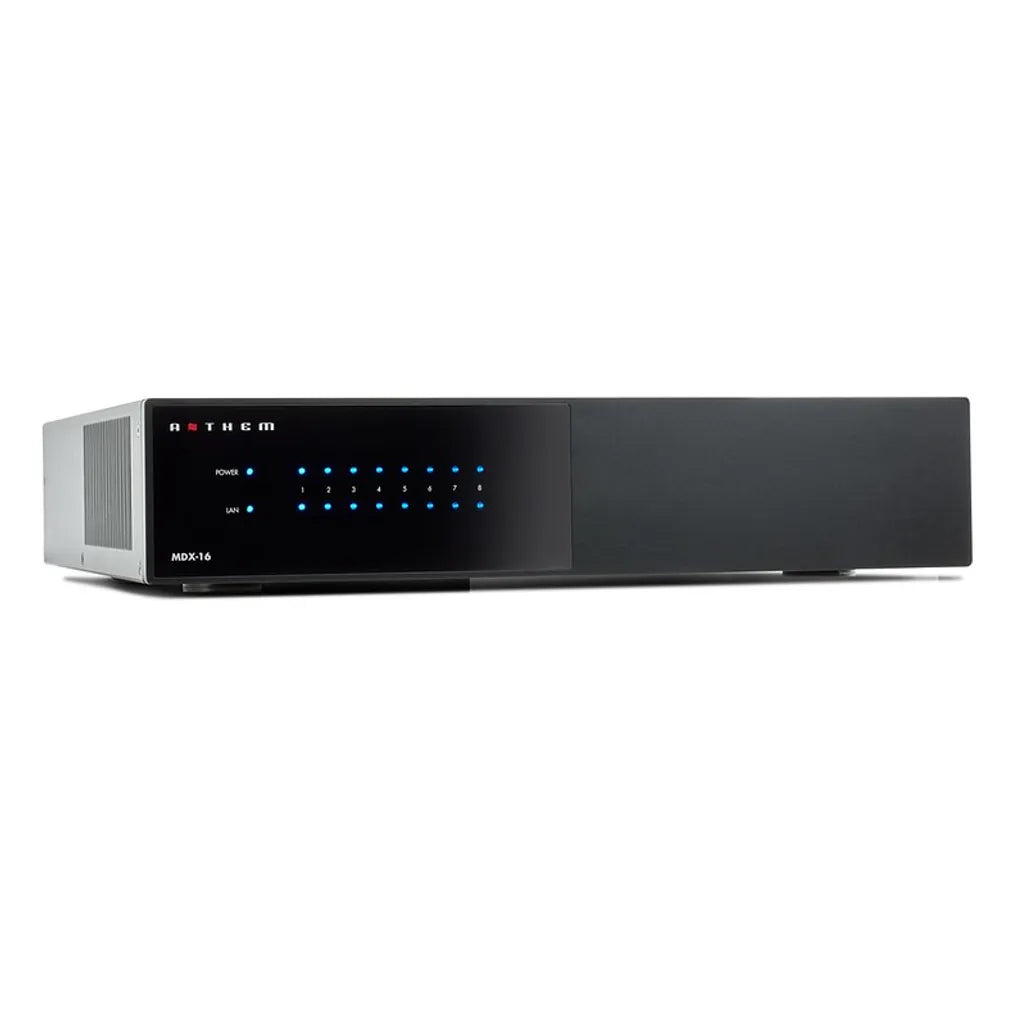

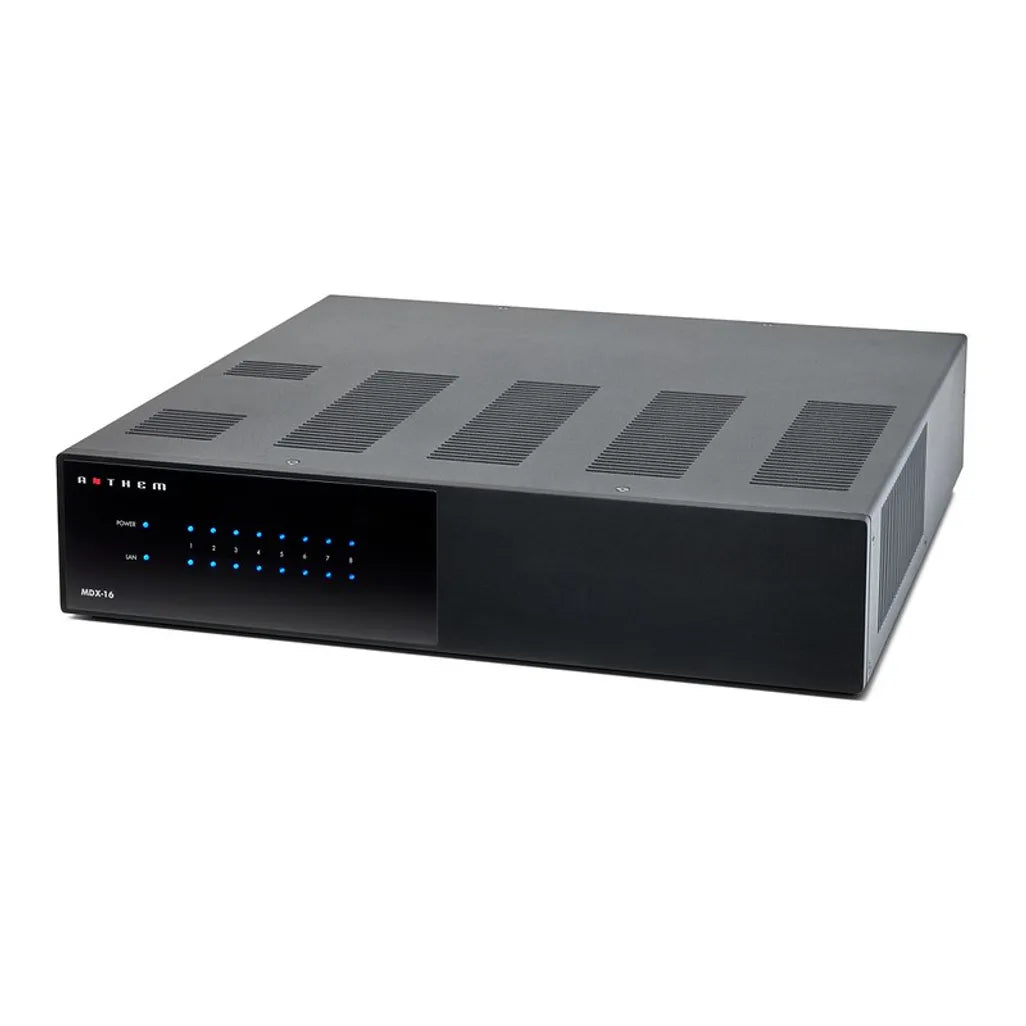

Anthem MDX-16 Multi-Zone AV Processor
The Anthem MDX-16 is the ultimate 16-channel multi-zone AV processor designed for the most sophisticated whole-home audio and video distribution systems. Engineered by Anthem, a world leader in high-performance audio technology, the MDX-16 delivers uncompromising sound quality and maximum flexibility for luxury residential estates, commercial installations, and reference-grade home theaters.
Key Features
- 16 channels of pristine audio processing with independent zone control
- Advanced multi-zone audio and video distribution (up to 6 zones)
- Anthem Room Correction (ARC) Genesis with advanced calibration
- 8K Ultra HD video processing with full HDR support
- Dolby Atmos, DTS:X Pro, IMAX Enhanced, and Auro-3D immersive audio
- Fully balanced XLR outputs for all 16 channels
- Network streaming with AirPlay 2, Chromecast built-in, Spotify Connect, Tidal, and Roon Ready
- Dirac Live Bass Control integration
- Comprehensive control via RS-232, IP, and third-party automation systems
- Modular design for future upgrades
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 16 channels |
| Audio Processing | 32-bit/768kHz ESS SABRE DACs |
| THD+N | ≤0.0005% (20Hz-20kHz) |
| Frequency Response | 20Hz - 20kHz (±0.05dB) |
| Signal-to-Noise Ratio | >120dB (A-weighted, balanced outputs) |
| Dynamic Range | >118dB |
| HDMI Inputs | 10 HDMI 2.1 inputs (48Gbps bandwidth) |
| HDMI Outputs | 4 HDMI 2.1 outputs (48Gbps bandwidth) |
| Video Support | 8K/60Hz, 4K/120Hz, HDR10+, Dolby Vision, HLG, HDR10, HDCP 2.3 |
| Video Processing | Advanced video scaling and processing, 4:4:4 color space |
| Audio Formats | Dolby Atmos, DTS:X Pro, IMAX Enhanced, Auro-3D, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Digital Plus |
| Room Correction | Anthem Room Correction (ARC) Genesis, Dirac Live Bass Control ready |
| Network | Dual Gigabit Ethernet, Wi-Fi 6E (802.11ax), Bluetooth 5.2 |
| Zones | 6 independent zones with individual source selection and volume control |
| Analog Inputs | 8 RCA stereo, 4 balanced XLR stereo |
| Analog Outputs | 16-channel balanced XLR pre-outs, 7.1 RCA pre-outs |
| Digital Inputs | 4 optical (TOSLINK), 3 coaxial, 2 USB-B, 1 AES/EBU |
| Digital Outputs | 2 optical, 2 coaxial, 1 AES/EBU |
| Control | Dual RS-232, IP control (Ethernet), IR in/out (6), 12V triggers (6), USB service port |
| Automation Integration | Control4, Crestron, Savant, RTI, URC certified |
| Dimensions (W×H×D) | 440mm × 201mm × 480mm (17.3" × 7.9" × 18.9") |
| Weight | 18.5 kg (40.8 lbs) |
| Power Consumption | 150W typical, 250W maximum, <0.3W standby |
| Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Finish | Black anodized aluminum front panel with precision-machined controls |
| Warranty | 5 years parts and labor (transferable) |
Perfect For
The Anthem MDX-16 represents the pinnacle of multi-zone AV processing for custom installation professionals, luxury estates, commercial venues, and discerning audiophiles who demand absolute reference-quality performance with uncompromising flexibility and future-proof technology.
What's Included
- Anthem MDX-16 AV Processor
- ARC Genesis measurement microphone and calibration kit
- Power cable
- IR remote control
- RS-232 cable
- Quick start guide and comprehensive manual
- Anthem warranty registration card
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
