Anthem STR Stereo Power Amplifier
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Anthem STR Stereo Power Amplifier

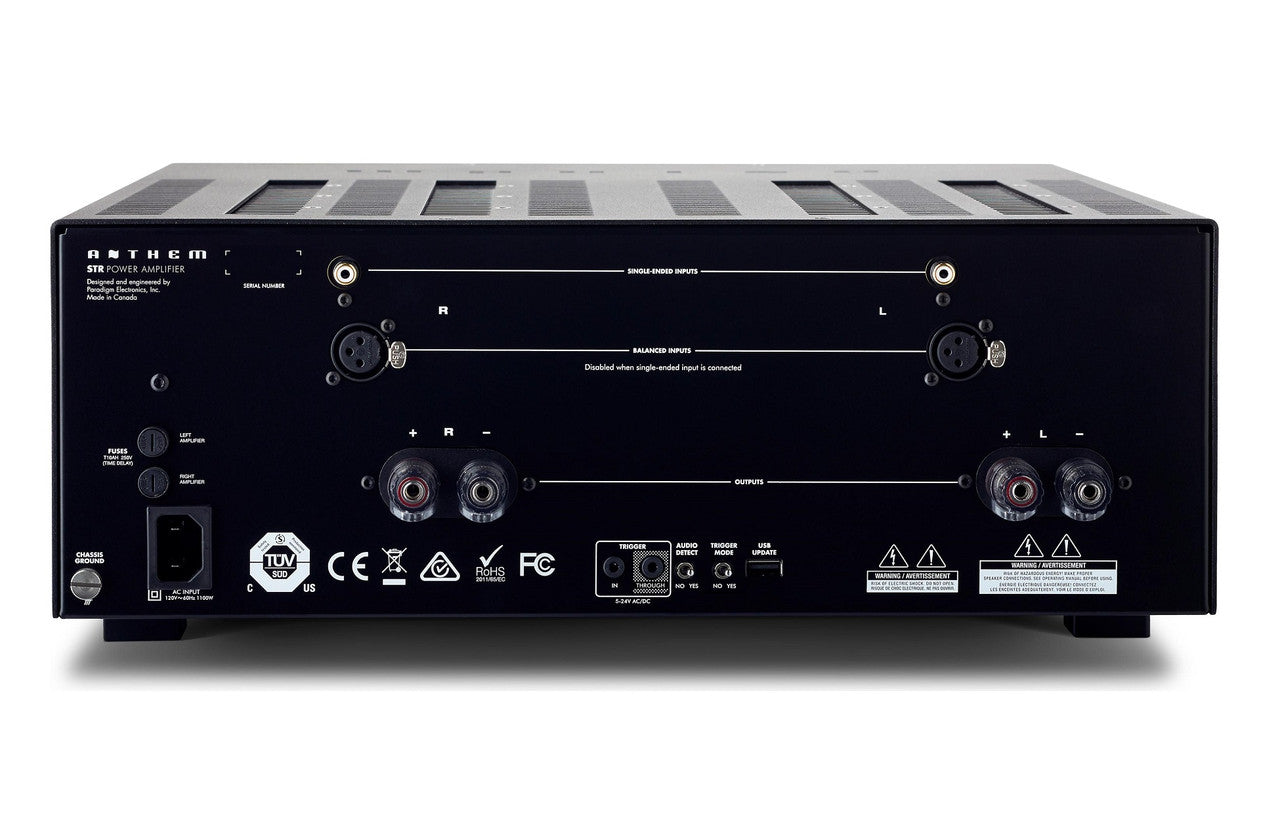

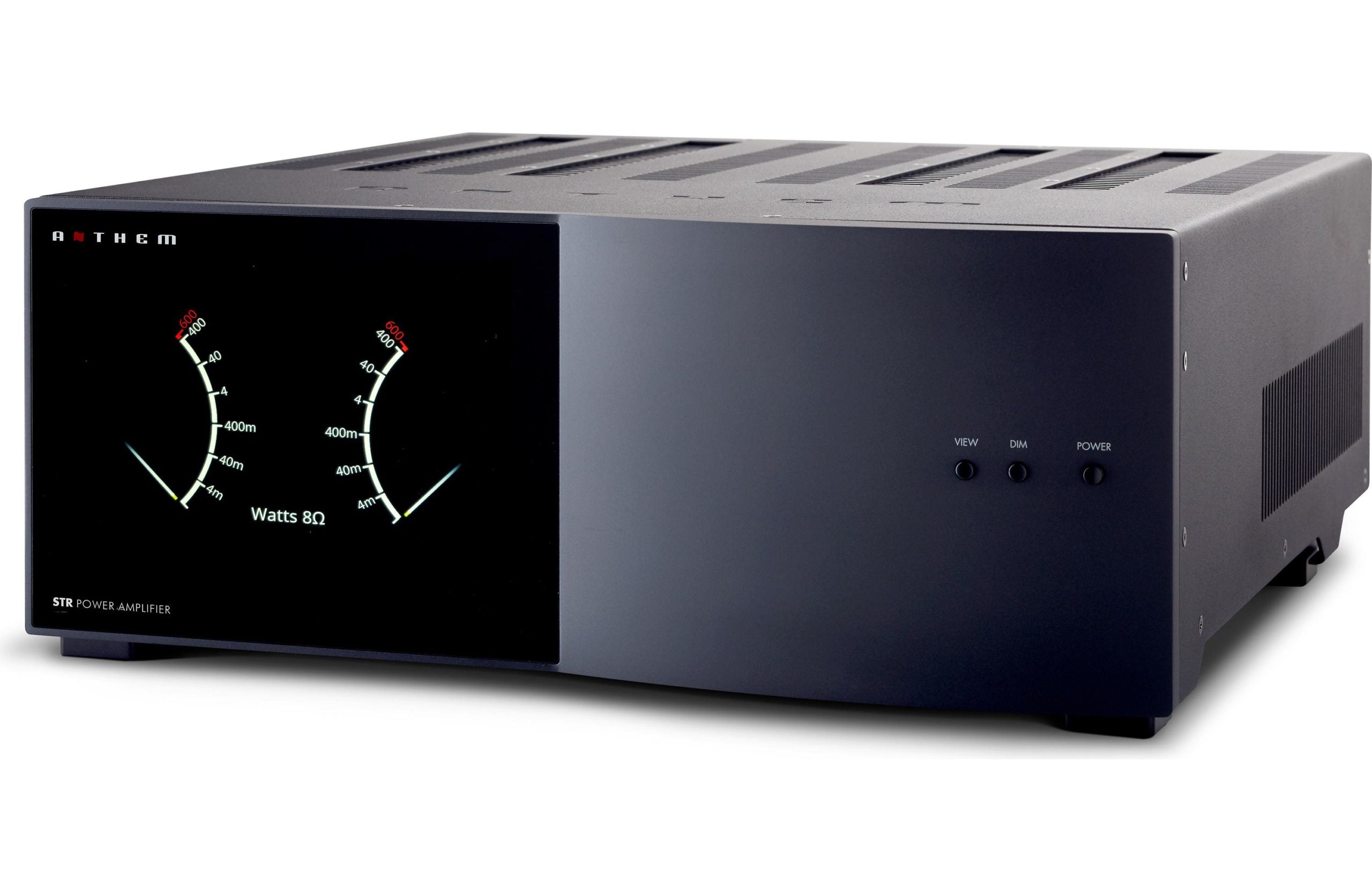

Two-Channel Revolution.The STR Power Amplifier is the beating heart of a world-class 2-channel sound system. It delivers massive power generation, with audiophile-quality output in a smartly designed component. Designed, engineered, and Crafted in Canada, the STR Power Amplifier delivers 400 Watts/channel into 8 ohms with both channels driven, a massive 600 Watts/channel into 4 ohms (both channels driven) and 800W in 2 ohms, for true no-holds-barred performance. Inside, the STR Power Amplifier uses two colossal transformers and multiple high-current output devices so the most subtle details and dynamic peaks are handled equally well. Outside, its beautifully designed cosmetics, including a 7-inch graphic control display and secure, highly conductive audiophile connectors provide a perfect match to the STR Preamplifier. |

|
Specifications:
| POWER AMPLIFIER | ||||||||||
|
||||||||||
| * Maximum 3 seconds due to high current draw. | ||||||||||
| THD (400 W) | 0.0007% (1 kHz), 0.004% (20 kHz) | |||||||||
| IMD (300 W) | ||||||||||
| ITU-R (19 kHz + 20 kHz) | 0.0006% | |||||||||
| SMPTE (60 Hz + 7 kHz) | 0.0016% | |||||||||
| SNR (IEC-A, ref. 400 W) | 121 dB | |||||||||
| Frequency Response (20 Hz - 20 kHz) | ± 0.1 dB | |||||||||
| Power Bandwidth (-3 dB at 400 W into 8 ohms) | 91 kHz | |||||||||
| Slew Rate | 30 V/μs | |||||||||
| Damping Factor (20 Hz - 1 kHz) | 360 | |||||||||
| Channel Separation | 101 dB (100 Hz), 98 dB (10 kHz) | |||||||||
| Input Impedance | 10kΩ (RCA), 15kΩ (XLR) | |||||||||
| Input Sensitivity (for 400W into 8Ω) | 2.1 Vrms | |||||||||
| Voltage Gain | 29 dB | |||||||||
| POWER REQUIREMENT | ||||||||||
| 120 V version: | In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz. | |||||||||
| 220-240 V version: | In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz. | |||||||||
| POWER CONSUMPTION | ||||||||||
| Standby | 310 mW | |||||||||
| Idle | 65 W | |||||||||
| Typical Playback Levels | 150 W - 300 W | |||||||||
| High Playback Levels | 600 W - 1100 W | |||||||||
| DIMENSIONS | ||||||||||
| Height | 6-3/4” (17.2 cm) | |||||||||
| Width | 17” (43.2 cm) | |||||||||
| Depth (not including power cord) | 18-1/2” (47 cm) | |||||||||
| Weight (unpacked) | 60 lb (27.3 kg) | |||||||||
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
