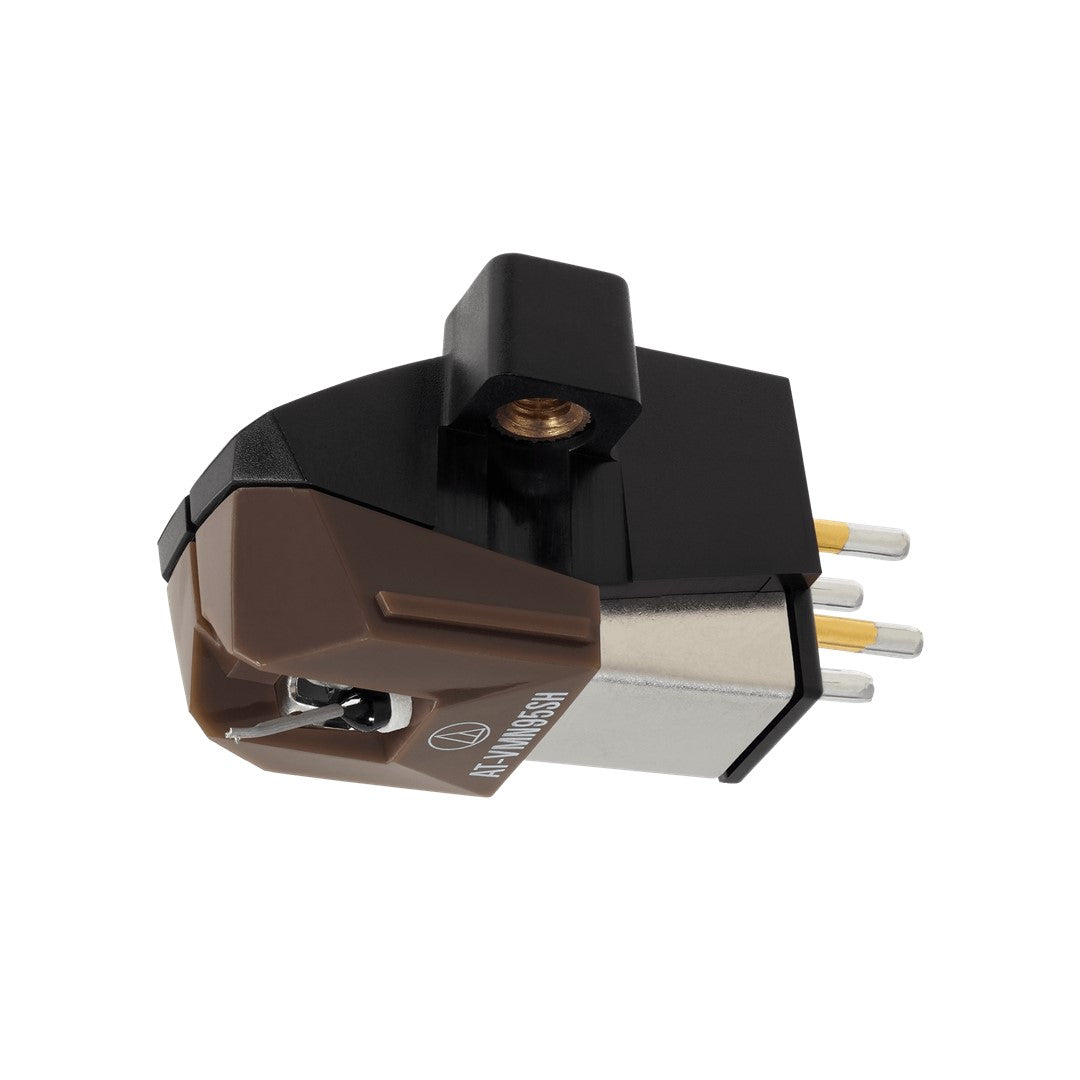

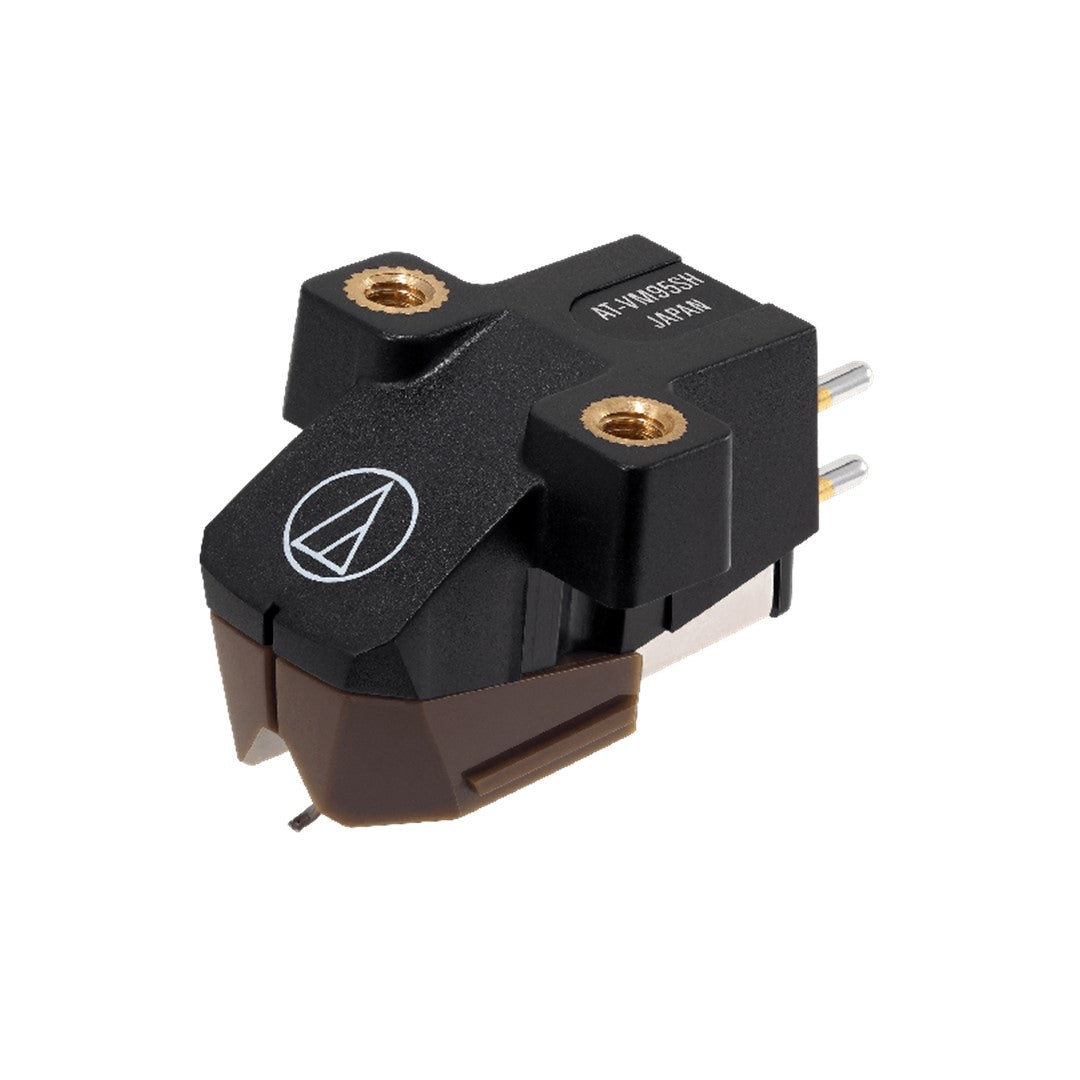

Audio-Technica AT-VM95SH Moving Magnet Cartridge
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

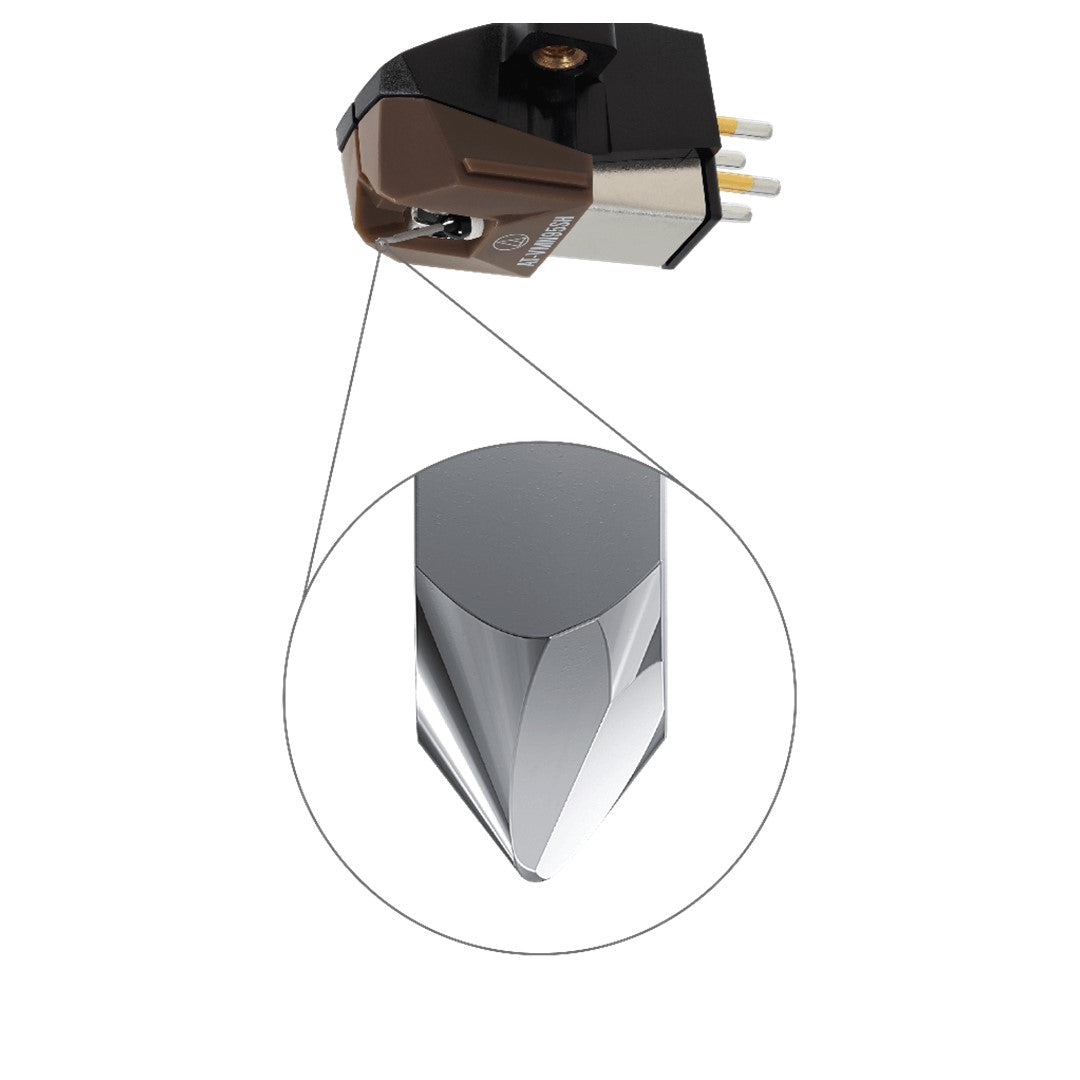

The Audio-Technica AT-VM95SH is the flagship of the VM95 series, fitted with a nude Shibata stylus — the most advanced stylus profile in the range. Originally developed for quadraphonic and high-density groove formats, the Shibata tip makes contact with the groove wall over a far greater surface area than elliptical or MicroLinear designs, dramatically reducing distortion at high frequencies and extending response to an extraordinary 50,000 Hz. The nude construction eliminates bonding agent mass for unrivalled transient accuracy, while the VM95 platform's universal stylus-swap system means the cartridge body can accept any VM95 stylus. The definitive choice for audiophiles demanding the absolute best from their vinyl collection.
Specifications
| Specification | Value |
|---|---|
| Transducer Type | Dual Moving Magnet (MM) |
| Stylus | Nude Shibata |
| Stylus Tip Radius | 2.5 × 70 μm |
| Frequency Response | 20 – 50,000 Hz |
| Output Voltage | 3.5 mV (1 kHz, 5 cm/sec) |
| Channel Separation | 30 dB (1 kHz) |
| Channel Balance | ≤ 1.0 dB (1 kHz) |
| Vertical Tracking Angle | 20° |
| Coil Impedance | 3.3 kΩ (1 kHz) |
| Coil Inductance | 450 mH (1 kHz) |
| DC Resistance | 485 Ω |
| Recommended Load Impedance | 47 kΩ |
| Recommended Load Capacitance | 100 – 200 pF |
| Tracking Force Range | 1.0 – 2.0 g |
| Recommended Tracking Force | 1.5 g |
| Cartridge Weight | 6.1 g |
| Compatible Stylus Series | VM95 (all VM95 styli) |
| MPN | AT-VM95SH |
| UPC / Barcode | 4961310145538 |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
