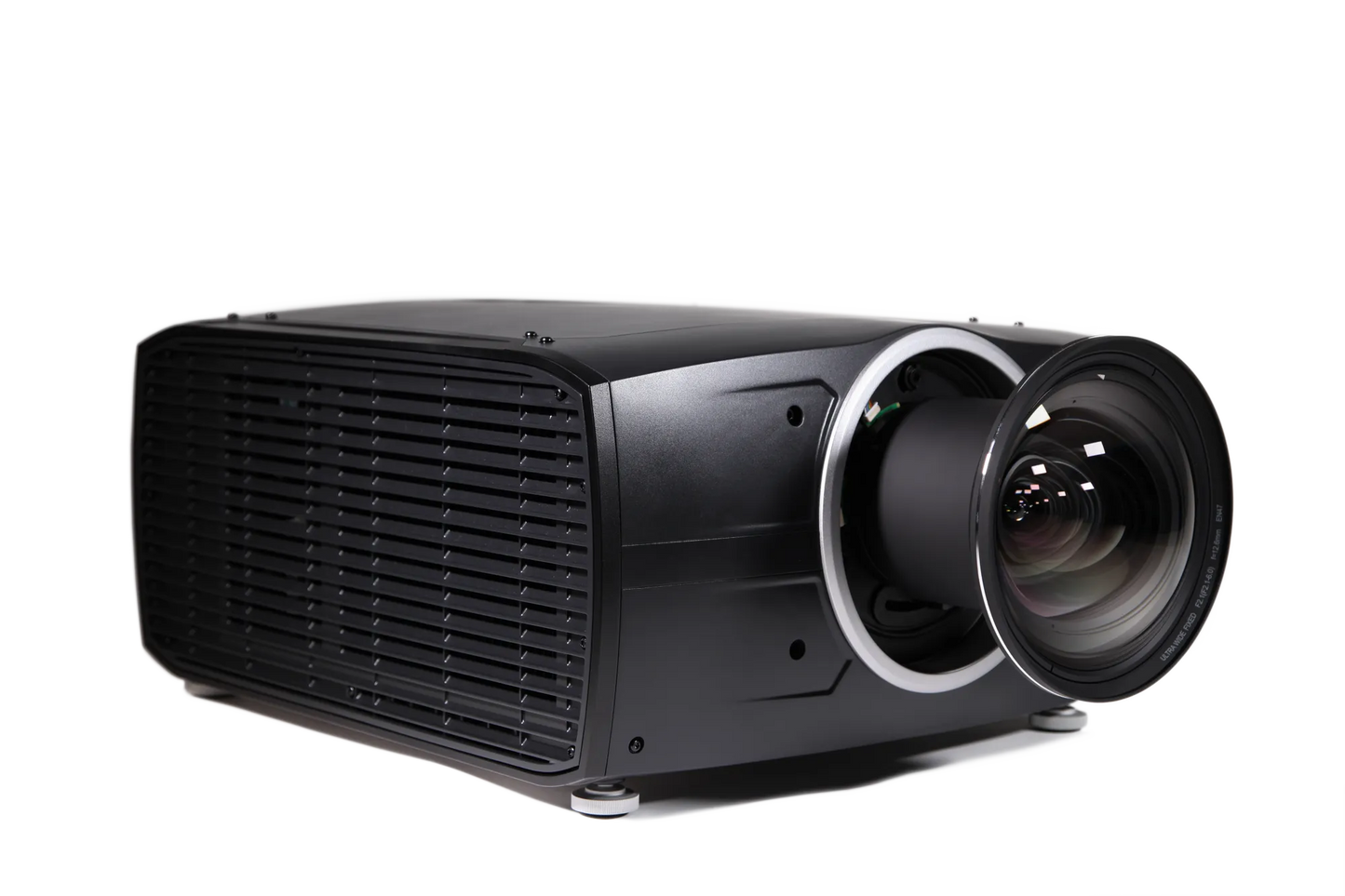

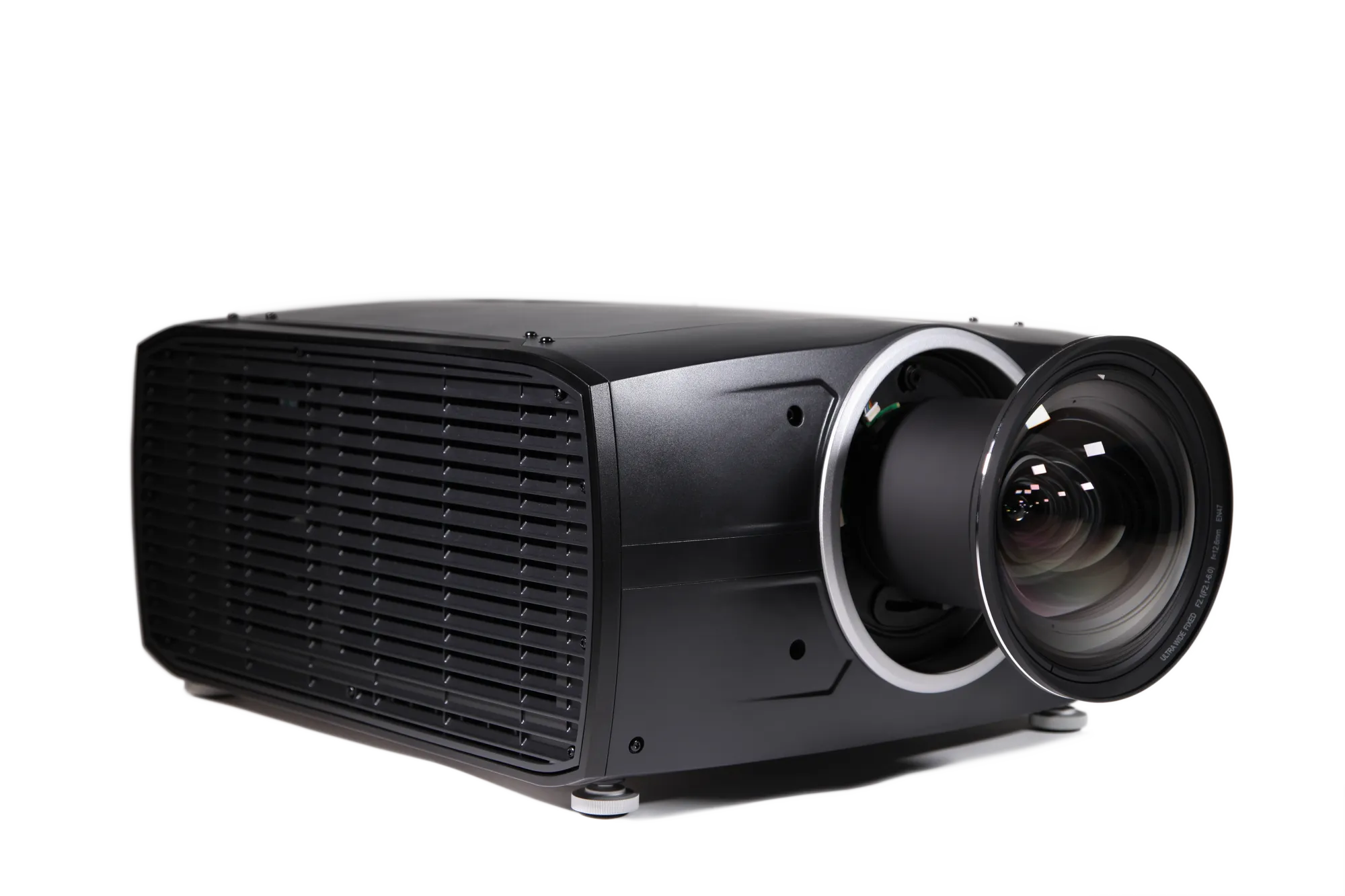

Barco Balder CinemaScope 4K Laser Projector | 5,600 Lumens | 2.37:1 Widescreen
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Pricing excludes lens & installation.
Special Order Item — General ETA +/− 4 weeks.
Barco Balder CinemaScope — 4K Laser Projector | 2.37:1 Widescreen | Liquid Cooled | Made in Belgium
The Barco Balder CinemaScope is the ultimate widescreen home cinema projector, combining the Balder’s acclaimed laser engine, liquid cooling, and Belgian-manufactured aluminium and magnesium chassis with a dedicated 2.37:1 CinemaScope aspect ratio. Delivering up to 5,600 ANSI lumens across a native 5,120 × 2,160 pixel image, Balder CinemaScope fills a true widescreen canvas with extraordinary precision, colour fidelity, and cinematic impact.
True CinemaScope — 2.37:1 Aspect Ratio
Barco’s unique aspect ratio detection system automatically crops and scales content to fit the appropriate screen area, ranging from 1.78:1 to 2.39:1. Manual cropping is also available for custom configurations — including CinemaScope subtitle support, where only the top black bar is removed from non-1.78:1 content, preserving subtitles at the foot of the image.
Professional-Grade Optics
Balder CinemaScope’s optical engine is based on the Loki CinemaScope’s architecture, incorporating custom-designed aspherical glass elements and enhanced low-dispersion glass lenses. The aluminium and magnesium chassis and core provide exceptional robustness, delivering the best picture quality ever achieved at this level.
State-of-the-Art Pulse Electronics
Barco’s Pulse electronics with Single Step Processing (SSP™) process 4K UHD, HDMI™ 2.0a, HDCP 2.2, and HDR10 signals with extremely low latency. The latest 0.9″ DMD DLP chipset delivers flawless 5K UHD (5,120 × 2,160) images at a 2.37:1 aspect ratio.
Laser Light Source — Up to 60,000 Hours
Three interchangeable colour wheels — DCI P3, T (REC.709), and M (REC.709) — allow precise optimisation for cinema, broadcast, or home entertainment content, with up to 5,600 ANSI lumens (M wheel) and a laser lifetime of 20,000–60,000 hours (intensity dependent).
Liquid Cooling for Silent, Free-Rotation Operation
Balder CinemaScope uses a liquid cooling PID regulation system instead of conventional fans. Combined with Barco’s simulation-grade warp engine, this allows 360° free rotation — opening new possibilities for architectural and custom installation scenarios.
Key Features
- 5,120 × 2,160 pixel output (5K UHD) at 2.37:1 CinemaScope aspect ratio
- Up to 5,600 ANSI lumens (M wheel); 4,000 lumens (T wheel); 3,600 lumens (DCI P3 wheel)
- Laser phosphor light source: 20,000–60,000 hours (intensity dependent)
- Liquid cooling PID system — 360° free rotation, silent operation
- Automatic aspect ratio detection: 1.78:1 to 2.39:1
- HDR10 support; P7 RealColor™; DCI-P3 / REC.709 colour gamuts
- Single Step Processing (SSP™) for ultra-low latency
- Motorised lens shift: up to 122% vertical / 40% horizontal
- Embedded Warp & Blend engine; 4-corner warp & bow correction
- Active stereoscopic 3D ready
- 24/7 operation rated
- Manufactured in Belgium from aluminium & magnesium
- 3-year warranty; extendable to 5 years
Specifications
| Specification | Detail |
|---|---|
| Projector Type | Single-Chip DLP (CinemaScope) |
| Technology | 0.9″ DMD™ |
| Resolution (Output) | 5,120 × 2,160 (5K UHD CinemaScope) |
| Aspect Ratio | 2.37:1 (CinemaScope); auto-detection 1.78:1–2.39:1 |
| Light Source | Laser Phosphor |
| Light Source Lifetime | 20,000–60,000 hours (laser intensity dependent) |
| Light Output — M Colour Wheel (REC.709) | Up to 5,600 ANSI Lumens |
| Light Output — T Colour Wheel (REC.709) | Up to 4,000 ANSI Lumens |
| Light Output — DCI P3 Colour Wheel | Up to 3,600 ANSI Lumens |
| Contrast Ratio | 1,800:1 Sequential; 450:1 ANSI |
| Brightness Uniformity | >90% |
| Colour Gamut — DCI P3 Wheel | DCI P3 |
| Colour Gamut — T & M Wheels | REC.709 |
| Colour Correction | P7 RealColor™ |
| HDR | HDR10 |
| Image Processing | Barco Pulse Electronics; Single Step Processing (SSP™); Embedded Warp & Blend Engine |
| Warp & Blend | 4-Corner Warp & Bow Correction via Warp Engine |
| Orientation | 360° Free Rotation (liquid cooled) |
| Optical Lens Shift | Up to 122% vertical / 40% horizontal (lens dependent) |
| Input Resolutions | VGA up to 4K UHD (3,840 × 2,160) @ 60Hz; or up to 2,560 × 1,600 @ 120Hz |
| Inputs | 1× HDMI™ 2.0 (HDCP 2.2), 1× HDBaseT (HDCP 1.4), 2× Dual Link DVI-D, 2× DisplayPort 1.2, 12G-SDI, 1× RJ45, 1× RS232, 1× RC, 3× USB, 2× DMX (In/Out) |
| Network | 10/100 Ethernet via RJ45 |
| Control | IR, RS232, IP, 12V Trigger; Crestron, Control4, RTI & Savant driver modules |
| 3D | Active Stereoscopic 3D (additional hardware required) |
| Constant Light Output (CLO) | Yes |
| Optical Dowser | Yes |
| Integrated Web Server | Yes (Prospector interface) |
| 24/7 Operation | Yes — designed and warranted for continuous 24/7 use |
| Cooling System | Liquid Cooling (PID regulation) |
| Lens Range (EN Series) | EN68 (0.30:1) Periscope / FLDX UST (0.41:1) 90° / EN67 (0.65:1) / EN66 (0.80–1.21:1) / EN76 (0.95–1.30:1) / EN63 (1.20–1.70:1)★ / EN61 (1.70–2.50:1)★ / EN44 (2.50–4.60:1) |
| Power Requirements | 100–240V / 50–60Hz |
| Power Consumption | 1,100W maximum |
| Standby Power (ECO Mode) | 0.73W @ 110V / 0.82W @ 230V (with LAN) |
| BTU/h | 4,000 BTU/h maximum |
| Noise Level | 36 dB(A) (typical at 25°C) |
| Operating Temperature | 10–45°C at sea level (optimal: 20°C) |
| Operating Humidity | 20–80% relative humidity |
| Exhaust Airflow | 112 ft³/min / 190 m³/h @ 25°C |
| Airflow Clearance | Front: 1cm, Left: 1cm, Right: 50cm, Rear: 100cm, Top: 1cm |
| Dimensions (W×L×H, excl. lens) | 475 × 588 × 286 mm (18.7 × 23.1 × 11.3 in) |
| Weight (excl. lens) | 37 kg / 81.5 lbs |
| Shipping Dimensions (excl. lens) | 730 × 600 × 480 mm (28.7 × 23.7 × 18.9 in) |
| Shipping Weight (excl. lens) | 43 kg / 94.8 lbs |
| Standard Accessories | Power Cord, Remote Control |
| Certifications | CE, FCC Class A, cCSAus |
| Country of Manufacture | Belgium |
| Safety Classification | RG2 (IEC EN 62471-5); may become RG3 with lens throw ratio >6.0 |
| Warranty | 3 years parts & labour (extendable to 5 years) |
★ Standard lens option(s). Note: Lens sold separately. Refer to the installation manual for safety requirements.
