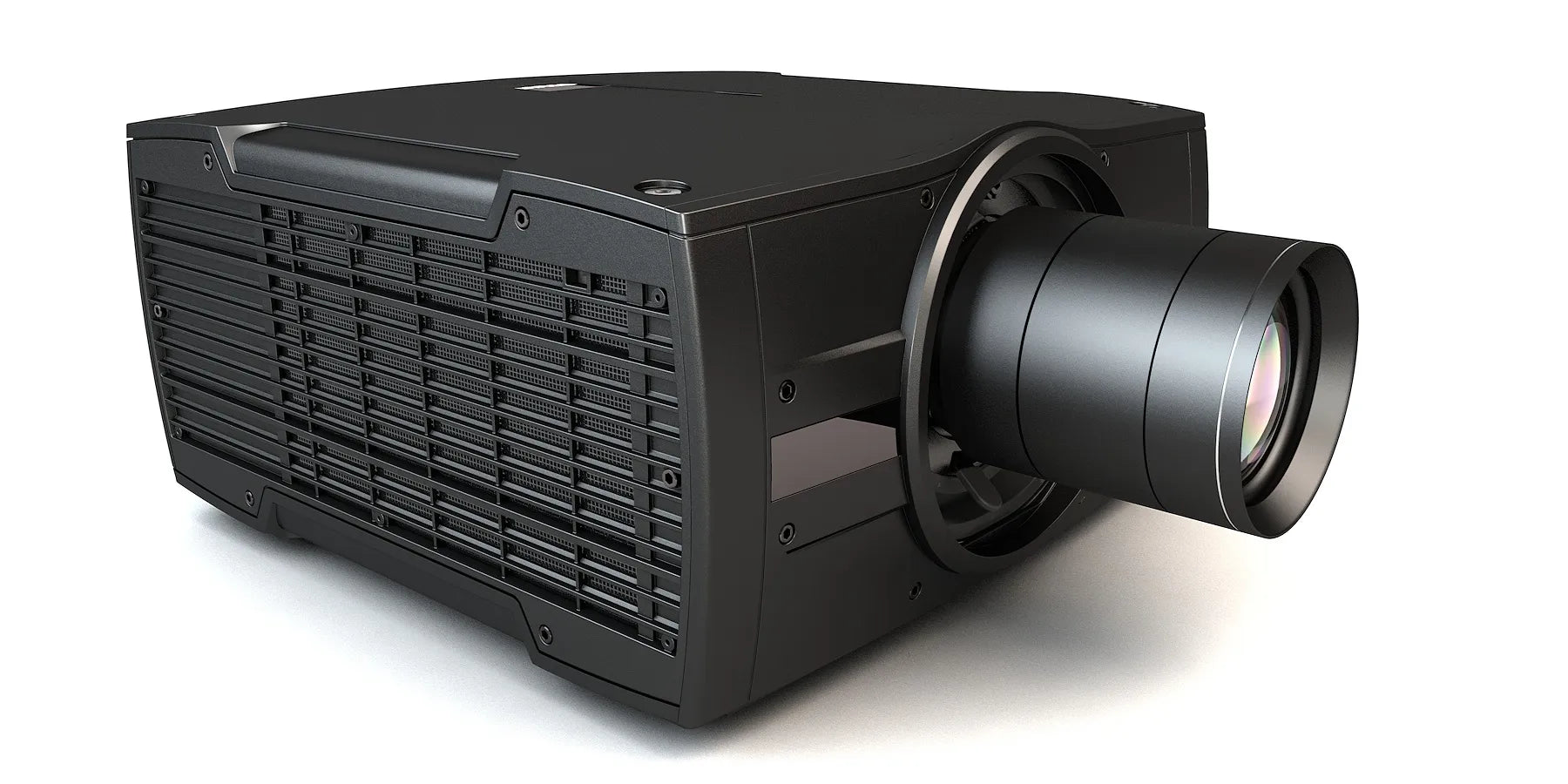

Barco Bragi 4K UHD HLD LED Projector | 2,600 Lumens | Single-Chip DLP

Barco Bragi — 4K UHD Single-Chip DLP Projector | HLD LED Light Source | 2,600 ANSI Lumens

pricing excludes lens & installation

Special Order Item. General ETA +/-4 weeks

Named after the ninth-century Norse poet appointed by Odin as the court poet of Valhalla, the Barco Bragi is a 4K UHD single-chip DLP projector with a groundbreaking solid-state RGB LED light source. Sharing the same design philosophy, optical core, and lens range as its sibling the Balder, Bragi introduces Barco’s High Lumen Density (HLD) LED illumination technology — delivering exceptional colour fidelity, incredible brightness, and an industry-leading light source lifetime of up to 50,000 hours.

HLD LED Light Source — Up to 50,000 Hours

Bragi’s brand-new optical engine uses High Lumen Density (HLD) LED illumination — a solid-state technology with no moving parts that works around the law of étendue to deliver a superb colour experience and impressive brightness. HLD LED enables new levels of resolution and colour saturation, with the human eye perceiving colours as richer and brighter than physical measurements alone would suggest. The result is a light source lifetime of up to 50,000 hours (brightness mode dependent), with service recommended after 20,000 hours.

Professional-Grade Optics

Bragi’s optical engine inherits the best elements from Barco’s previous residential platforms, combined with new technologies to create an even more refined optical core. Custom-designed aspherical glass elements and enhanced low-dispersion glass lenses deliver outstanding image clarity and uniformity (>90%) across the entire screen.

State-of-the-Art Pulse Electronics

Barco’s Pulse electronics are built on a superior FPGA platform with a dual-core processor on the industry’s only 20nm SoC, featuring 96 transceiver lanes delivering 3.3 Tbps of serial bandwidth. Single Step Processing (SSP™) processes 4K UHD, HDMI™ 2.0a, HDCP 2.2, and HDR10 signals with extremely low latency, using the latest 0.9″ DMD DLP chipset to display flawless 4K UHD (3,840 × 2,160) images.

P7 RealColor™ & DCI-P3 Filter

Combining HLD LED illumination with Barco’s P7 RealColor™ processing, Bragi enables simple and accurate calibration to any desired colour gamut or white point. A motorised DCI/P3 internal filter provides improved HDR colour accuracy for cinematic content.

Flexible Installation

With 360° free rotation, up to 88% vertical and 38% horizontal motorised lens shift, and a comprehensive EN lens range (including periscope and ultra-short throw options), Bragi adapts to virtually any installation geometry. Native driver modules for Crestron, Control4, RTI, and Savant ensure seamless smart home integration.

Key Features

• 4K UHD resolution (3,840 × 2,160) via single-chip DLP (0.9″ DMD™)
• Up to 2,600 ANSI lumens; >90% brightness uniformity
• Solid-state RGB LED (HLD) light source: up to 50,000 hours
• Motorised DCI/P3 internal filter for HDR colour accuracy
• REC.709 & DCI-P3 colour gamuts; P7 RealColor™ calibration
• HDR10 support; 1,800:1 sequential contrast; 450:1 ANSI
• Single Step Processing (SSP™) for ultra-low latency
• 360° free rotation; motorised lens shift (88% V / 38% H)
• Embedded Warp & Blend engine; 4-corner warp & bow correction
• Active stereoscopic 3D ready
• 24/7 operation rated
• Crestron, Control4, RTI & Savant driver modules
• 3-year warranty; extendable to 5 years

Specifications

Specification	Detail
Projector Type	Single-Chip DLP
Technology	0.9″ DMD™
Resolution	3,840 × 2,160 (4K UHD)
Aspect Ratio	1.78:1 (16:9)
Light Source	Solid-State RGB LED (HLD — High Lumen Density)
Light Source Lifetime	Up to 50,000 hours (brightness mode dependent; service recommended at 20,000 hrs)
Light Output	Up to 2,600 ANSI Lumens
Contrast Ratio	1,800:1 Sequential; 450:1 ANSI
Brightness Uniformity	>90%
Colour Gamut	REC.709; DCI-P3 (via internal motorised filter)
Colour Correction	P7 RealColor™
HDR	HDR10
Image Processing	Barco Pulse Electronics; Single Step Processing (SSP™); Embedded Warp & Blend Engine
Warp & Blend	4-Corner Warp & Bow Correction via Warp Engine
Orientation	360° Free Rotation
Optical Lens Shift	Up to 88% vertical / 38% horizontal (lens dependent)
Input Resolutions	VGA up to 4K UHD (3,840 × 2,160) @ 60Hz; or up to 2,560 × 1,600 @ 120Hz
Inputs	1× HDMI™ 2.0 (HDCP 2.2), 1× HDBaseT (HDCP 1.4), 2× Dual Link DVI-D, 2× DisplayPort 1.2, 12G-SDI, 1× RJ45, 1× RS232, 1× RC, 3× USB, 2× DMX (In/Out)
Network	10/100 Ethernet via RJ45
Control	IR, RS232, IP, 12V Trigger; Crestron, Control4, RTI & Savant driver modules
3D	Active Stereoscopic 3D (additional hardware required)
Constant Light Output (CLO)	Yes
Optical Dowser	Yes
Integrated Web Server	Yes (Prospector interface)
24/7 Operation	Yes — designed and warranted for continuous 24/7 use
Lens Range (EN Series)	EN68 (0.30:1) Periscope / FLDX UST (0.41:1) 90° / EN67 (0.65:1) / EN66 (0.80–1.21:1) / EN76 (0.95–1.30:1) / EN63 (1.20–1.70:1)★ / EN61 (1.70–2.50:1)★ / EN44 (2.50–4.60:1)
Power Requirements	100–240V / 50–60Hz
Power Consumption	570W maximum
BTU/h	1,945 BTU/h maximum
Noise Level	30–33 dB(A) maximum (typical at 25°C)
Operating Temperature	10–45°C at sea level (optimal: 20°C)
Operating Humidity	20–80% relative humidity
Exhaust Airflow	58 ft³/min / 99 m³/h @ 22.9°C
Airflow Clearance	Front: 1cm, Left: 1cm, Right: 25cm, Rear: 25cm, Top: 1cm
Dimensions (W×L×H, excl. lens)	450 × 482 × 255 mm (17.7 × 19.0 × 10.0 in)
Weight (excl. lens)	21.5 kg / 47.4 lbs
Shipping Dimensions (excl. lens)	464 × 679 × 773 mm (18.27 × 26.7 × 30.4 in)
Standard Accessories	Power Cord, Remote Control
Certifications	CE, FCC Class A, cCSAus
Warranty	3 years parts & labour (extendable to 5 years)

★ Standard lens option(s). Note: Service required following 20,000 hours of use — contact an authorised Barco representative for details. Lens sold separately.
