Barco I600-4K8 4K UHD Laser Projector | 8,000 Lumens | Single-Chip DLP
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Barco I600-4K8 — 4K UHD Single-Chip DLP Laser Projector | 8,000 ISO Lumens
Pricing excludes lens & installation.
Special Order Item — General ETA +/− 4 weeks.
The Barco I600-4K8 is a lightweight, high-resolution 4K UHD projector delivering 8,000 ISO lumens with exceptional image quality, multichannel compatibility, and a compact form factor. Powered by next-generation Barco Pulse electronics and Barco SuperShift® technology, the I600-4K8 produces smoother images and sharper pixels at the lowest possible latency — making it the ideal single-chip platform for a wide range of demanding professional and residential applications.
Winner of the Best of ISE 2024 award.
DynaBlack® — 20,000:1 Contrast
Barco’s internally developed DynaBlack® smart algorithm enhances the I600-4K8’s contrast ratio to an extraordinary 20,000:1, delivering superlative black levels that make dark scenes truly stand out with incredible depth and detail.
Next-Generation Pulse Electronics & SuperShift®
Built on Barco’s superior FPGA-based Pulse platform with a dual-core processor on the industry’s only 20nm SoC and 96 transceiver lanes delivering 3.3 Tbps of serial bandwidth, the I600-4K8 processes 4K UHD, HDMI™ 2.1, HDCP 2.2, and HDR signals with extremely low latency. Barco SuperShift® technology further enhances pixel sharpness and image smoothness beyond conventional single-chip DLP.
Laser Phosphor Light Source — Up to 30,000 Hours
The blue laser phosphor light source with inorganic phosphor wheel delivers exceptional colour fidelity and image uniformity (>90%) with up to 30,000 hours in Long Life Mode. Constant Light Output (CLO) maintains consistent brightness throughout the laser’s lifetime, and near-instant on/off eliminates warm-up delays.
P7 RealColor™ & Flexible Installation
P7 RealColor™ processing enables accurate calibration to any desired colour gamut and white point. With 360° free rotation, up to 110% vertical and 30% horizontal motorised lens shift, and a full ILD lens range from 0.37 UST to 7.4:1 long-throw, the I600-4K8 adapts to virtually any single or multi-channel installation geometry.
Pulse Ecosystem & Connectivity
Fully integrated into Barco’s Pulse ecosystem, the I600-4K8 is managed via Pulse Prospector, Pulse Mobile App (Android & iOS), Pulse Toolset, and Insights Management Suite (IMS) for on-site and cloud-based projector control. An optional input slot supports Quad DP1.2, Fiber SFP, HDBaseT, 12G-SDI, and DMX expansion.

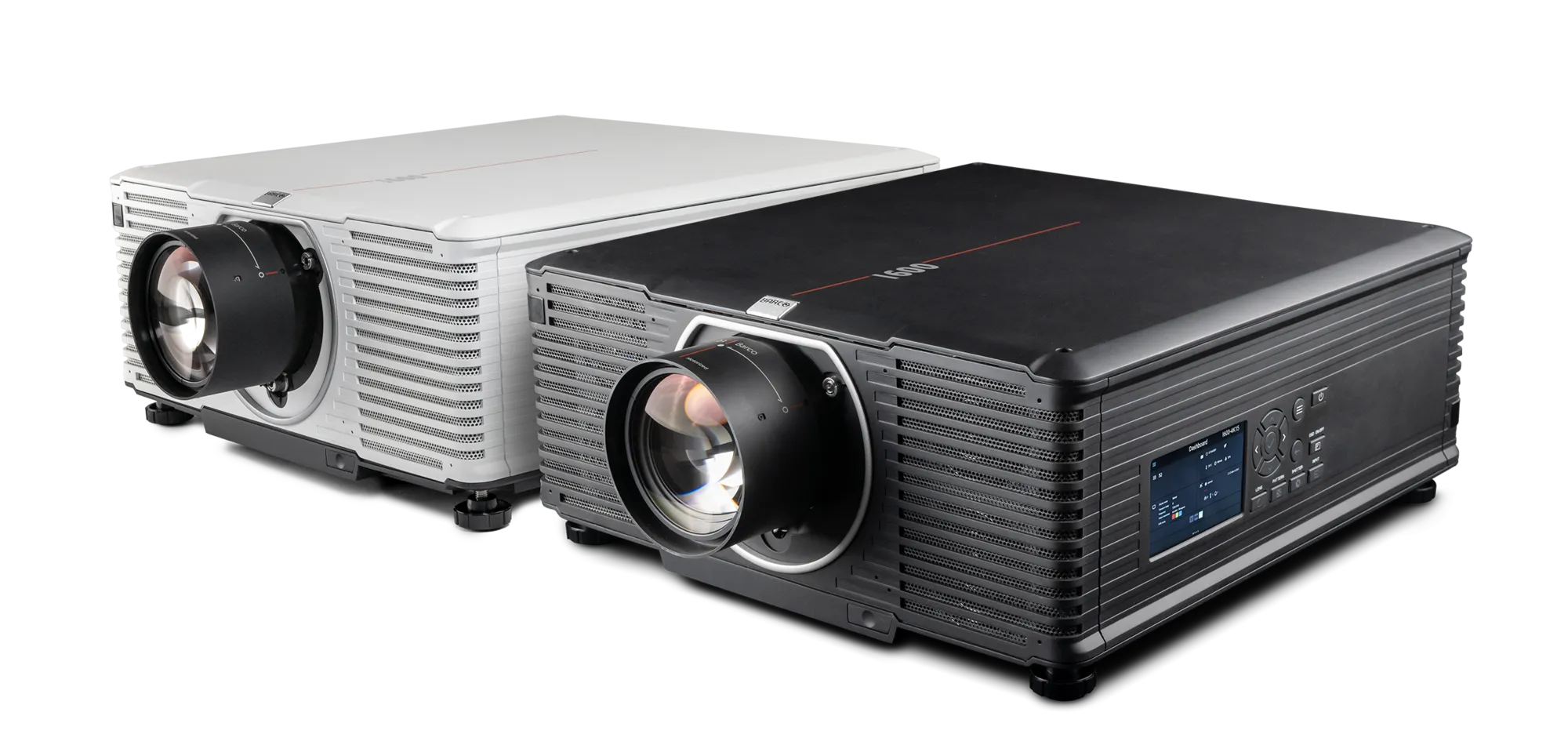

Available In
- White (Part No. R9023230)
- Black (Part No. R9023231)
Key Features
- 4K UHD resolution (3,840 × 2,400) via single-chip DLP (0.8″ DMD™)
- 8,000 ISO lumens; >90% brightness uniformity
- DynaBlack®: 20,000:1 contrast; Full field: 1,600:1
- Barco SuperShift® for enhanced pixel sharpness
- Laser phosphor: 20,000 hrs standard / 30,000 hrs Long Life Mode
- Constant Light Output (CLO); Sealed DLP™ core
- 360° free rotation; motorised lens shift (110% V / 30% H)
- HDMI™ 2.1 (HDCP 2.2) + DisplayPort 1.4 standard inputs
- Picture-by-picture: two sources simultaneously
- Active stereoscopic 3D & passive stereo compatible
- 24/7 operation rated
- Best of ISE 2024 award winner
- 3-year warranty; extendable to 5 years
Specifications
| Specification | Detail |
|---|---|
| Projector Type | 4K UHD Single-Chip DLP |
| Technology | 0.8″ DMD™ (Sealed DLP™ core) |
| Resolution (Output) | 3,840 × 2,400 (4K UHD) |
| Resolution (Native) | 1,920 × 1,200 (WUXGA) |
| Aspect Ratio | 16:10 (native) |
| Brightness | 8,000 ISO Lumens |
| Brightness Uniformity | >90% |
| Contrast Ratio | 20,000:1 (DynaBlack®); 1,600:1 Full Field |
| Light Source | Blue Laser Phosphor with Inorganic Phosphor Wheel |
| Light Source Lifetime | 20,000 hrs standard; 30,000 hrs (Long Life Mode) |
| Colour Space | REC.709 |
| Colour Correction | P7 RealColor™ |
| Image Processing | Barco Pulse Electronics; SuperShift®; Embedded Warp & Blend |
| Warp & Blend | Horizontal & vertical edge blending; keystone correction |
| Orientation | 360° Free Rotation (no restrictions) |
| Optical Lens Shift | Up to 110% vertical / 30% horizontal (lens dependent) |
| Lens Type | ILD (interchangeable) |
| Throw Ratio Range | 0.37:1 to 7.4:1 |
| Lens Range (ILD) | 0.37:1 / 0.5:1 / 0.65–0.8:1 / 0.8–1.0:1 / 1.0–1.4:1 / 1.4–2.1:1 / 2.1–4.0:1 / 4.0–7.4:1 |

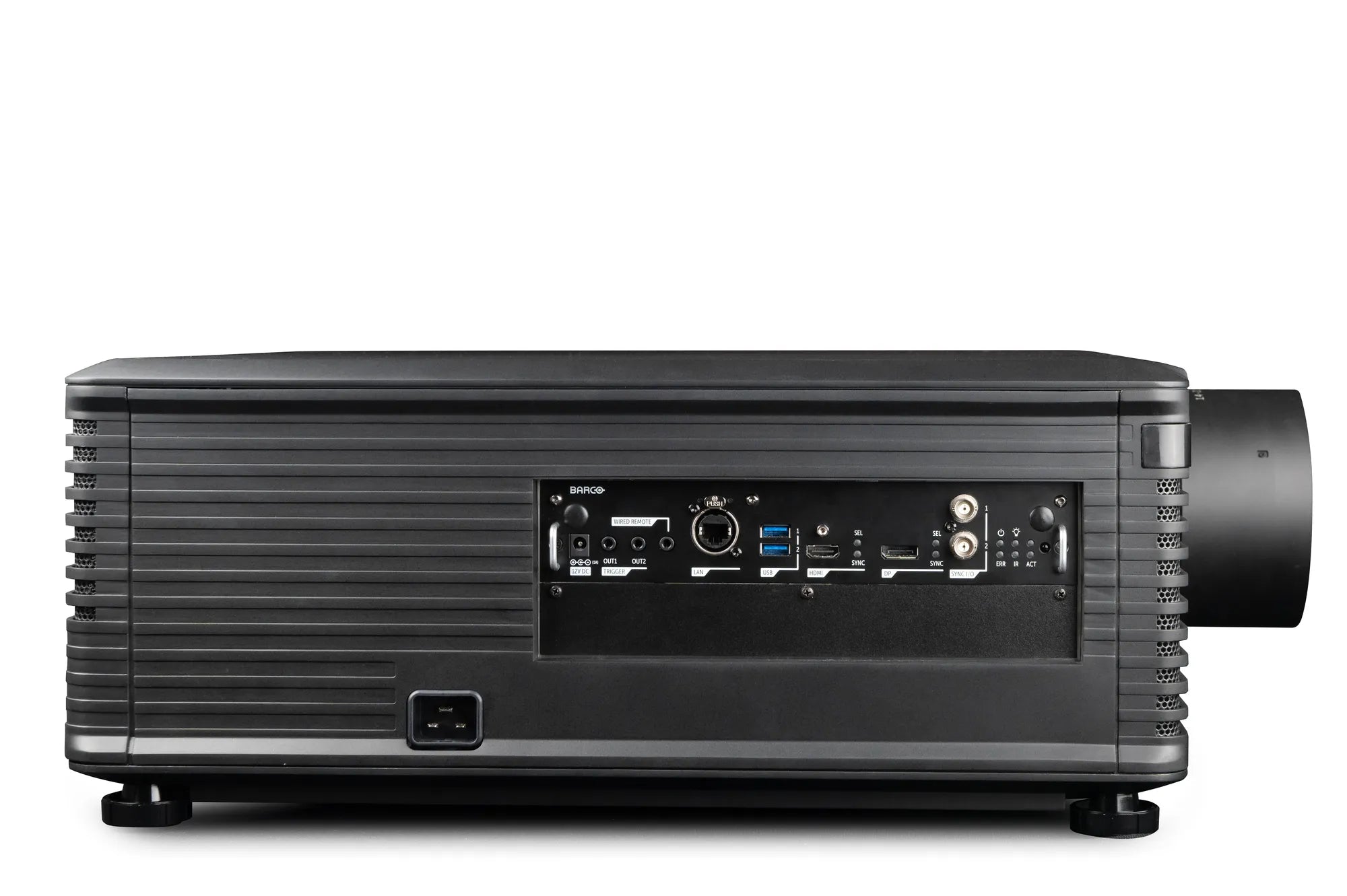

| Standard Inputs | HDMI™ 2.1 (HDCP 2.2), DisplayPort 1.4, RJ45 Ethernet, USB (5V), 12V out, BNC 3D Sync In/Out |
| Optional Inputs | Quad DP1.2, Fiber SFP, HDBaseT(Lite)/HDMI™/Quad-3G/12G/DMX/Remote CTRL, HDBaseT |
| Input Resolutions | WUXGA: 1,920×1,200 @ 240Hz; 4K UHD: 3,840×2,400 @ 120Hz |
| Input Colour Depth | Up to 36 bpp |
| 3D | Active Stereoscopic 3D / Passive Stereo compatible |
| Picture-by-Picture | Two sources simultaneously (requires optional Quad DP1.2 input board) |
| DMX 512 | Optional |
| Control | IR, RJ45 (IP) |
| Network | 10/100/1000 Mbit Ethernet; WiFi via optional dongle |
| User Interface | LCD touch display, local keypad, wireless remote control, wired remote control |
| Software Tools | Pulse Projector Toolset, Pulse Mobile App (Android & iOS), Insights Management Suite (IMS) |
| Web Browser | Yes (Prospector web interface) |
| Constant Light Output (CLO) | Yes |
| 24/7 Operation | Yes |
| IR for NVG | No |
| Power Requirements | 100–240V / 50–60Hz / 14A |
| Power Consumption | 640W typical |
| Standby Power | <0.5W |
| Heat Dissipation | 2,150 BTU/h |
| Noise Level | 40 dB(A) (typical at 25°C) |
| Operating Temperature | 5–40°C / 41–104°F (sea level) |
| Operating Humidity | 10–80% RH (non-condensing) |
| Storage Temperature | −20 to 60°C |
| Storage Humidity | 10–90% RH (non-condensing) |
| Dimensions (W×L×H, excl. lens) | 522 × 494 × 198 mm (20.5 × 19.4 × 7.8 in) |
| Weight (excl. lens) | 21.5 kg / 47.4 lbs |
| Housing | Plastic cover (White or Black) |
| Standard Accessories | Power Cord, Wireless Remote Control |
| Certifications | UL 62368-1, EN IEC 62368-1, GB 4943.1; FCC Part 15 Class A; CE EN55022 Class A; RoHS |
| Warranty | 3 years parts & labour (extendable to 5 years); single swap service model |
Note: WiFi and GSM options are not available in all countries. Check with your Barco representative for availability. Lens sold separately.
