Barco Njord 4K UHD Laser Projector | 12,500 Lumens | Three-Chip DLP
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
This product is not available for purchase online. Please call to enquire.
Barco Njord — 4K UHD Three-Chip DLP Laser Projector
pricing excludes lens & installation
Special Order Item. General ETA +/-4 weeks
The Barco Njord is a flagship residential laser projector engineered for the most demanding home cinema and large-venue installations. Delivering up to 12,500 ANSI lumens from a three-chip DLP platform with a laser phosphor light source, Njord produces breathtaking 4K UHD images with spectacular colour fidelity — even in high ambient light environments, large screens, and contemporary glass home designs.
Single Step Processing (SSP™)
Barco’s hardware and software-based SSP™ platform simplifies signal transmission from source to screen with the lowest possible processing lag — under 20ms with all image processing active — delivering artefact-free images with exceptional responsiveness.
State-of-the-Art Electronics & Optics
Njord’s Pulse electronics process 4K via HDMI™ 2.0a and HDCP 2.2, while the optical engine utilises the latest 0.9″ DMD DLP chipset delivering 3,840 × 2,160 pixels to screen. HDR10 support, motorised lenses, and Barco’s P7 RealColor™ processing enable simple, accurate calibration to any desired colour standard or white point.
Laser Light Source
Njord’s custom-selected laser engine delivers a DCI/P3 colour gamut with 95% image uniformity — a significant improvement over its predecessor. Lasers last up to 20,000 hours, offer near-instant on/off, and are far more robust than traditional projector lamps.
Light-on-Demand Flexibility
As standard, Njord offers flexible light output between 4,000 and 12,500 lumens via its Light-on-Demand feature, allowing precise brightness control to suit any screen size or ambient light condition.
Modular & Installation-Friendly Design
Njord’s modular architecture makes servicing straightforward. With 360° rotation, up to 73% vertical and 28% horizontal motorised lens shift, and a comprehensive lens range (throw ratios from 0.41:1 to 10.83:1), Njord adapts to virtually any installation geometry.
Control & Connectivity
Njord integrates seamlessly into any smart home ecosystem via IR, RS232, IP, and 12V trigger, with native driver modules for Crestron, Control4, RTI, and Savant. Inputs include HDMI™ 2.0, HDBaseT, DisplayPort 1.2, SDI/BarcoLink, and optional Quad DP1.2.
Key Features
- 4K UHD resolution (3,840 × 2,160) via three-chip DLP
- Up to 12,500 ANSI lumens; dimmable to 4,000 lumens (Light-on-Demand)
- Laser phosphor light source — up to 20,000 hours lifetime
- 20,000:1 contrast ratio (DynaBlack); 600:1 ANSI
- HDR10 support; P7 RealColor™ calibration; DCI/P3 colour gamut
- Single Step Processing (SSP™): <20ms latency
- 360° rotation; motorised lens shift (73% V / 28% H)
- Embedded Warp & Blend engine; 4-corner warp & bow correction
- Active stereoscopic 3D ready
- Crestron, Control4, RTI & Savant driver modules
- 3-year warranty; extendable to 5 years
Specifications
| Specification | Detail |
|---|---|
| Projector Type | Three-Chip DLP |
| Technology | 3 × 0.90″ DMD™ with sealed core |
| Resolution | 3,840 × 2,160 (4K UHD) |
| Aspect Ratio | 1.78:1 (16:9) |
| Light Source | Laser Phosphor |
| Light Source Lifetime | Up to 20,000 hours |
| Light Output | Up to 12,500 ANSI Lumens (dimmable to 4,000 lumens) |
| Contrast Ratio | 20,000:1 (DynaBlack); 2,000:1 Sequential; 600:1 ANSI |
| Brightness Uniformity | >90% |
| Colour Gamut | Up to DCI (P3) |
| Colour Correction | P7 RealColor™ |
| HDR | HDR10 |
| Image Processing | Single Step Processing (SSP™); <20ms latency |
| Warp & Blend | Embedded Warp & Blend Engine; 4-Corner Warp & Bow Correction |
| Orientation | 360° Rotation |
| Optical Lens Shift | Up to 73% vertical / 28% horizontal (lens dependent) |
| 3D | Active Stereoscopic 3D (additional hardware required) |

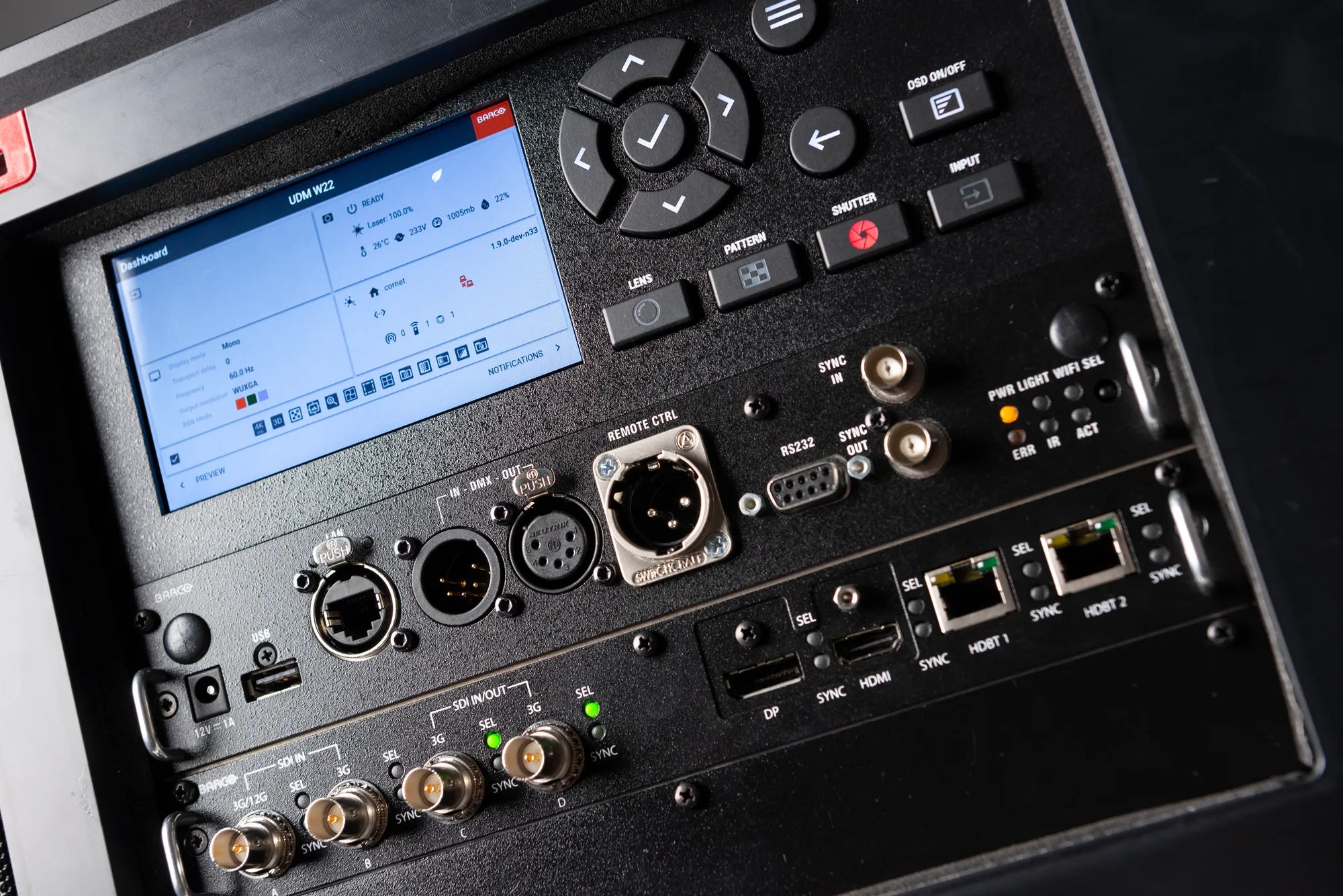

| Inputs | 1× HDMI™ 2.0 (HDCP 2.2), 2× HDBaseT (HDCP 1.4), 1× DisplayPort 1.2, Quad 3G/12G SDI/BarcoLink, 1× RJ45, 1× RS232, 1× USB, 2× DMX (In/Out), 1× XLR Wired Remote, 2× 3D Sync (In/Out); Optional: Quad DP1.2 |
| Input Resolutions (HDMI) | Up to 4,096 × 2,160 @ 24/25/30/50/60Hz |
| Input Resolutions (DisplayPort) | Up to 4,096 × 2,160 @ 24/30/50/60Hz |
| Network | 10/100 Ethernet via RJ45 |
| Control | IR, RS232, IP, 12V Trigger; Crestron, Control4, RTI & Savant drivers; WiFi (optional); XLR Wired Remote; GSM (optional) |
| Constant Light Output (CLO) | Yes |
| Optical Dowser | Yes |
| Integrated Web Server | Yes (Prospector interface) |
| Power Requirements | 110–130V / 200–240V / 50–60Hz |
| Power Consumption | 1,723W Max |
| BTU/h | Max 5,876 BTU/h @ 200–240V; Max 4,811 BTU/h @ 110–130V |
| Noise Level | 43 dB(A) (typical at 25°C) |
| Operating Temperature | 0–40°C at sea level (optimal: 20°C) |
| Operational Humidity | 0–80% relative humidity |
| Dimensions (W×L×H, excl. lens) | 540 × 725 × 355 mm (21.26 × 28.54 × 14 in) |
| Weight (excl. lens) | 48 kg / 105 lbs |
| Shipping Dimensions (incl. pallet, excl. lens) | 850 × 665 × 613 mm (33.46 × 26.18 × 24.13 in) |
| Exhaust Airflow | 152 ft³/min / 258 m³/h @ 25°C |
| Standard Accessories | Power Cord, Remote Control |
| Certifications | CE, FCC Class A, cCSAus |
| Warranty | 3 years parts & labour (extendable to 5 years) |
Note: This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed. Refer to the installation manual for further information. Lens sold separately.
