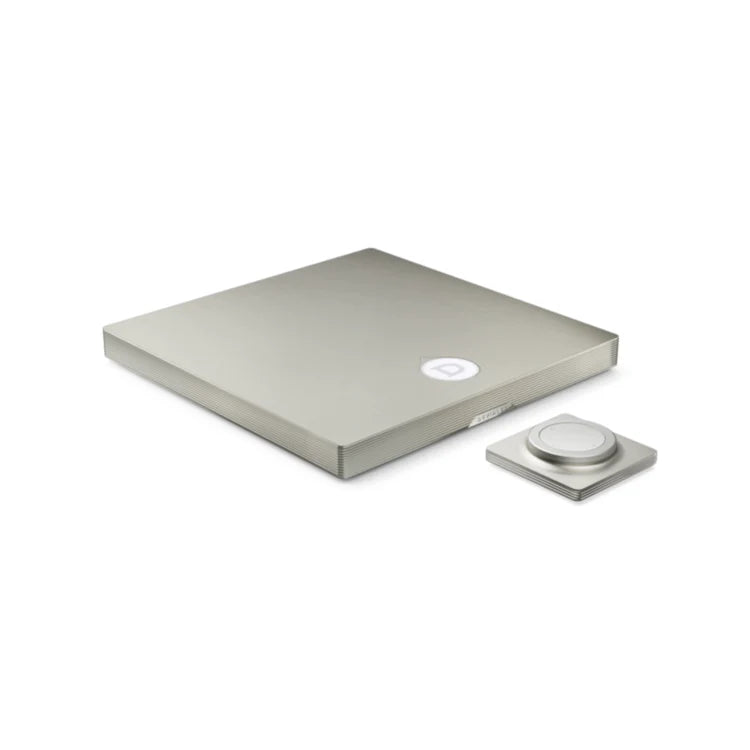

Astra integrated amplifier, streamer, DAC and phono stage (Single)
Devialet Astra brings the preamp, amplifier, DAC, streamer and phono stage together in one ultra-compact unit, delivering 2x300 Wrms under 4Ω and 2x150 Wrms under 8Ω. Priced and sold individually.
Description
A 5-in-1 audiophile integrated system
Astra uses the latest generation of Devialet's ADH® (Analog Digital Hybrid) amplification, combining Class A linearity with Class D power and compactness. SAM® (Speaker Active Matching) matches the output to your passive speakers, drawing on a database of more than 1,200 speaker profiles, while RAM® (Record Active Matching) tailors the MM/MC phono stage to your turntable and records. Distortion is rated at 0.0006% (100 Wrms, 4Ω, 1kHz) and signal-to-noise at -117dB.
An iMX8 processor running DOS3 supports AirPlay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, UPnP and Roon Ready (RAAT), with Bluetooth 5.3, Wi-Fi 6 and Ethernet. Physical inputs include up to four coaxial, two optical, USB-C and up to two analogue RCA, and up to eight units can be chained. A redesigned remote with a built-in screen and 1 dB volume steps is supplied. The casing is machined from a single aluminium block, and Astra is made in France.
- 2x300 Wrms under 4Ω, 2x150 Wrms under 8Ω; 1000 W peak (1ms)
- ADH® next-gen, SAM®, RAM® and DAC Magic Wire® technologies
- Advanced MM/MC phono stage with 13 equalisation curves
- AirPlay, Google Cast, Spotify Connect, Tidal Connect, Qobuz Connect, UPnP and Roon Ready
- Remote with built-in screen and 1 dB volume control, USB-C rechargeable
- Dual configuration and daisy chaining of up to 8 units
- Made in France with a 5-year warranty
Specifications
| Model | Devialet Astra |
| Pack Type | Single |
| Available Colours | Light Bronze |
| Performances | |
| Output Power | 2x300 Wrms under 4Ω, 2x150 Wrms under 8Ω |
| Peak power | 1000 W peak (1ms) |
| Distortion at 10V | 0.001% (10 Wrms, 4Ω, 1kHz) 0.0006% (100 Wrms, 4Ω, 1kHz) |
| Signal-to-noise ratio | -117dB |
| Output impedance | 0.004Ω (1kHz) |
| Damping factor | 2000 (1kHz) |
| Bandwidth | +/-0.1dB (DC to 20kHz) +/-2.3dB (DC to 80kHz) DC to 56.9kHz (+/-1dB) DC to 88kHz (+/-3dB) |
| Crosstalk | -100dB (300 Wrms, 4Ω, 1kHz) |
| DSP | Audio processing: 192kHz / 32-bit |
| Inputs | Digital: Up to 192kHz / 24-bit Network: Up to 192kHz / 24-bit USB: Up to 384kHz / 24-bit |
| Specifications | |
| Range | Stereo |
| Streaming services | Airplay Google Cast Spotify Connect Tidal Connect UPnP Roon Ready (RAAT) Qobuz Connect |
| Daisy chaining | Up to 8 devices |
| Phono stage | Advanced (MM / MC) |
| Pre-amplified output | Yes (mono / stereo) |
| Power Supply | 100-240Vac – 50/60Hz Power cable supplied, adapted to the country Power: max 750 W continuous |
| Casing | Machined from a single aluminum block Anodized, laser-engraved, brushed, and shot-peened |
| Exclusive technologies | ADH® next-gen, SAM®, RAM®, DAC Magic Wire® |
| Bluetooth | Yes (Bluetooth 5.3, AAC and SBC codecs) |
| Connectivity | |
| Wi-Fi | WiFi 6 (b/g/n/ac/ax) 2x2 WPA3 |
| Ethernet | RJ45 Ethernet 100/1000 Mbps |
| USB | USB-C 2.0 (data port) |
| Digital coaxial inputs | Up to 4x RCA 75Ω |
| Digital optical inputs | 2x TOSLINK® |
| Analog inputs | Up to 2x RCA stereo MM/MC phono stage with 13 equalization curves and extensive cartridge loading possibilities |
| Speaker output | Connectors compatible with 4mm banana plugs, spade connectors or stripped cables Compatible with all speakers from 8Ω to 2Ω Short-circuit protection Active filtering available |
| Dimensions & Weights | |
| Dimensions (W × H × D) | 386 × 47 × 386 mm |
| Weight | 7,2kg |
| General | |
| What's in the box | 1 Devialet Astra 1 Battery-powered remote (USB-C) 1 User manual 1 Power cable 1 USB-C cable for the remote 1 Pair of gloves 1 Microfiber cloth |
| Made in | France |
| Warranty | 5-year warranty |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
