Grandview Cyber Series Tab-Tension Motorized Screen
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days

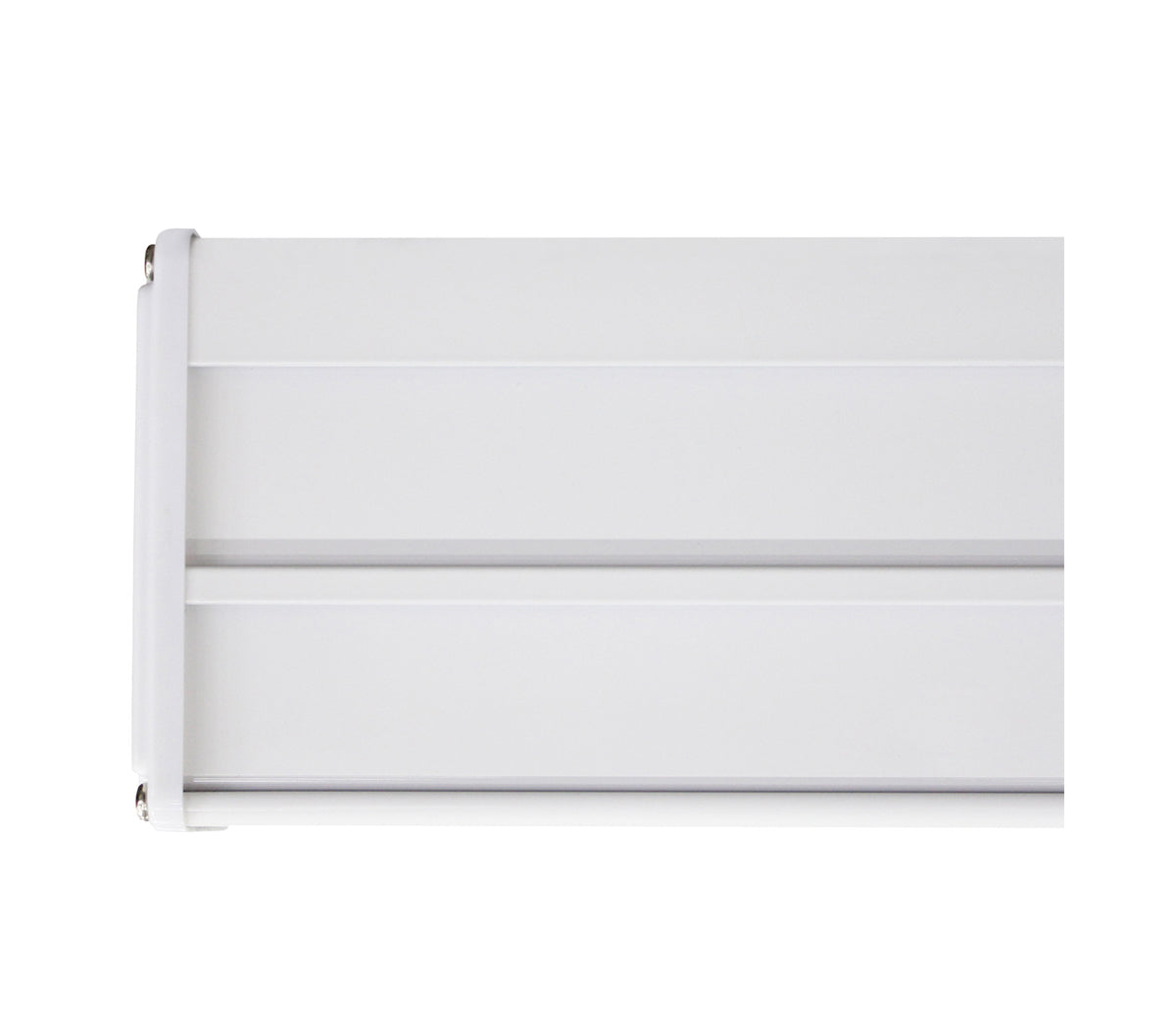

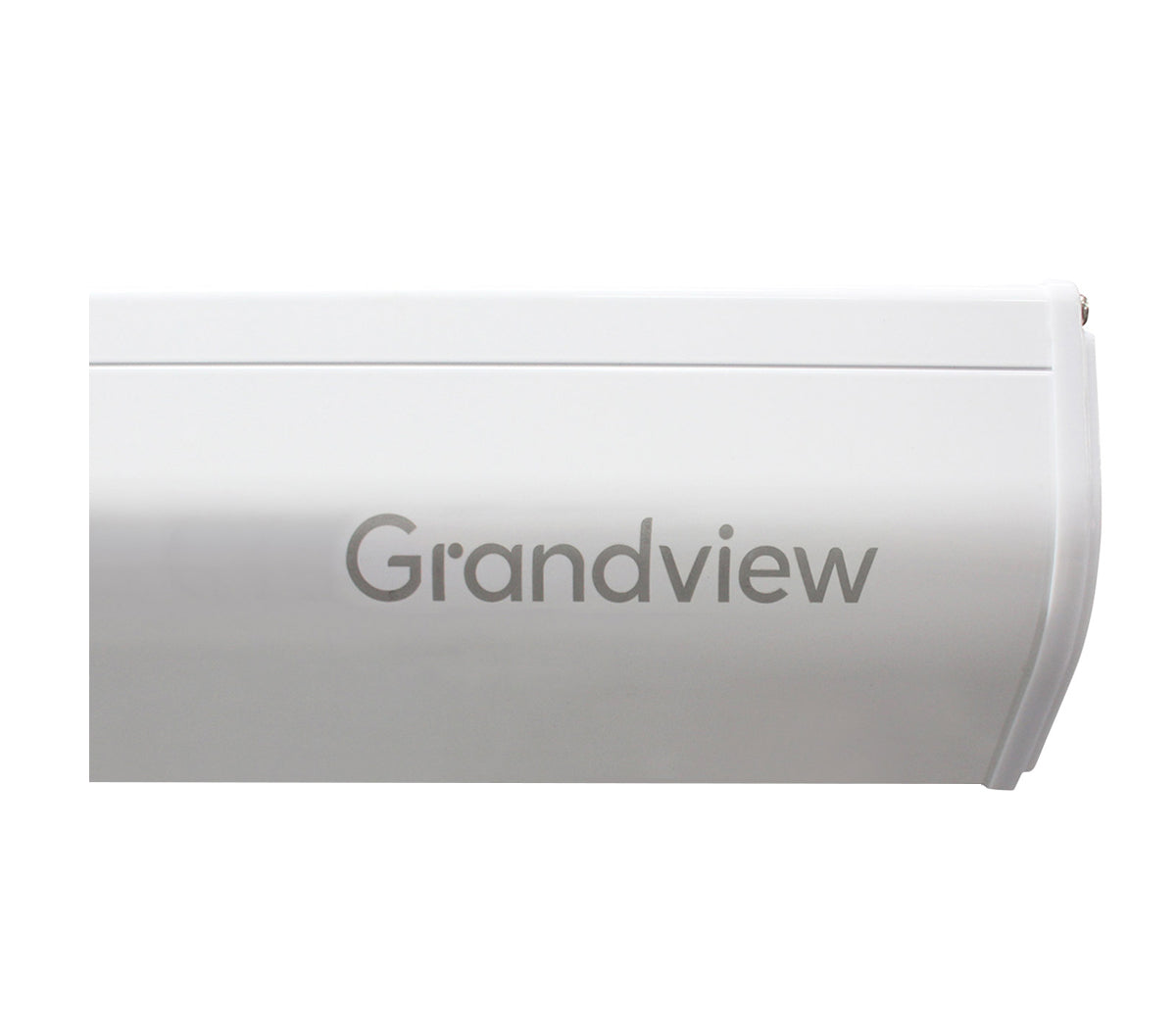

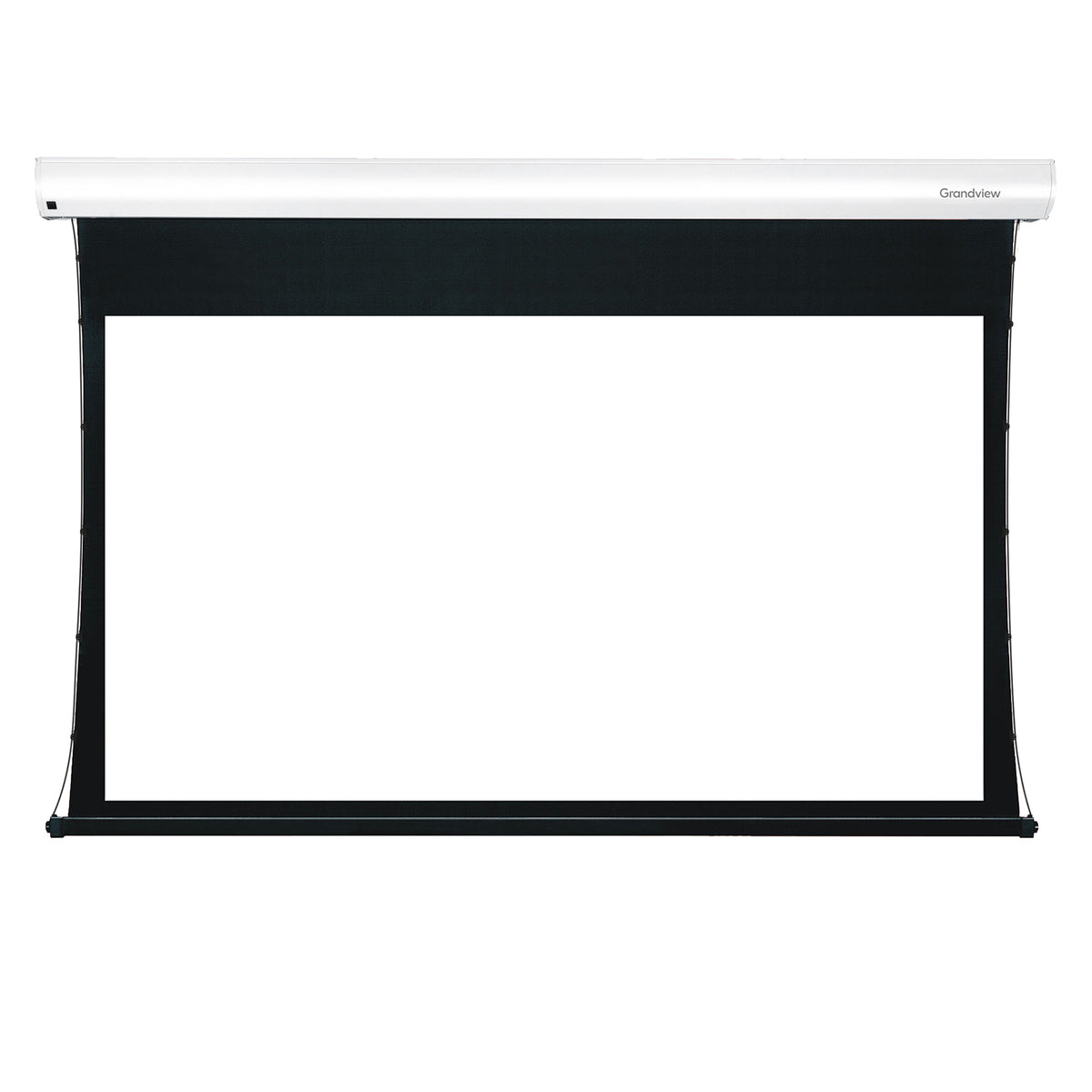

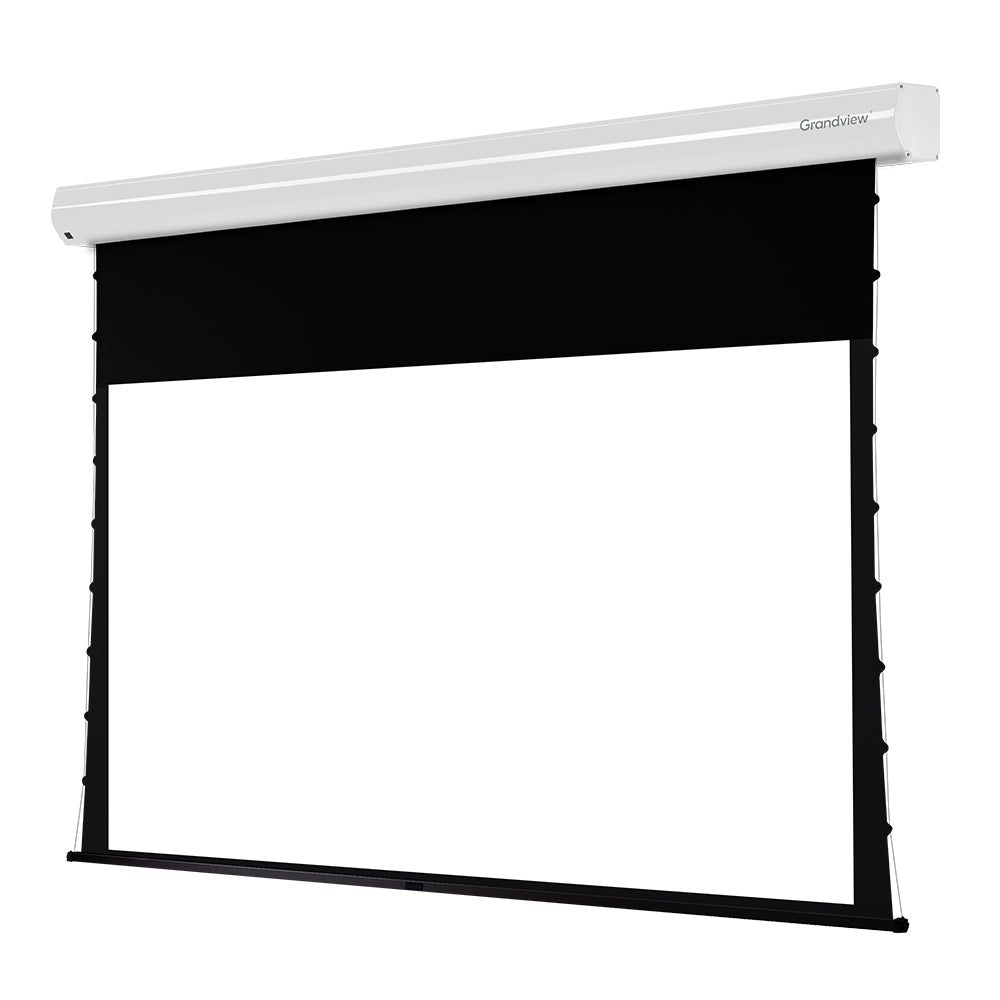

Grandview Cyber Series Tab-Tension Motorized Screen
The Cyber Series design is the result of inspiration derived from Renaissance Era architecture and ancient Corinthian columns. Innovative features such as the floating L-bracket which makes installation extremely easy. Cyber Series screens are available in both motorized and tab-tension variants. It is available in a wide range of sizes allowing it to be used in various installation environments.
• Max Sizes: (16:9) 200"
• Installation Options: Floating Wall Mount / Ceiling Mount / Suspended Mount
• Control Options: Inbuild IR Remote Control ; RS485 + Dry Contact Control , 3-12Voltage Trigger Control ; IP Control（LF-MP Model Only）; Central Control etc.
| Diagonal Measurement | Viewing Area （W×H）mm |
Product Height （A）mm |
Black Drop （B3）mm |
Lower Border （B2）mm |
Left/Right （B1）mm |
Product Length （L） |
Endcap Height （Hc）mm |
Endcap Width （Wc） |
Ceiling Cut-out Dimensions （LxWxH）mm |
| 77" | 1707 × 960 | 1617 | 400 | 65 | 80 | 2125 | 145 | 137 | N/A |
| 80" | 1770 × 995 | 1652 | 400 | 65 | 80 | 2188 | 145 | 137 | N/A |
| 92" | 2037 × 1146 | 1803 | 400 | 65 | 80 | 2450 | 145 | 137 | N/A |
| 100" | 2214 × 1245 | 1902 | 400 | 65 | 80 | 2632 | 145 | 137 | N/A |
| 106" | 2346 × 1320 | 1977 | 400 | 65 | 80 | 2764 | 145 | 137 | N/A |
| 110" | 2435 × 1370 | 2027 | 400 | 65 | 80 | 2856 | 145 | 137 | N/A |
| 120" | 2656 × 1494 | 2151 | 400 | 65 | 80 | 3074 | 145 | 137 | N/A |
| 138" | 3055 × 1718 | 2375 | 400 | 65 | 80 | 3472 | 145 | 137 | N/A |
| 150" | 3320 × 1867 | 2524 | 400 | 65 | 80 | 3744 | 145 | 137 | N/A |
| 180" | 3985 × 2241 | 2898 | 400 | 65 | 80 | 4409 | 145 | 137 | N/A |
| 200" | 4428 × 2491 | 3148 | 400 | 65 | 80 | 4852 | 145 | 137 | N/A |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
Shipping & Returns
- Free shipping on orders over R500 within the country.
- Standard delivery within 2–5 business days. Delays will be communicated. This might vary slightly depending on your location.
- Return items in original condition for a full refund. (unopened state)
- Returns that are open/unboxed will be subject to a handling fee. Refunds will only be processed after testing the unit.
