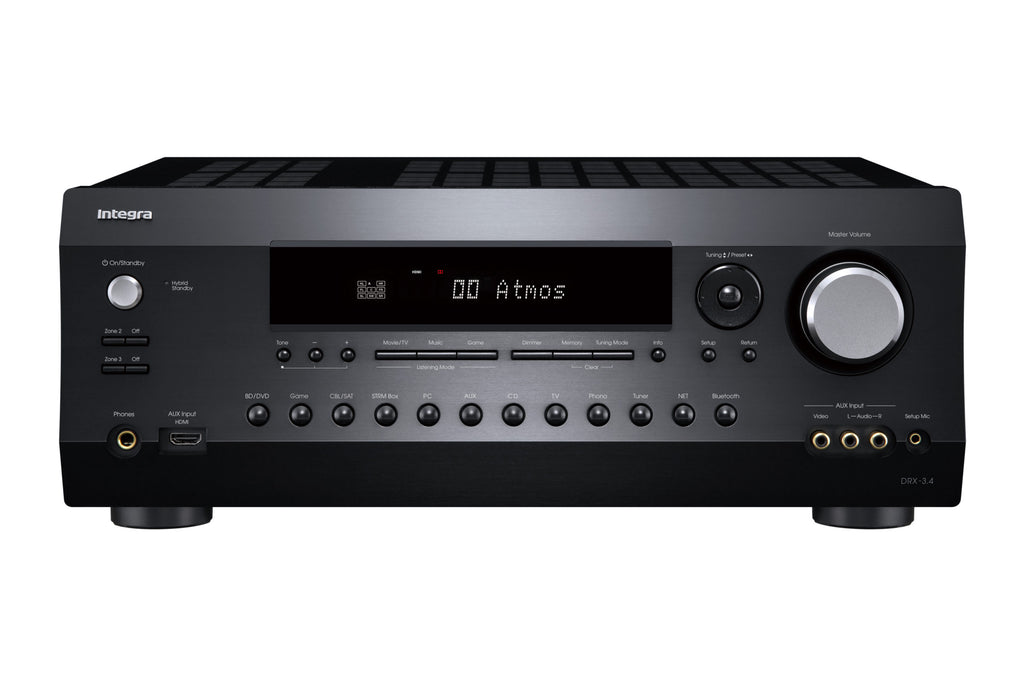

    Integra DRX 3.4 9.2-Channel Network A/V Receiver

    R 47,000.00

      Integra DRX 3.4 9.2-Channel Network A/V Receiver

      Just right for your living room, media room, or bespoke home theater, the DRX-3.4 has the power to drive Dolby Atmos® and DTS: X® through 9 channels of onboard amplification.  8K HDR video passthrough provides the bandwidth needed for cutting-edge visuals and gaming. DIRAC Live room correction ensures your immersive surround experience is delivered with the highest fidelity. 9.2 channel pre-outs make the DRX-3.4 perfect for updating an existing separates system to HDMI 2.1, DIRAC Live, and Object-Based Surround.



      Features:

      • 5.2.4/7.2.2-ch Dolby Atmos® and DTS: X® playback
      • Dolby Atmos Height Virtualization
      • Dolby Surround® and DTS® Neural:X upmixing
      • HDMI® inputs 1-3 support up to 8K/60AB and 4K/120AB video passthrough. HDMI® inputs 4-6 support up to 8K/60B and 4K/120AB video passthrough. HDMI® inputs 1-6 support HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM (Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
      • Front HDMI® input supports up to 4K/60 and HDMI 2.0 features.
      • HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD
      • Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
      • 9.2-ch multichannel pre-outs
      • Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*6) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out, and Zone 3 pre-out
      • Share any MAIN audio source to a wireless headphone dock via Zone B line-out
      • Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
      • Dirac Live® Room Correction supports multi-point acoustic calibration
      • AccuReflex™ phase-matching solution for Dolby Atmos-enabled speakers
      • Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog

      Specifications

      Power Output Front L/R 100 W/Ch at 8 Ohms, 225 W/Ch at 6 Ohms, 1 kHz, 10%, 1 Channel Driven, 20 Hz–20 kHz, 0.08%, 2 Channels Driven, FTC
      Dynamic Power 250 W (3 Ohms, Front) 220 W (4 Ohms, Front) 130 W (8 Ohms, Front)
      Input Sensitivity and Impedance 200 mV rms/47 k-Ohms (Line/Unbalance) 3.5 mV rms/47 k-Ohms (Phono MM)
      THD+N (Total Harmonic Distortion + Noise) 0.08% (20 Hz–20 kHz, Half Power)
      Rated RCA Output Level and Impedance 1 V rms/470 Ohms (Subwoofer Pre-out) 200 mV rms/470 Ohms (Zone 3/Height 2/Surround Back Pre-/Line-out)
      Phono Overload 70 mV (MM, 1 kHz, 0.5%)
      Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
      Tone Control ±10 dB, 20 Hz (Bass) ±10 dB, 20 kHz (Treble)
      Signal-to-Noise Ratio 106 dB (IHF-A, Line) 80 dB (IHF-A, Phono)
      Speaker Impedance 4 Ohms–16 Ohms
      Power Supply AC 120 V~, 60 Hz
      Power Consumption 750 W
      Standby Power Consumption 0.1 W
      Dimensions (W x H x D) 17 1/8˝ x 6 7/8˝ x 14 13/16˝ (435 x 174 x 376.5 mm)
      Weight 24.3 lbs. (11.0 kg)
      Carton Dimensions (W x H x D) 22 1/16˝ x 12˝ x 18 3/8˝ (560 x 305 x 467 mm)
      Weight 29.8 lbs. (13.5 kg)
