Lithe Audio Pro Series Wi-Fi In-Ceiling Speaker
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.

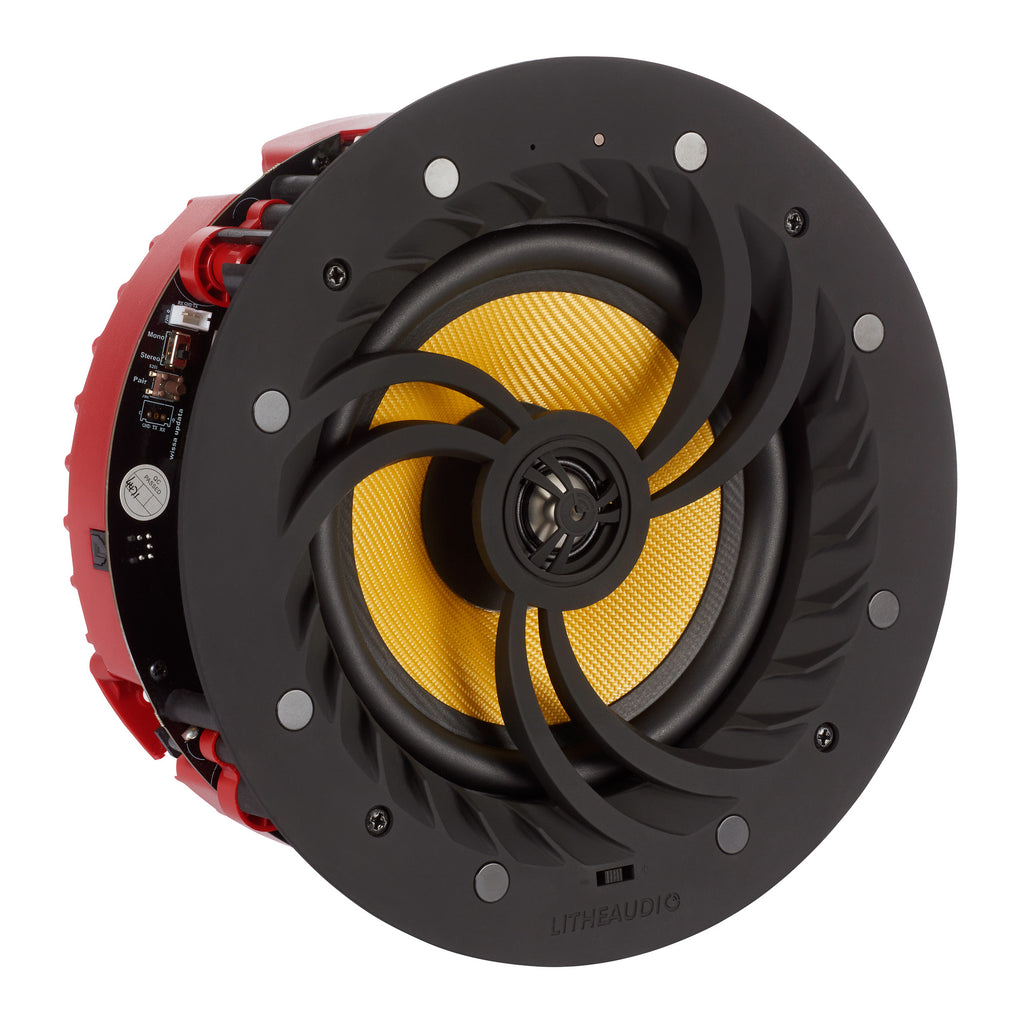

Pro Series Wi-Fi In-Ceiling Speaker (Single)
Lithe Audio's top-of-range active ceiling speaker, combining high-resolution audio with wireless and hardwired connectivity. Priced and sold individually.
Description
The ultimate in-ceiling active speaker
A 6.5" woven glass fibre woofer and 0.75" titanium tweeter are driven by a 60W RMS (2x 30W) Class D amplifier with 192kHz/24-bit audio. Power it via a lighting circuit, or a plug with exposed ends (sold separately).
Wi-Fi, AirPlay 2, Chromecast built-in, Spotify Connect, Bluetooth, optical input and Ethernet in/out cover wireless and wired installs. Optional bolt-ons add PoE power or WiSA wireless surround, and drivers are available for Control4, Nice/Elan, KNX and Loxone.
- All-in-one: amplifier and Wi-Fi built in, just add power
- Built-in AirPlay 2 and Google Chromecast
- Ethernet in/out and optical line input
- Connect up to 30 master speakers (30 zones)
- High-res audio, WiSA certified with optional bolt-on
- Optional PoE bolt-on
- Control4, Nice/Elan, KNX and Loxone drivers
Specifications
| Model | 06500 |
| Pack Type | Single |
| Audio | |
| Woofer | 6.5" Woven Glass Fiber Cone |
| Tweeter | 0.75" Titanium Cone |
| Mono/Stereo | Mono/Stereo Switch |
| RMS Power | 60W RMS (2x 30W) |
| Impedance | 8 Ohms nominal |
| Sound Quality | THD+N 0.009%, 55Hz-20kHz (+/- 3dB) |
| Sensitivity (1W/1m) | 90dB |
| Type | Class D (Digital) |
| Audio Compression | 192Khz/24bits |
| Connectivity | |
| Wi-Fi | Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac) |
| Apple AirPlay 2 | Apple AirPlay 2 certified |
| Google Chromecast | Google ChromeCast built-in certified |
| Spotify | Spotify connect certified |
| Bluetooth | Bluetooth |
| Optical | Line In (Optical), auto-detecting |
| Ethernet | Ethernet Connection In / Out |
| DLNA/uPnP | DLNA/uPnP connections |
| WiSA | WiSA with optional bolt-on |
| Control Drivers | Control4, Nice/Elan, KNX, Loxone Drivers |
| Power | |
| Power Input Supply | 100 - 240V, 50/60Hz / 2A |
| Transformer Output Supply | DC24V / 2.5A |
| Standby Power | 1.3W / 0.02A |
| Connected Power | 1.5W / 0.03A |
| Playing Music | 2.8W - 10.5W / 0.03A - 0.09A |
| In-Ceiling Power Cable | 46 inches / 1.16 M to transformer; 52 inches / 1.32 M inc transformer |
| Measurements | |
| Cut-out Diameter | 210mm |
| Dimensions (W x D) | 230 x 110 mm |
| Weight | 3kg (6.6 lbs) |
| General | |
| Operating Temperature | 0º to 40ºC (32º to 104ºF) |
| Storage Temperature | -20º to 70ºC (4º to 158ºF) |
| What's in the Box | Pro Series WiFi Ceiling Speaker, Power Supply, Cutting template, Instruction manual |
| Optional Bolt-Ons | Lithe Audio PoE Module Bolt-On, Lithe Audio Pro WiSA Bolt-On, Lithe Audio WiSA SoundSend Transmitter |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
