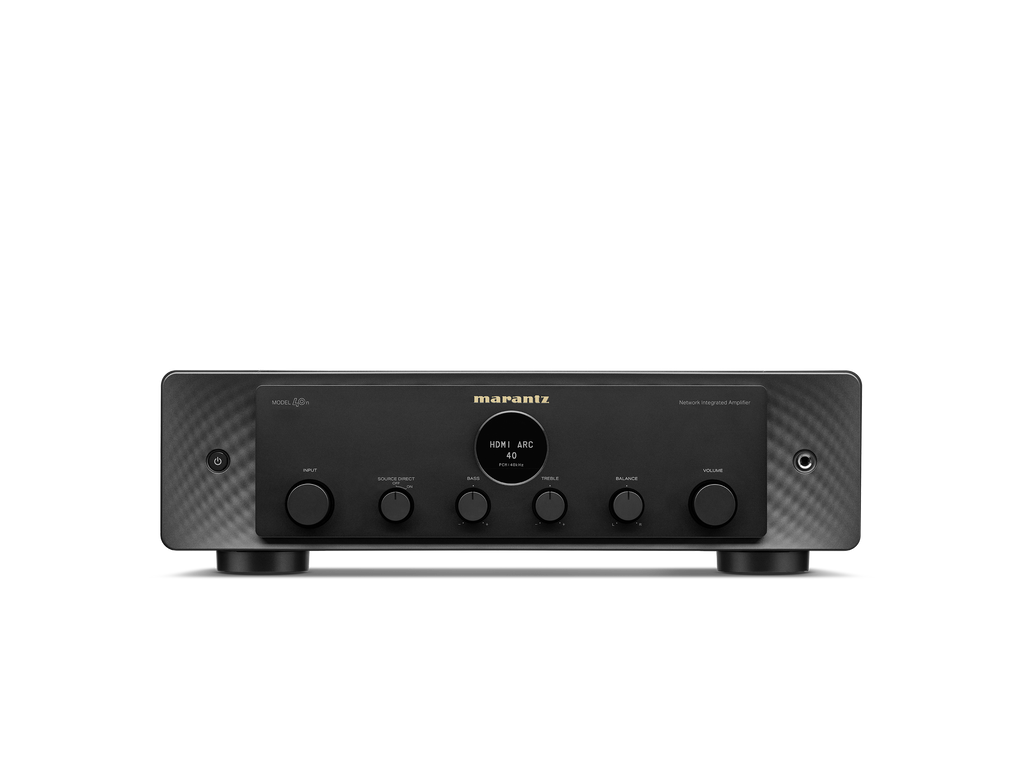

Marantz has reimagined the integrated amplifier for the digital age while preserving a luxurious analog feel and sound.
Specifications:
| Amplifier | |
| Rated Output Power | 70W + 70W (8ohm) 100W + 100W (4ohm) |
| Power Amplifier Circuit | HDAM-SA3 |
| Power Transformer | Double Shielded Toroidal |
| Volume | Electric |
| Bass / Treble / Mid / Balance Control | yes / yes / - / yes |
| Source Direct | yes |
| Frequency Response | 5Hz - 50kHz |
| Total Harmonic Distortion | 0.02% (20Hz - 20kHz, 8Ω) |
| Dumping Factor | 100 |
| Input Sensitivity: Phono input | 2 mV / 47 kohm |
| Input Sensitivity: CD/Line/Recorder | 220 mV / 20 kohm |
| Input Sensitivity: Power Amplifier input | 1.6 V / 15 kohm |
| SN Ratio | PHONO (MM): 87dBCD: 106dB |
| Subwoofer Pre-out Low Pass Filter | Selectable 40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz |
| Packaging Dimensions (W x H x D in inches) | 21" x 10" x 20.6" |
| Product Dimensions (W x H x D in inches) | 17.4" x 5.1" x 17" |
