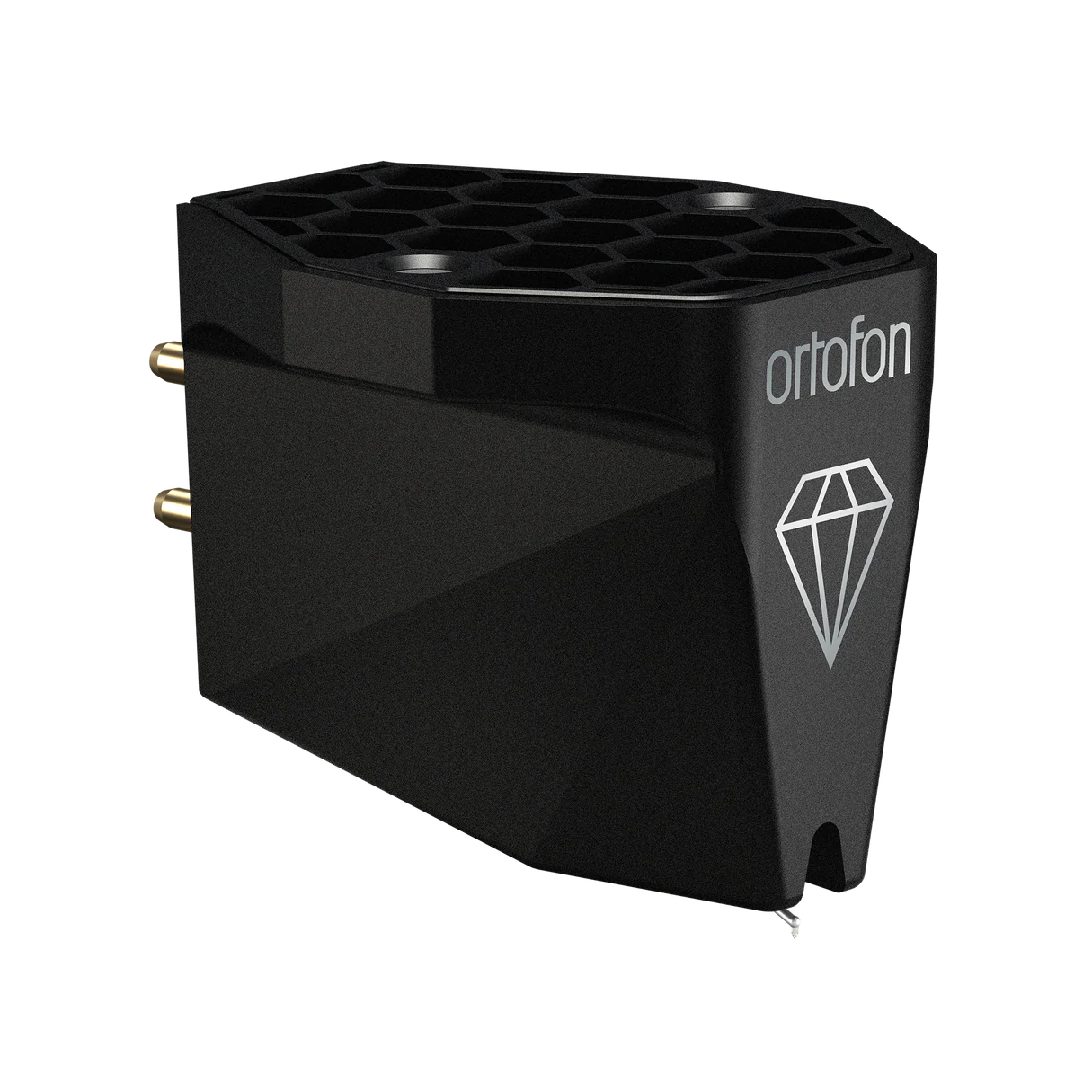

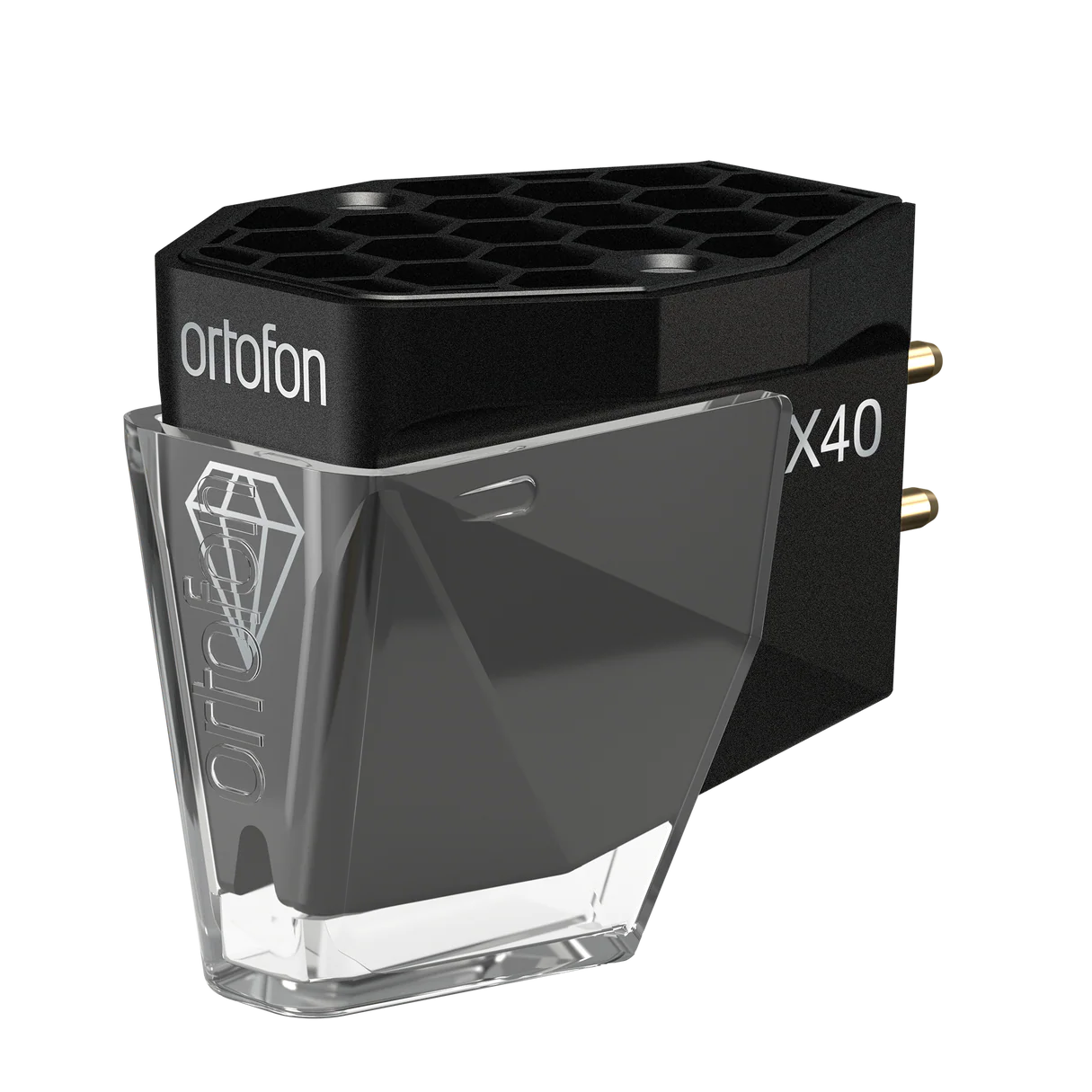

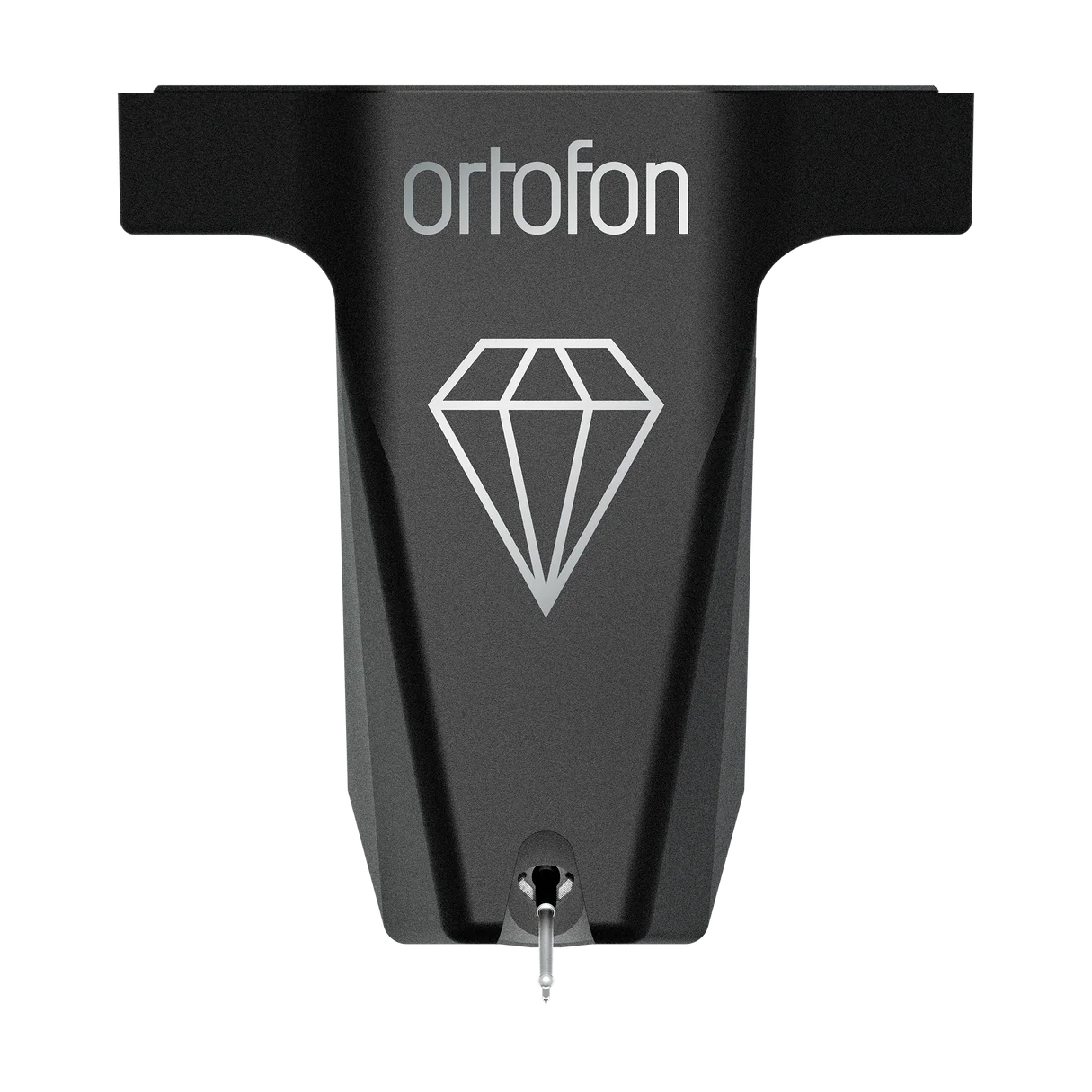

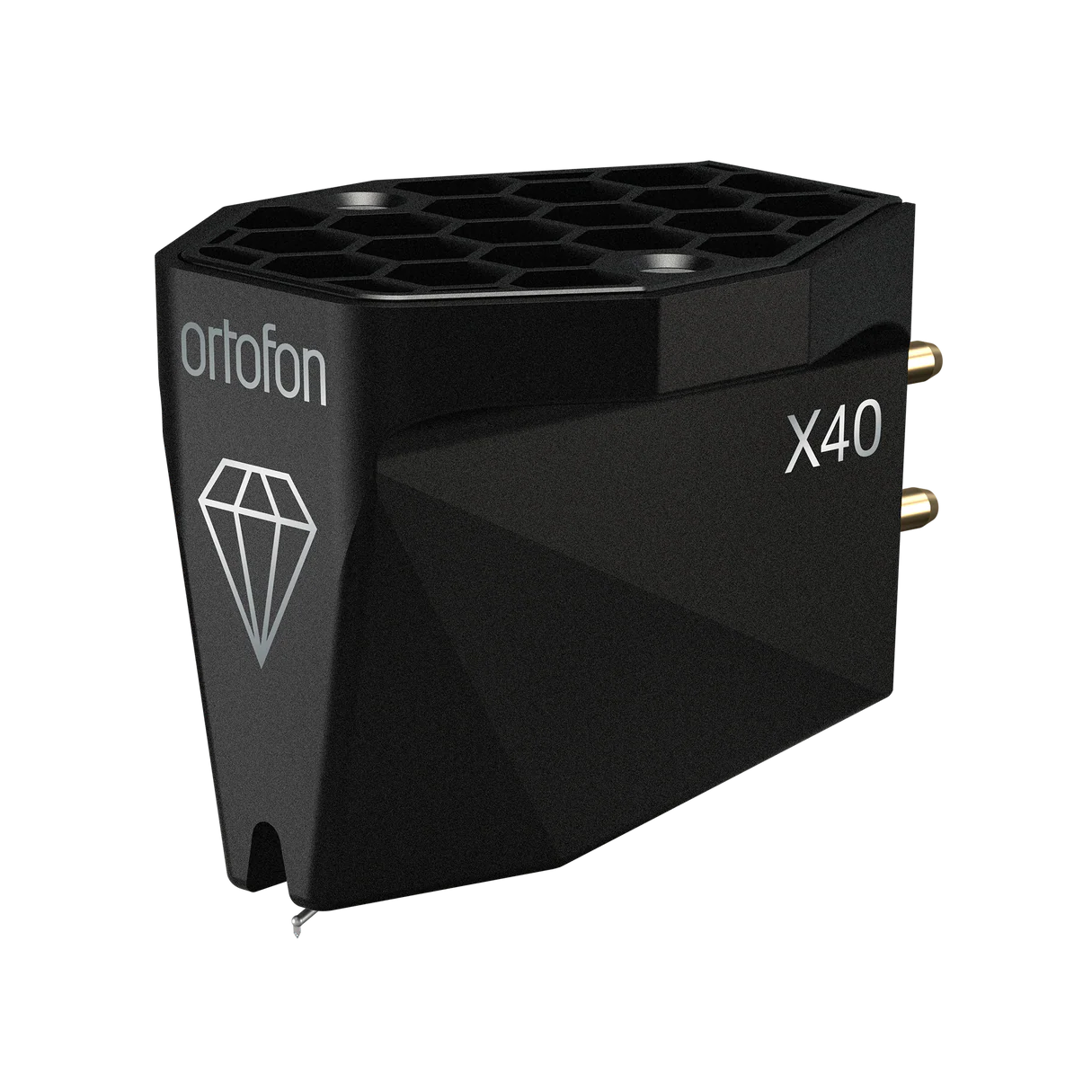

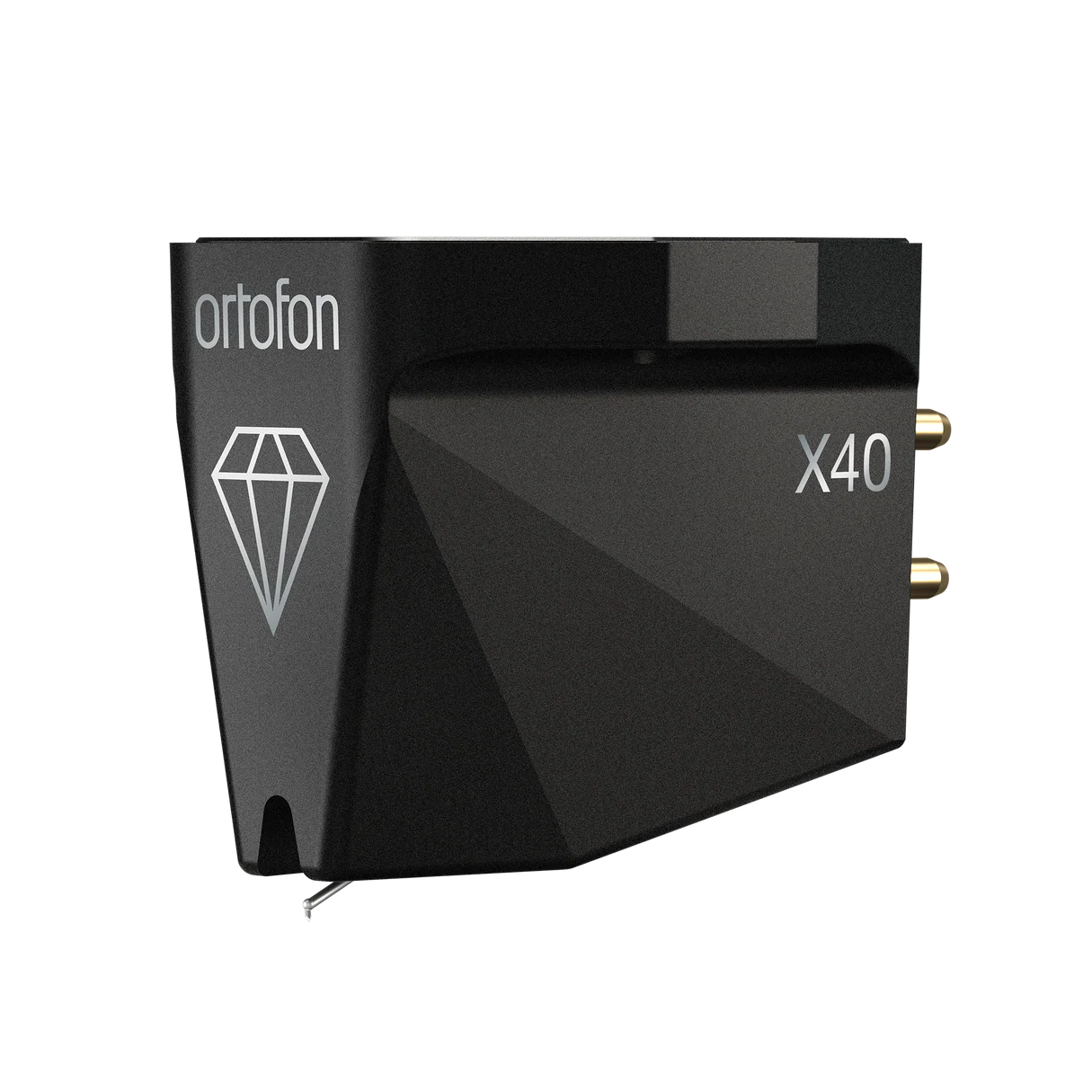

Ortofon MC X40 Low Output Moving Coil Cartridge
The Ortofon MC X40 is the flagship of the MC X series, combining the Nude Replicant 100 stylus and boron cantilever with a refined generator assembly that raises output voltage to 0.4mV. Designed for audiophiles who require maximum compatibility with a wide range of MC phono stages while retaining the speed, resolution, and authority of a true low output moving coil design, the MC X40 represents the pinnacle of Ortofon's MC X series engineering.
Specifications
| Specification | Detail |
|---|---|
| Model | MC X40 |
| Type | Low Output Moving Coil (MC) |
| Output Voltage | 0.4 mV (at 1kHz, 5cm/sec) |
| Channel Balance | < 1.5 dB (at 1kHz) |
| Channel Separation | > 28 dB (at 1kHz) |
| Frequency Response | 20 – 60,000 Hz |
| Tracking Ability | 80 µm (at 315Hz, recommended tracking force) |
| Compliance | 15 µm/mN (dynamic, lateral) |
| Stylus Type | Nude Replicant 100 |
| Stylus Tip Radius | r/R: 5/100 µm |
| Cantilever | Boron |
| Coil Wire | 6N Pure Copper |
| Coil Impedance | 7 Ω (at 1kHz) |
| Recommended Load Impedance | > 10 Ω |
| Recommended Tracking Force | 2.3 g (range: 2.0 – 2.5 g) |
| Vertical Tracking Angle | 20° |
| Internal Inductance | 65 µH |
| Weight | 9.5 g |
| Country of Origin | Denmark |
Key Features
Nude Replicant 100 Stylus on Boron Cantilever
The Replicant 100 is Ortofon's proprietary ultra-fine line stylus profile with a tip radius of 5/100 µm. This extremely narrow contact patch traces the finest groove modulations with minimal distortion, retrieving high-frequency detail and inner-groove information that conventional elliptical or line-contact styli cannot access. Mounted on a rigid, low-mass boron cantilever, transient response is immediate and precise.
Highest Output in the MC X Series at 0.4mV
The MC X40 raises output voltage to 0.4mV — the highest in the MC X series — offering the broadest compatibility with MC phono stages and step-up transformers. This makes it an ideal choice for systems where gain headroom is a consideration, without any compromise to the speed and resolution of a true low output moving coil design.
6N Pure Copper Coil at 7Ω Impedance
Ultra-pure 6N (99.9999%) copper coil wire is wound to 7Ω impedance, with an internal inductance of 65µH. The refined generator assembly delivers exceptional signal purity, dynamic range, and channel separation from even the most demanding programme material.
Low Output Moving Coil Design
As a low output MC cartridge, the MC X40 requires a dedicated MC phono stage or step-up transformer. The reward is a more direct signal path — greater transient speed, lower distortion, and a more lifelike, three-dimensional soundstage compared to moving magnet designs.
Extended Frequency Response to 60kHz
With a frequency response extending to 60,000Hz, the MC X40 resolves the full bandwidth of high-resolution analogue content, faithfully retrieving every harmonic overtone and spatial cue from the groove.
