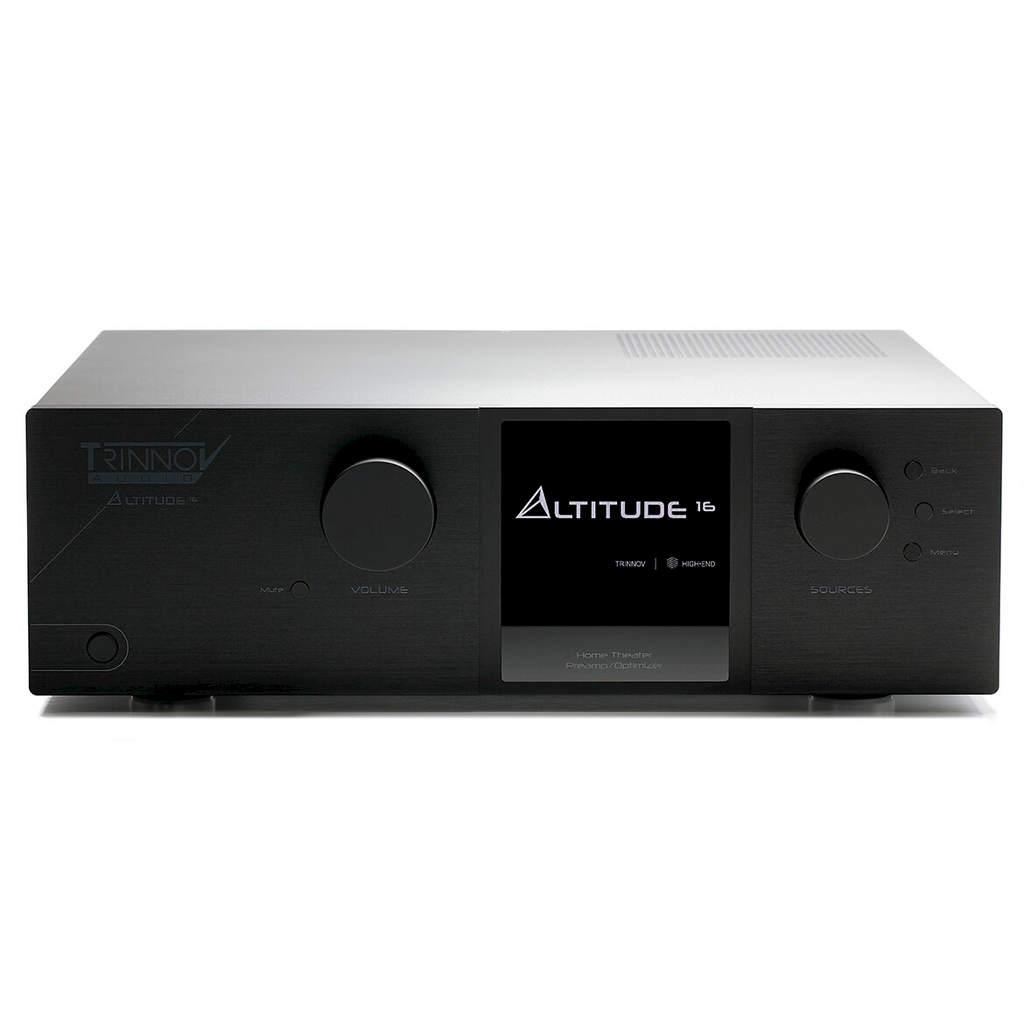

    Trinnov Altitude 16 AV PreAmplifier

    R 437,000.00

      Trinnov Altitude 16 AV PreAmplifier

      The groundbreaking Altitude32 processor set the bar high -- and we didn’t lower it for the Altitude16. Delivering the same processing capabilities and sound quality as the Altitude32 processor, the Altitude16 makes Trinnov’s best-in-class performance accessible to a wider audience who's immersive audio system requirements will not exceed 20 channels.

      Equipped with Dolby Atmos, Auro-3D, and DTS:X Pro immersive audio decoders, the Altitude16 renders up to 20 discrete channels of information, natively processes high-resolution 24 bit / 96K audio, enables up to four-way active crossovers and presents no limitations in terms of Atmos and DTS:X channel assignments or subwoofer outputs.

      UNIQUE DECODING AND RENDERING

      Dolby Atmos

      The Altitude16 joins the Altitude32 as the only AV Processors on the market capable of decoding and rendering Dolby Atmos Home content with any 20-channel speaker layout.

      When it comes to channel count, the devil is in the details when it matters which channels are supported. Within its 20-channel capability, the Altitude16 supports any speaker layout, including multiple side surround speakers and high numbers of subwoofers.

      DTS:X Pro

      In 2019, Trinnov worked closely with DTS to introduce DTS:X Pro to the consumer market.

      Altitude owners enjoyed this major upgrade a year before our competitors could offer it. It benefits not only native DTS:X playback, but also the Neural:X upmixer, which greatly improves immersive playback of traditional soundtracks, maximizing speaker usage and listening envelopment.

      Auro-3D

      The founders of Trinnov and Auro Technologies know each other well, having been at the forefront of immersive sound research and development dating back to the early 2000s.

      Auro-3D, up to 13.1 channel configuration has been available on the Altitude32 since 2015. The Auro-Matic upmixer, highly popular among Altitude owners for music playback is also supported for all inputs.



      +4 CHANNELS

      This feature increases the capacity of the processor to a total of 20 discrete channel decoding and Optimization.

      Combining the 16 analog outputs and 2x S/PDIF outputs of the processor, Trinnov unlocked the full potential of the Altitude16.

      This update comes free of charge to all Altitude16 owners. By adding S/PDIF / Analog converters to their system, Trinnov customers can add extra subwoofers or channels to their system to increase its performance.



      Specifications:

      OBJECT BASED DECODING
      Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
      Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
      DTS: X® Pro: Up to 20 discrete channels
      Speaker Layouts support: All
      IMAX Enhanced: Yes
      HDMI CONNECTIVITY
      Output 1: HDMI 2.0 / HDCP 2.2
      Output 2: HDMI 2.0 / HDCP 2.2
      Inputs: 8
      Maximum Resolution: 4K UHD on all ins / outs
      Maximum Bandwidth: 18Gbps on all inputs
      Frame rates supported: 24/25/30/50/60 fps (UHD) 120 fps (HD)
      ARC / eARC: Available on Output 1
      4K to 1080 Downscaling: Available on Output 1
      OSD: Volume information displayed on-screen
      DIGITAL AUDIO CONNECTIVITY
      S/PDIF Inputs: x4 (2 optical, 2 coaxial)
      S/PDIF Outputs: x2 (1 optical, 1 coaxial)
      +4 Outputs: By combining Analog and S/PDIF outputs
      Audio Network: Dual ports (for future use)
      ANALOGUE AUDIO CONNECTIVITY
      Microphone input: 1x 5 Pin XLR for 3D Microphone
      Balanced inputs: 1x Stereo XLR
      Unbalanced inputs: 1x Stereo RCA
      Balanced outputs: 16x XLR
      Input Impedance: 20k Ohms / 10k Ohms
      AUDIO PROCESSING
      Data precision: 64 bits, floating point
      Max Sampling Rate: Native, up to 96kHz
      HARDWARE
      Processor: Intel multi core hyper threaded
      ADC Resolution / Sampling Rate: 24 bits/96 kHz
      DAC Resolution / Sampling Rate: 24 bits/192 kHz
      A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
      D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
      Reference Level: +18dBu @ 0dBFS (Balanced)
      Clock / Jitter: attenuation > 50 dB above 100Hz
      Cooling system: Custom heat sinks + additional silent fans
      Safety Components: AntiPop relays on each output
      POWER SUPPLY
      Power requirement: 100 - 240v (auto selecting)
      Power consumption: 76W Max
      Thermal conversion: 260 BTU/h Max
      Mains fuse: 2x 1A slow blow
      Internal PSUs: Separated supplies for Audio and Processing
      WEIGHT & DIMENSIONS
      Dimensions (W x H x D) mm: 438 x 139 x 430
      Dimensions (W x H x D) inches: 17 1/4" x 5 1/2" x 17 15/16"
      Shipping dimensions (L x H x P) cm: 74 x 59 x 30
      Weight: 11.30kg / 24.9 lbs
      Shipping weight / volume: 18.2kg / 0.131 M3
      Rackmounting: 3U - Rack Ears Included
      WARRANTY
      Standard Warranty: 5 year
      Transferable: Yes
