The MC-ONE Special is a high-quality, handbuilt moving coil cartridge with improved resolution capabilities and output voltage. It has a production time of about two weeks and comes with a range of specifications, including stylus shape, frequency range, tracking force, and recommended load impedance.
DESCRIPTION:

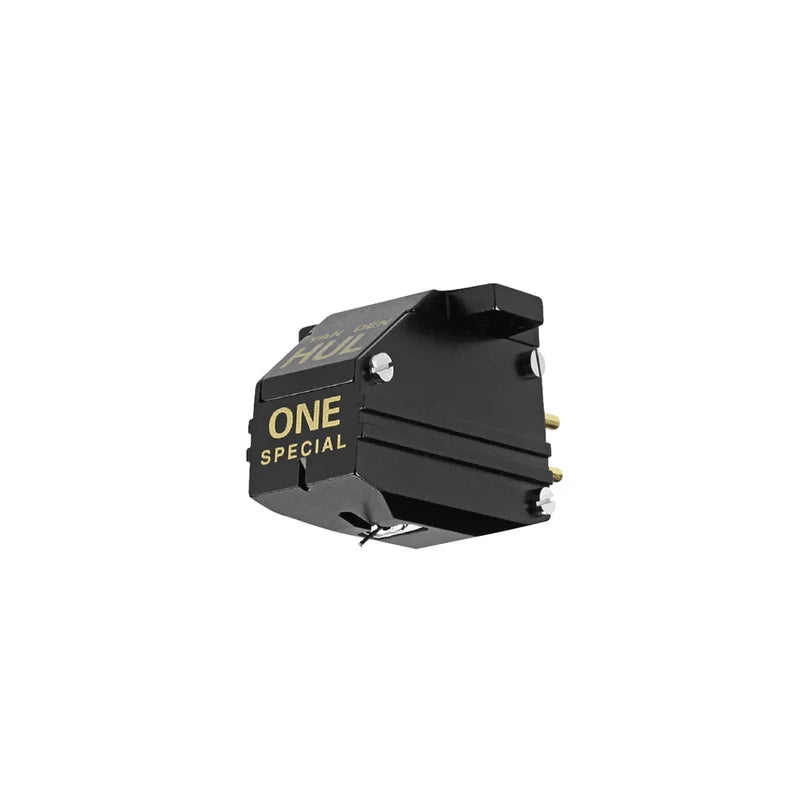

The MC-ONE Special from Van Den Hul is a custom handbuilt moving coil cartridge; Special selected version of the MC–10 Special with 0.65 mV/channel.
The designation “Special” in this cartridge’s name indicates important improvements over its previous version:
The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.
Production time:
The production time for a MC-ONE Special cartridge after ordering is about two weeks.
SPECIFICATIONS:
| Stylus Shape: | VDH - I |
| Stylus Radii: | 3 x 85 Micron |
| Frequency Range: | 5 - 50.000 Hz |
| Tracking Force: | 13.5 - 15.0 mN |
| Static Compliance: | 28 Micron/mN |
| Tracking Ability at 15mN at 315Hz: | 70 - 80 Micron |
| Output Voltage at 1 kHz at 5.7 cm/s eff.: | 0.65 mV RMS |
| Channel Unbalance: | < 0.5 dB |
| Channel Separation at 1kHz / 10kHz: | > 35 / > 30 dB |
| Equivalent Stylus Tip Mass: | 0.35 Milligram |
| System Weight: | 8.2 Gram |
| Vertical Tracking Angle : | 22 Degrees |
| Load Capacitance: | non critical |
| Recommended Load Impedance: | 200 Ohm |
| Recommended Eff Tone arm Mass: | 8 - 12 Gram |
| Moving Coil Resistance per channel: | 9 Ohm +/- 10% |
