The Frog Gold MC Cartridge is a high-quality, handbuilt moving coil audiophile cartridge with a frequency range of 5-55,000 Hz and an output voltage of 0.65 mV/channel. It has a production time of about two weeks and is recommended for use with tone arms weighing between 6-10 grams.
DESCRIPTION:

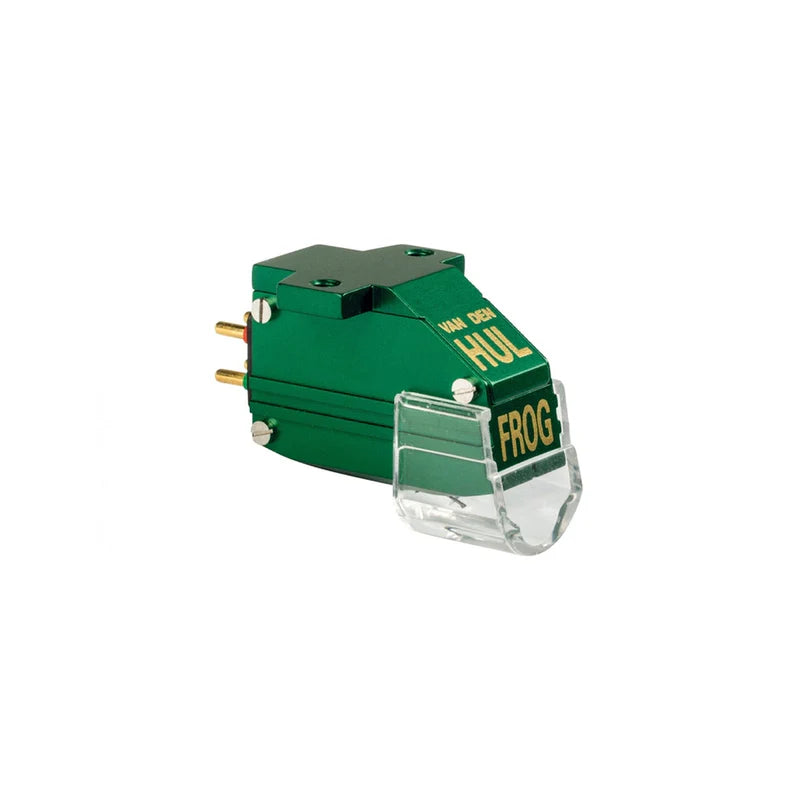

The Frog Gold is a custom handbuilt moving coil audiophile cartridge with the coil of a GRASSHOPPER III and the frontpole and suspension of the GRASSHOPPER IV: the best cartridge available for its price.
The Frog Gold MC Cartridge - Output 0.65 mV/channel, matched crystal gold-wire coils and extra magnet modification.
Production time:
The production time for The Frog cartridge after ordering is about two weeks.
SPECIFICATIONS:
| Stylus Shape: | VDH - IS |
| Stylus Radii: | 2 x 85 Micron |
| Frequency Range: | 5 - 55.000 Hz |
| Tracking Force: | 13.5 - 16 mN |
| Static Compliance: | 35 Micron/mN |
| Tracking Ability at 15mN at 315Hz: | 70 - 80 Micron |
| Output Voltage at 1 kHz at 5.7 cm/s eff.: | 0.65 mV RMS |
| Channel Unbalance: | < 0.3 dB |
| Channel Separation at 1kHz / 10kHz: | > 35 / > 30 dB |
| Equivalent Stylus Tip Mass: | 0.32 Milligram |
| System Weight: | 8.2 Gram |
| Vertical Tracking Angle : | 22 Degrees |
| Load Capacitance: | non critical |
| Recommended Load Impedance: | 500 (> 200) Ohm |
| Recommended Eff Tone arm Mass: | 6 - 10 Gram |
| Moving Coil Resistance per channel: | 16 Ohm +/- 10% |
