    Van Den Hul The MINISUB Hybrid - Reel per metre

    R 195.00

      Van Den Hul The MINISUB Hybrid - Reel per metre

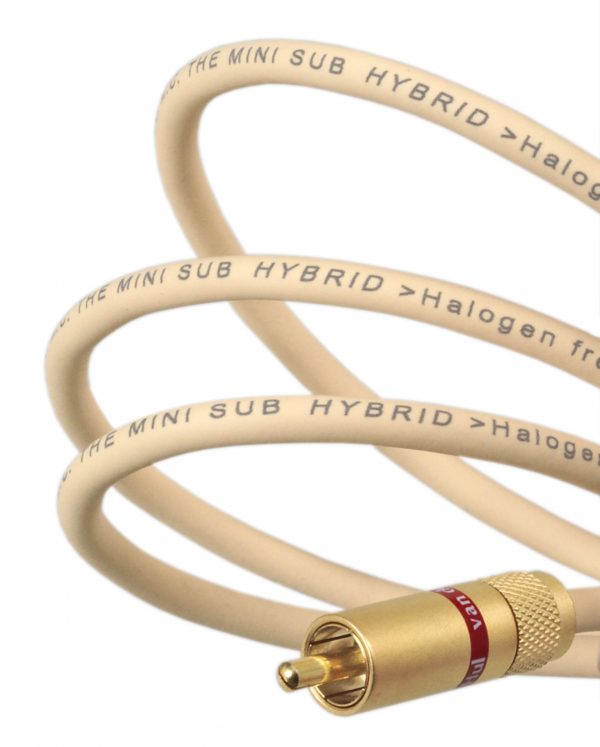

      The MINISUB Hybrid typically has been designed as an active subwoofer cable. It is extremely flexible, and has an attractive cream colored jacket that blends easy in any interior, making it very suitable for longer length subwoofer cable application and all interconnections where there is need for a very flexible, price-efficient cable.

      The design combination of a superior transmission quality, a very low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.

      The balanced construction, is made with two centre conductors each having 12 x 0.15 mm. strands. (AWG 24 each, respectively in red and black foamed polypropylene insulation).

      The conductor material is large crystal OFC with a dense silver coating.

      The external 5.0 mm. diameter jacket is made of HULLIFLEX ®, a material with superior properties compared to e.g. PVC; HULLIFLEX ® gives The MINISUB HYBRID a very long life span without any ageing effects. The jacket color is cream.


      Specifications:

      THE MINISUB HYBRID (HALOGEN FREE)
      material Hybrid
      product category interconnect – Balanced, Unbalanced, Analogue, Entry-level
      product category speaker cable – Single-lead, Entry-level
      cable type Screened twin core (Balanced)
      conductor material Large Crystal OFC with a dense Silver coating
      design purpose Active Subwoofer cable / Stereo Interconnect
      eff conductor Cores: 0.212 mm2 / Cores: ~AWG 24 / Cores: 12; Screen: 144
      external diameter 5.0 mm.
      jacket colors Cream
      resistance Cores: 8.5 Ohm/100 m.; Screen: 1.7 Ohm/100 m.
      capacitance Core-core: 44 pF/m
      insulation
      Cores: Polypropylene foam; Jacket: HULLIFLEX ® / 300 Vrms min.

      connector types
      Neutrik XLR; Neutrik 1/4" (6.3 mm.)Jack/Phone plug; Our RCA type C – 5.5; Custom mountable on ordered lengths.

      standard sales units
      200m reels Stereo pairs in: 0.8, 1.0, 1.2 and 1.5 m. lengths. As single in 1.5, 2.0, 3.0, 4.0, 5.0, 7.5 and 10.0 m. lengths. Other lengths: please consult your van den Hul dealer or the van den Hul distributor in your country.

      remarks
      RCA connector terminated units are equipped with a ground-end marking sticker.
