Vivid Audio Moya M1
PLEASE CONTACT US FOR PRICING ON BESPOKE COLOURS
The Moya M1 was born of circumstance. Quarantined in a hotel room for 10 days by the global pandemic, Laurence Dickie began to sketch out an idea for a speaker that could do it all.
Physically, that concept would evolve many times through the R&D phase but the vision remained unchanged: the non plus ultra of loudspeakers, able to handle anything with aplomb. A loudspeaker so imbued with power and authority, particularly from the lower frequencies, that it could deliver any and all types of music with effortless grace.
As the Vivid Audio team went into test phase, the design of the Moya began to take shape. An imposing stack of bass drivers became the dominant feature of the curvaceous design. Early results reaffirmed the observation that an extended low frequency range actually helps with the overall perspective of the entire frequency range.
Of course, a loudspeaker is much more than just the bass, but the low frequency section does play an outsized role. Most importantly, it sets the system efficiency and, since it is relatively straightforward to create high efficiency mid-band drivers, these have to be attenuated back to the level set by the bass.
PUSHING THE ENVELOPE“In most loudspeakers, the bass section determines performance, as far as the laws of physics will allow. A cone moving this far at this frequency will supply so many dBs and no more. The length of the linear electromagnetic ‘push’ is set by the length of the voice coil and magnetic gap. Not far behind is the suspension design which eventually pulls tight and stops further movement. Therefore, to increase the volume of air being moved, you must increase the cone area. Every doubling in cone area creates three more dBs, or, for the same level, a halving of the cone excursion. With its 45mm magnetic gap, the C225 driver is no slouch but reducing the excursion by a factor of eight through the use of eight drivers means that they’re just ticking over while you enjoy a massive auditory slam.” |
 |
POWER IS NOTHING WITHOUT CONTROL
Opening the throttle of a powerful car as you go into a racetrack curve; hitting the high notes in a trumpet solo; the muscular thrust skyward of a world-class ballerina. All need raw power, but every application of power requires finesse too. Sometimes, measuring the smallest things entails the largest machines.
Without control and refinement, power is just an unruly force. Any large loudspeaker can play loud, but that’s only part of its purpose. The listener must also be able to pick out the subtlest detail from the hullabaloo of an orchestral crescendo or hear an exclamation of appreciation in the midst of an explosive drum solo.
Moya M1 delivers this precision to the Nth degree, while also being able to reproduce rock concert levels of sound in your living room. From an organ symphony on a huge Cavaillé-Coll instrument to low-end bass from a 90s house anthem, the Moya M1 delivers audio thrills at every octave.
 |

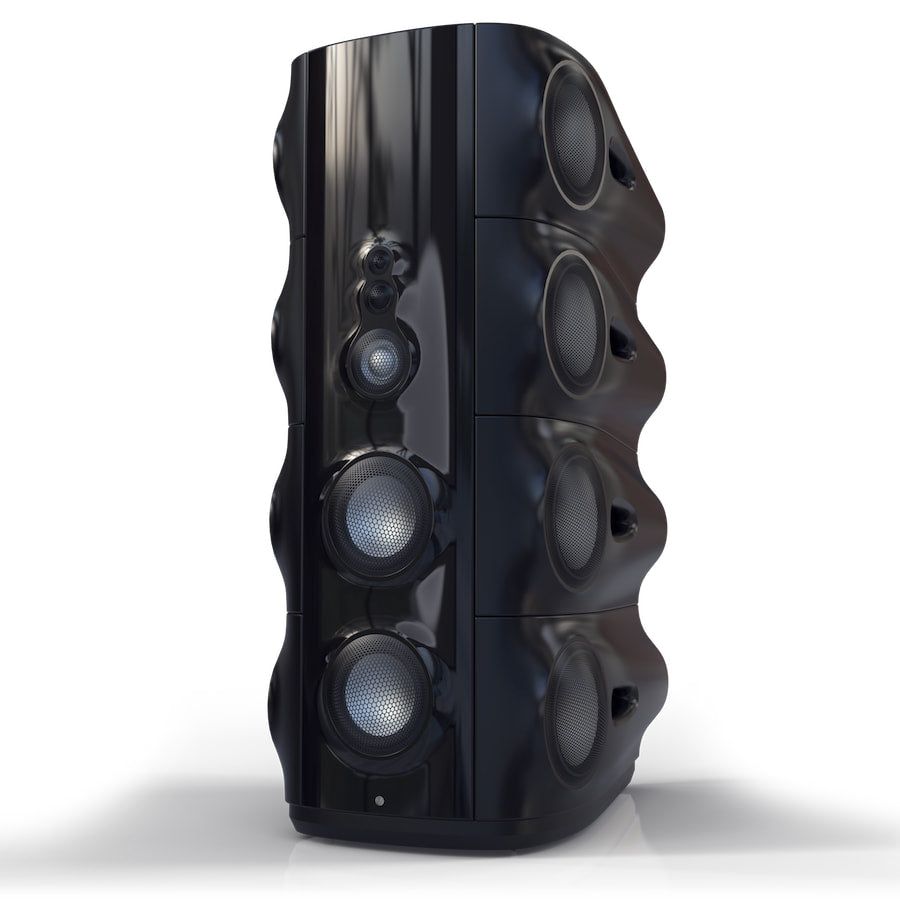

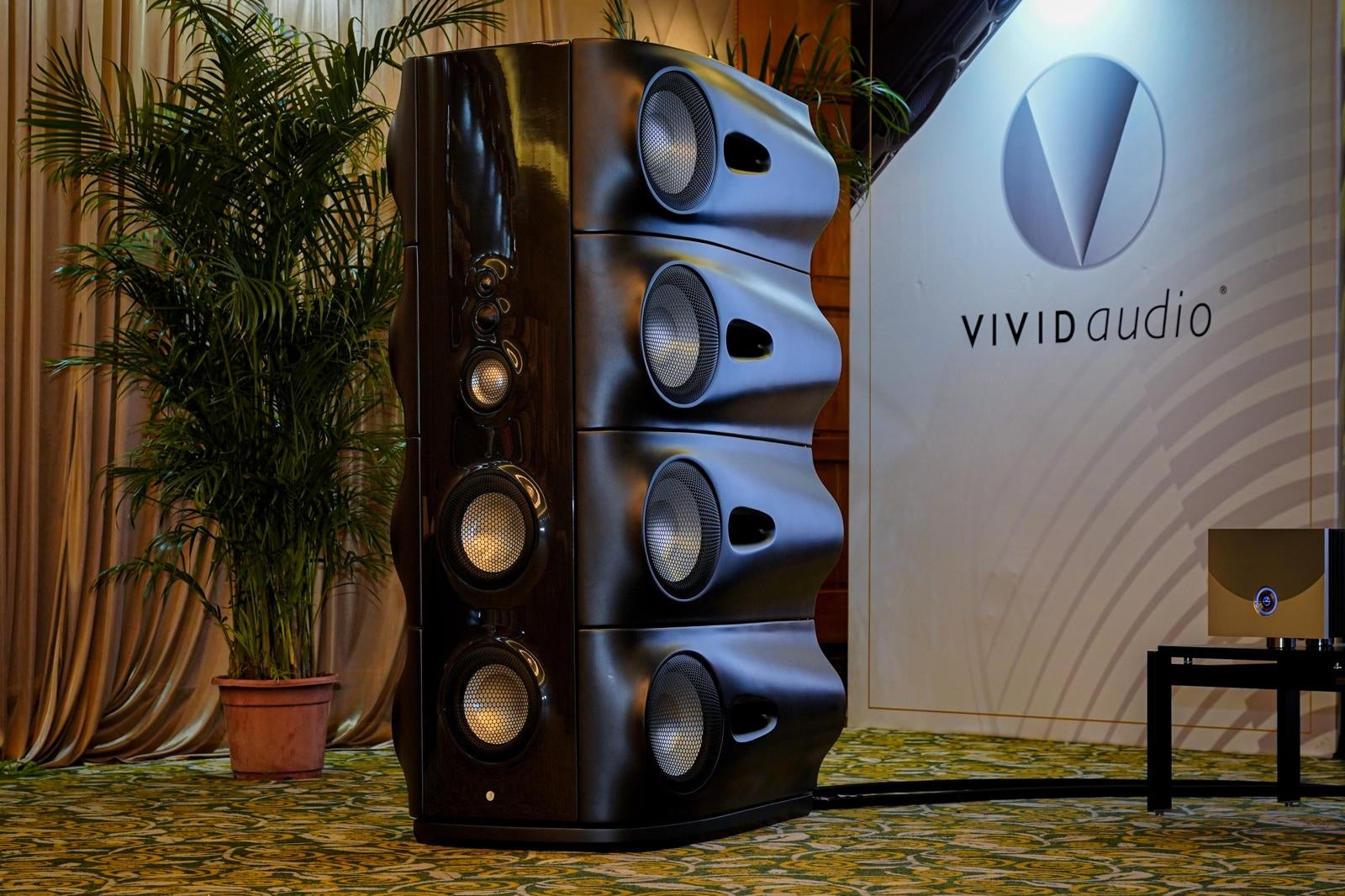

WHEN EIGHT IS MORE THAN ENOUGHA casual glance at the Moya M1 and one thing registers immediately: the eight imposing bass drivers. But why eight drivers? It all comes down to efficiency and power handling. Compared to the two C225s of our Giya G1 Spirit model, Moya features four times the driver complement, which equates to an extra 6db of efficiency. In Moya we chose to use some of that gain to push the low frequency extension below 20Hz. When the voice coil runs out of magnetic road it manifests in obvious distortion. But something less obvious is also happening. The power going into the coil also heats it up, causing resistance to rise and efficiency to drop – as much as 6dB if the coil gets up to 230°C. Now a subtle degradation of the loud passages creeps in. And a tired speaker creates a dull listening experience. Keeping a check on power compression calls for a large area of voice coil, hence a large diameter coil. Eight drivers, each with a 100mm voice coil, is the same as having 400mm voice coils on a pair of drivers. Even the most powerful 21 inch drivers have no more than a 150mm voice coil, let alone 400mm. |
MASTERING THE SEQUENCE
The next question was which driver to put next in the sequence. The C125-75 midrange, used in our G1S speaker, is a great driver but would be excursion limited down to 400Hz to keep up with the immense output of the lower frequency.
Alternatively, taking the eight bass drivers up to 400Hz would be pushing the limits of what was reasonable for such a large array. Clearly, another frequency band was needed to bridge the gap, necessitating a complex five-way crossover and the addition of a pair of C175 bass/mid drivers.
Using computer-aided network analysis and optimisation, in conjunction with ideally-behaved drivers, a seamless five-way dividing network was perfectly achievable.
Now the delicate balance of highs, lows and mids was perfectly harmonised – for an optimal experience that will reveal new details from your record collection at every listening session.
TWEETERS
MINING MATERIAL GAINS
Exotic tweeter dome materials appeared in the audio world as far back as the 1990s. Noting the trend, Vivid Audio weighed the choices and made a pivotal decision.
Blending the rigidity of carbon fibre with an aluminium dome crafted into a catenary shape, we achieved a measured response that rivalled the performance of rare and costly beryllium, while delivering subjective results that surpassed even diamond tweeters.
One key advantage of our reinforced aluminium dome over diamond lies in its lower mass. Creating a reliable diamond shell requires a 100-micron-thick layer deposit. When combined with diamond’s increased density over aluminium, it results in a moving mass three times greater than that of aluminium.
This leads to a significant reduction in efficiency – approximately 10dB lower! The subjective improvement derived from requiring only one-tenth of the power for the same sound pressure level should not be underestimated.
It is fundamental to the effortless sound reproduction for which Vivid Audio loudspeakers are now renowned.
A LAYER OF BLACK MAGICWhile the outstanding performance of our D26 tweeter is undisputed, we never cease trying to elevate tweeter performance to new levels. This requires constant evaluation of new materials and coatings. The breakthrough came with a material called Diamond-like Coating, or DLC. With a modulus nearly equal to crystalline diamond, it is apply to the surface of aluminium domes at a temperature well below melting point. Increased stiffness is always the primary goal but enhanced damping of break-up modes is an added bonus. The contrasting properties between the DLC and the aluminium substrate heightened shear losses and significantly dampened the ‘Q’ of the break-up. Both the D50 upper mid-frequency driver and D26 high-frequency driver benefit from the DLC, but the enhancements to the new series of drivers extends further. While the magnets used in our standard drivers have an energy content of 35MGOe, material with an energy of 52MGOe is now possible. Efficiency gains at this extreme end of the driver spectrum are hard-earned and the 2dB increase in output is important. Aesthetically, the DLC adds a shiny black to an already eye-catching tweeter – and more than a little black magic to the sound. |
 |
Specifications |
Vivid Audio MOYA M1 |
|---|---|
| Configuration | 5-way, 13 driver system |
| Cabinet material | Carbon-reinforced balsa-cored vacuum-infused sandwich composite |
| Standard colours | Piano Black, Lexus Pearl White, Oyster Grey Matte |
| Bespoke colours | PPG automotive colours vailable on request |
| Drive units | High Frequency: D26DLC – 26 mm Diamond-like Coated alloy dome unit with Tapered Tube Loading. Ultra-high flux radial magnet system |
| Upper Mid Frequency: D50DLC – 50 mm Diamond-like Coated alloy dome unit with Tapered Tube Loading. Copper shielded radial magnet system | |
| Mid Frequency: C100SCu – 100mm carbon fibre reinforced alloy cone driver with Tapered Tube Loading. Copper shielded rare-earth radial magnet system | |
| Lower Mid Frequency: 2 x C175-76 – 175 mm carbon fibre reinforced diaphragm with 76 mm voice coil with rare-earth radial magnet system. Tapered Tube Loading | |
| Low Frequency: 8 x C225-100H – 225 mm alloy diaphragm with 100mm voice coil in 45 mm gap rare-earth radial magnet system | |
| Bass loading | Exponentially Tapered Tube enhanced bass reflex |
| Sensitivity | 93dB/2.83V@1m |
| Nominal impedacnce (Ω) | 5 nominal, 2.5 minimum at 40 Hz |
| Frequency range (Hz) | -6dB points: 19 Hz – 42,000 Hz |
| First D26 Break Up mode: | > 50,000 Hz |
| Harmonic distortion (2nd and 3rd harmonics) |
< -60dB > 100 Hz |
| Cross over frequencies (Hz) | 125 Hz – 550 Hz – 1,700 Hz – 4,000 Hz |
| Power handling (music program) watts rms |
3,000W |
| Loudspeaker dimensions | 1,660 mm (H) x 660 mm (W) x 1,210 mm (D) |
| Net weight | 346 kg (each) |
| Shipping dimensions | – |
| Shipping weight | 1,084 kg |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
