Vogel's TVM 5845 ELITE Full-Motion+ TV Wall Mount
Taxes included.
Shipping calculated at checkout.
Standard delivery within 2–5 business days
Request Quote
Ask for a price, product details or a supply-and-install quote. We'll reply with the details for this exact product.

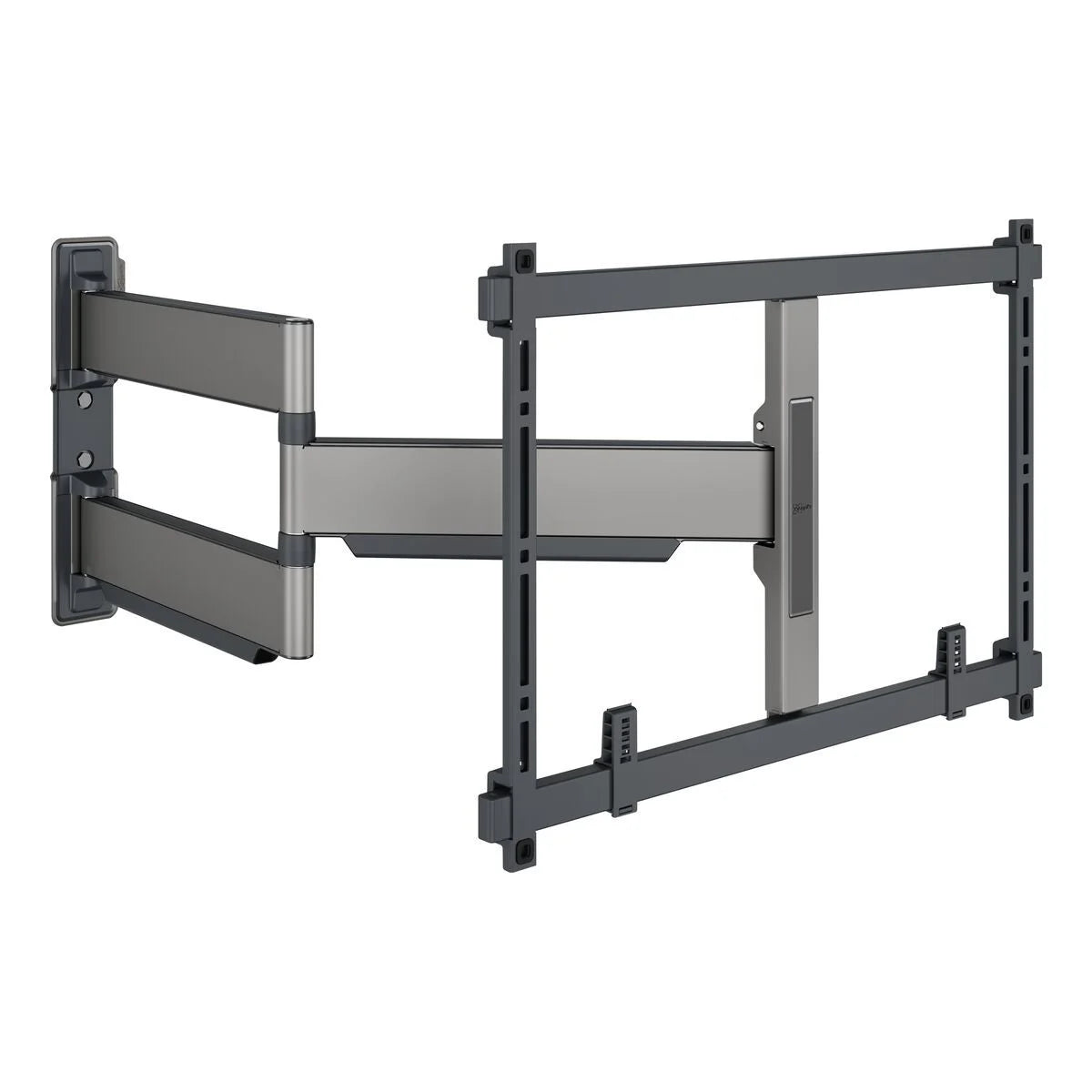

The Vogel's TVM 5845 ELITE Full-Motion+ is a premium full-motion TV wall mount engineered specifically for large, high-end displays from 55 to 100 inches. Ultra-slim at just 4 cm from the wall, it features 74 cm support arms for up to 180° of rotation and Vogel’s OneFinger™ Movement technology — letting you reposition your TV with a single touch. Designed for OLED and QLED TVs, it combines precision engineering with elegant cable concealment and a 15-year guarantee.
Key Features
- Ultra-slim profile — only 4 cm from the wall, ideal for large OLED/QLED TVs
- OneFinger™ Movement — effortlessly rotate your TV up to 90° left or right with one finger
- Full-motion up to 180° total rotation
- 2D-Leveling™ — precise horizontal and vertical leveling after installation
- CIS® Cable Inlay System — cables routed neatly through the support arms
- Integrated cable holders and cover plates conceal all connections
- Protective TV patches prevent scratching during installation
- TÜV certified and tested to 3× maximum weight capacity
- 15-year guarantee
- Free spirit level and DrillRight app included
Specifications
| Specification | Value |
|---|---|
| Product Series | ELITE |
| Product Category | Full-Motion TV Wall Mount |
| Compatible TV Sizes | 55” – 100” |
| Max. TV Weight | 55 kg |
| VESA Hole Patterns Supported | 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 300×300, 400×200, 400×300, 400×400, 500×200, 500×300, 500×400, 600×200, 600×300, 600×400 mm |
| Min. Distance to Wall | 40 mm |
| Max. Distance to Wall | 740 mm |
| Maximum Rotation | 180° full motion (90° left + 90° right) |
| Number of Pivot Points | 3 |
| Tilt | Not adjustable (by design — protects large displays) |
| Leveling | 2D-Leveling™ (horizontal and vertical) |
| Cable Management | CIS® Cable Inlay System, integrated cable holders, cover plates |
| Mount Dimensions (folded) | 740 × 130 × 40 mm |
| Mount Weight | 6.8 kg |
| Colour | Black |
| Certification | TÜV certified, tested to 3× max. weight capacity |
| Warranty | 15 years |
| EAN | 8712285354786 |
| MPN | TVM 5845 |
| In the Box | Wall mount, wall mounting kit with Fischer® DuoPower plugs, TV fasteners kit, spirit level, drilling template, Quick Installation Guide, DrillRight app (free download) |
Caring for your Speakers and Amplifiers
To Keep your equipment safe these are some best practices to note. Please be advised that this is only to reduce the risk of misuse and is not an exhaustive list.
Speakers
- Speaker terminals are marked red and black, ensure your amplifier to the speakers are wired on the same colours
- Ensure no loose speaker wire from the red touches a loose wire from the black as this will lead to a short circuit and damage either the speaker, the amplifier or both.
- Not all speakers are designed to play at max volume, kindly consider the pairing of your amplifier and speakers
- Speaker cabinets cannot be replaced please handle with care.
AV & Stereo Amplifiers
- If your amplifier has HDMI ports, ensure all devices are off before plugging in the HDMI cable
- Turn off the amplifier before swoping out or adding speaker cable
- Amplifiers generate heat, place them in a well ventilated space. if possible avoid having anything on top of the unit.
- adding a surge protector can assist with power dips which are likely to damage your devices. Isotek and Furman are industry standard.
- Dusty environments can sometimes lead to accumulation of dust in the electronic components that might affect heat regulation
